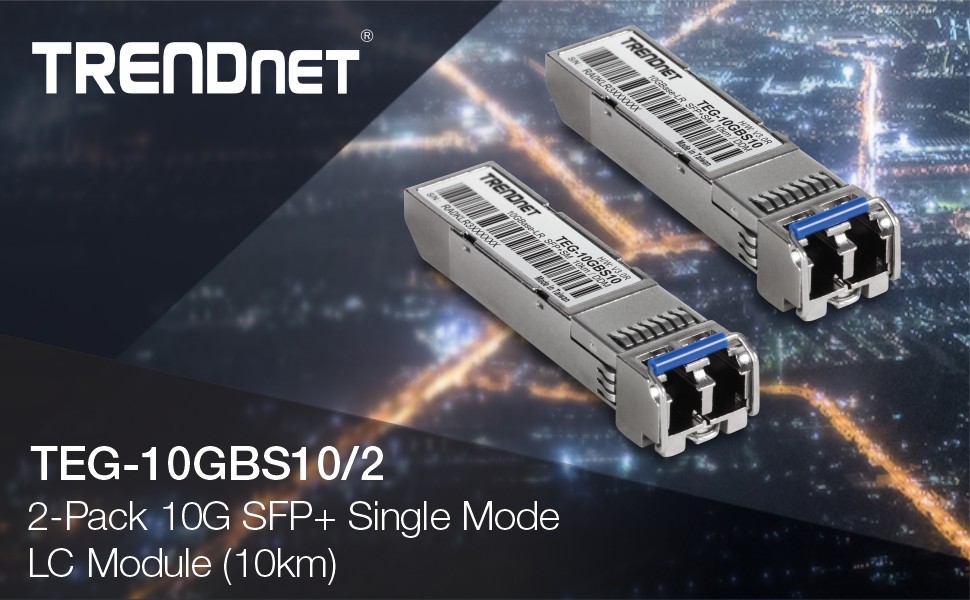

TRENDnet’s 2-Pack 10G SFP+ Single Mode LC Modules are compatible with standard SFP+ ports found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface, and supports high-speed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support reliable connections for long-distance network applications.

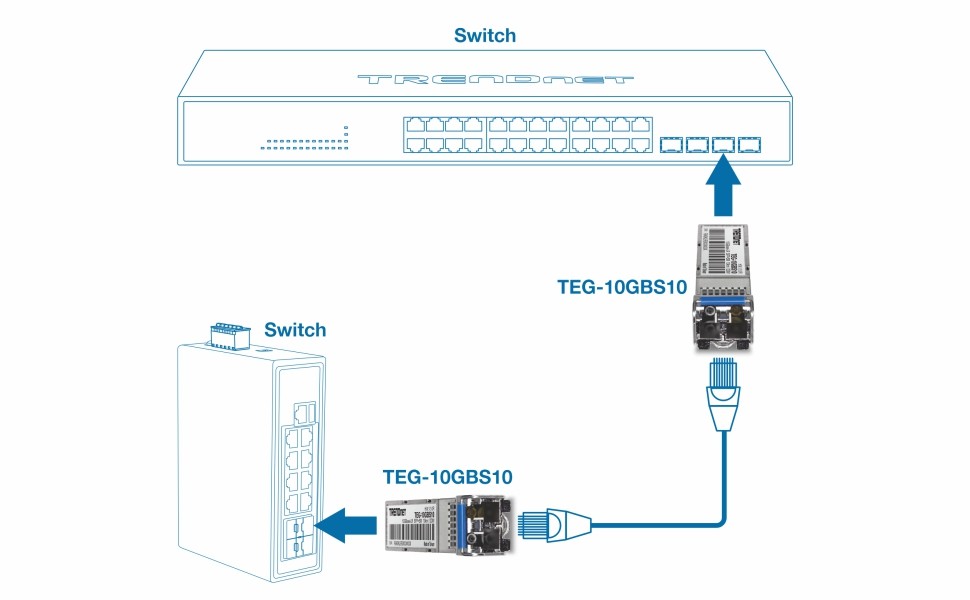

Fiber Applications

Long distance fiber networking for manufacturing, business parks, and school campus applications.

Distance

10G SFP+ transceivers span distances up to 10km (6.21 mi.) at 10G speeds.

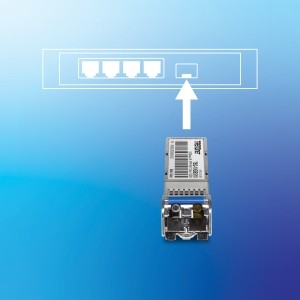

Compatibility

Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ port.

Distance

Single mode 10G SFP+ transceivers span distances up to 10km (6.21 mi.)

Interface

These single mode fiber SFP+ transceivers support LC-type duplex connectors

Wavelength

Compatible with 1310nm transmissions

10G Speeds

These SFP+ modules supports up to 10Gbps speeds

Hot-Pluggable SFP+

Hot-pluggable 10G SFP+ modules compatible with an MSA compliant SFP+ port

Operating Temperature

Feature an operating temperature range of 0°– 70° C (32° – 158° F)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ae 10GBASE-LR

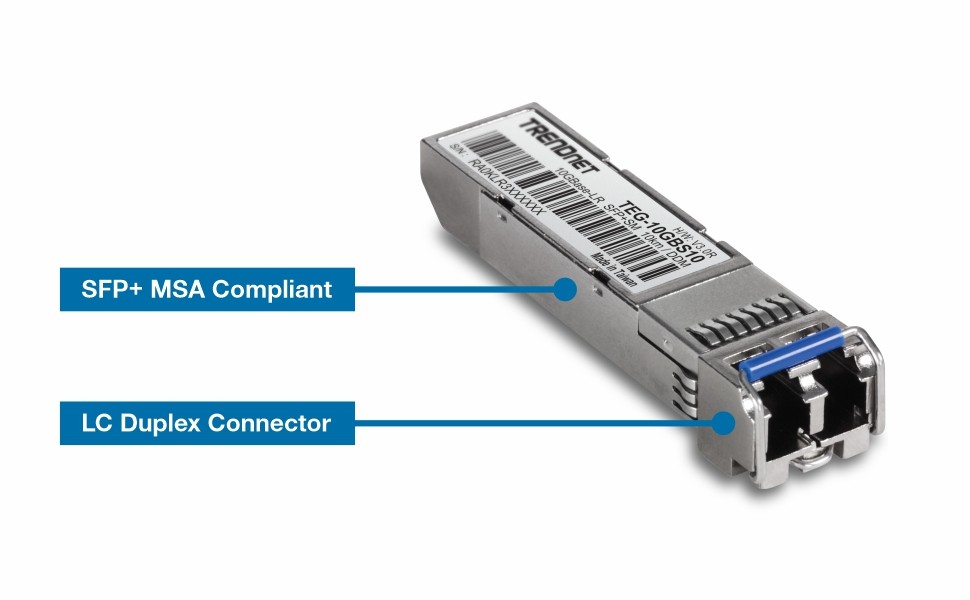

Device Interface	SFP+ MSA Compliant LC duplex connector
Data Transfer Rate	Up to 10.31Gbps
Wavelength	1310nm
Optical Output Power	-6.2 ~ 0.5 dBm
Distance	10km (6.2 mi.)
Special Features	Hot pluggable Metal enclosure DDM support
Sensitivity	-15 dBm
Power (per unit)	Max. Consumption: 0.8W
Operating Temperature	0° – 70° C (32° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (per unit)	58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight (per unit)	18g (0.6 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

2 x TEG-10GBS10

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
