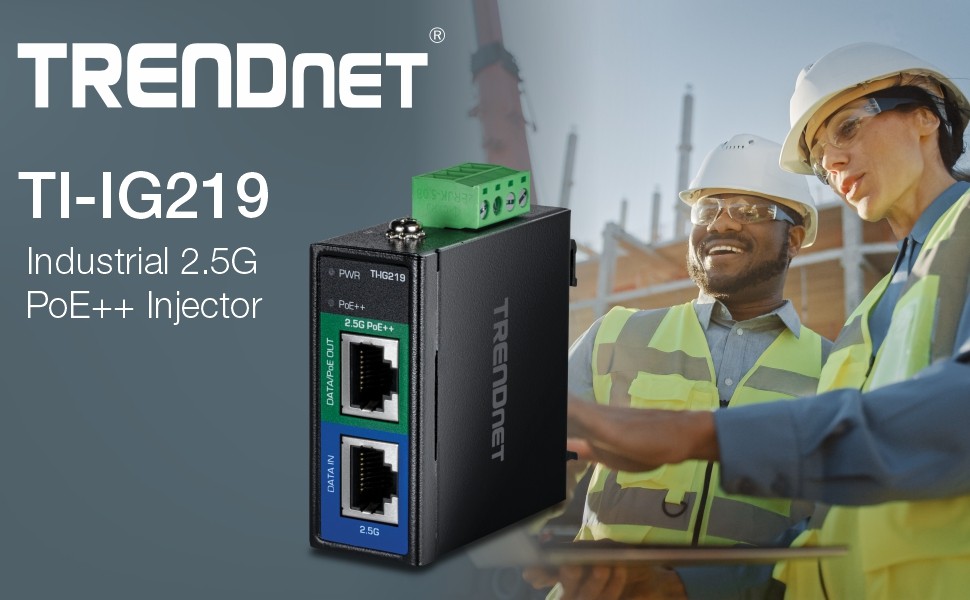

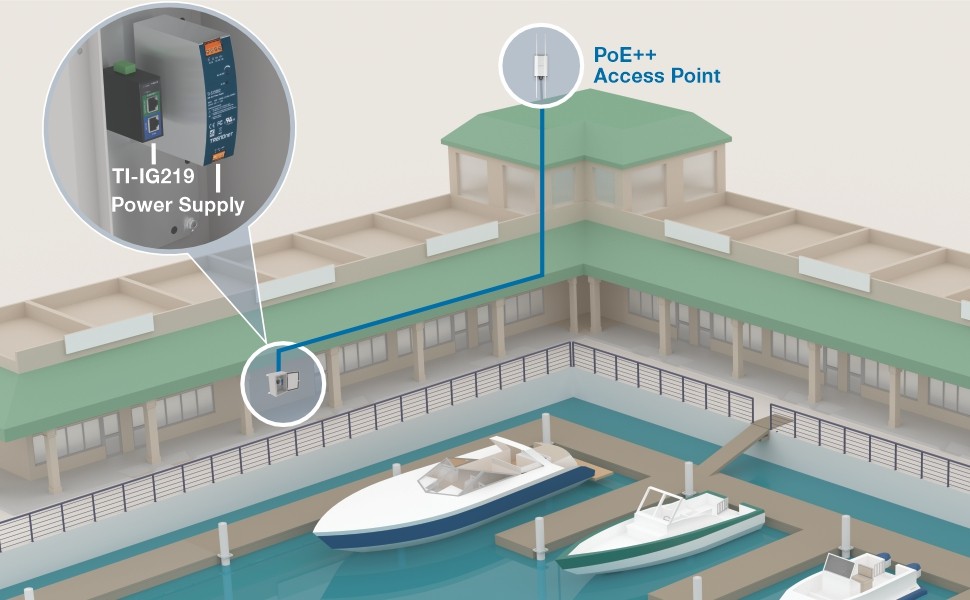

TRENDnet’s Industrial 2.5G PoE++ Injector, model TI-IG219, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2.5G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or PoE++ device. This multi-gig industrial PoE++ injector supplies up to 95W of power to a PoE device. The fanless design conveniently eliminates operating noise and lowers energy consumption. The 2.5G PoE++ injector is equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for harsh industrial environments.

PoE++

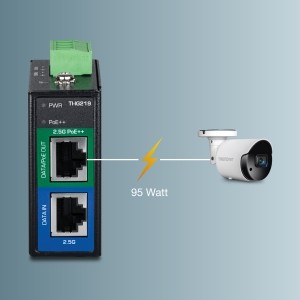

This multi-gig PoE++ injector supplies up to 95W of power to a PoE device.

2.5G Ports

Features a high-speed 2.5G port (data in) and a high-speed 2.5G PoE++ port (data + PoE out).

Industrial Design

IP50-rated metal enclosure with a high degree of vibration and shock resistance, and an extreme operating temperature range of -40° – 75° C (-40° – 167° F).

PoE++

This industrial 802.3bt PoE injector supplies up to 95W of power to PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

2.5G Ports

1 x 2.5G port (data in) and 1 x 2.5G PoE++ port (data + PoE out)

PoE Distance

Provides a PoE network connection up to 100m (328 ft.) away

LED Indicators

LED indicators on the industrial PoE injector conveys power and PoE connectivity

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the injector conveniently eliminates operating noise and lowers energy consumption

Housing Design

Compact and sturdy metal housing for installation flexibility

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz

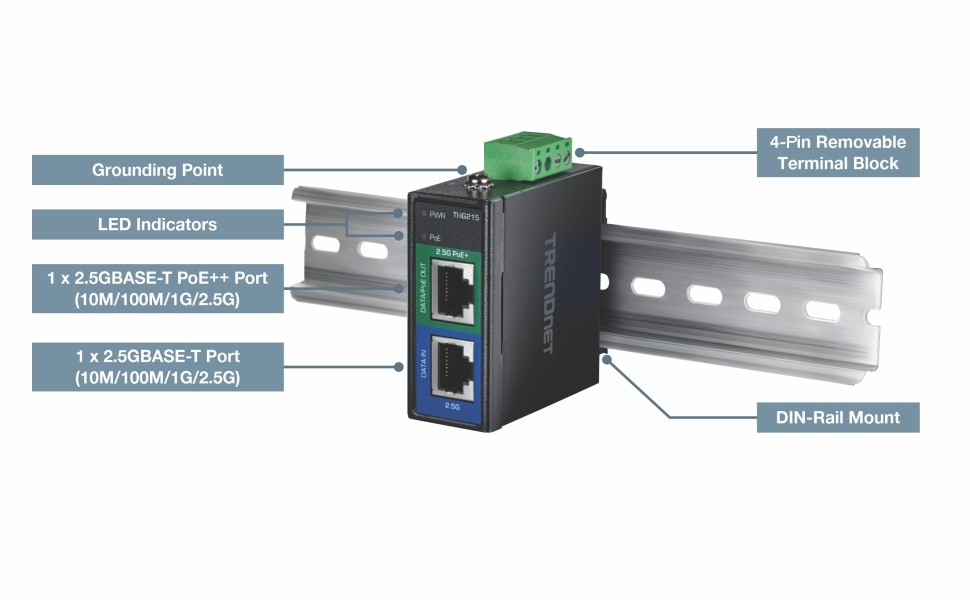

Device Interface	1 x 2.5GBASE-T port (10M/100M/1G/2.5G) 1 x 2.5GBASE-T PoE++ port (10M/100M/1G/2.5G) 4-pin removable terminal block LED indicators
Power	Input: 48 – 57V DC Compatible power supply: TI-S15052 (sold separately) Max. consumption: 2W @ 57V (with no PD connected)
PoE	PoE budget: 88 – 95W Pins 3, 4, 5, 6, for power + and pins 1, 2, 7, 8 for power -
Terminal Block	Redundant power inputs, 4 pin Wire range: 0.34mm2 to 2.5mm2 Solid wire (AWG): 14-22 Stranded wire (AWG): 14-22 Torque: 3.5 lb. – In / 0.3Nm / 0.39 Nm Wire strip length: 7-8mm
MTBF	7,500,000 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point Contact 6kV/Air 8kV ESD protection 6kV RJ45 surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.)
Weight	134g (4.72 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3-year

PACKAGE CONTENTS

TI-IG219
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
