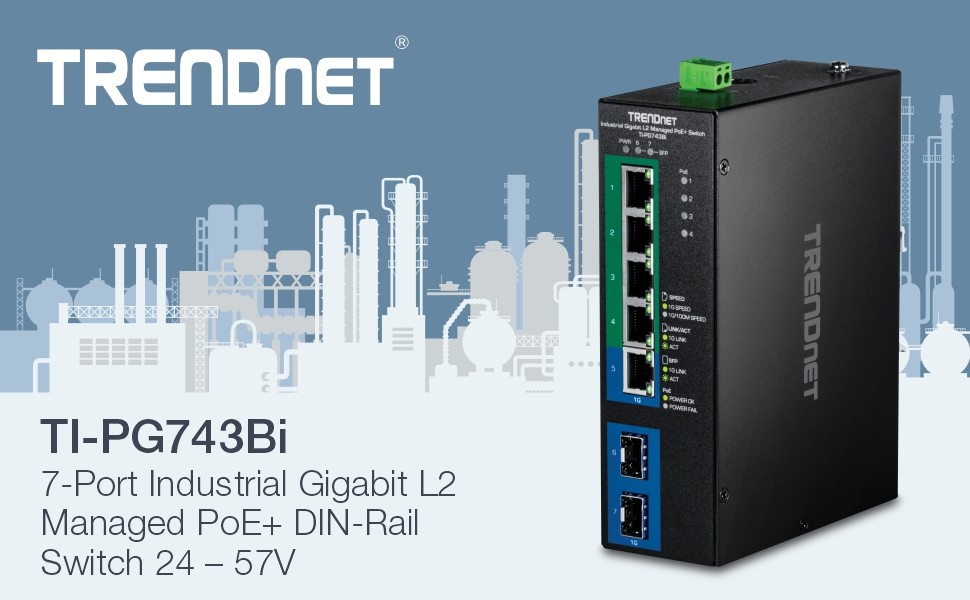

TRENDnet’s 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG743Bi, features four Gigabit PoE+ ports with a 120W PoE budget, one gigabit port, and two SFP ports that support both 100Base-FX and 1000Base-FX modules for long-distance fiber applications. The hardened network switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this managed PoE+ switch a powerful solution for SMB networks.

Easily manage and configure TRENDnet’s 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet’s reliable cloud service

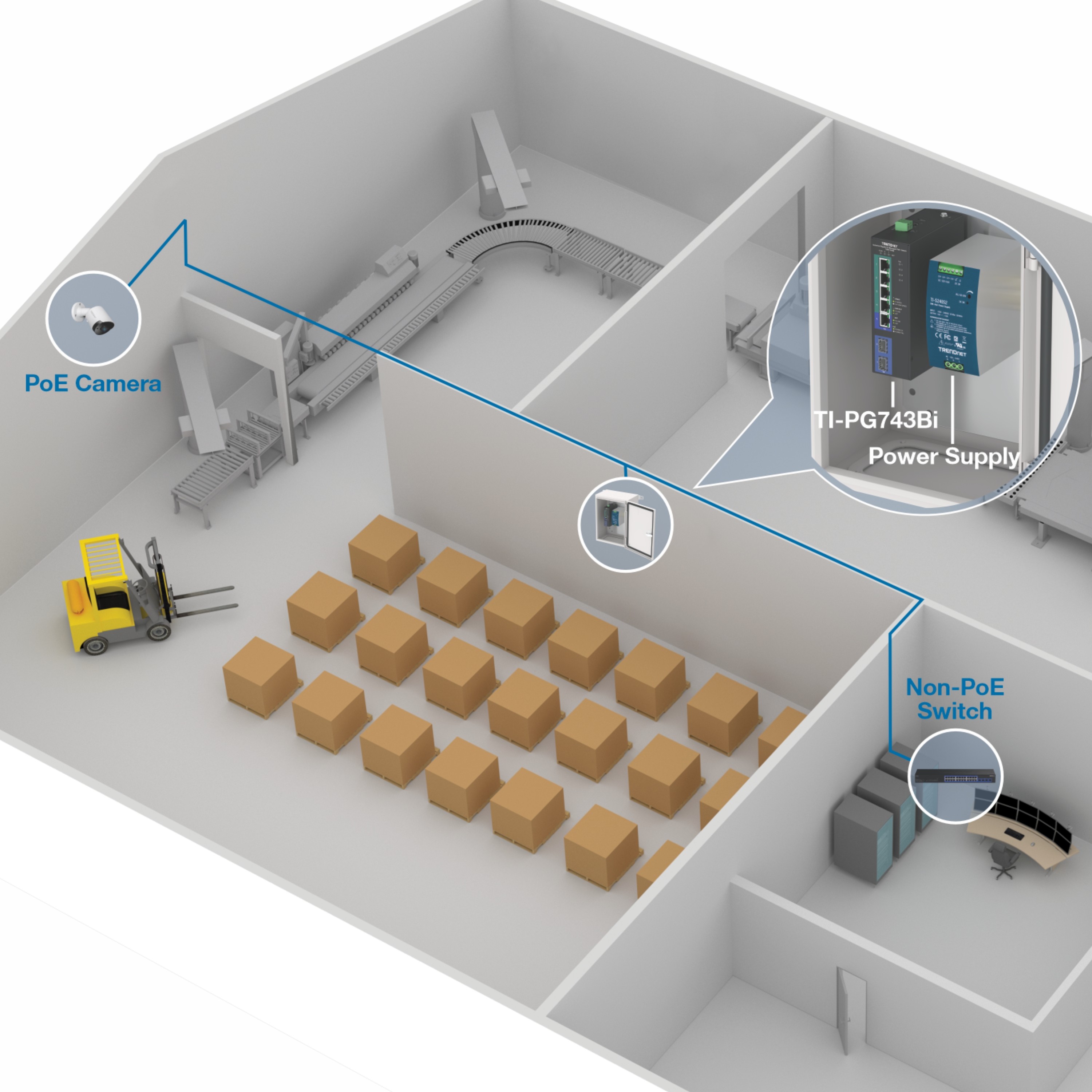

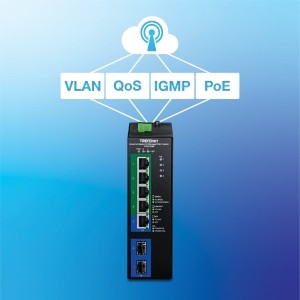

Integration Flexibility

Managed features include PoE control, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power

A 120W PoE power budget supplies up to four Power over Ethernet devices, and includes advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Industrial Design

Equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Network Ports

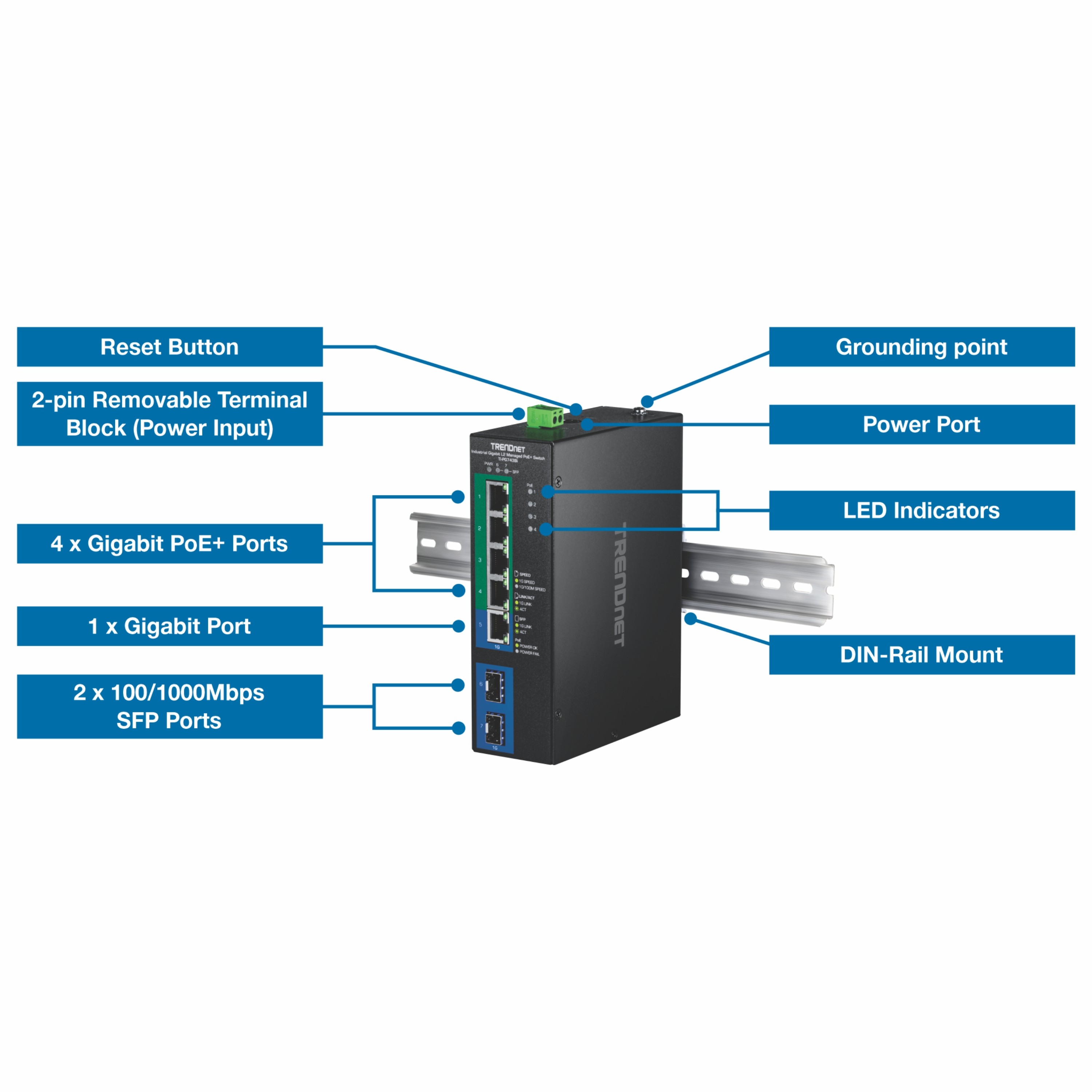

4 x Gigabit PoE+ ports, 1 x Gigabit port, 2 x Gigabit SFP ports

PoE Power

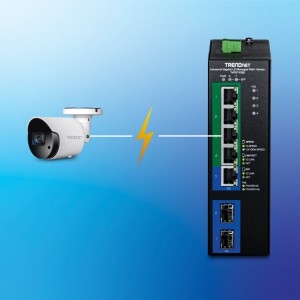

Supplies up to 30W of PoE+ power per port with a 120W power budget

Full PoE Control Per Port

Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Hive Enabled

Remotely manage, configure, and diagnose this L2 switch via TRENDnet’s cloud service (Additional fee applies)

Traffic Management

Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP, and link aggregation for flexible network integration

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

DIN-Rail Mount

IP40 rated metal enclosure includes DIN-Rail mounting bracket

Switching Capacity

14Gbps switching capacity

Single Power Input

Single power input (terminal or power adapter) with overload current protection (power supply sold separately: TI-S24048, TI-S24052, TI-S15052) (power adapter sold separately: 48VDC3000)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.1ax IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3az IEEE 802.3af IEEE 802.3at
Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port 2 x 100/1000Mbps SFP ports 2-pin removable terminal block (power input) 4-pin DIN (power adapter input) LED indicators Reset button Ground terminal
Performance	Switch fabric: 14Gbps RAM buffer: 512KB MAC address table: 8K entries Jumbo frames: 10KB Forwarding rate: 10.42Mpps (64-byte packet size)
Management	HTTP web-based GUI CLI: Telnet / SSHv2 SNMP v1, v2c, v3 SNMP trap (up to 5 receivers) RMON groups 1/2/3/9 Modbus TCP/IP Device configuration backup & restore, upgrade firmware, reboot, and reset to default Multiple administrative or read-only user accounts Enable or disable power saving mode per port Static MAC entries LLDP (Link layer discovery protocol) Topology Map ONVIF device discovery SNTP SMTP alert Syslog Port statistics/utilization Traffic monitor Port mirror: one to one, many to one Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps) Loopback detection DHCP relay/option 82 SFP DDMI (Digital Diagnostic Monitoring Interface) ERPS (Ethernet Ring Protection Switching) G8032v2
Hive Cloud Management	Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser Multi-device management Provisioning through scheduled batch or configuration updates for multiple switches Event/hardware network monitoring (CPU/memory utilization) Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 RMON (Group 1,2,3,9) RFC 2819 RFC 1757
Spanning Tree	STP (spanning tree protocol) RSTP (rapid spanning tree protocol) BPDU filter, guard, and root guard
Link Aggregation	Static link aggregation and dynamic LACP (Up to 3 groups)
Quality of Service (QoS)	802.1p Class of service (CoS) DSCP (Differentiated Services Code Point) Bandwidth control per port Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
VLAN	802.1Q tagged VLAN MAC-based VLAN Protocol VLAN Port isolation Up to 256 VLAN groups, ID range 1-4094
Multicast	IGMP snooping v1, v2, v3 IGMP querier IGMP fast leave Up to 256 multicast groups Static multicast entries
Access Control	802.1X authentication (Local user database, RADIUS, guest VLAN assignment) DHCP snooping/screening Trusted host/IP access list for management access Port Security/MAC address learning restriction (Up to 100 entries per port) Static/dynamic ARP inspection
ACL	Source/Destination MAC address Source/Destination IP address Source Interface VLAN ID EtherType TCP/UDP port 1-65535
Power	PWR (Primary) terminal input (2-pin): 24 – 57V DC Power adapter input (4-pin DIN): 24 – 57V DC Note: Power inputs are not redundant, only one power source can be used for operation. Compatible power supply: TI-S12048 (120W), TI-S15052 (150W), TI-S24052 (240W) sold separately Compatible power adapter: 48VDC3000 (sold separately) Max. Consumption: 14W (no PoE load), 134W (full PoE load)
PoE	PoE budget: 120W@48V DC input, 120W@24V DC input 802.3at: Up to 30W per port PoE Mode A: Pins 1, 2, 3, and 6 for power PoE auto classification PoE port priority/power scheduling/PD alive check Over current/short circuit protection
Terminal Block	Power input, 2 pin Wire range: 0.5 mm2 to 2.5 mm2 Solid wire (AWG): 18-20 Stranded wire (AWG): 18-20 Wire strip length: 10-11mm
Enclosure	IP40 rated metal enclosure Fanless passive cooling DIN-Rail mount Grounding point ESD (Ethernet) Protection: 8kV DC Surge (Data) Protection: 1kV DC Surge (Power) Protection: 0.5kV DC
MTBF	754,136 hours @ 25° C
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.)
Weight	844g (1.86 lbs.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*
