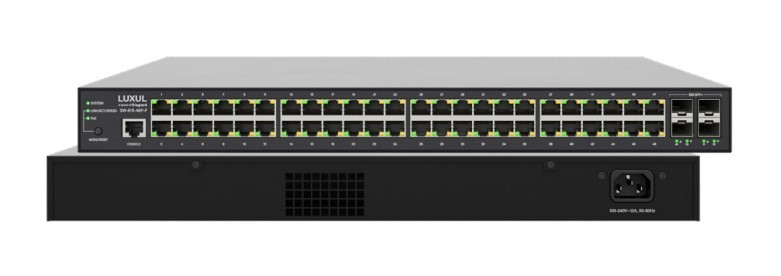

Luxul 1Gb L2/L3 Managed Switch - 48 PoE+, 4 (10G) SFP+ Front-Facing Ports - TAA Compliant
The SW-615-48P-F is a 48 port PoE+ front-facing single space rackmount 1Gb switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management. ACL ingress and egress filtering.
Managed Switch
Designed to support AV-over-IP (AVoIP) applications, the SW-615-48P-F includes 48 1-Gigabit PoE+ Ethernet ports and four 10-Gigabit SFP+ expansion ports. Two or more SFP+ ports can be aggregated for a connection speed of up to 40 Gb.
The 48 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 740W for all PoE+ ports combined.
The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in multi-switch AV-over-IP environments. Setup of
IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously
48-PORT GIGABIT MANAGEDPoE+ / SFP+ SWITCH
- 48 Gigabit RJ45 ports + four 10-Gigabit SFP+ ports
- Group up to 16 switches
- 48 PoE+ ports (740W power budget)
- Variable speed fan

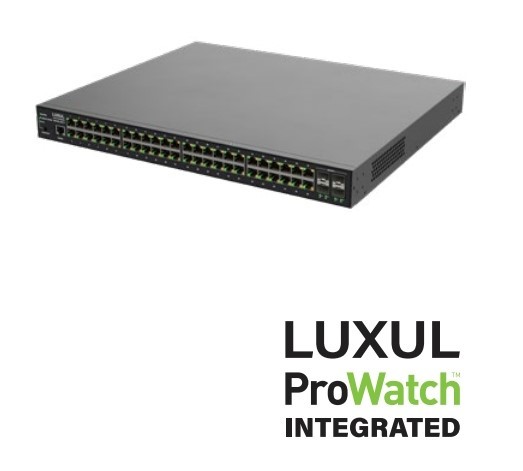

- Luxul ProWatch Integrated
Meet our SW Series Managed PoE+ Switches
Say hello to our managed PoE+ switch line featuring 8 different SKUs with a variety of port counts and port orientations. They feature an updated UI that improves setting up in AV over IP environments and is built for both commercial and residential applications.
