Vaddio EasyIP 10 Video Conferencing Mixer Kit with IP PTZ Camera
The EasyIP 10 Mixer Base Kit is an AV-over-IP classroom system in a box. Ideal for large classrooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver the easiest production system.
It's a simple AV-over-IP solution for extended and networked conferencing in meeting rooms, houses of worship, government and training rooms alike.
The Base Kit includes everything you need to get started with AV-over-IP system design in one easy-to-order bundle including one EasyIP 10 Camera, one EasyIP Mixer, and one EasyIP Switch.
Package Contents:
- 1 x EasyIP 10 Camera System
- 1 x EasyIP Decoder System or EasyIP Mixer System
- 1 x EasyIP Switch AMS-1208P with local power cord(s)

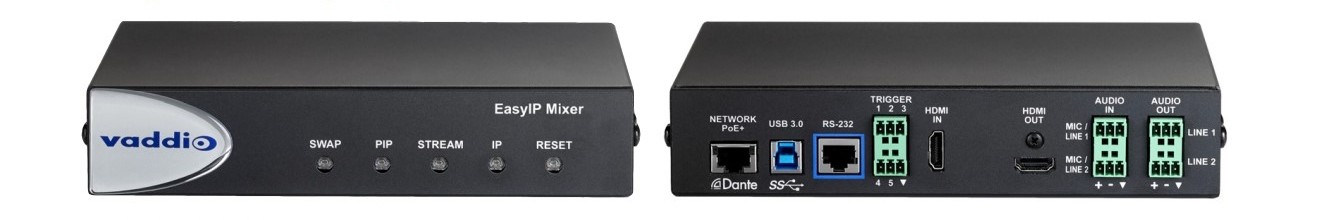

EasyIP Mixer

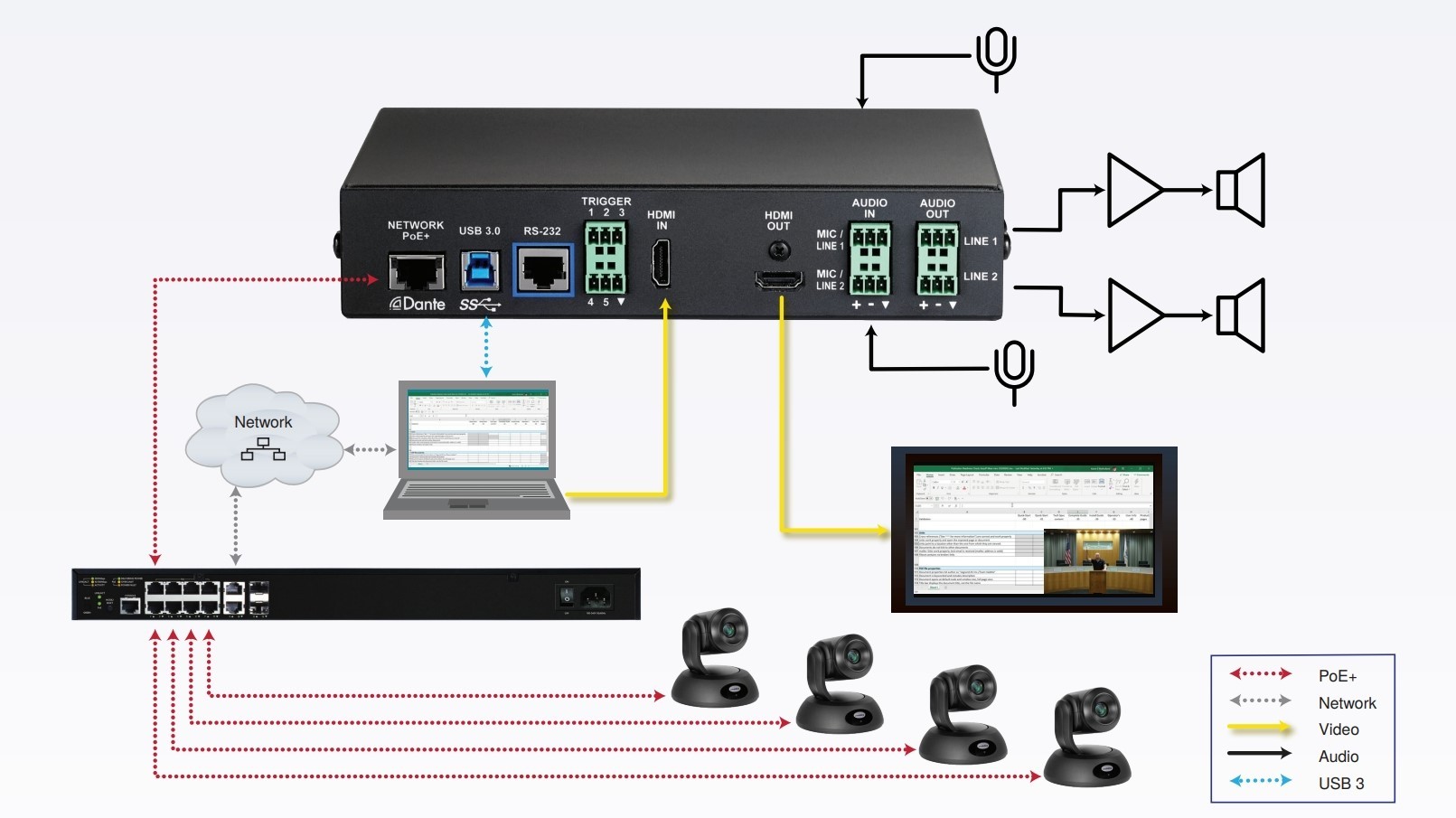

The EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production switcher to date. Ideal for large classrooms and perfect for capture over USB 3.0 or videoconferencing.
Key Features:
- Supports up to four EasyIP Camera video feeds plus an HDMI source
- 4x4 Dante Audio matrix (10x10 cross-point audio matrix)
- Concurrent 1080p/60 USB 3.0 and HDMI output
- Flexible control options with serial, telnet, trigger, Vaddio Device Controller, web control, and seamless control of cameras using remote UVC controls
- PoE+ powered

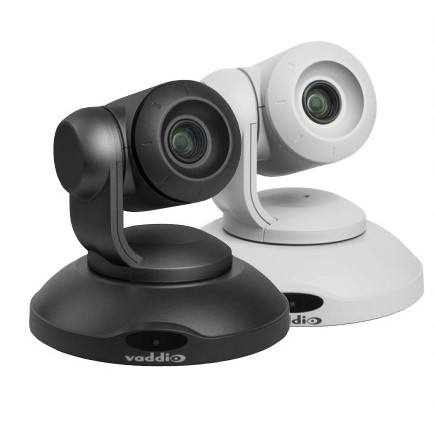

Vaddio EasyIP 10 PTZ Camera

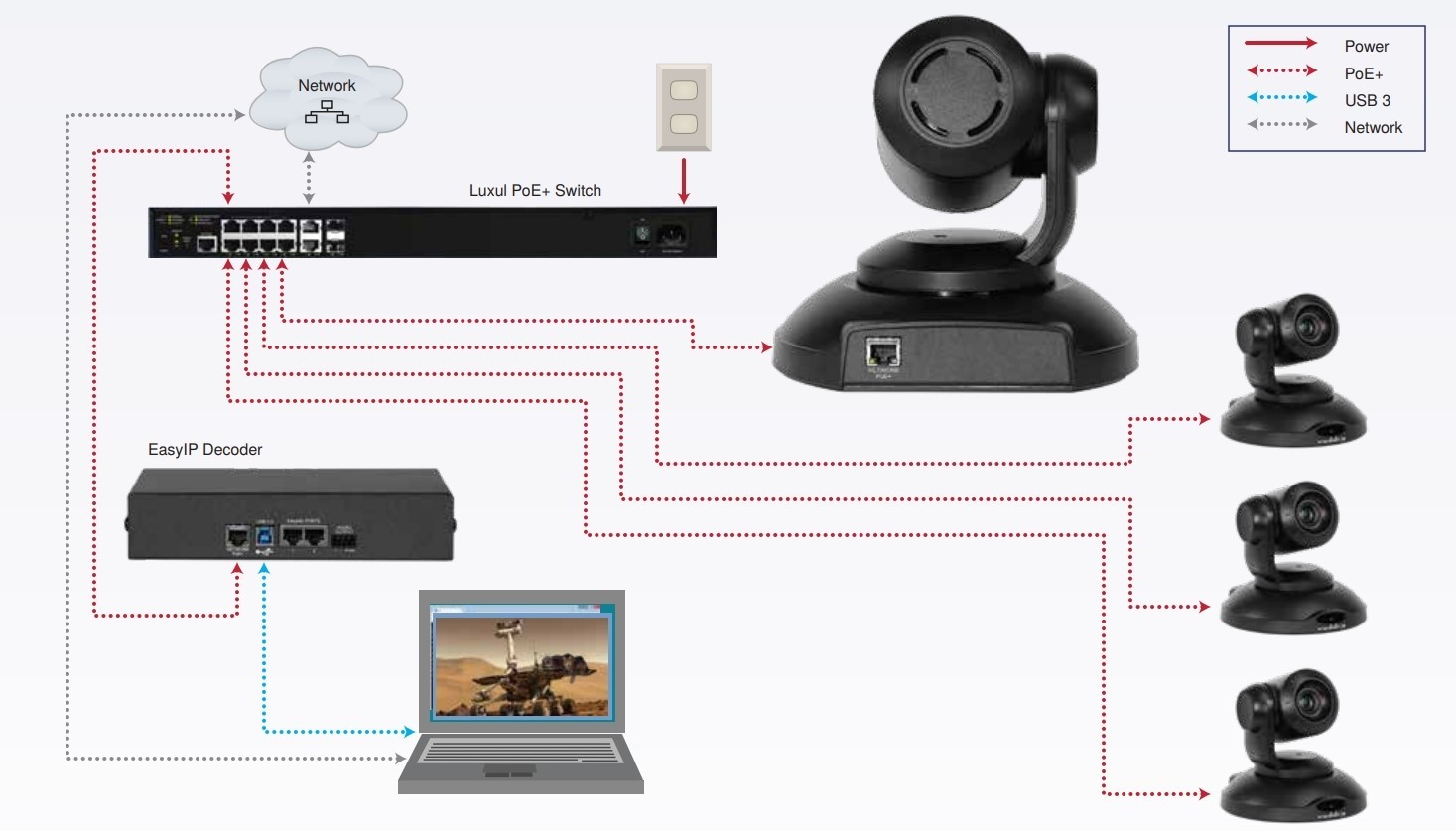

The EasyIP 10 Camera sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the needs for costly USB extensions.
Key Features:
- HD PTZ camera with 10x optical zoom, 67-degree horizontal field of view
- Visually lossless, low latency 1080p/60 video output stream
- One EasyIP (Network PoE+) video output
- PoE+ powered
- Supports output to up to two EasyIP Decoders or EasyIP Mixers simultaneously
- Camera is controlled via intuitive browser-based user interface from EasyIP Decoder or EasyIP Mixer
- Add simple touch controls with the Vaddio Device Controller
- Optimized to work with an EasyIP Managed PoE Switch; also works with other properly configured 1 Gb PoE+ switches
