Vaddio RoboSHOT 30E HDBT HDMI Video Conferencing System - Includes PTZ Camera and HDMI Receiver
Introducing the RoboSHOT Elite Series - Vaddio's next generation of professional PTZ camera systems. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite PTZ cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera's streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.
The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoomTM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 30E PTZ cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship. Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.
The system's OneLINK HDMI Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
Package Contents:
- RoboSHOT 30E HDBT OneLINK HDMI System
- Thin Profile Wall Mount with Mounting Hardware and Installation Manual
- Vaddio IR Remote Commander
- OneLINK HDMI Interface
- 48V Power Supply with AC Cord Set(s)
- EZCamera RS-232 Control Adapter
- Quick-Start Guides
VADDIO’S NEXT-GENERATION OF PROFESSIONAL PTZ CAMERAS
RoboSHOT® Elite Series cameras are outstanding HD-quality PTZ cameras offering 12x and 30x zoom, silky-smooth motor movement and outstanding image quality.
No matter where they’re used – university lecture halls, houses of worship, government chambers, corporate meeting rooms and beyond, RoboSHOT Elite Series cameras promise truly brilliant HD video footage for streaming and recording.

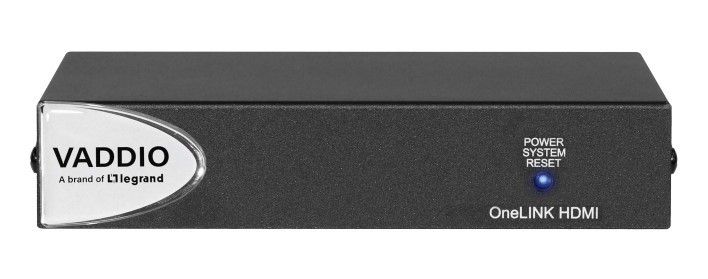

OneLINK HDMI
Features
- Simple, fast, clutter-free camera installation – power, control, video, and network connectivity over a single cable
- Extends camera installation distance up to 100 m (328 ft.) using Cat-6 cable; 230 ft (70 m) using Cat-5e
- Passes uncompressed HDMI® video up to 2160p/29.97
- Bidirectional control via Ethernet and RS-232
- Compatible with Vaddio HDBaseT cameras
- Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs and HDMI cameras

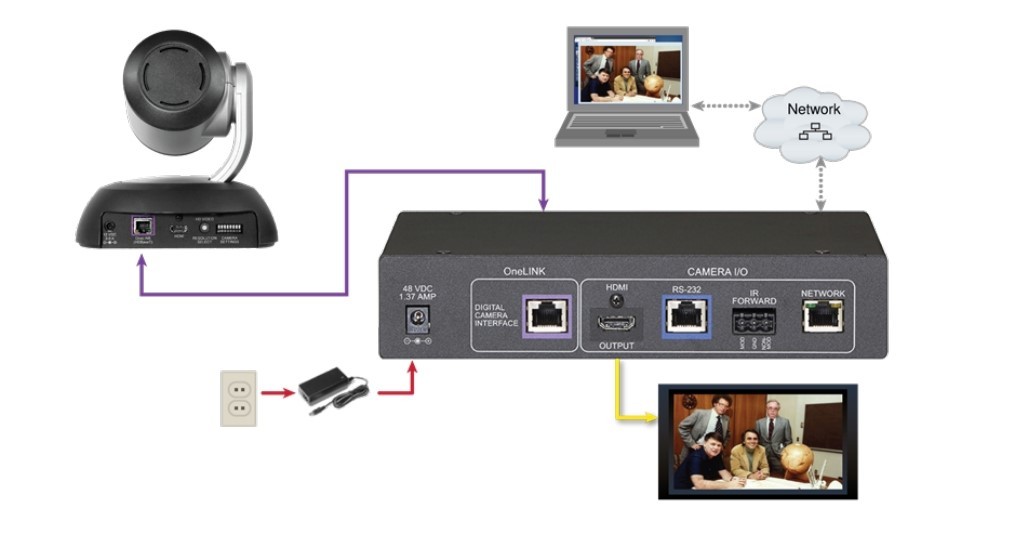

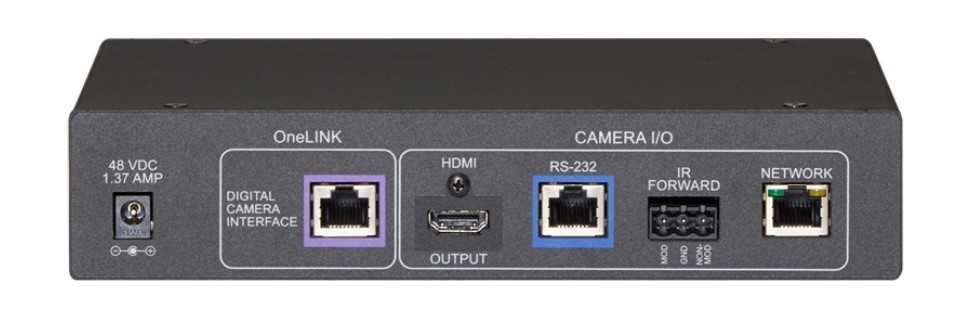

Connector Panel
- Power input jack – Use the supplied 48VDC, 1.36A power supply
- OneLINK interface port – Connect a Cat-5e (or better) cable to the EZIM, or to the camera if your OneLINK kit or system did not include an EZIM. This bidirectional connection carries video, network connectivity including H.264 IP streaming from the camera (if available), RS-232 control, and 12 VDC power
- HDMI output – HDMI output to a connected display
- RS-232 port – Connect to a camera controller
- IR forwarding port – To forward IR signals from the camera, if available. Modulated and non-modulated outputs provided
- Network port – H.264 IP streaming (if available from the camera), web interface access, and third-party IP control via Telnet API

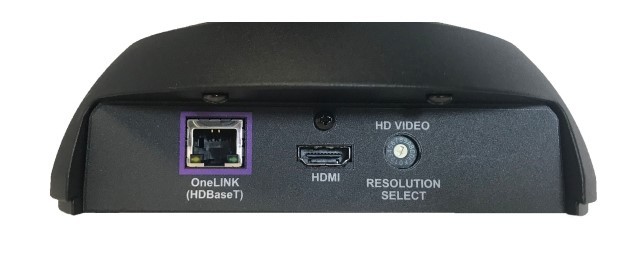

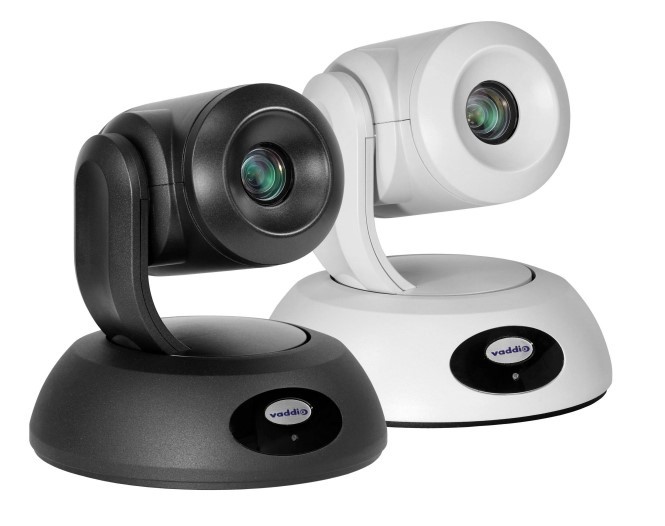

RoboSHOT Elite HDBT PTZ Camera
Smooth Tri-Synchronous Motion
The Elite Series of RoboSHOT PTZ cameras is equipped with
Vaddio’s industry-leading Tri-Synchronous Motion technology
allowing all three axes of the camera to move simultaneously for
ultra-smooth, natural camera motion.
Flexible Video Outputs
Video outputs include simultaneous HDBaseT, HDMI and IP (H.264)
streaming. Connect directly to HDBaseT-compatible devices or pair
with Vaddio OneLINK receivers to simplify cabling and extend
installation distance.
The RoboSHOT 12E cameras are recommended for small to
medium spaces such as conference rooms, training rooms, and
classrooms that require a wide angle of view.
The RoboSHOT 30E cameras are ideal for larger spaces such as
large meeting rooms, lecture halls, conference centers and houses
of worship.

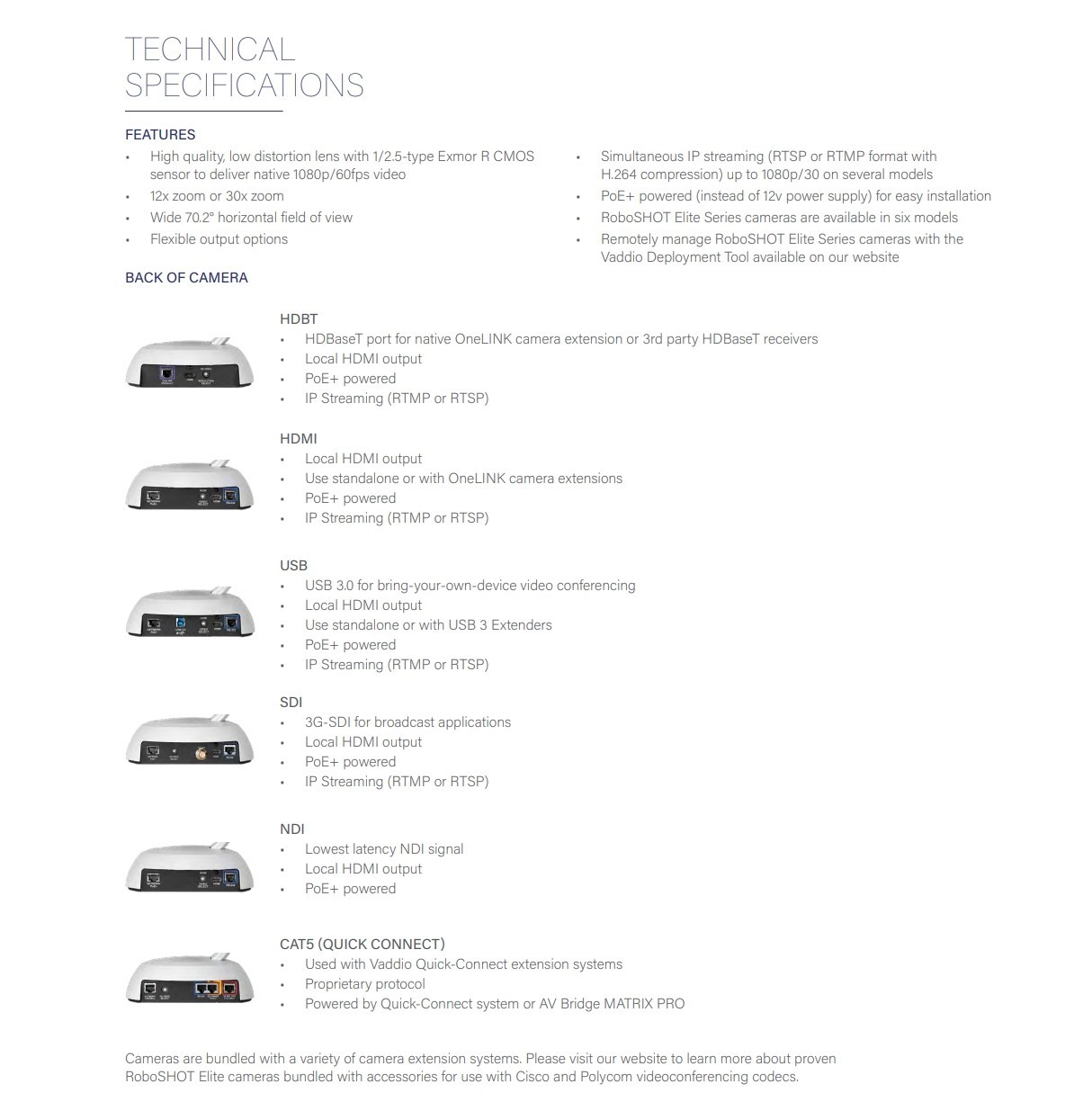

FEATURES
• Back-illuminated 8.51 Megapixel, high definition 1/2.5 Type
Exmor R CMOS Sensor delivers 1080p/60 video
• RoboSHOT 12E Models feature 12x Optical Zoom
• RoboSHOT 30E Models feature 30x Zoom including
IntelliZoom™ Image Processing
• Simultaneous HDBT, HDMI and IP (H.264) streaming outputs
• Full administrative control via web interface; manage remotely
while monitoring the stream separately
Professional Results for Any Market
Corporate
With RoboSHOT Elite Series cameras, video conferencing
meetings can have an even greater impact on productivity
and the bottom line – with PTZ cameras that can zoom in on individual speakers or capture the room with an image that always puts your best foot forward.

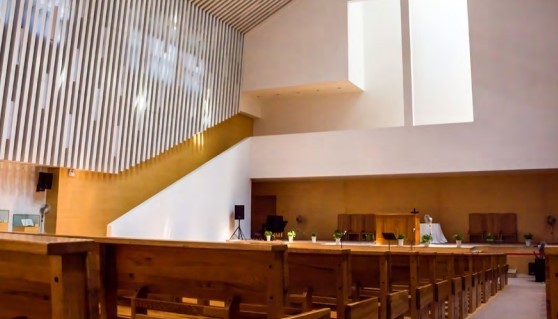

House of Worship
Ideal for churches and worship areas, the 12x or 30x zoom
expands your reach. Enhanced WDR compensates for bright windows and dark corners. RoboSHOT Elite Series cameras provide fantastic high definition footage with built-in live streaming capabilities for recording worship services, special events, wedding ceremonies and more
Education
Whether it’s lecture capture, live streaming or zooming in nice and close so students can view complicated techniques on a large classroom monitor, RoboSHOT
Elite Series cameras enhance learning in the modern classroom.
Training
Make training sessions more effective no matter where
participants are located with cameras that capture demonstrations and keep attendees highly engaged with the instructor.
