Vaddio RoboSHOT 20UHD OneLINK Bridge Video Conferencing System - Includes PTZ Camera and Interface

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces for applications such as higher education, corporate broadcast and houses of worship.

Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

Package Contents:

RoboSHOT 20 UHD OneLINK Bridge System
Thin Profile Wall Mount (Black or White) with Mounting Hardware and Installation Manual
Vaddio IR Remote Commander
OneLINK Bridge Interface
48V Power Supply with AC Cord Set(s)
Quick-Start Guides
4 x 3-Position Phoenix-Style Connectors
6' (1.8m) USB 3.0 Cable, Type A to B
EZCamera RS-232 Control Adapter

AV Interface for HDBaseT Cameras

The OneLINK™ Bridge and OneLINK Bridge Express AV Interface combine a camera extension system with an audio mixer to provide USB bridging functionality—making it easy to convert an audio and video source into a USB 3.0 media stream so you can use it with popular cloud conferencing solutions like Microsoft Teams, Google Meet, and Zoom. OneLink Bridge uses HDBaseT technology to extend power, control, and video from RoboSHOT cameras, third-party PTZ cameras, and compatible HDBaseT A/V switchers up to 100 meters (328 ft) over a single Cat-5e/6 cable.

Designed for Multiple Applications

Videoconferencing USB Bridge
Lecture Capture Recording
Live Streaming

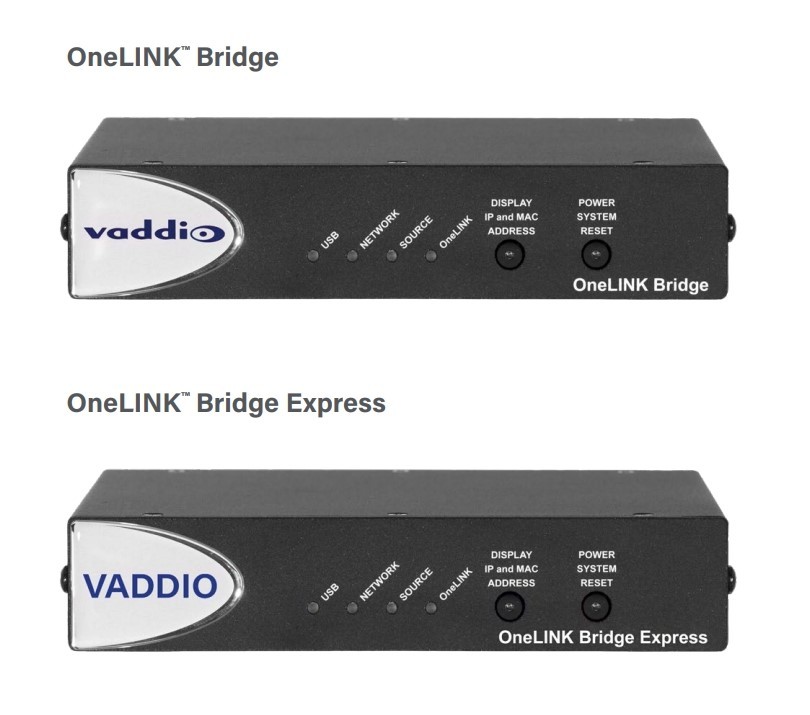

OneLINK Bridge and OneLINK Bridge Express

The OneLINK Bridge AV Interface incorporates Vaddio’s market-leading AV Bridge functionality, integrating pro AV sources into your PC via USB 3.0 media stream delivery

Simple, clutter-free installation—power, control, video and streaming over a single Cat-5e or better cable
Extends installation distance for HDBaseT cameras up to 100 m (328 ft)
Two mic/line inputs with echo cancellation, two-line outputs, and associated digital audio channels
Control and configure remotely for large enterprise or higher education applications
Provides USB video output up to 1080p/60 along with bi-directional USB audio channels to ensure optimal content quality

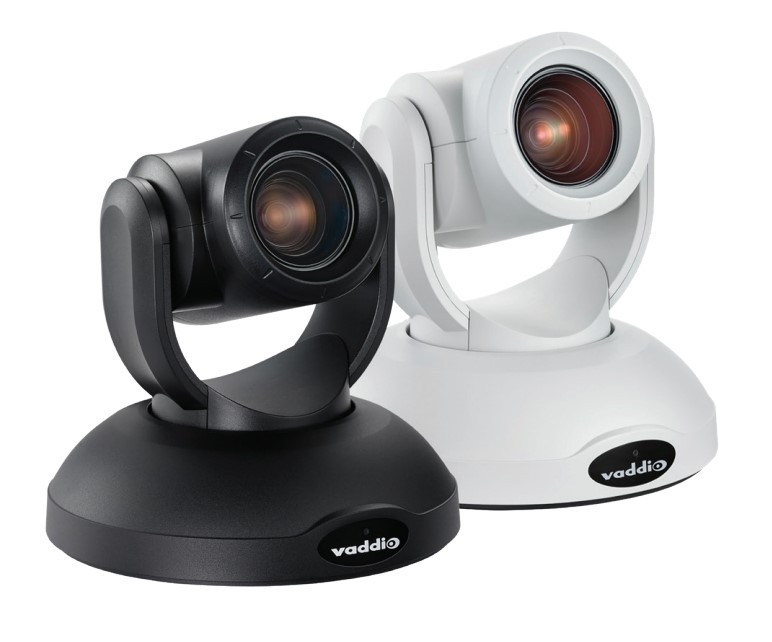

RoboSHOT 20 UHD PTZ Camera

FEATURES

Back-illuminated 9.03 Megapixel, ultra-high definition 1/2.3- type sensor delivers native 2160p/30 (3840 x 2160) video
12x optical zoom and 1.67x digital zoom; effective 20x zoom range; horizontal field of view 74° (wide) to 4.8° (tele) at 20x
Imaging and performance comparable to 3-chip cameras
Precise pan and tilt movements from 120° per second down to 0.35° per second
Simultaneous HDMI, HDBT, 3Gb/s HD-SDI and IP streaming outputs
Presenter-friendly IR remote control
Full administrative control from your browser via web interface
Integration-ready Telnet or serial RS-232 control
Smooth, silent direct-drive motors

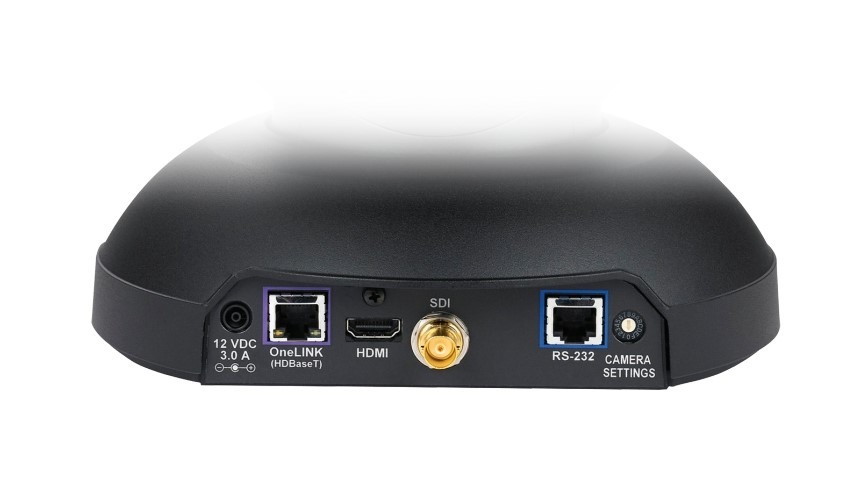

Connector Panel

12 VDC, 3.0 Amp power connector – Connect the power supply shipped with the camera
OneLINK/HDBT connector – Connect to OneLINK interface (video, power and control up to 328 ft/100m)
HDMI connector – HDMI video output
HD-SDI connector – HD-SDI video output
RS-232 port – Connect to a controller to manage the camera using a modified VISCA protocol
Camera Settings rotary switch – Sets the video output resolution.

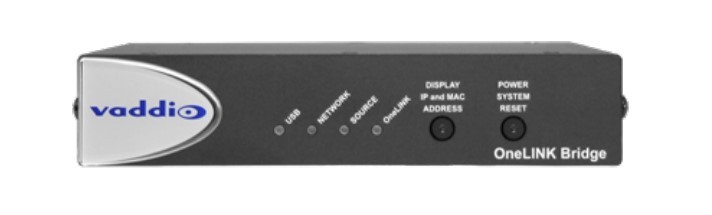

OneLINK Bridge

Features

Converts any conference room to a BYOD environment, connecting professional AV equipment and delivering a USB 3.0 audio and video stream for soft-conferencing clients
Two balanced audio inputs, line level or mic level; two balanced audio outputs, line level
Simultaneous uncompressed USB 3.0, HDMI 1.4b, and 3Gb/s HD-SDI; passes camera IP stream if available
Administrative control via web interface; passes web, Telnet, and RS-232 serial control to connected devices
Simple, clutter-free camera installation – power, control, video, and streaming over one cable
Extends camera installation distance up to 100 m (328 ft.) using Cat-6 cable; 230 ft (70 m) using Cat-5e
Compatible with Vaddio HDBaseT cameras
Available in system configurations with Vaddio cameras; kits available for use with Polycom and Cisco codecs

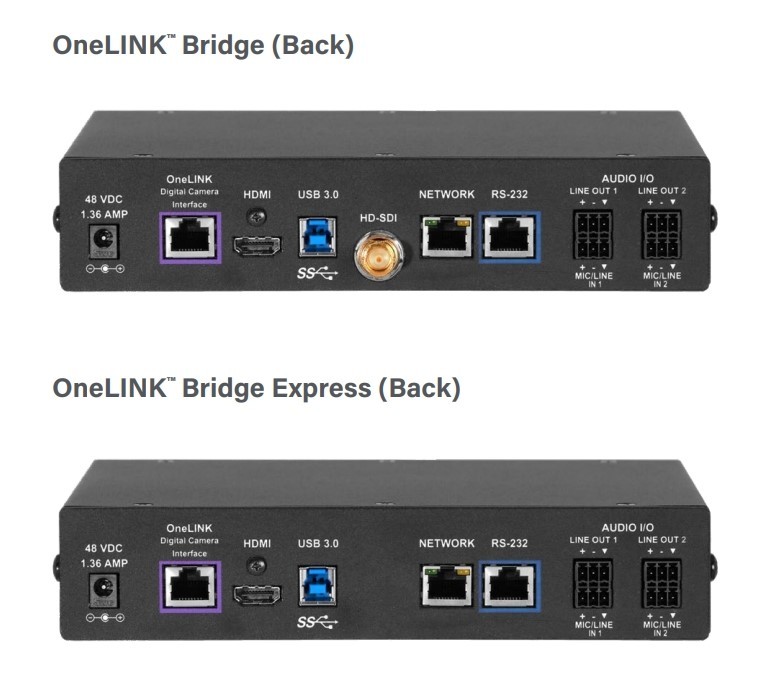

Connector Panel

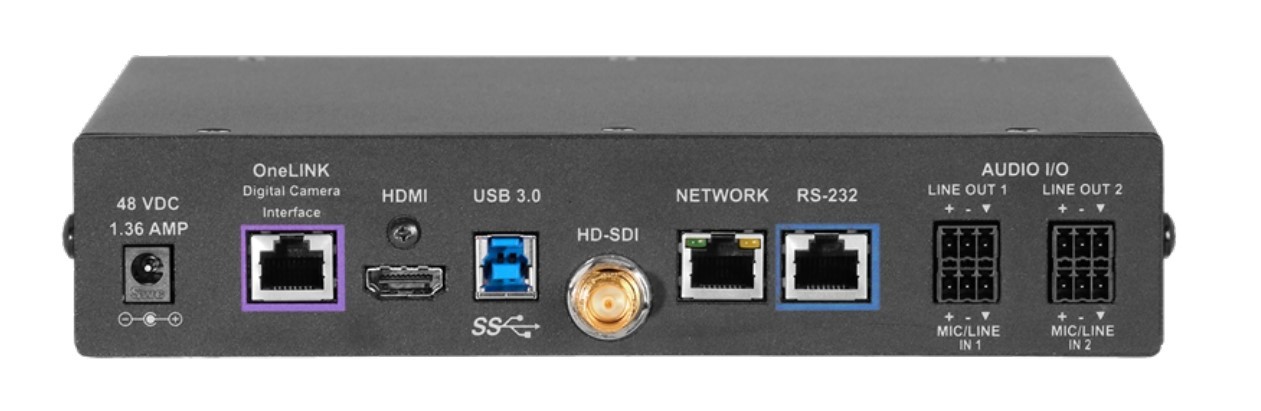

Power input jack – Use the supplied 48VDC, 1.36A power supply.
OneLINK interface port – Connect a Cat-5e (or better) cable to the EZIM, or to the camera if your OneLINK kit or system did not include an EZIM. This bidirectional connection carries video, audio (if available), network connectivity including H.264 IP streaming from the camera (if available), RS-232 control, and 12 VDC power.
HDMI output – HDMI output to a connected display.
USB 3.0 – Uncompressed video output with PCM audio for conferencing applications
HD-SDI – Video output from the camera
Network port – H.264 IP streaming (if available from the camera), web interface access, and third-party IP
control via Telnet API.
RS-232 port – Connect to a camera controller.
Audio I/O Line Out 1 and Line Out 2 – Far-end audio from conferencing application or as configured in the
audio matrix
Audio I/O Mic/Line In 1 and Mic/Line In 2 – Microphone or other audio inputs
