Overview

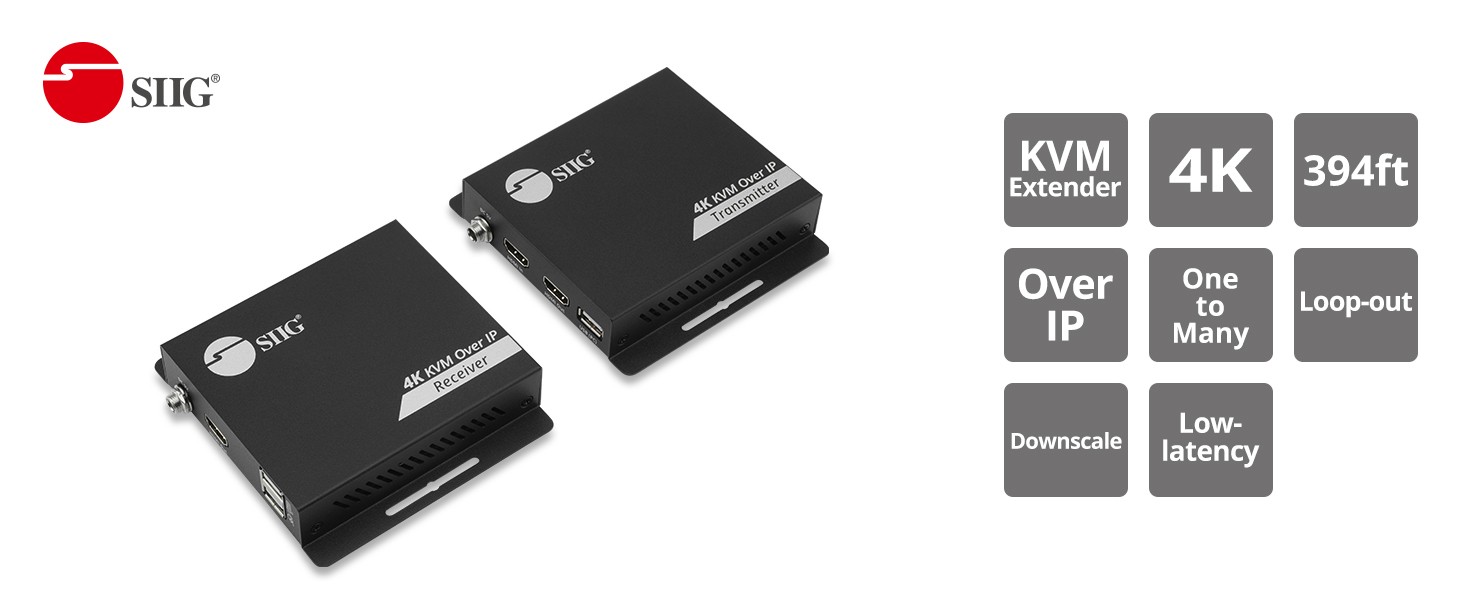

HDMI 4K30Hz KVM Over IP Extender - 394ft is designed for long-distance transmission of high-definition video, audio, and USB signals over a standard Cat 6 network cable. It allows seamless remote control of computers, servers, and media devices with a maximum range of 394 feet (120 meters). HDCP 1.4, HDMI Loop-out, Downscaler, Low-latency signal transmission, plug-and-play installation
Features
High-Quality and Long-Distance Signal Transmission
4K 30Hz up to 394 feet (120m) - Transmits video content up to 4K@30Hz with HDCP 1.4 compliance, ensuring compatibility with protected content; Downscales 4K to 1080p at the receiver's HDMI output, ensuring compatibility with a wide range of displays

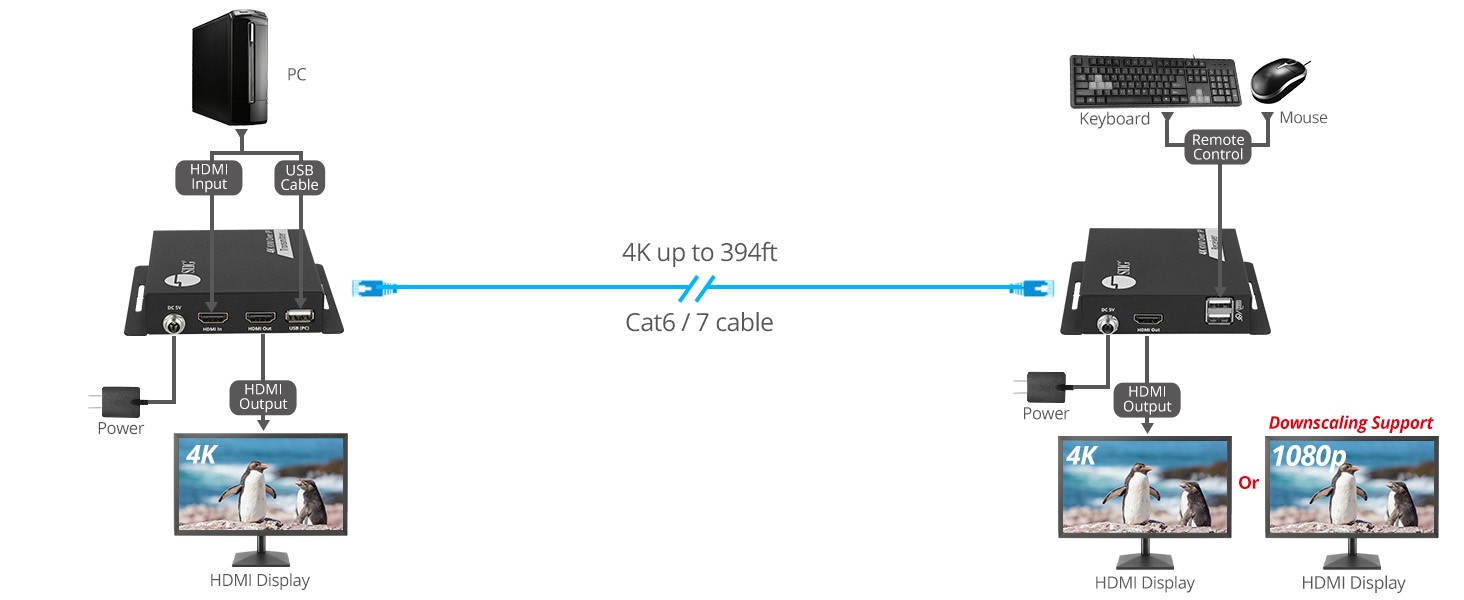

One to One Connection

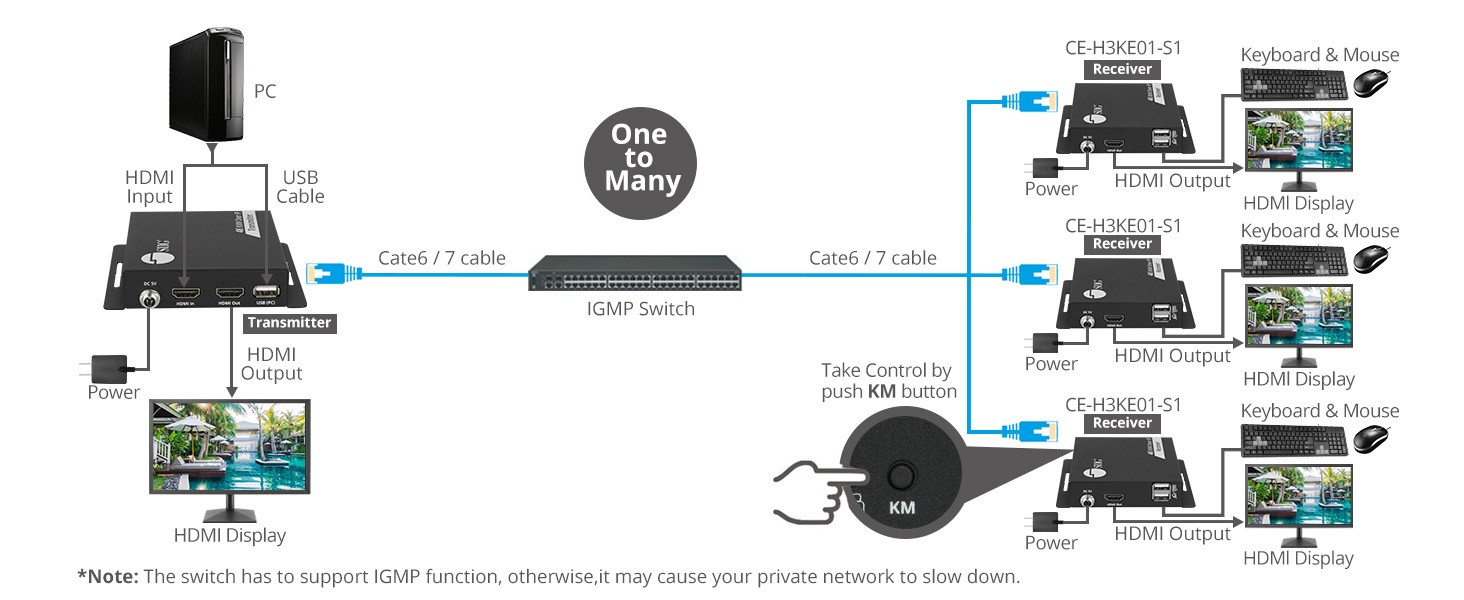

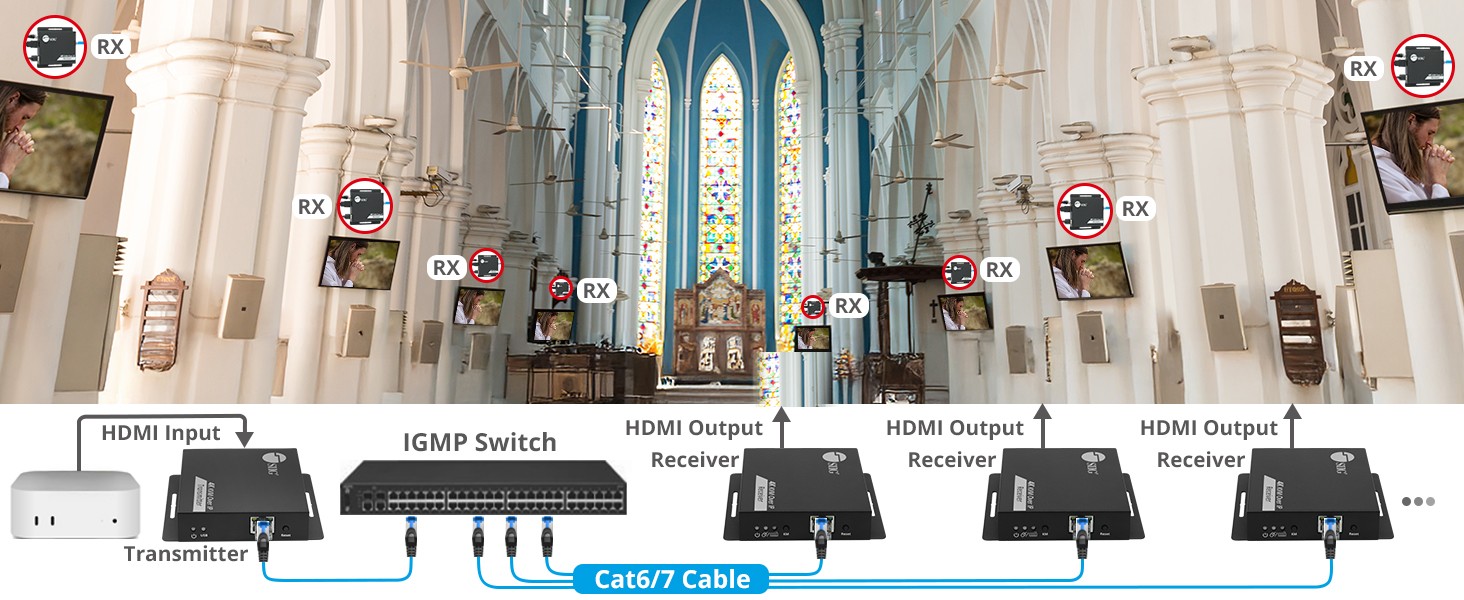

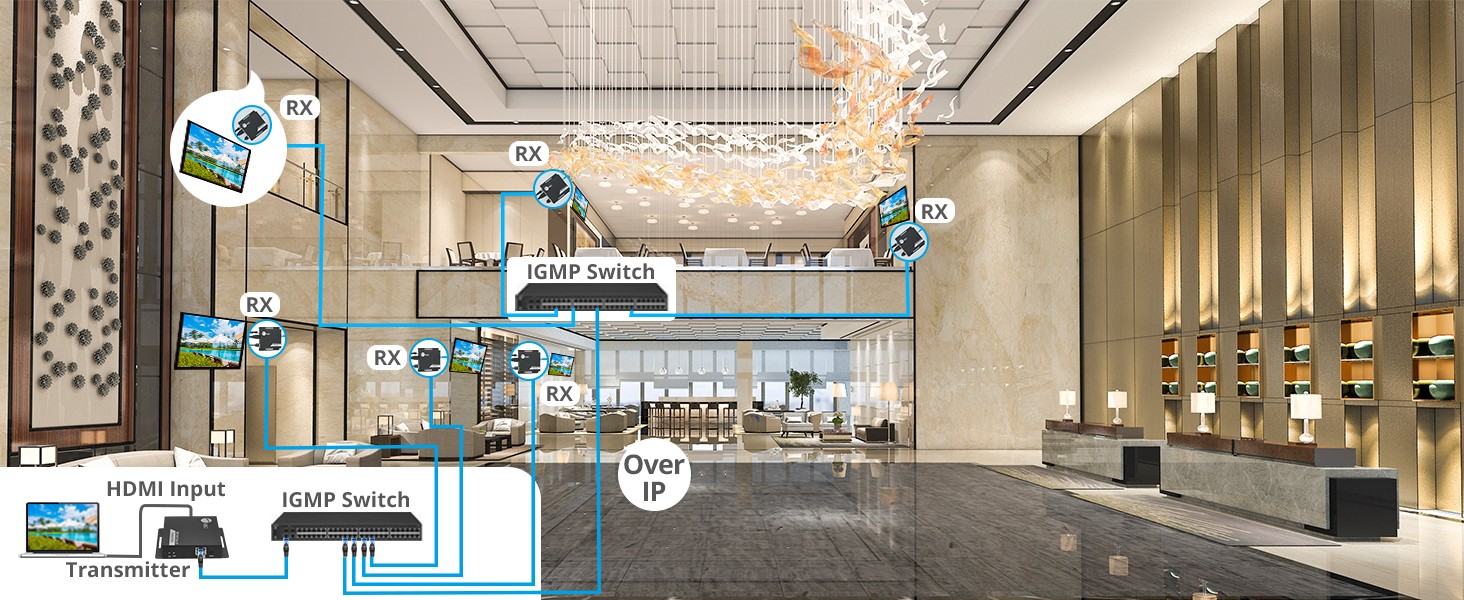

One-to-many Network Connection
Following with TCP/IP standard and Compatible with gigabit Ethernet switch hubs, enabling 1-to-1 or 1-to-many extension modes for versatile setups, the additional receiver unit (part#- CE-H3KE01-S1) is sold separately
Flexible Connectivity

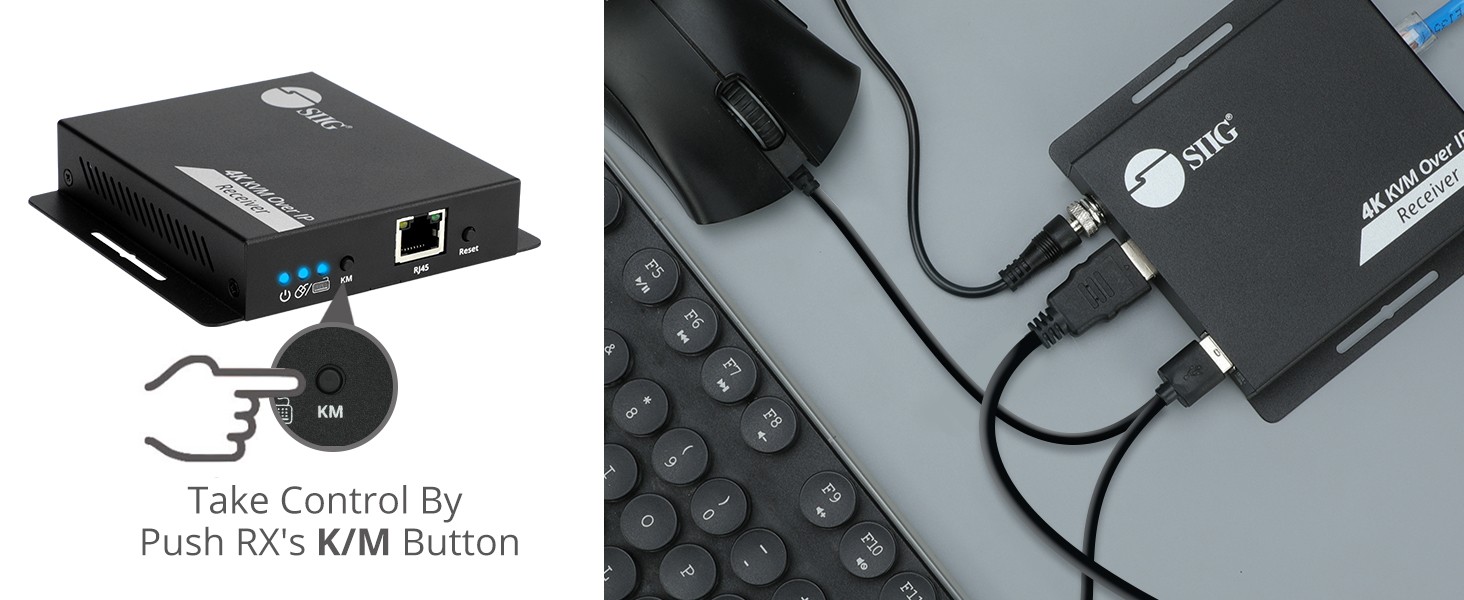

USB Connection for Keyboard and Mouse Control - Delivers three USB Type-A ports, two for independent HID keyboard & mouse to control your PC system from a remote location and one for host connection such as Laptop or Desktop. It also supports wireless keyboard and mouse with a dongle plugged into the USB port
*Note: Touch screen functionality is not supported
HDMI Loop-Out
The transmitter features an HDMI loop-out, allowing local monitoring while extending the signal to a remote display or dual-screen setups
High-Speed Transmission

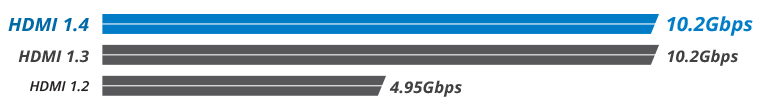

Delivers a maximum video bandwidth of 3.4Gbps per channel (10.2Gbps across all channels), ensuring smooth and reliable signal transmission
4K UHD Video Resolution
Supports video resolution up to 4K@30Hz, HDCP 1.4, YUV 4:4:4 8-bit to deliver a clear picture quality, and audio format supports PCM 2/5.1/7.1ch
Multiple Connectivity Ports

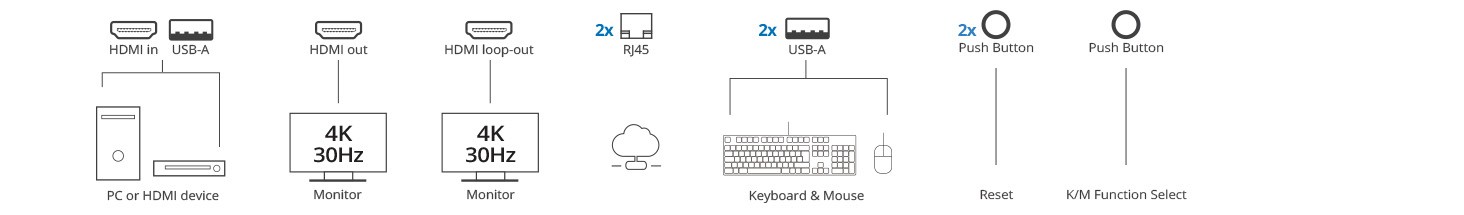

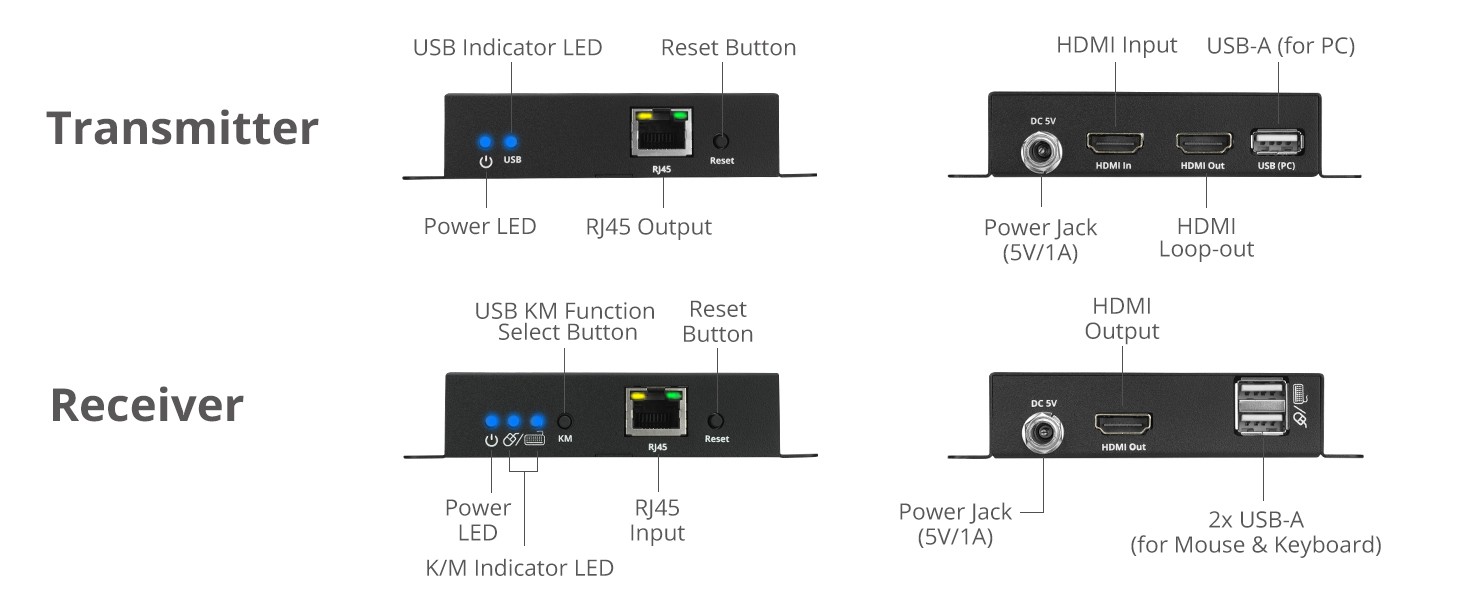

Comes with one HDMI video input port, one USB Type-A port for PC or HDMI device host connection, one HDMI video loop out port, one HDMI video output port, two USB Type-A ports for connecting keyboard and mouse, one RJ45 input port, one RJ45 output port, two DC 5V/1A power jack and two reset buttons, one K/M control button
Connection
Durable and Reliable Design

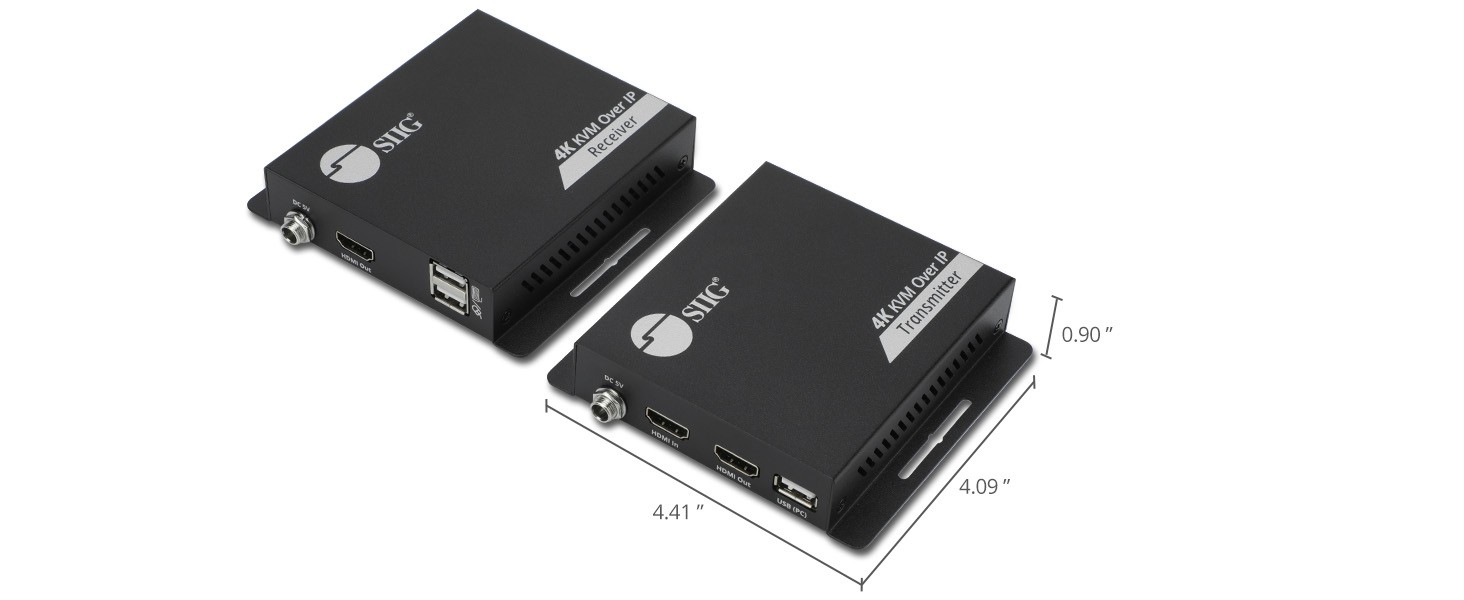

High-quality Metal Housing- It features a high-quality surface metal housing that efficiently dissipates heat, ensuring system stability and trouble-free operation. The metal housing offers robust durability and provides Lightning, Surge, and ESD protection while minimizing EMI/RFI noise interference
Supports Reset Function - Both the transmitter and receiver are equipped with reset buttons for quick restart when the display is not detected
Easy to Install and Use
Plug-n-Play installation, no software or additional hardware configuration required. Automatically adjusts parameters to match different network cables and achieve the best display performance
Applications
SIIG’s HDMI 4K30Hz KVM Over IP Extender - 120m(394ft) is a versatile solution for extending high-quality video and USB signals over long distances, making it suitable for a wide range of applications in professional, commercial, and residential settings. Its plug-and-play design, support for 4K content, and robust construction ensure reliable performance and ease of use
Data Centers & IT Management
Remote management of servers and workstations
Secure, centralized access without physical presence
Multi-user access for troubleshooting and system maintenance
Education & Training
Remote access to computer labs and learning stations
High-quality screen sharing for interactive classes
Efficient IT support for universities and institutions
Command & Control Centers
Real-time access to security and surveillance systems
Remote operation of critical infrastructure (energy, transport)
Multi-user access for coordination and decision-making
Corporate and Conference Rooms
Extend HDMI video output from laptops or PCs to large displays or projectors in meeting rooms
Utilize remote keyboard and mouse functionality for presentations and interactive sessions
