OVERVIEW

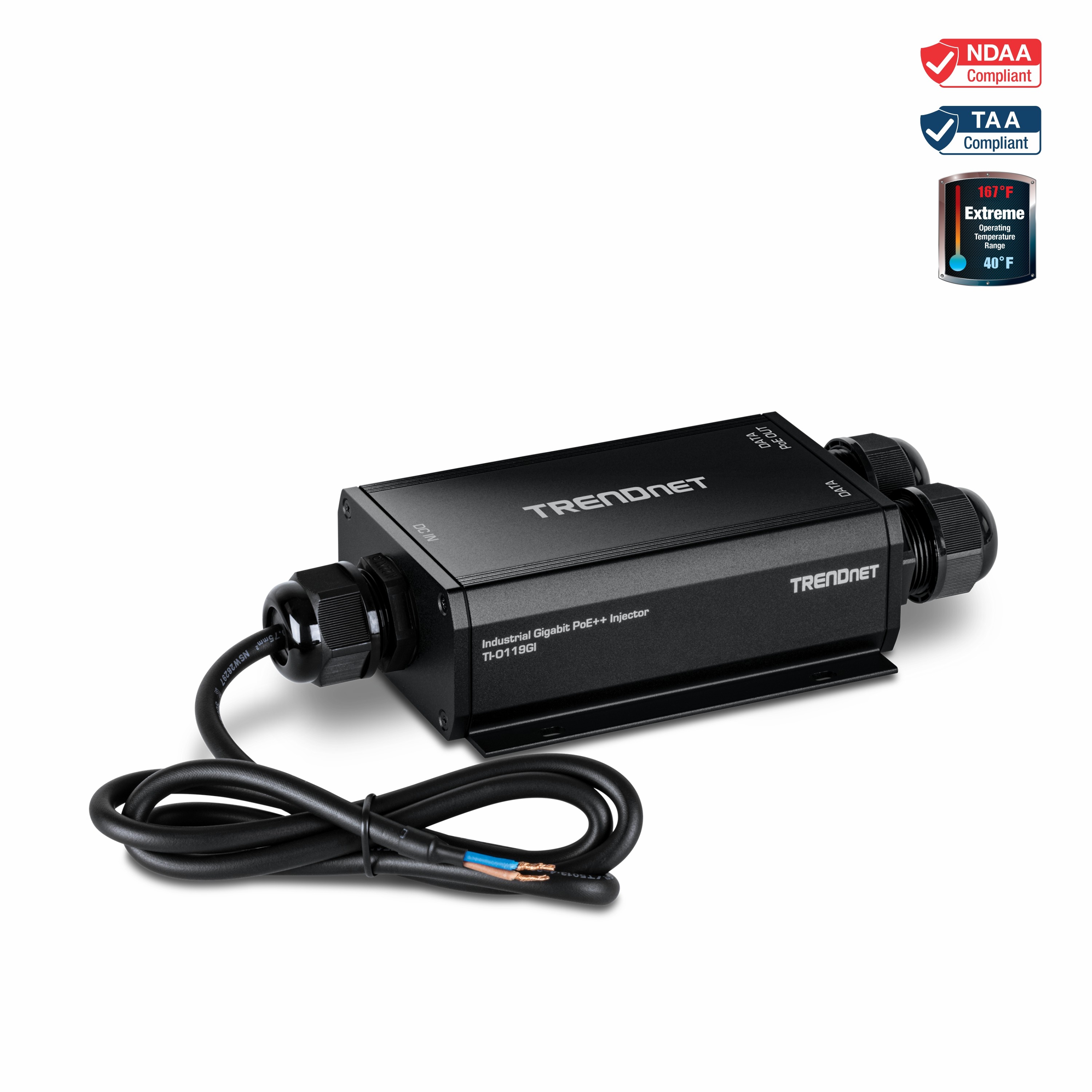

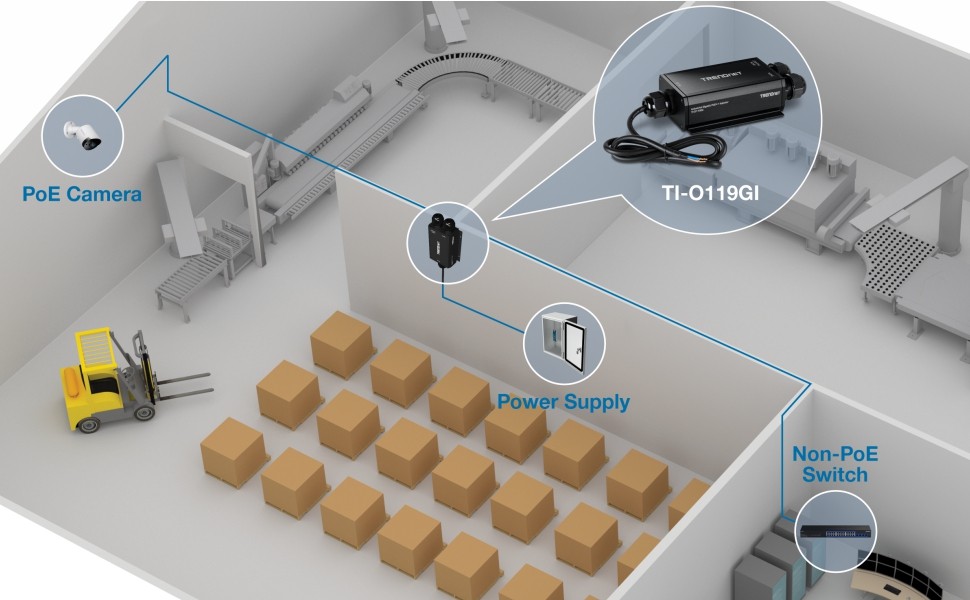

TRENDnet’s Outdoor IP67 Gigabit PoE++ Injector, model TI-O119GI, is an 802.3bt PoE++ injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ device. Connect the outdoor PoE++ injector to a non-PoE switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. The outdoor PoE++ injector is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for outdoor environments.

FEATURES

PoE++

This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.

Gigabit Ports

Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.

Industrial Design

IP67 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of - 40° – 75° C (-40° – 167° F).

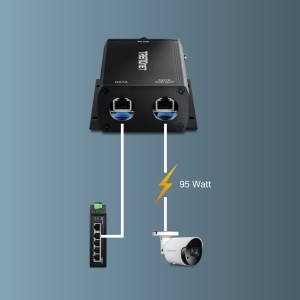

PoE++

This industrial 802.3bt outdoor
PoE++ injector supplies up to
95W of power to one PoE (IEEE
802.3af), PoE+ (IEEE 802.3at), or
PoE++ (IEEE 802.3bt) device

Waterproof Design

This waterproof PoE++ injector
features a durable enclosure
with an IP67 outdoor weather
rating

Industrial Design

Designed to withstand a high
degree of vibration and
shock

Extreme OperatingTemperature

Operating temperature range of -
40° – 75° C (-40° – 167° F) allows
for installations in environments
with extreme hot or cold conditions

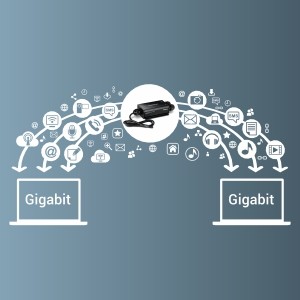

Gigabit Ports

Features one high-speed
gigabit data in port and one
high-speed gigabit PoE++ data
out port

PoE Distance
The outdoor-rated PoE++ injector
provides PoE network
connections up to 100m (328 ft.)
away

Ethernet Surge Protection

Supports RJ-45 surge protection
up to 6kV

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6)

Electro Magnetic Compliance

The outdoor PoE++ injector
complies with industrial EMS
certifications ESD (IEC 61000-4-2):
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power 2kV, Signal:
1kV; Surge (IEC 61000-4-5):
Power to ground: 2kV, Signal: 6kV

Grounding Point
Grounding point on the outdoor
PoE++ injector protects
equipment from external electrical
surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt

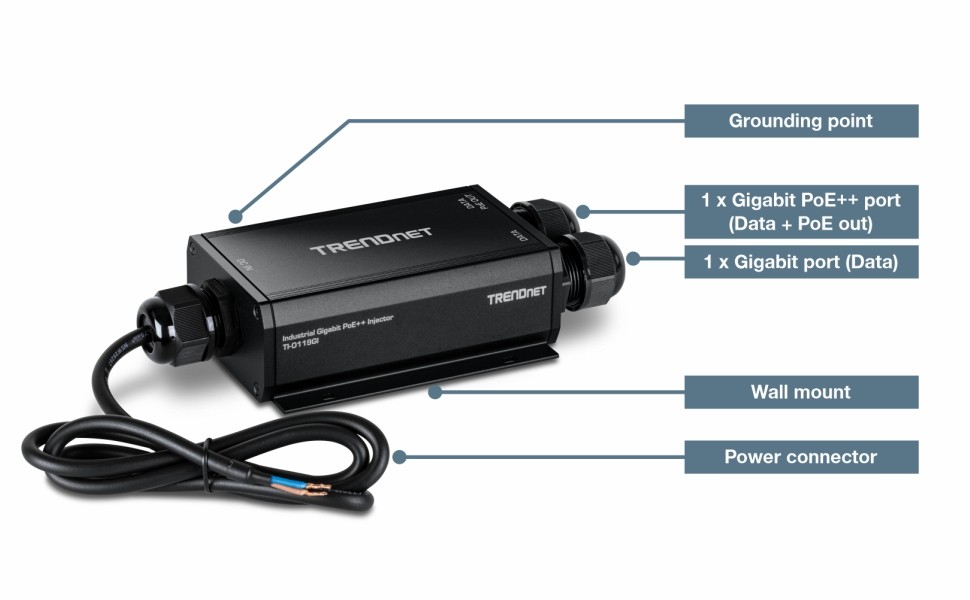

Device Interface	1 x Gigabit PoE++ port (Data + PoE out) 1 x Gigabit port (Data) 1 x Power connector Wall mount
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Special Features	Auto shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
Power	Input: 24 – 57V DC Max. consumption: 3.84W (without PD) Power cable: 91.5cm / 3ft.
PoE	Up to 95W @ 52 – 57V DC Up to 30W @ 24 – 48V DC PoE Mode A: Pins 1, 2, 3, and 6 for power
MTBF	250,880 hours @ 25° C
Housing	IP67 rated metal case Wall mount Grounding point 6kV ESD protection 8kV Air ESD protection 6kV RJ-45 surge protection Line to Ground 2kV surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	190 x 76 x 42mm (7.5 x 3 x 1.65 in.)
Weight	576g (20.3 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6)
Warranty	3-year

PACKAGE CONTENTS

TI-O119GI
Mounting kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Outdoor IP67 Gigabit PoE++ Injector (24 – 57V)

DEVICE INTERFACE: 1 x Gigabit PoE++ Port (Data + PoE Out); 1 x Gigabit Port (Data);1 x Two-wire Power Connector; Wall Mount
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
POE++: This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.
GIGABIT PORTS: Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.
EXTREME TEMPERATURE DESIGN: IP67 rated metal enclosure of this PoE++ injector comes with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 75° C (-40° – 167° F).
POWER SUPPLY SOLD SEPARATELY: Supports 24 – 57V DC power input (power supply sold separately, model: TI-S15052)

SURGE PROTECTION: Supports RJ-45 surge protection up to 6kV
ELECTRO MAGNETIC COMPLIANCE: The outdoor PoE++ injector complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power to ground: 2kV, Signal: 6kV
AUTO SHUT DOWN: The PoE++ injector will automatically shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
