TRENDnet’s Industrial 10G SFP+ to 10G PoE++ Media Converter, model TI-BF711SFP, converts a long-distance fiber connection to a copper connection, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°– 75° C (-40° – 167° F), the industrial PoE++ media converter features a hardened IP50 rated metal housing suitable for tough, industrial environments. The industrial PoE++ media converter’s rugged design also provides protection from shock, freefall, and vibration.

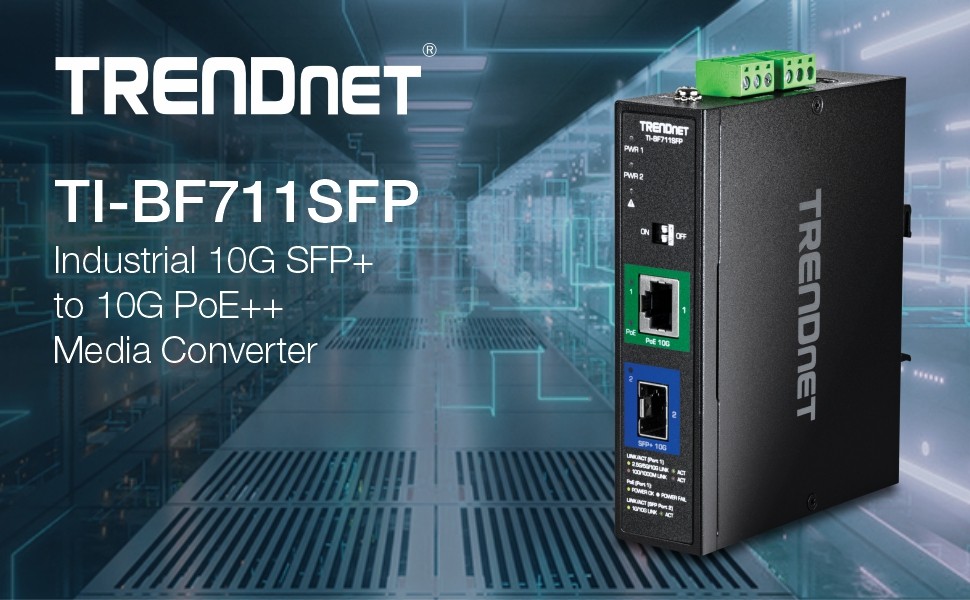

Industrial 10G SFP+ to 10G PoE++ Media Converter

1 x 10G SFP+ port
1 x 10G PoE++ RJ-45 port
Hardened IP50-rated metal housing
Provides up to 95W for PoE, PoE+ and PoE++ compliant devices
Extreme operating temperature range -40°– 75° C (-40° – 167° F)
Overload current protection
Includes DIN-Rail and wall mounts
Power supply sold separately (model: TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)

Industrial Applications

Networks devices for manufacturing, general industrial, logistics, surveillance, transportation, and corporate applications.

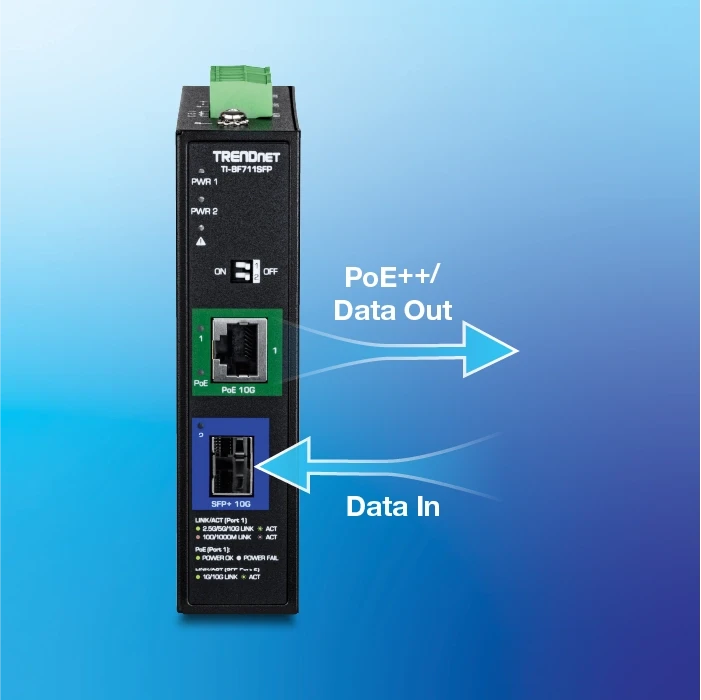

PoE++ Output

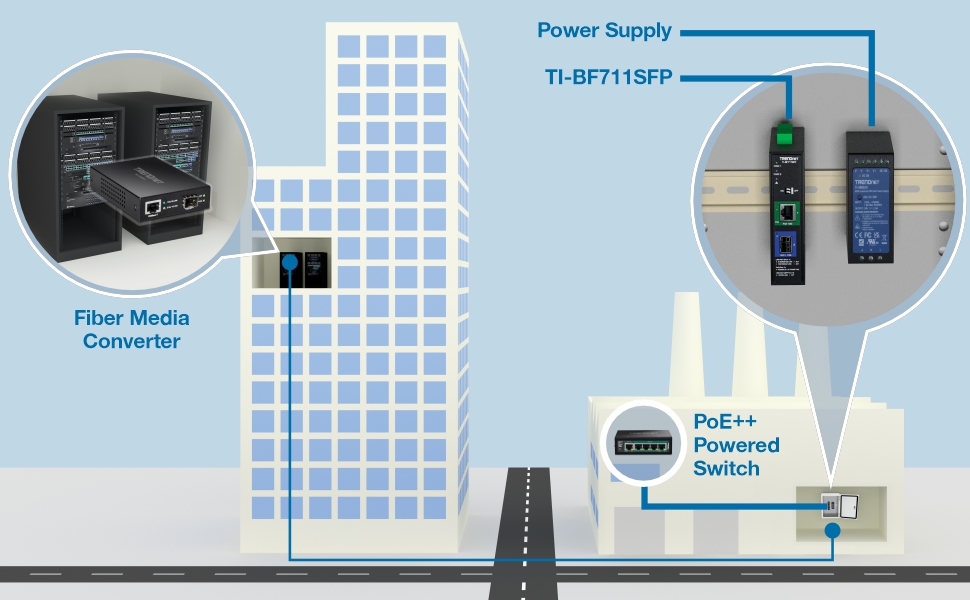

Converts long-distance fiber to copper while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras and wireless APs.

Industrial Environments

Hardened IP50 converter for industrial networking environments within a -40°– 75° C (-40° – 167° F) operating temperature range.

10G PoE++ Port

One 10G PoE++ Ethernet port for high-power and high-speed devices

10G SFP+ Port

One 10G SFP+ port for long distance applications

Dip Switches

1: LFPT (Link Fault Pass Through) on/off (default ON)
2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)

Link Fault Pass Through

Easily enable the LFPT (Link Fault Pass Through) feature on the industrial multi-mode media converter using the front panel DIP switch to identify a link fault to the remote LFPT enabled media converter

Dust Protected

This industrial switch is IP50 rated for ingress dust protection

Fault Tolerance

Features an output alarm relay to indicate an input power failure

Surge Protection

Provides up to 6kV RJ45 Ethernet surge protection

Extreme Temperature Range

An extreme operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with intense hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power: 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV

DIN-Rail / Wall Mounts

The rugged PoE+ switch includes DIN-Rail mount and wall mount hardware

Grounding Point

The industrial unmanaged PoE+ switch features a grounding point to protect equipment from external electrical surges

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3an IEEE 802.3ae IEEE 802.3bz IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3bt

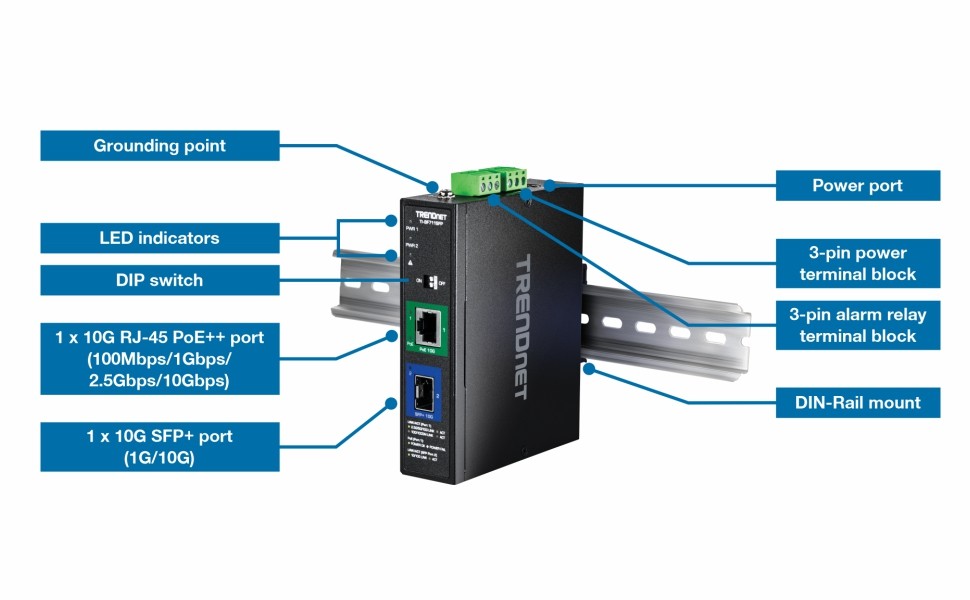

Device Interface	1 x 10G RJ-45 PoE++ port (100Mbps/1Gbps/2.5Gbps/10Gbps) 1 x 10G SFP+ port (1Gbps/10Gbps) 3-pin power terminal block 3-pin alarm relay terminal block LED indicators
Data Transfer Rate	Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2Gbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G Ethernet: 20Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 20Gbps MAC Address Table: 4K entries Jumbo Frame: 12KB Forwarding rate: 29.8Mpps (64-byte packet size)
DIP Switch	1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)
DC Power	Input: 48 – 57V DC Required power supply: TI-S15052 (sold separately) Max. consumption: 8W (without PoE) @ 56V DC
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Compatible power adapter: 48VDC3000 (sold separately) Output: 48V DC, 3.34A 160W max. Max. consumption: 6.8W (without PoE)
PoE	PoE budget: 95W Pins 3, 4, 5, 6 +; 1, 2, 7, 8 -
Terminal Block	3-pin terminal blocks Wire range: 2.5mm^2 Solid wire (AWG): 12-19 Stranded wire (AWG): 12-19 Torque: 3.5 lb. – In / 0.5Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	1,873,755 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 2kV surge protection
Operating Temperature	- 40° - 75° C (-40°- 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.)
Weight	476g (16.8 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3 year

PACKAGE CONTENTS

TI-BF711SFP
Removable terminal blocks
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
