TRENDnet’s Industrial 10G SFP+ Media Converter, model TI-F711SFP, is a reliable IP50-rated 10G SFP+ to 10G Ethernet media converter with hardened components rated for extreme industrial environments. Set 100Mbps to 10G Ethernet throughput speeds, toggle energy efficiency, and Link Fault Pass Through (LFPT) using the front panel DIP switches. This industrial media converter features 9 – 60V DC power input with overload current protection, and an alarm relay in case of power failure. (Power supply sold separately: TI-M6024 and 48VDC3000).

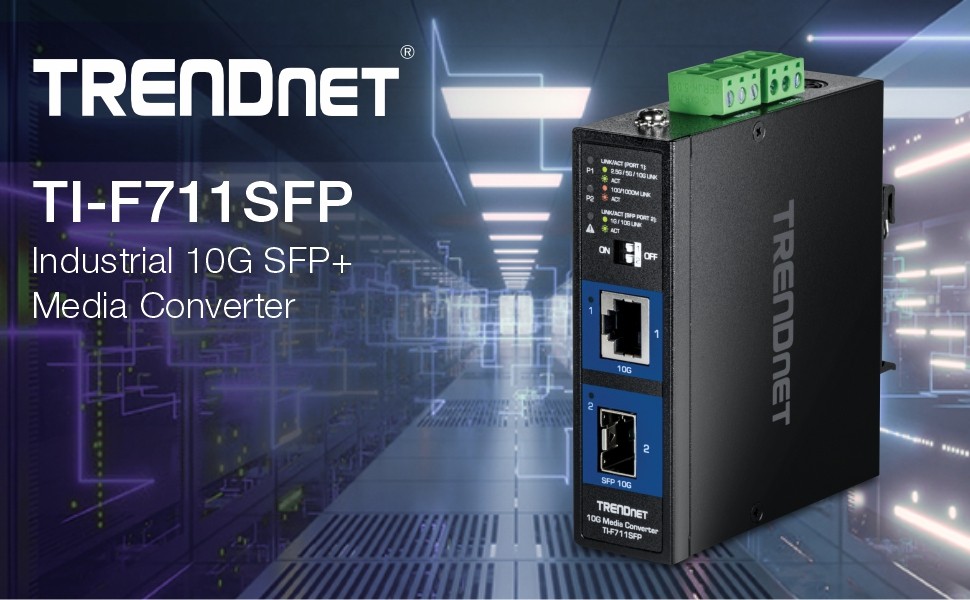

Industrial 10G SFP+ Media Converter

1 x 10G SFP+ port
1 x 10G Ethernet port
Hardened IP50-rated 10G Ethernet to 10G SFP+ converter
SFP port accommodates Multi or Single Mode fiber modules
Hardened IP50-rated metal switch
6kV RJ45 Ethernet surge protection
Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
Dual 48V and 9 – 60V DC inputs provide redundant power with overload current protection
Alarm relay triggered by power failure
Includes DIN-Rail and wall mounts
Powers supply sold separately (models: TI-M6024, 48VDC3000)
NDAA / TAA compliant (U.S. and Canada only)

FEATURES

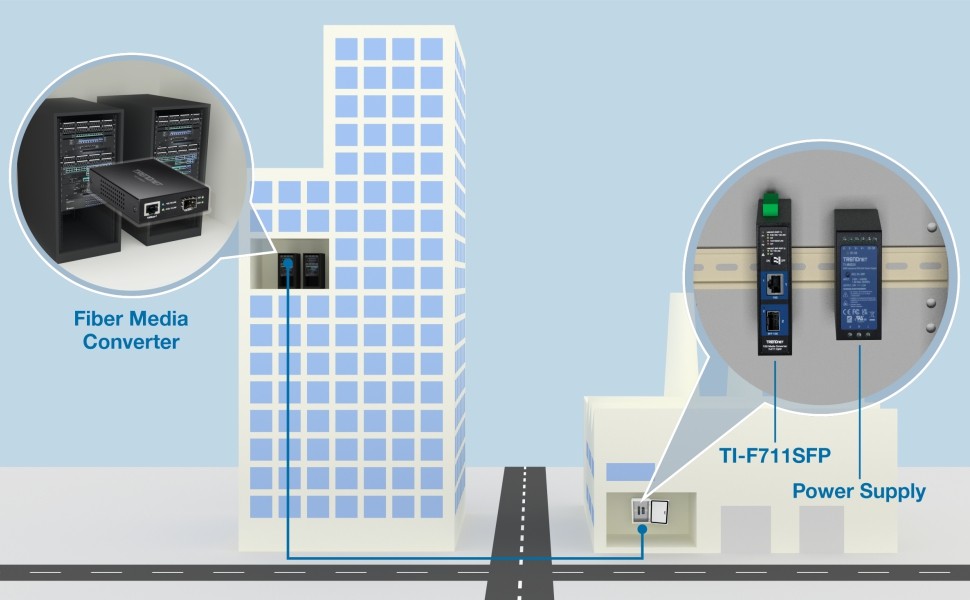

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

Fault Tolerance

Features redundant 48V and 9 – 60V DC power inputs from external power sources, and an output alarm relay to indicate an input power failure.

Industrial Hardened Design

Rugged IP50-rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).

10G Port

One 10G Ethernet port for
highspeed devices

10G SFP+ Port

One 10G SFP+ port for
long distance applications

DIP Switches

1: LFPT (Link Fault Pass Through)
on/off (default ON)
2: EEE (Energy Efficient Ethernet)
on/off (default OFF)

Vivamus elit magna

Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis.

Surge Protection

Provides up to 6kV RJ45
Ethernet surge protection

Electro Magnetic Compliance

Complies with industrial EMS
certifications ESD (IEC 61000-4
2): Contact: 6kV, Air: 8kV; EFT
(IEC 61000-4-4): Power: 2kV,
Signal: 1kV; Surge (IEC 61000-4
5): Power: 2kV, Signal: 2kV

Dust Protected

This industrial media converter
is IP50 rated for ingress dust
protection

Extreme Temperature Range

An extreme operating temperature
range of -40° – 75° C (-40° – 167°
F) allows for installations in
industrial environments with
intense hot or cold conditions

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6)

Grounding Point
Features a grounding point to
protect equipment from
external electrical surges

DIN-Rail / Wall Mounts
The rugged media converter
includes DIN-Rail mount and
wall mount hardware

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3bz IEEE 802.3an IEEE 802.3ae IEEE 802.3x IEEE 802.3az

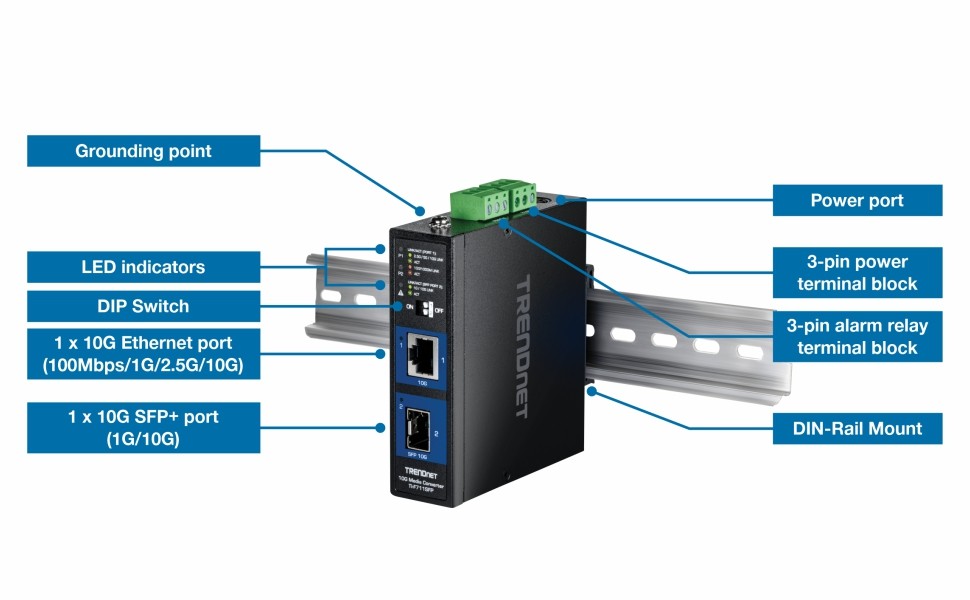

Device Interface	1 x 10G Ethernet port (100Mbps/1G/2.5G/10G) 1 x 10G SFP+ port (1G/10G) 3-pin power terminal block 3-pin alarm relay terminal block LED indicators DIP Switch
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 2.5G: 5Gbps (full duplex) 10G: 20Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 20Gbps MAC Address Table: 4K entries Jumbo Frame: 12KB Forwarding rate: 29.8Mpps (64-byte packet size)
DIP Switch	1: LFPT (Link Fault Pass Through) on/off (default ON) 2: EEE (Energy Efficient Ethernet, IEEE 802.3az) on/off (default OFF)
DC Power	Input: 9 – 60V DC Compatible power supply: TI-M6024 (sold separately) Max. consumption: 6.54W
AC Power	Input: 100 – 240V AC, 50/60Hz, 2A Output: 48V DC, 3.34A 160W max. Compatible power adapter: 48VDC3000 (sold separately) Max. consumption: 7.2W
Terminal Block	3-pin terminal blocks Alarm Relay: 1A @ 24V DC Wire range: 2.5mm2 Solid wire (AWG): 12-25 Stranded wire (AWG): 12-25 Torque: 3.5 lb. – In / 0.5Nm Wire strip length: 7-8mm
MTBF	1,979,198 hours @ 25° C
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point 6kV ESD protection 2kV surge protection
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.)
Weight	334g (11.8 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-31) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	3- year

PACKAGE CONTENTS

TI-F711SFP
Removable terminal blocks
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
