TRENDnet’s SFP Dual Wavelength Single Mode LC Modules are compatible with standard SFP slots found on network switches and fiber converters. Each single mode BiDi SFP transceiver is equipped with a simplex LC fiber connection interface, and supports high-speed data rates up to 1.25Gbps. All TRENDnet SFP fiber modules support connections for reliable, long-distance network applications.

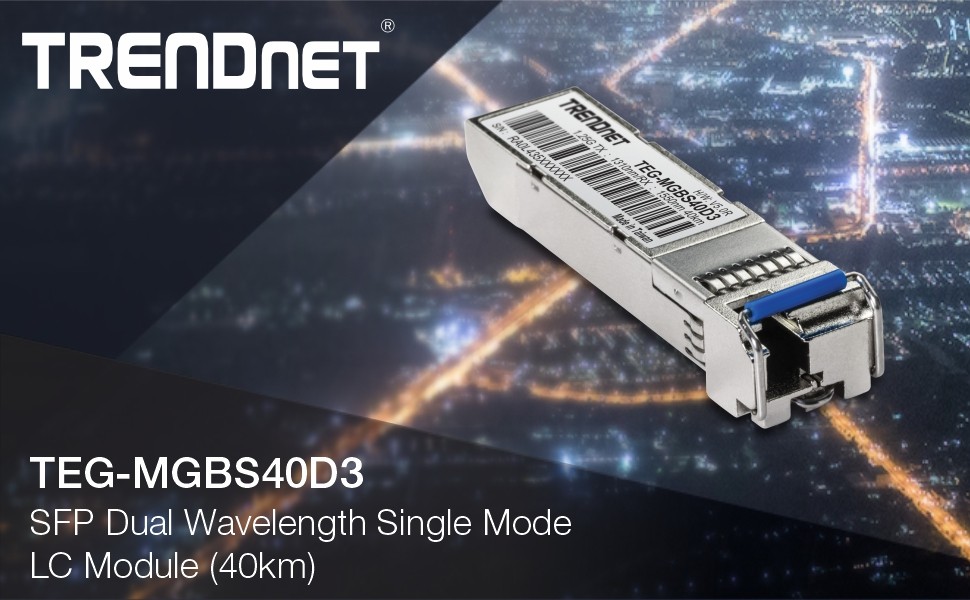

SFP Dual Wavelength Single Mode LC Module (40km)

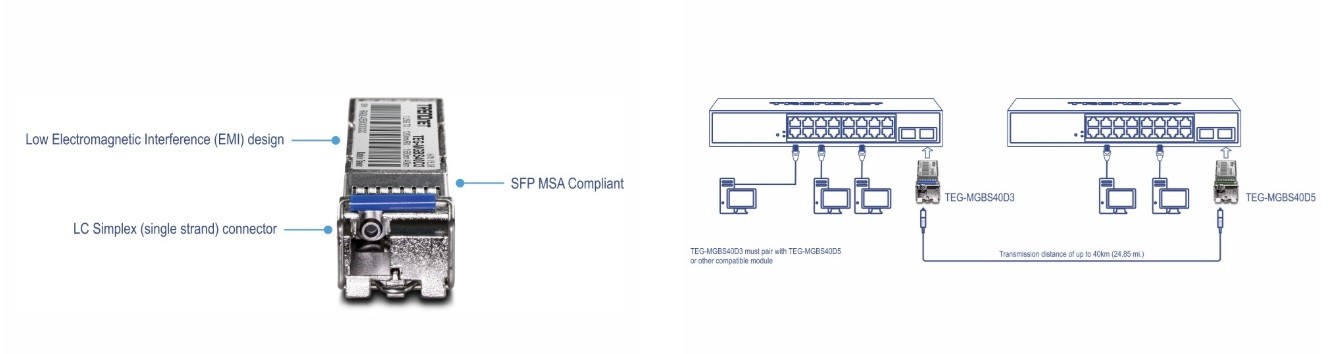

Must pair with TEG-MGBS40D5 or other compatible module
Transmission distance of up to 40km (24.85 mi.)
LC Simplex (single strand) connector type
Bi-Directional (WDM) SFP Module
Supports data rates of up to 1.25Gbps
Supports Transmit: 1310nm / Receive: 1550nm
Low Electromagnetic Interference (EMI) design
Compliant with IEEE 802.3z Gigabit Ethernet
ANSI Fiber Channel compliant
Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
Low power consumption
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

Fiber Applications

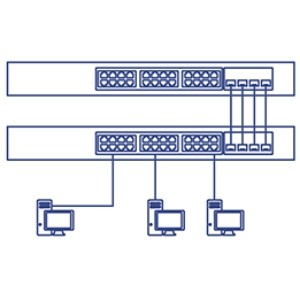

Long-distance fiber networking for manufacturing, business parks, and school campus applications.

Fiber Mode/Distance

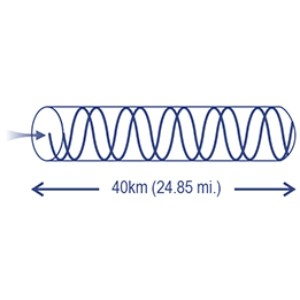

Single mode SFP transceiver spans distances up to 40km (24.85 mi.) at gigabit speeds.

Compatibility

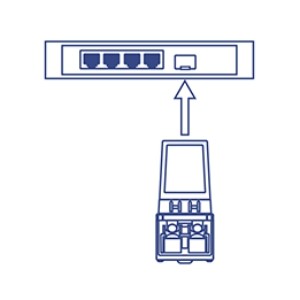

Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type simplex connectors.

Fiber Interface

This single mode fiber BiDi SFP transceiver supports LC-type simplex connector

Bi-Directional SFP

Transmit: 1310nm / Receive: 1550nm, pair with TEG-MGBS40D5 or compatible SFP module

Hot-Pluggable SFP

Maecenas sit amet facilisis leo. Vivamus vel metus vitae mi congue mollis et ac quam. Phasellus faucibus libero.

Operating Temperature

This BiDi SFP module is rated for an operating temperature range of 0° - 70° C (-32° - 158° F)

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z
Device Interface	SFP MSA Compliant LC Simplex connector
Data Transfer Rate	1.25Gbps
Wavelength	TX: 1310nm RX: 1550nm
Optical Output Power	-3 ~ 3 dBm
Distance	40km (24.85 mi)
Special Features	Hot pluggable Metal enclosure
Sensitivity	-25 dBm
Power	Max. Consumption: 0.8W
Operating Temperature	0° – 70° C (32° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight	18g (0.6 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-MGBS40D3
Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
