Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 20-Port 2.5G Switch with 10G SFP+ Ports, model TEG-S50204. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G fiber SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. This high-speed switch features a durable metal enclosure, and the fanless design lowers energy consumption and eliminates operating noise. The included rackmount brackets are well-suited for 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

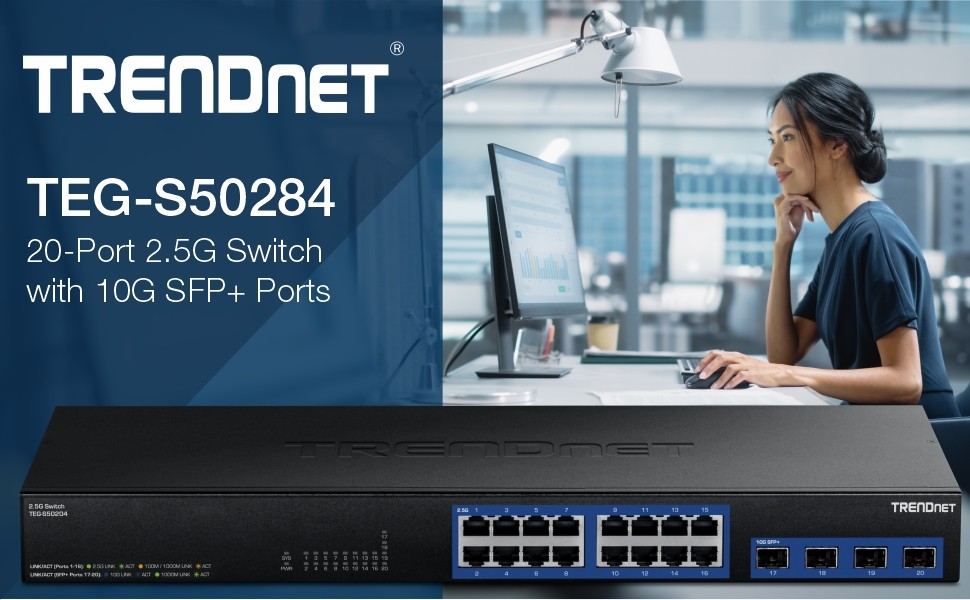

20-Port 2.5G Switch with 10G SFP+ Ports

• 16 x 2.5G RJ-45 ports
• 4 x 10G SFP+ ports
• Compatible with existing Cat5e or better cabling
• Fanless design eliminates noise
• Rack mountable or wall mountable for installation flexibility
• 160Gbps switching capacity
• IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
• Lifetime Warranty
• NDAA / TAA compliant (U.S. and Canada only)

FEATURES

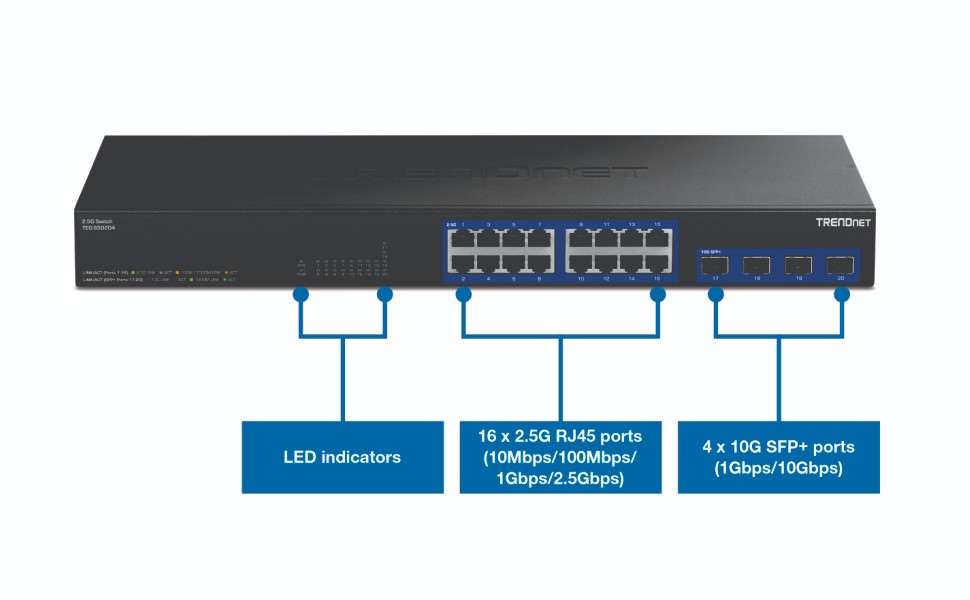

Hardware Interface

Equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over Cat5e or better cabling or 10Gbps over fiber cabling.

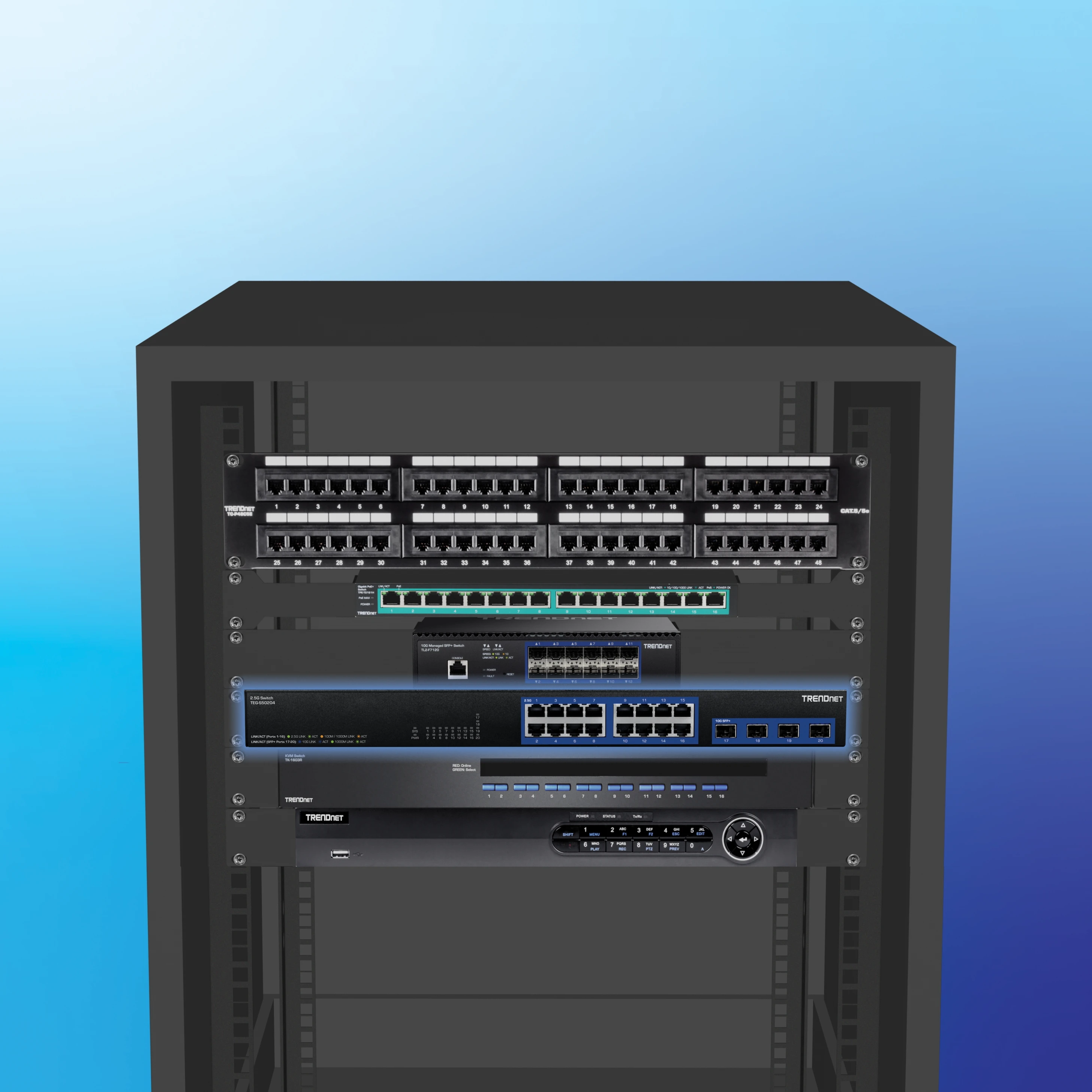

Rack Mountable

The multi-gig switch features a durable metal housing with a convenient rack mountable design for greater installation flexibility.

Fanless

The fanless design of this 20-port 2.5G switch lowers energy consumption costs and eliminates operating noise.

Vivamus elit magna

Easy Installation

No configuration needed, simply connect network devices to the 20-port multi-gig switch

2.5G Ports

This multi-gigabit switch is equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

10G SFP+ Ports

The 2.5G switch features 10G fiber SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability

Switching Capacity

160Gbps switching capacity

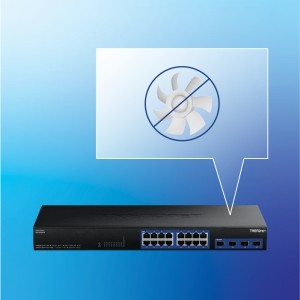

Fanless

Fanless design on the 20-port 2.5G switch lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Sed bibendum

Maecenas sit amet facilisis leo. Vivamus vel metus vitae mi congue mollis et ac quam. Phasellus faucibus libero.

19” Rackmount

Sturdy rack mountable 1U housing with mounting kit included

Jumbo Frame

Sends larger packets, or jJumbo fFrames (up to 12KB), for increased performance

VLAN Passthrough

Supports VLAN tag passthrough traffic

LED Indicators

LED indicators on this 20-port 2.5G switch conveniently convey port status

SPECIFICATIONS

Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3az IEEE 802.3bz
Device Interface	16 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) 4 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switching Capacity: 160Gbps RAM Buffer: 2MB Jumbo Frames: 12KB MAC Address Table: 32K entries Forwarding Rate: 119.04Mpps (64-byte packet size)
VLAN	VLAN Passthrough
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V DC, 3A Max. Consumption: 38.88W
Fan/Acoustics	Fanless design
MTBF	394,000 hours @ 25° C
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
Weight	2.89kg (6.37lbs)
Certifications	FCC CE LVD
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S50204
Rackmount kit
Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
