OVERVIEW

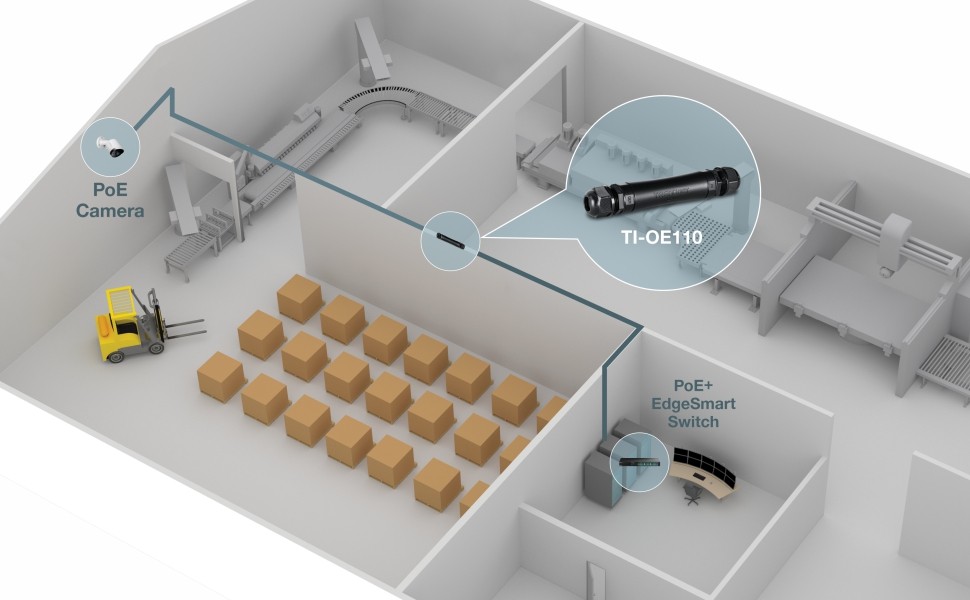

TRENDnet’s Industrial Waterproof Gigabit PoE+ Extender, model TI-OE110, takes a single PoE+ connection and extends it up to an additional 100m (328 ft.) for a remote PoE or non-PoE device installation. Daisy-chain up to two outdoor PoE+ extenders for a total PoE network extension of 300m (984 ft.) away from the PoE power source equipment. The industrial outdoor PoE+ extender conveniently auto-detects a PoE or PoE+ connection and features a rugged IP67 waterproof enclosure for installation flexibility.

FEATURES

PoE Powered


Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE/PoE+ or non-PoE device installation.

Daisy Chainable


Daisy chain up to two industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.).

Industrial Grade Design


Built for industrial network environments, with an IP67 enclosure rating, and an extreme operating temperature range of -40°– 75° C (-40° – 167° F).

Industrial Waterproof Gigabit PoE+ Extender

  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.) for PoE and non-PoE device
  • Daisy chain up to two units for a total PoE network extension of up to 300m (984 ft.)*
  • Supports PoE (15.4W) and PoE+ (30W)
  • Extreme operating temperature range of -40°– 75° C (-40° – 167° F)
  • IP67 rated waterproof enclosure
  • Compact design
  • PoE powered – no external power adapter required
  • NDAA / TAA compliant

Extension Distance

Extends a PoE/PoE+ network
connection an additional 100m for
a total distance of up to 200m
(656 ft.) from the PoE power
source equipment

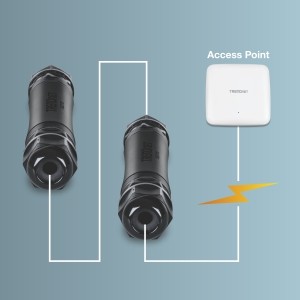

Daisy-Chain

Connect up to two TI-OE110
outdoor PoE+ extenders for a
total PoE+ network extension of
up to 300m (984 ft.)

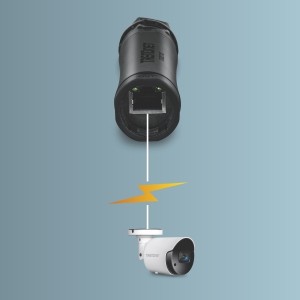

PoE

Auto-sensing technology
conveniently delivers the correct
wattage needed to power your
PoE (15.4W) or PoE+ (30W)
device

Gigabit Ports

The industrial outdoor PoE+
extender features one gigabit
PoE+ input port and one gigabit
PoE+ output port

Outdoor Ready
Rugged IP67 outdoor weather
rated housing

PoE Powered
No external power
required—saves on cost and
installation time

LED Indicators
LED indicators on this
outdoor PoE+ extender
convey status

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 1 x Gigabit PoE+ in port
  • 1 x Gigabit PoE+ out port
  • LED Indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
Performance
  • RAM Buffer: 128KB
  • MAC Address Table: 2K
  • Jumbo Frame: 9KB
Power
  • PD Power Input: 802.3af 15.4W / 802.3at 30W
  • PoE Power Output: Up to 26W (max.)*
  • 6kV Surge Protection
  • Max. consumption: 1.7W (without PoE)

Maximum PoE Power Output Distance*

PoE Input Number of extenders from PSE / PoE Output
802.3at 30W 1 Extender Unit / 24W @ 656ft (200m) max.
2 Extender Units / 15.5W @ 984ft (300m) max.
802.3af 15.4W 1 Extender Unit / 12W @ 656ft (200m) max.
2 Extender Units / 10W @ 984ft (300m) max


*Max. PoE output power based on 802.3at 30W PSE or PD Input and cable length from PSE to extender is 100m and cable length from extender to PD is 1.5m. Daisy chain max. distance values tested at 100m cable lengths from PSE, between extender units, and to PD.
Enclosure
  • IP67 rated
  • Tool-less design
MTBF
  • 2,517,107 hrs @ 25° C
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 165 x 25mm (6.5 x 0.98 in.)
Weight
  • 96g (3.4 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 60068-2-27 (Shock)
  • IEC 60068-2-31 (Freefall)
  • IEC 60068-2-6 (Vibration)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-OE110
  • 2 x Removable cable glands

* Each additional extender added to the daisy chain and extended cable lengths will decrease the overall available PoE budget.
** To obtain the maximum PoE budget of 26W, the PoE extender must be powered by a 30W PoE+ PSE device.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
