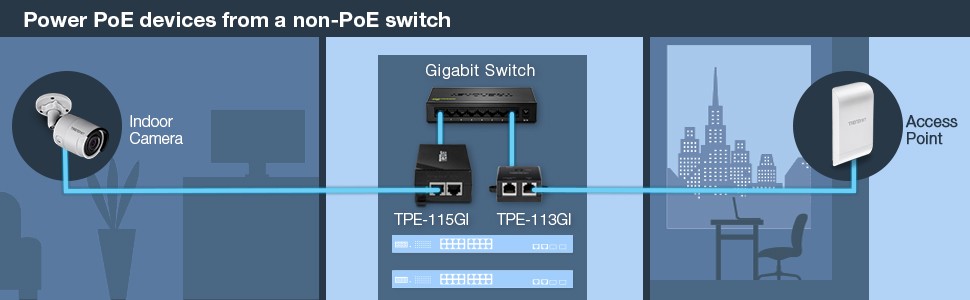

TRENDnet's Gigabit PoE Injector, model TPE-113GI, combines electrical power with a Gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away.

PoE

Supplies a PoE device with PoE (15.4W) power.

Installation Flexibility


Wall-mountable design accommodates most installation scenarios.


Gigabit Speeds


Full Duplex 2Gbps Ethernet speeds with this PoE injector.

PoE

Supplies a PoE device with PoE (15.4W) power

Easy Installation

No configuration needed, simply connect a PoE network device

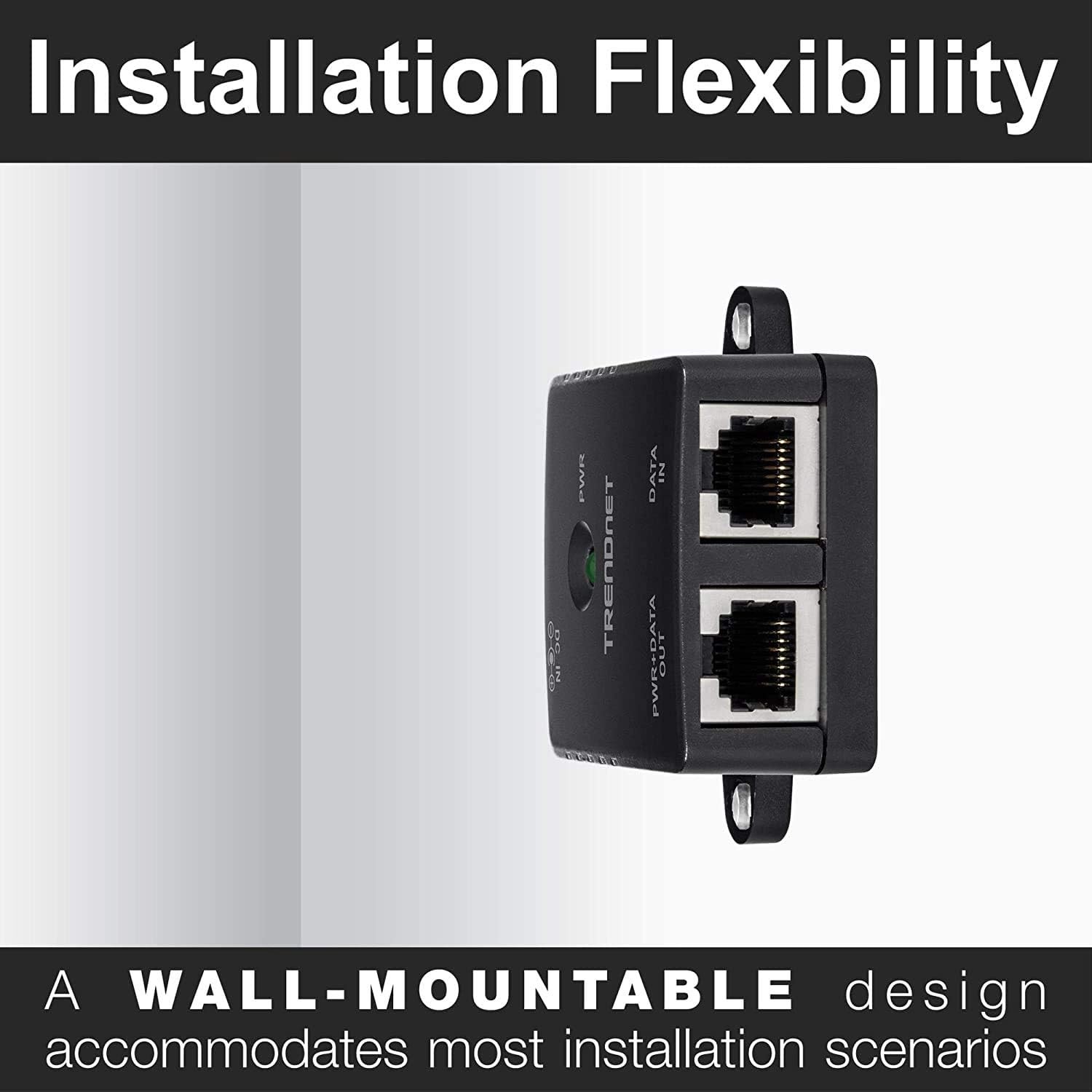

Installation Flexibility

Wall-mountable design accommodates most installation scenarios

Gigabit Ports

1 x Gigabit Ethernet port and 1 x PoE Gigabit Ethernet port

PoE Distance

Provides a PoE network connection up to 100 meters (328 ft.)

LED Indicator

LED indicator confirms PoE connectivity

Auto-Sensing Technology

Auto-sensing technology delivers up to 15.4W to an 802.3af PoE device

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
Device Interface
  • 1 x Gigabit Data In port
  • 1 x Gigabit Data & Power out port
  • 1 x Power Input
  • LED indicator
Special Features
  • Wall-mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
PoE Delivery
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.6A max.
Power Consumption
  • Max. 15.4W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 67 x 51 x 25mm (2.6 x 2 x 1 in.)
Weight
  • 38g (1.34 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TPE-113GI
  • Quick Installation Guide
  • Power adapter (54V DC, 0.4A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
