Luxul 12 Front-Facing Ports 1Gb L2/L3 Managed Switch - 8 PoE+/2 RJ45/2 SFP Ports - US Power Cord
8 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - PoE Ports

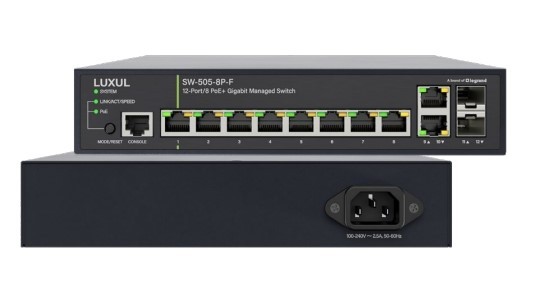

The SW-505-8P-F provides 12 ports of network connectivity and PoE+ power in commercial or residential applications designed to support AV-over-IP (AVoIP) applications. This 12-port, fanless switch includes 8 1 Gbps PoE+ Ethernet ports, 2 non-PoE Ethernet ports, and 2 - 1 Gbps SFP expansion ports.
Luxul Managed Switch
Overview
Designed to support AV-over-IP (AVoIP) applications, the SW-505-8P-F includes eight 1-Gigabit PoE+ Ethernet ports, two non-PoE Ethernet Ports, and two 1-Gigabit SFP expansion ports.
The 8 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 130W for all PoE+ ports combined.
The advanced Layer 2/Layer 3 features and easy-to-use management interface simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running
audio and video over the network simultaneously. This model also features a small form factor and fanless design that is perfect for bedrooms, conference rooms, offices, theaters, or wherever silent operation is needed.
12-PORT GIGABIT MANAGED PoE+ SWITCH
- Eight PoE+ ports (130W power budget)
- Two Gigabit Ethernet ports & two SFP ports (can be used independently)
- Fanless for silent operation
- Luxul ProWatch Integrated
Managed PoE Switches

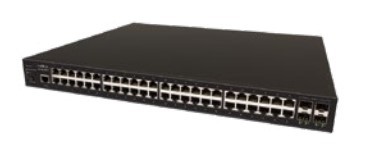

48-PORT GIGABIT MANAGED PoE+ SWITCH
- 48 Gigabit RJ45 ports +
four 10 Gigabit SFP+ ports - Group up to 16 switches
- 48 PoE+ ports (740W power budget)
- Variable speed fan
- Luxul ProWatch Integrated

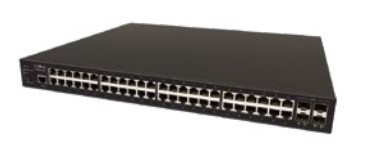

48-PORT GIGABIT MANAGED PoE+ SWITCH
- 48 Gigabit RJ45 ports + four
Gigabit SFP ports - Group up to 16 switches
- 48 PoE+ ports (740W power budget)
- Variable speed fan
- Luxul ProWatch Integrated

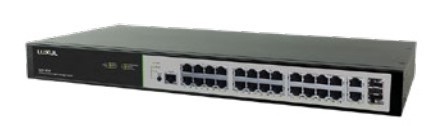

26-PORT GIGABIT MANAGED PoE+ SWITCH
- 26 Gigabit RJ45 ports +
two Gigabit combo ports - 24 PoE+ ports (370W power budget)
- Variable speed fan
- Luxul ProWatch Integrated

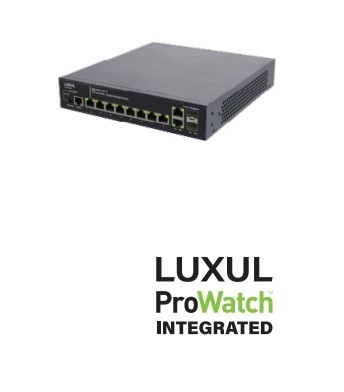

12-PORT GIGABIT MANAGED PoE+ SWITCH
- Eight PoE+ ports (130W power)
- Two Gigabit Ethernet ports &
two SFP ports (can be used
independently) - Fanless for silent operation
- Luxul ProWatch Integrated
