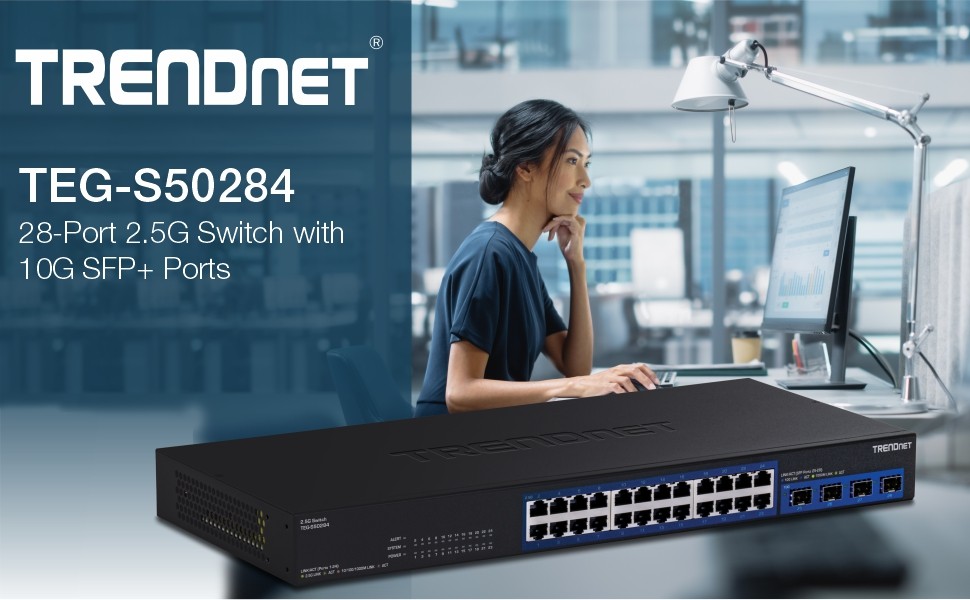

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 28-Port 2.5G Switch with 10G SFP+ Ports, model TEG-S50284. This multi-gigabit network switch comes equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e cabling or 10Gbps over fiber cabling. This high-speed switch features a durable metal enclosure, and the smart fans auto adjusts the fan speed based on cooling needs.The included rackmount brackets are well-suited for wall mount or 19” 1U rack installations. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

FEATURES

Hardware Interface

Equipped with 2.5GBASE-T RJ-45 and 10G SFP+ ports that provide ultra-fast speeds capable of up to 2.5Gbps over Cat5e or better cabling or 10Gbps over fiber cabling.

Rack Mountable

The multi-gig switch features a durable metal housing with a convenient rack mountable design for greater installation flexibility.

Smart Fans

Smart fans save energy by auto adjusting the fan speed and use based on cooling needs

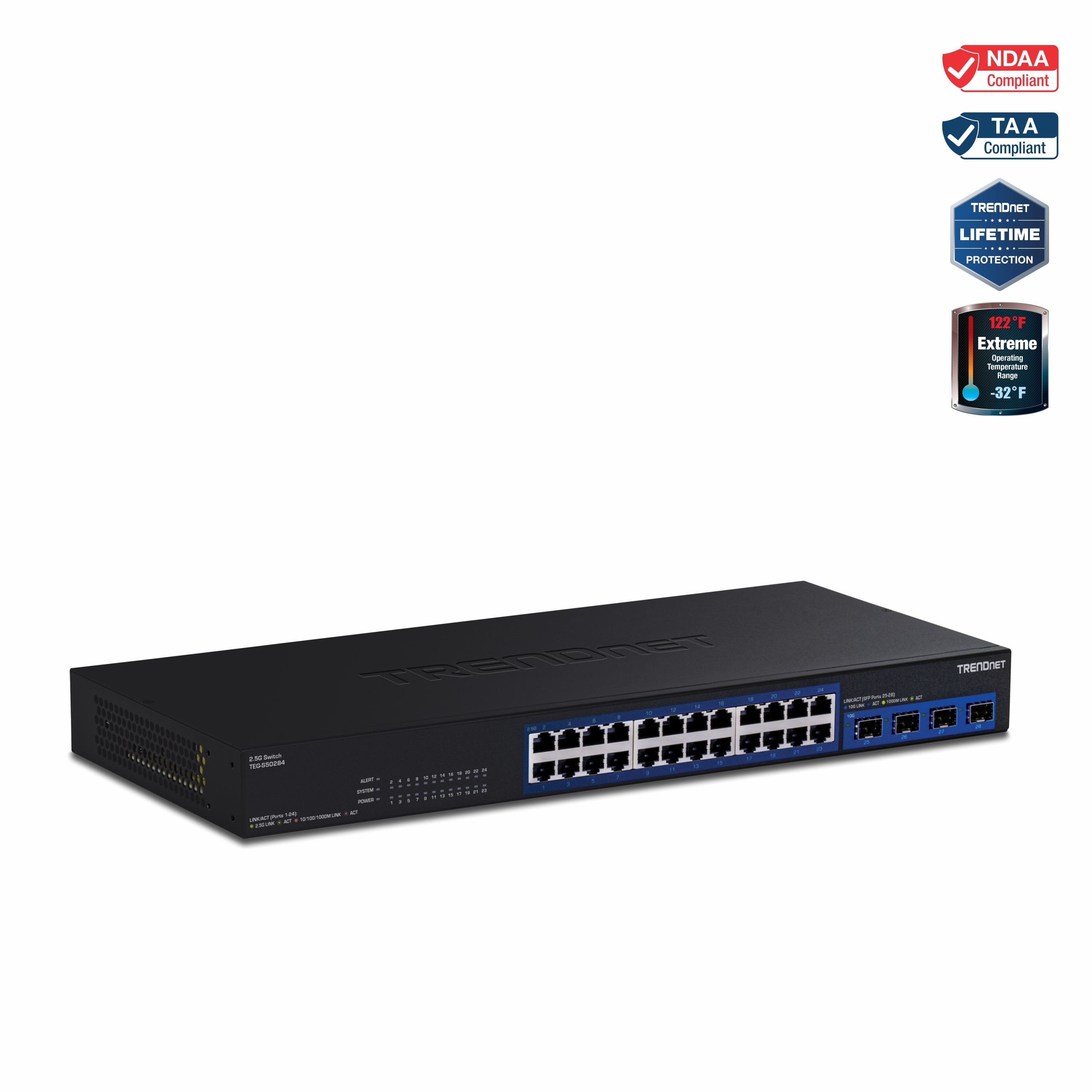

28-Port 2.5G Switch with 10G SFP+ Ports

24 x 2.5G RJ-45 ports
4 x 10G SFP+ ports
Compatible with existing Cat5e or better cabling
Smart fans auto adjusts the fan speed based on cooling needs
Rack mountable or wall mountable for installation flexibility
200Gbps switching capacity
IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

Easy Installation

No configuration needed,
simply connect network devices
to the 28-port multi-gig switch

2.5G Ports

This multi-gigabit switch is
equipped with 2.5GBASE-T RJ-45
ports that provide ultra-fast
speeds capable of up to 2.5Gbps
over existing Cat5e or better
cabling
congue.

10G SFP+ Ports

The 2.5G switch with SFP+ ports
features 10G SFP+ ports for highspeed network connections,
providing a cost-effective solution in
adding 10G link capability

Switching Capacity

200Gbps switching capacity

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 12KB), for
increased performance

VLAN Passthrough
Supports IEEE 802.1Q to
pass VLAN traffic

LED Indicators
LED indicators on this 28-port
2.5G switch conveniently convey
port status

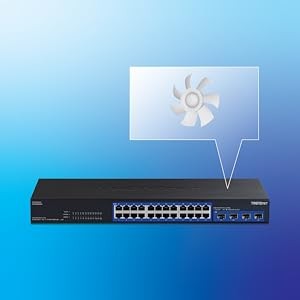

Smart Fans

Smart fans save energy by auto-adjusting the fan speed and use based on cooling needs

Housing Design

Sturdy metal housing

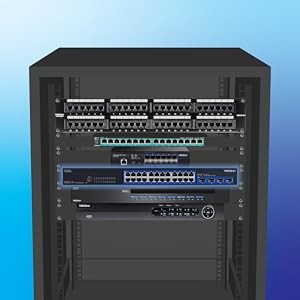

19” Rackmount

Sturdy rack mountable 1U housing with mounting kit included

SPECIFICATIONS

Standards	IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ae IEEE 802.3az IEEE 802.3bz

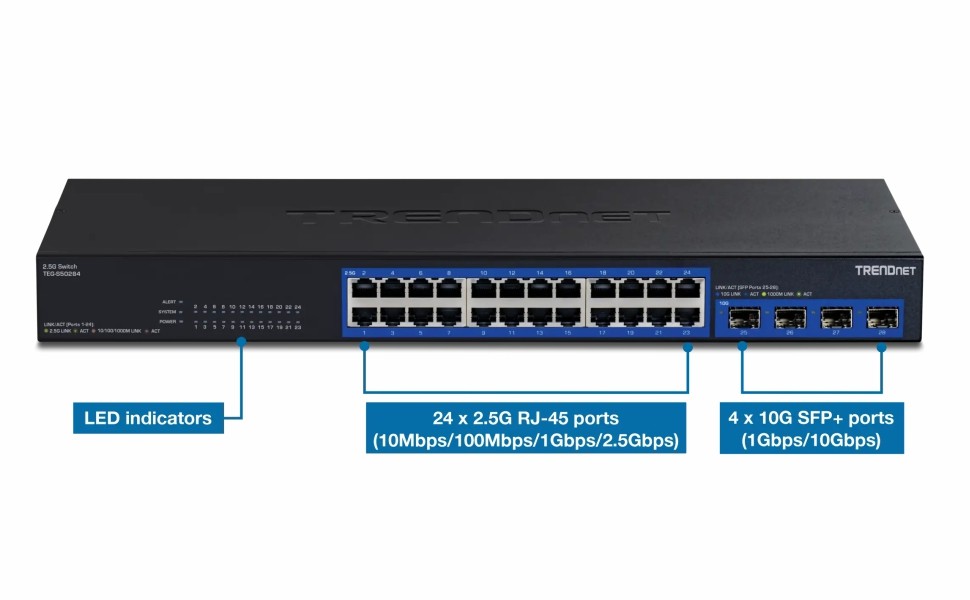

Device Interface	24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) 4 x 10G SFP+ ports (1Gbps/10Gbps) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex) Gigabit SFP: 2Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Switching Capacity: 200Gbps RAM Buffer: 2MB Jumbo Frames: 12KB MAC Address Table: 32K entries Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features	Rack mountable VLAN Passthrough ESD 6kV for ethernet ports
Power	Input: 90 – 264V AC, 47/63 Hz Output: 12V DC, 5A Max. Consumption: 38.88W
Fan/Acoustics	Quantity: 2 Smart fans
MTBF	426,000 hours @ 25° C
Operating Temperature	0° – 50° C (32° – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
Weight	2890g (6.37lbs)
Certifications	FCC CE LVD
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S50284
Quick Installation Guide
Rackmount kit
Power cord (1.5m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
