Chief Thinstall Medium 25 Inch Extension Display Wall Mount - For 42-75 Inch Displays - Dual Monitor Arm - Black

The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25" for viewing from any angle while remaining low-profile in home position. The screen can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look.

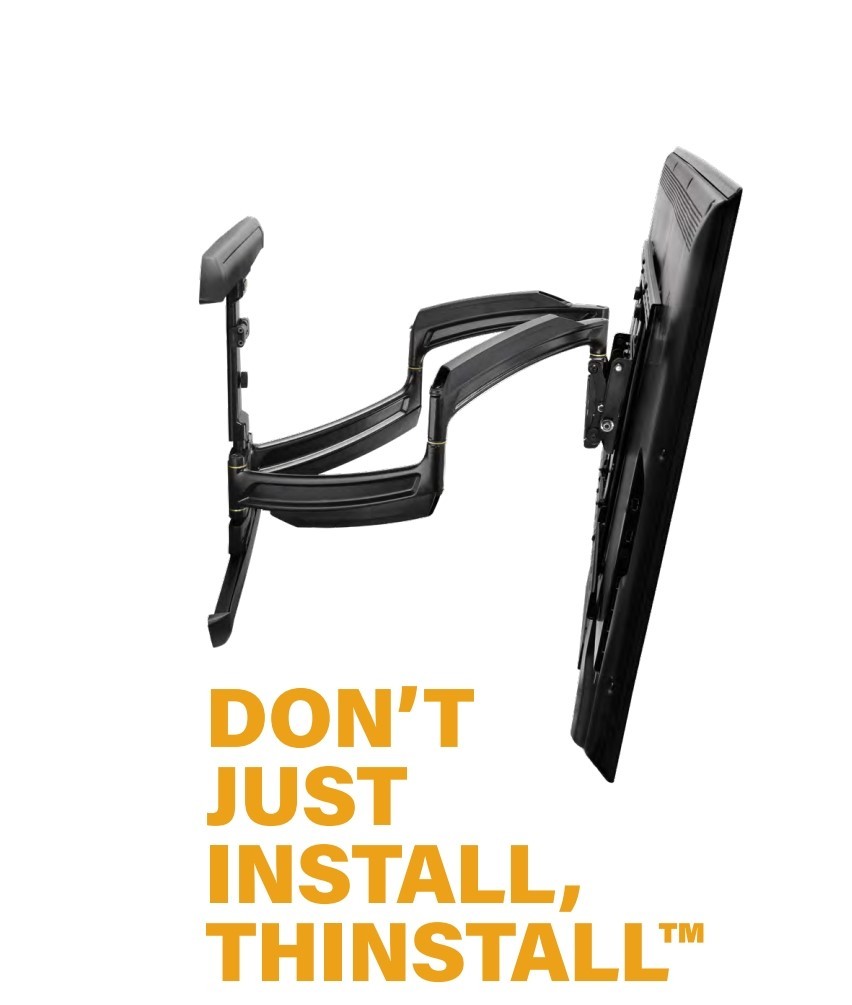

Chief Thinstall Monitor Arm Wall Mount

Monitor Arm Mounts

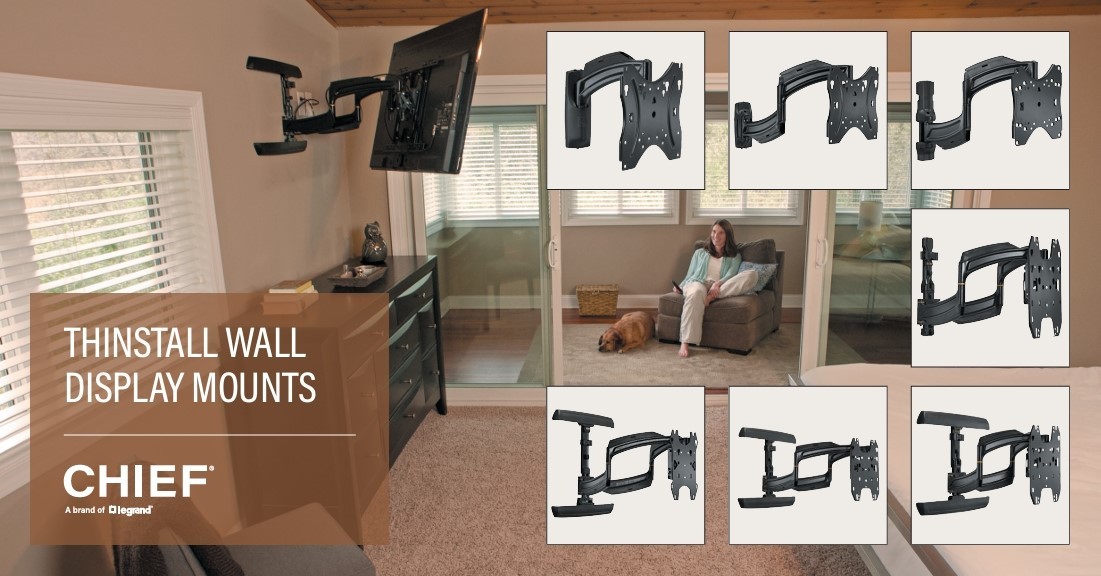

Chief’s Thinstall Series Swing Arm Mounts
are ultra low-profile full-motion wall mounts
for flat panel TVs and displays. These sleek,
ruggedly-constructed solutions have low
1.5”-2” (38-53 mm) profiles, are easy to
install and extend up to 25” (635 mm).

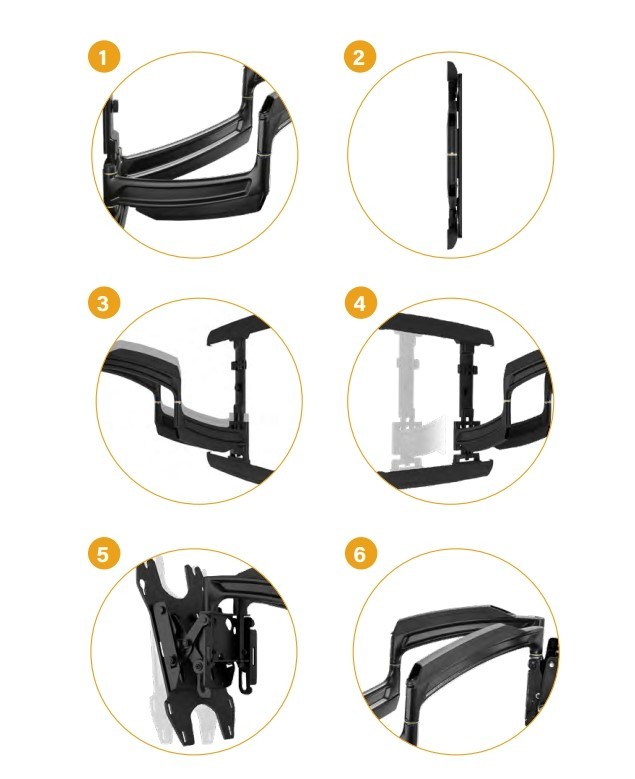

Features

FULL EXTENSION
Arms extend out up to 25” (635 mm) for maximum viewing potential.
ULTRA LOW-PROFILE
These sleek designs collapse 1.5 to 1.8” (38 to 46 mm) providing an ultra-thin profile.
CONTROLZONE™ HEIGHT ADJUSTMENT
Adjust the height of your entire configuration post-installation up to 1” (25 mm).
CENTERLESS™ LATERAL SHIFT
Get up to 16” (406 mm) of post-installation shift for limitless centering possibilities.
CENTRIS™ LOW-PROFILE FINGERTIP TILT
Provides up to 15° of fingertip tilt to achieve the perfect viewing angle.
INTEGRATED CABLE MANAGEMENT
Enclosed, tool-less cable covers and a wide open wall plate make it easy to route power and signal cables.

Monitor Arm Accessories

TA100 Component Shelf

• TA100 compatible with
TS525TU, TS325TU,
TS318TU, and TS318SU
• Height adjustable shelf sits
above or below TV to
accommodate different
component and screen sizes
• 10 lbs (4.5 kg) weight capacity

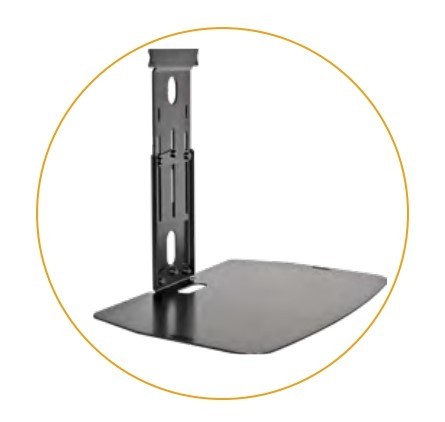

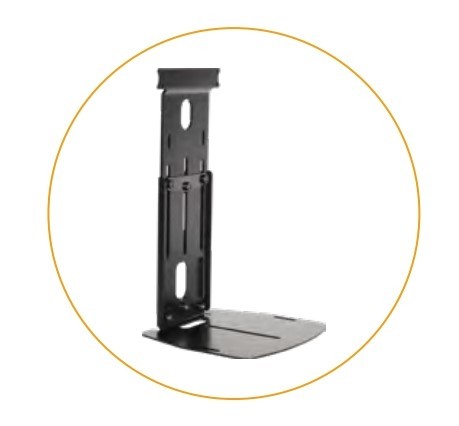

TA200/TA250 Camera Shelves

• 8” or 12” (203 mm or 305 mm)
wide shelf
• Compatible with TS525TU,
TS325TU, TS318TU, and
TS318SU
• Height adjustable shelf sits
above or below TV to
accommodate different
• 10 lbs (4.5 kg) weight capacity

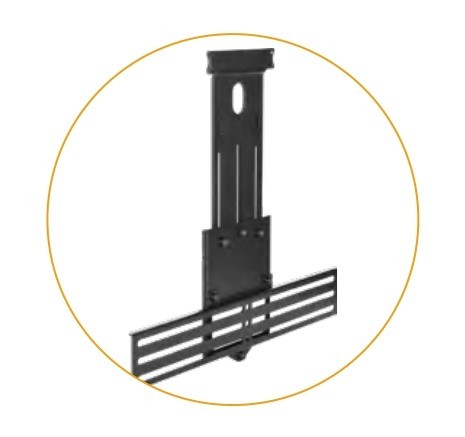

TA350 Center ChannelSpeaker Adapter

• Compatible with TS525TU,
TS325TU, TS318TU, and TS318SU
• Infinitely adjustable to fit speaker flush with top or bottom of TV
• 10 lbs (4.5 kg) weight capacity

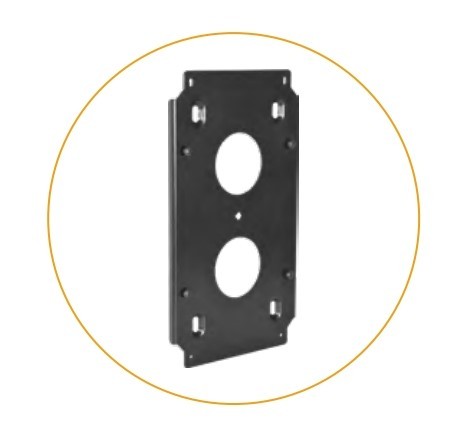

TA410 Portrait Adapter

• Compatible with TS525TU,
TS325TU, TS318TU, and TS318SU
• Allows displays to be installed
in portrait orientation
• Not necessary for TVs having
100 x 100 mm or 200 x 200 mm
mounting patterns
• Adds 0.1” (2.7 mm) of depth to
installation

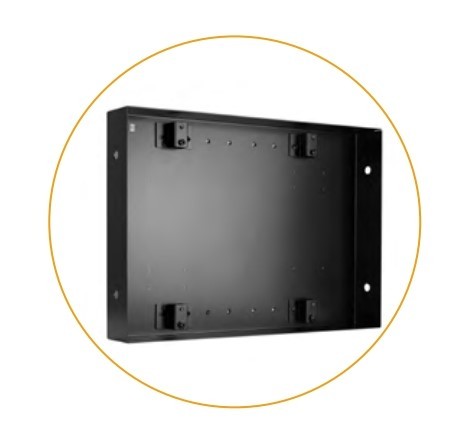

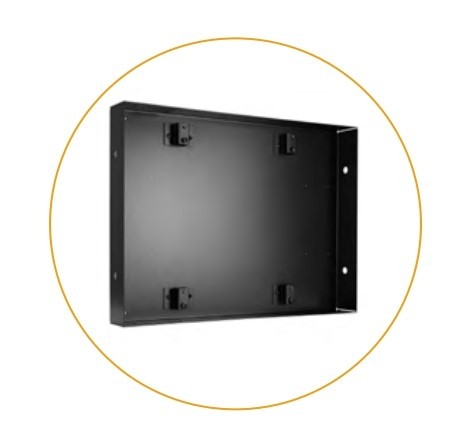

TA500 In-Wall Accessory Box
• Allows a TS525TU or TS325TU to be
recessed into a standard depth wall for
a zero-profile installation
• Requires a 34.25 x 22” (870 x 559 mm)
opening in a standard depth wall

TA501 In-Wall Accessory Box
• Allows a TS318TU to be recessed into
a standard wall for a zero-profile
installation
• Requires a 30.25 x 20.25” (768 x 514 mm)
opening in a standard depth wall

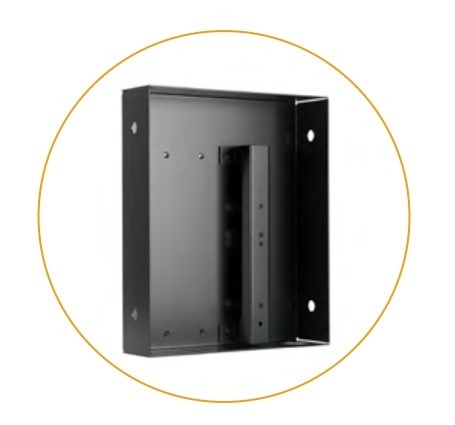

TA502 In-Wall Accessory Box
• Allows a TS218SU or TS118SU to be
recessed into a standard wall for a
zero-profile installation
• Installs in between standard 16” on
center studs
• Requires a 14.5 x 14.5” (368 x 368 mm) opening in a standard depth wall
