TRENDnet's 28-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

28-Port 10/100 Mbps Web Smart PoE+ Switch

20 x PoE ports (15.4 W / port)
4 x PoE+ ports (30 W / port)
2 x Gigabit ports
2 x Shared Gigabit ports (RJ-45 or SFP)
193 Watt PoE budget
12.8 Gbps switching capacity
Rack mountable
Smart fans reduce energy consumption
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

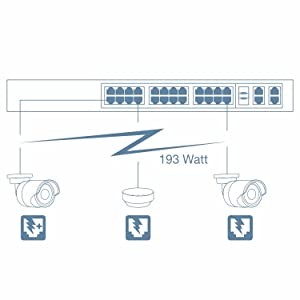

Power over Ethernet

The 193 W PoE power budget supplies PoE+ (up to 30 W) to ports 1-4 and PoE (up to 15.4 W) to ports 5-24 along with PD (powered device) auto classification and over current / short circuit protection.

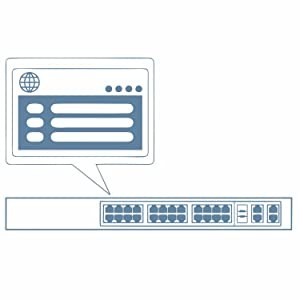

Web Smart Management

Provides an easy to use web-based GUI management for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

Integration Flexibility

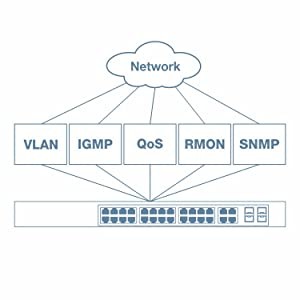

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap and syslog for monitoring and flexible network integration.

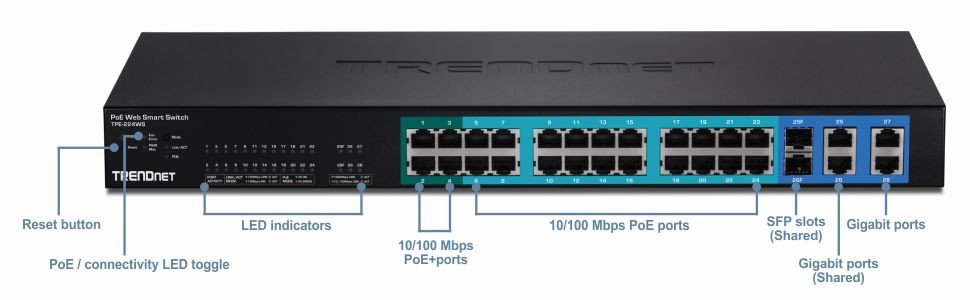

Hardware Design

Provides 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 4 x Gigabit ports, 2 x shared SFP slots, a PoE Power budget of 193 W, and includes rackmount brackets.

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.

Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

SPECIFICATIONS

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af (15.4 W / port) IEEE 802.3at (30 W / port) IEEE 802.3az
Device Interface	4 x 10/100 Mbps PoE+ ports, 20 x 10/100 Mbps PoE ports 2 x Gigabit ports 2 x Shared Gigabit ports (RJ-45 or SFP) LED indicators (Mode Button displays Link / Activity or PoE port status) Reset Button
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 12.8 Gbps RAM buffer: 512 KB MAC Address Table: 8 K entries HOL Blocking Prevention Forwarding rates: 9.5 Mpps (64-byte packet size)
Management	HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable / disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet –like MIB RFC 2863 Interface Group MIB RFC 2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one Many to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP / UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows ^® 10, 8.1, 8, 7, Vista, XP, Windows ^® 2003 / 2008 Server
Special Features	PoE+ IPv6 802.3az power saving Rack mountable
Power	Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 239.7 W (max.)
PoE	PoE budget: 193 W 802.3at: Up to 30 W per port (ports 1-4) 802.3af: Up to 15.4 W per port (ports 5-24) Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-) PD auto classification Over current / short circuit protection
Fan / Acoustics	Quantity: 2 Noise Level: 54 dB(A) (max.)
MTBF	283,830 hours
Operating Temperature	-5 – 50 °C (23 – 122 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.) Rack mountable 1U height
Weight	3.26 kg (7.18 lbs.)
Certifications	CE FCC UL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-224WS
Quick Installation Guide
CD-ROM (Utility & User's Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
