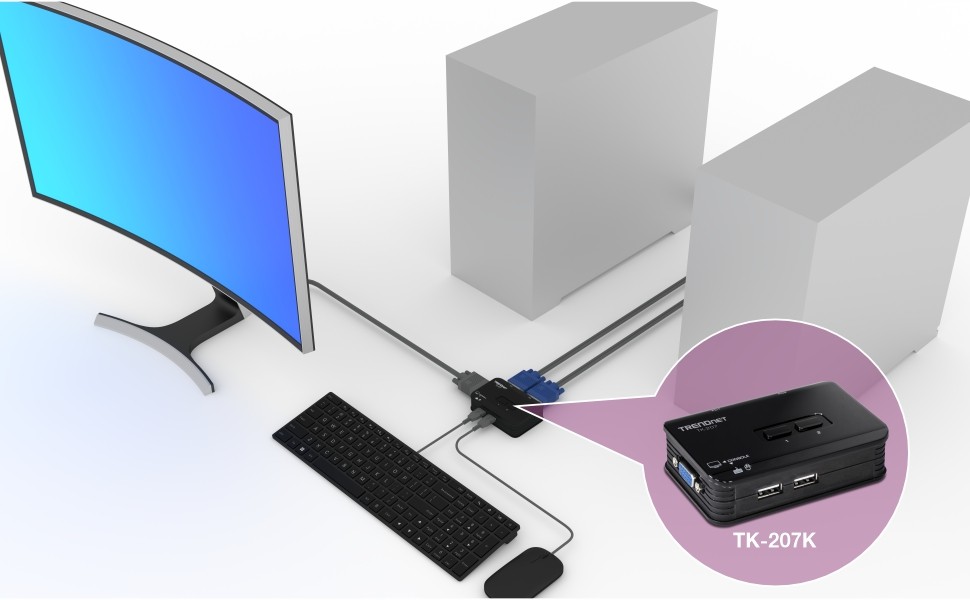

TRENDnet’s 2-Port USB KVM Switch, model TK-207K, allows you to manage two PCs with just one set of keyboard, monitor, and mouse. Switch between 2 PCs with a simple press of a button. Separate sets of KVM cables are included with the KVM Switch so that users can start controlling 2 PCs instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug and Audible Feedback, the 2-Port USB KVM Switch is an ideal choice for managing multiple PCs.

VGA

Designed for VGA systems with resolutions up to 2048 x 1536 with a 60Hz refresh rate.

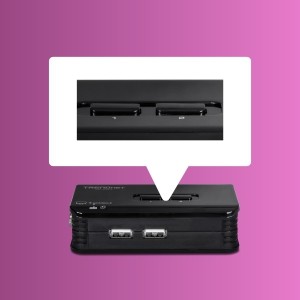

Push Button Controls

Use the front panel push buttons to switch between computers.

Included Cables

This KVM kit includes two sets of KVM cables.

Computers

Control up to 2 computers with one set of console devices

VGA

Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas molestie velit congue.

Push Button Controls

Use the front panel push buttons on the KVM switch to easily switch between computers

Hot Keys

This VGA KVM switch features keyboard hot key commands for switching between computers

USB Mouse & Keyboard

Features USB keyboard and mouse connections

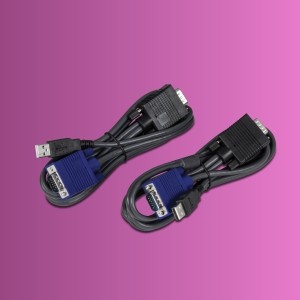

Included Cables

This KVM kit includes two sets of KVM cables

Computer Ports

Requires open USB and VGA ports from connected computers

SPECIFICATIONS

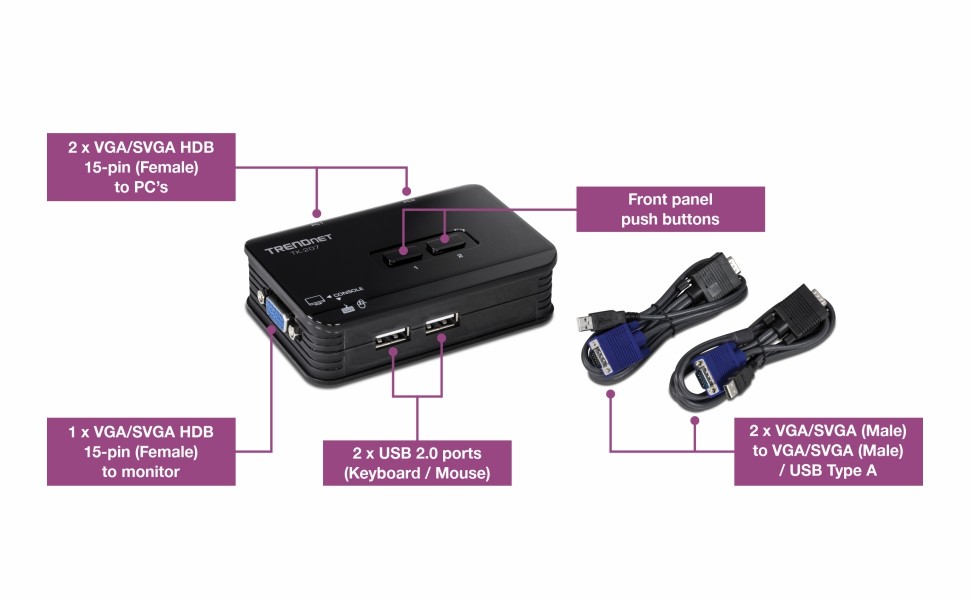

Console Port Connectors	1 x VGA/SVGA HDB 15-pin (Female) 2 x USB 2.0 ports (Keyboard / Mouse)
Computer Interface (up to 2)	1 x USB 2.0 Type A 1 x VGA/SVGA HDB 15-pin (Female)
Cables (2 sets)	Length: 1.2m (4 ft.) VGA/SVGA (Male) to VGA/SVGA (Male) / USB Type A
Monitor Resolution	2048 x 1536 @ 60Hz
Switching Control	Front panel push buttons Keyboard hotkey commands
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Power	USB powered Max. consumption: 0.7W
Dimensions	95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight	96g (3.4 oz.)
Warranty	2-year
Certifications	CE FCC

PACKAGE CONTENTS

TK-207K
2 x KVM cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

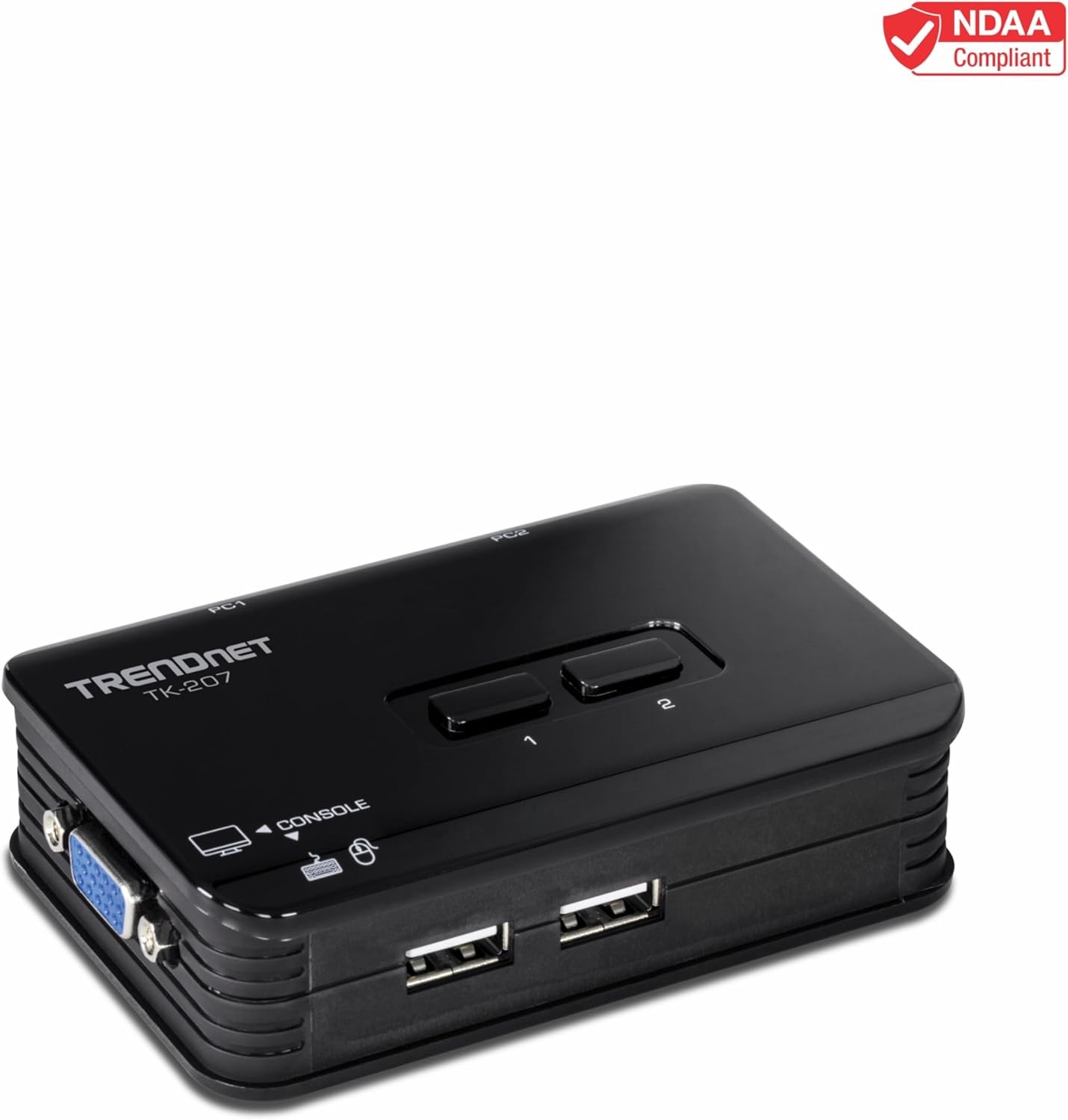

2-Port USB KVM Switch

2-Port KVM switch with VGA and USB connections to computers
High quality 2048 x 1536 resolution for a crisp display
Control two computers with one set of console controls
Device switching with auto-scan and audible feedback
Supports most operating systems and advanced mouse designs
Bus powered – No external power adapter required
All required cabling included
NDAA compliant
