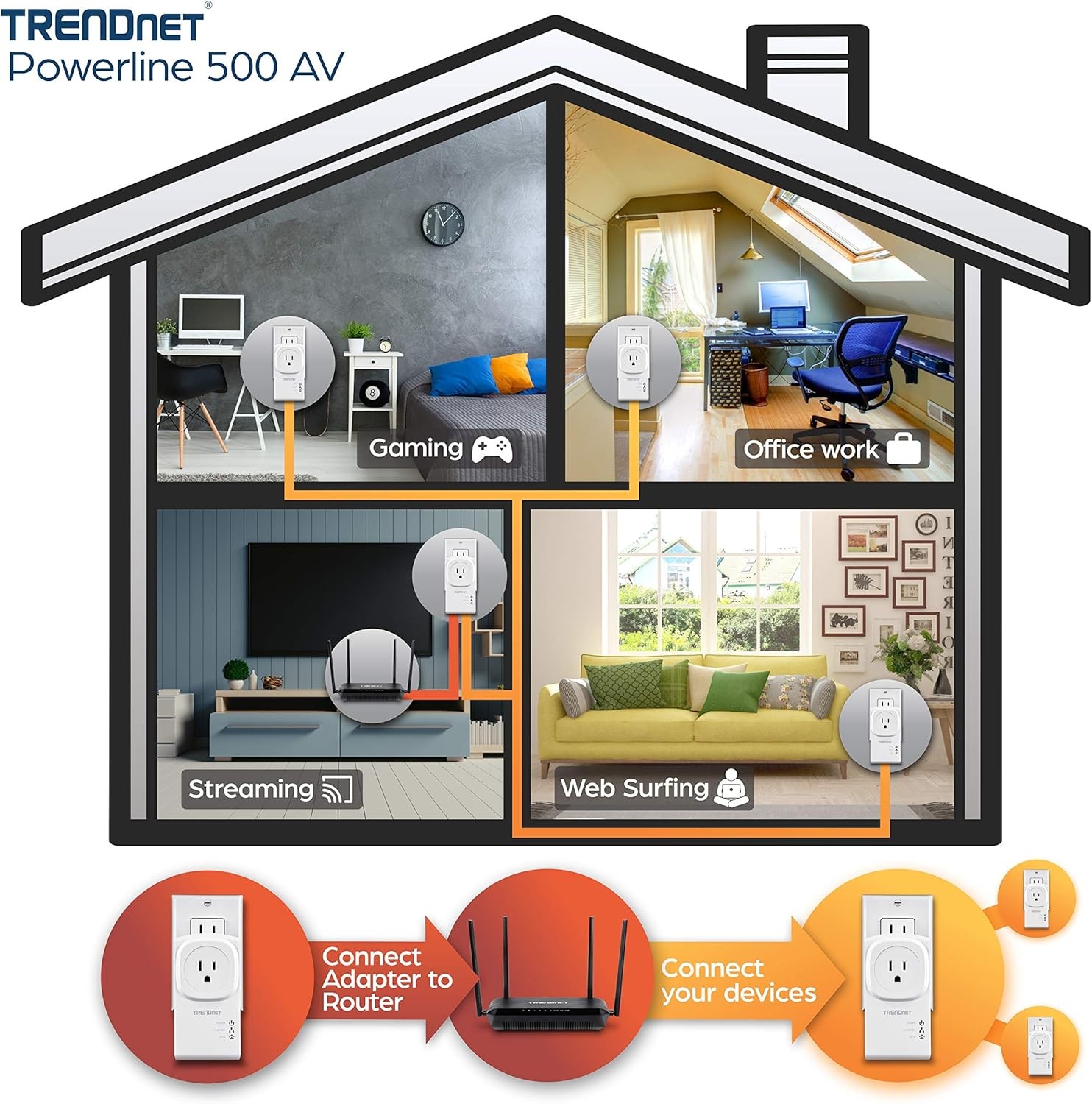

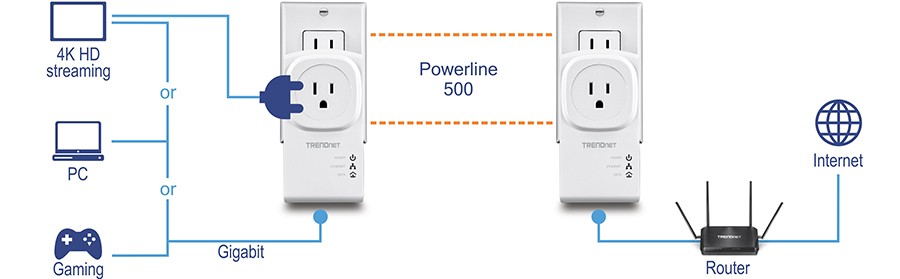

The Powerline 500 AV Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a high-speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high-speed network access. The compact form factor saves space and offers an additional electrical outlet.

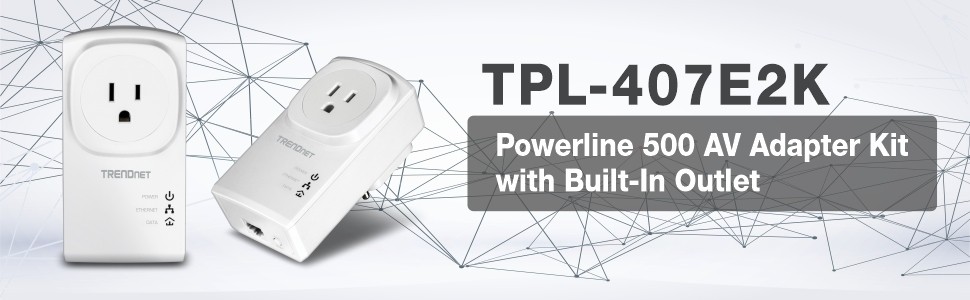

Powerline 500 AV Adapter Kit with Built-In Outlet

  • Includes two TPL-407E adapters
  • Powerline 500 networking
  • Never lose an electrical outlet with the built-in socket
  • Connects over electrical lines
  • Two adapters are needed to start a network.
  • Compact form factor saves space
  • Easy Installation
  • NDAA compliant


General description

Plug in installation

Just plug in TRENDnet adapters. The encrypted Powerline signal connects automatically through an existing electrical system.

Integrated output.

With so many devices that need power, you don't lose an outlet when you plug it in. Connect the adapter to an electrical outlet, and then connect a power strip to the adapter.

Network stability

Internet service providers prefer ultra stable Powerline networks.

Adapters

Includes two TPL-407E adapters

Powerline 500

Powerline networking over existing electrical lines**

Built-In Outlet

Never lose an electrical outlet with the built-in socket-Plug the adapter into an outlet, then plug in other devices

Noise Filter

Advanced electrical noise filter boosts performance

Multiple Adapters

Two adapters are needs to start a network-use up to 8 adapters

Easy Installation

Simply plug in the adapters

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Sync Button

Press the Sync button to change existing encryption keys

Energy Savings

Power Save mode reduces electrical consumption by up to 80%

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68 MHz
Data PHY Rate
  • 500 Mbps
Networking Distance
  • Up to 300 m (980 ft.) linear distance over electrical power lines
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Optional Utility: OS Compatibility
  • Windows ® 10, 8.1, 8, 7, Vista, XP
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 – 240 V AC, 50/60 Hz
  • Consumption: Active mode: 2.7 Watts (max.); Standby mode: 0.34 Watts (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 112 x 68 x 40 mm (4.4 x 2.7 x 1.1 in.)
Weight
  • A: 104 g (3.7 oz.)
  • EU: 190 g (6.7 oz.)
  • UK: 190 g (6.7 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • 2 x TPL-407E
  • Quick Installation Guide
  • 2 x Network cable (1.5 m / 5 ft.)

* Maximum of 8 adapters (nodes) recommended for streaming video across your network.

** 500 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment. Networked Powerline devices need to be plugged into power outlets that are on the same electrical system. GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.

Do not use this unit with a power strip that is powering other devices. Max voltage cannot exceed 120V AC, 10A.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
