TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG80g, offers 8 x Gigabit PoE+ ports (30 Watts/port), a 16Gbps switching capacity, and a PoE power budget of 123 Watts. Plug and Play this sturdy metal switch for reliable high speed PoE networking.

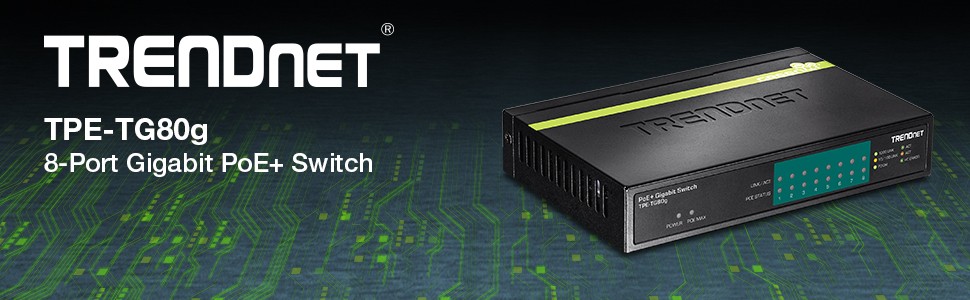

8-Port Gigabit PoE+ Switch

8 x Gigabit PoE+ ports
123 W PoE power budget
16 Gbps switching capacity
Sturdy metal switch
Plug and Play installation
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

PoE+

Supplies up to 30 Watts of PoE power per port with a 123 Watt power budget.

Ports

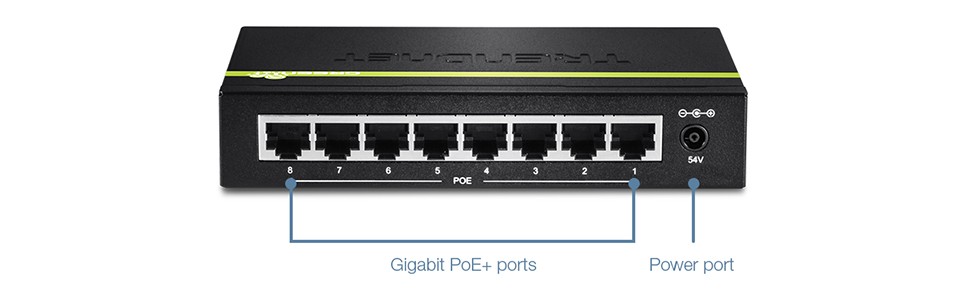

8 x Gigabit PoE+ Ethernet ports.

Switching Capacity

16 Gbps switching capacity.

Jumbo Frame

Sends Jumbo Frames (up to 9 Kbytes) for increased performance.

SPECIFICATIONS

Standards	IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az

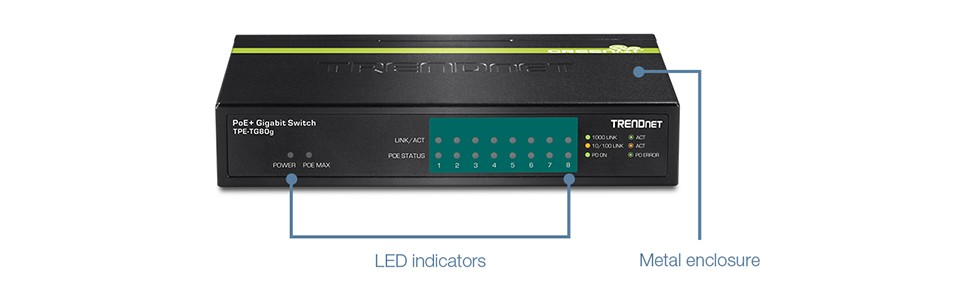

Device Interface	8 x Gigabit PoE/PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 128KB Switch Fabric: 16Gbps MAC Address Table: 4K entries Forwarding rate: 11.9Mpps (64-byte packet size) Jumbo Frame: 9K
Special Features	GREENnet energy saving technology
Power	Input: 100-240 V AC, 50/60 Hz, 1.9 A Output: 54V DC, 2.77A Max. consumption: 5.3W
PoE	PoE budget: 123 W Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature	0 – 45 °C (32 - 113 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight	400g (14 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-TG80g
Quick Installation Guide
Power adapter (54 V DC, 2.77 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
