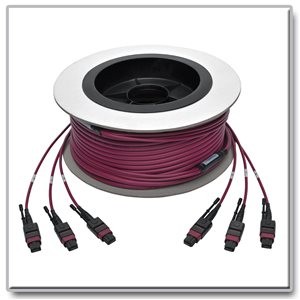

Multimode Fiber Optic Base-8 Trunk Cable for Transmitting 40/100 Gb Data/Voice Signals

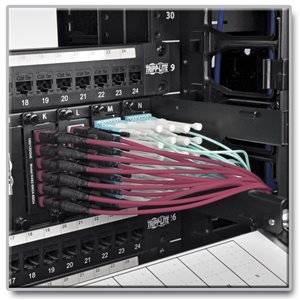

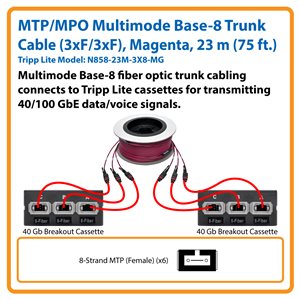

Tripp Lite’s N858-23M-3X8-MG is recommended for high-density connections between network equipment in telecommunication rooms and data centers. Colored magenta for instant identification as an OM4 cable, this 23-meter (75foot) cable supports 40/100 Gb Ethernet speeds for patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames).

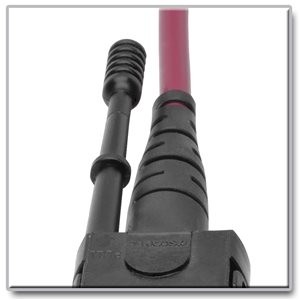

Female MTP/MPO Connectors with Easy-to-Connect Push/Pull Tabs

The 8-fiber MTP/MPO connectors (three on each end) are about the same size as SC connectors, but are 12 times denser, which leaves more room in racks for other cables. Push/pull tab connectors make the cable easy to install and remove with one hand, which is an advantage in tightly packed patch panels and switches. The N858-23M-3X8-MG is 100% tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards.

Top-Quality Construction for Error-Free Signal Transfer

Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, the N858-23M-3X8-MG is constructed using 50/125 duplex (zipcord) fiber made from glass. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are designed for connecting high-speed network components in ceilings, walls and ducts.


Trunk Cabling Saves You Time and Money

Because fiber termination is performed in a controlled environment, the N858-23M-3X8-MG has the advantage of factory assembly and inspection. The preassembled MTP/MPO connectors can be inserted in your network right out of the box, cutting down on installation time and sparing you the effort of splicing cable.


Lifetime Warranty and Environmentally Responsible Design

The N858-23M-3X8-MG comes with a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Tripp Lite N858-23M-3X8-MG Product Summary

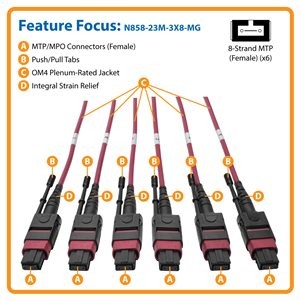

  • Premium multimode Base-8 trunk cable
  • Three 8-fiber MTP/MPO connectors on each end
  • OM4-rated for 40/100 Gb Ethernet applications
  • Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
  • Push/pull tab connectors install/remove with one hand
  • Plenum-rated jacket and bend-insensitive fiber for connecting in ceilings, walls and ducts
  • 100% tested for low insertion loss and back reflection
  • Magenta color for easy OM4 identification
  • Lifetime warranty
