3 m (9.8 ft.) Fan-Out Cable Consolidates Fiber Connections to Save Space, Time and Money

Get higher port density out of your network connections with Tripp Lite’s 3-meter N844-03M-8LC-PT MTP to 8 x LC Fan-out Cable. The N844-03M-8LC-PT reduces your cabling footprint and saves considerable amounts of time and money by consolidating eight LC network connections into a single MTP/MPO connector. Unlike cut-price cables, the N844-03M-8LC-PT is manufactured to exacting specifications, using superior materials for optimal network performance. And we back our pledge of quality with a lifetime product warranty.

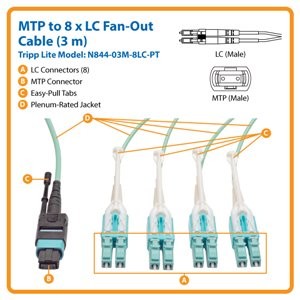

MTP to 8 x LC Connectors for 40Gb Ethernet Networks

The N844-03M-8LC-PT uses an MTP/MPO connector that is approximately the same size as an LC connector, but accommodates 8x the density, offering you savings in circuit card and rack space. The eight widely-compatible LC connectors are thoroughly tested to ensure they meet Tripp Lite’s stringent insertion loss standards. The N844-03M-8LC-PT is OM3-rated, designed for 40Gb Ethernet networks and is also backward compatible with existing 50/125 fiber.


Premium Components and Plenum-Rated Jacket

The N844-03M-8LC-PT is manufactured using only the finest materials. It features sturdy push/pull tab connectors for toolless, one-handed installations. A slim uniboot design saves space and makes cables easier to manage. Other top-quality components include a premium-grade ceramic ferrule designed specifically for 10GbE+ applications and fiber made from glass instead of polymer. The N844-03M-8LC-PT has a fire-protected, plenum-rated jacket for in-wall use.

Ideal for Modular Fiber Cassettes and Enclosure Panels

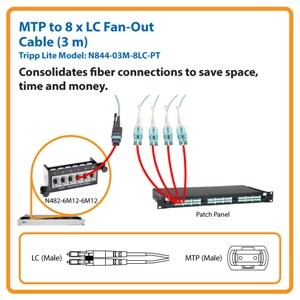

The N844-03M-8LC-PT works with Tripp Lite’s N482-Series MTP and LC Fiber Cassettes and 1U and 2U Fiber Enclosure Panels (sold separately). When used together, Tripp Lite’s modular, high-density fiber solutions offer the highest level of scalability and density, leaving more space for mission-critical equipment such as switches, routers, servers and storage.

Lifetime Product Warranty and Environmentally Responsible Design

The N844-03M-8LC-PT comes backed by a lifetime warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Tripp Lite N844-03M-8LC-PT Product Summary

  • MTP/MPO to 8 x LC fan-out cable saves time, space and money by consolidating cable installations
  • OM3, 40GbE rated, 40GBASE-SR4
  • Backward compatible with existing 50/125 fiber
  • Push/pull tab connectors allow for one-handed installations Slim uniboot design saves space and makes cables easier to manage
  • Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
  • Made from glass fiber
  • Plenum-rated jacket
  • Lifetime warranty
