High-Density Fiber Cassette is an Elegant, Simple Solution for 40Gb MTP/MPO Cable Connections

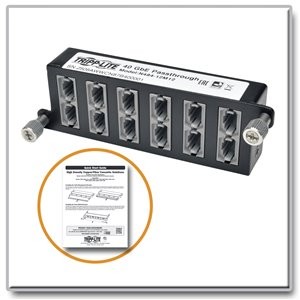

Tripp Lite’s High-Density 40Gb Pass-Through Fiber Cassette offers a simple, elegant solution for connecting devices with MTP/MPO ports. The N484-12M12 features 12 12-fiber MTP/MPO pass-through connections that are rated for 40Gb. This cassette is designed to fit Tripp Lite’s N484-00U Cassette Sleeve and N484-01U Enclosure Panel (sold separately). The cassette housing is heavy-duty steel for durability and long life.

Simplified Fiber Cable Installation Saves Time and Money

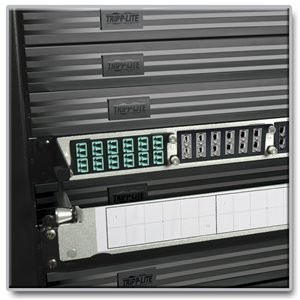

The N484-12M12 cassette is easy to install into a Tripp Lite N484-00U sleeve or N484-01U 1U enclosure panel. Insert the cassette and tighten its screw tabs to secure it to the sleeve or panel. Loosen the screw tabs for removal. No tools are required. Once the cassette is installed, you can connect your cables. One N484-12M12 cassette fits in the N484-00U and up to four cassettes fit in the N484-01U. The connectors are factory terminated to reduce time and labor during field installations.

Lifetime Warranty and Environmentally Responsible Design

The N484-12M12 comes with a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

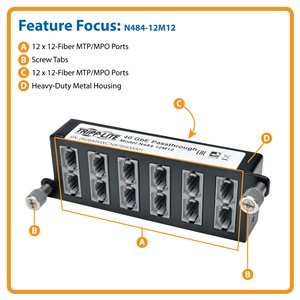

Tripp Lite N484-12M12 Product Summary:

  • High-density fiber pass-through cassette for use with Tripp Lite N484-00U cassette sleeve and N484-01U enclosure panel
  • 12 MTP/MPO (Type B) connections rated for 40Gb on each side
  • No tools are required for installation and removal; just tighten and loosen the screw tabs
  • Factory terminated connectors reduce the time and labor required during field installations
  • Max insertion loss of 0.35 dB is far below the IEEE 802.3ae maximum channel loss spec of <25 dB
  • Heavy-duty steel housing with dust caps to protect unused ports
  • Lifetime warranty
