Tripp Lite B122-000-4K6 Product Summary

  • Extends high-quality 4K HDMI video and digital audio signals up to 50 ft.
  • Allows you to install expensive source device in a secure location for controlled access
  • Delivers HD picture quality at resolutions up to 3840 x 2160 (4K) @ 60 Hz
  • Supports DTS-HD, Dolby TrueHD and 7.1 surround sound for rich, clear audio
  • Compact unit fits easily into briefcase or laptop bag for instant use anywhere
  • Plug-and-play operation with no software required for easy, immediate installation

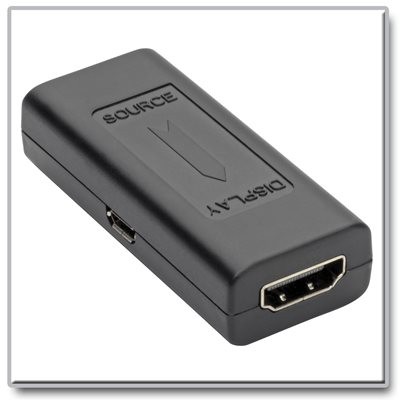

In-Line Extender Boosts Your 4K Audio/Video up to 50 ft. with No Loss in Quality

Don’t let HDMI’s 16-foot distance limitation limit your audio/video application. Tripp Lite’s B122-000-4K6 active in-line HDMI signal extender boosts your 4K transmission up to 50 feet from the source device without a drop in signal quality. This gives you the flexibility to hide your Blu-ray player or media server away in a secure, remote location for controlled access, while delivering video to an HDMI display somewhere else. The B122-000-4K6 is recommended for digital signs or video presentations in schools, conference rooms, retail displays, trade show booths and anywhere else you need to display high-definition video.

Offers 4K Video with 7.1-Channel Audio and True 4:4:4 Color

This HDMI signal booster supports computer video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as 36-bit Deep Color (12 bits per channel). It also supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound to ensure your speakers deliver rich, clear audio to match the video quality. It also supports true 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Typical Applications

  • Complete digital signage connections in office buildings, retail stores, restaurants and other public areas where the source device needs to be secured
  • Give video presentations in large conference rooms, classrooms and lecture halls
  • Create a custom home theater where the source devices are secured in a different room, such as a network closet

Connect 24 AWG HDMI Cable to Place the Source and Display in Premium Locations

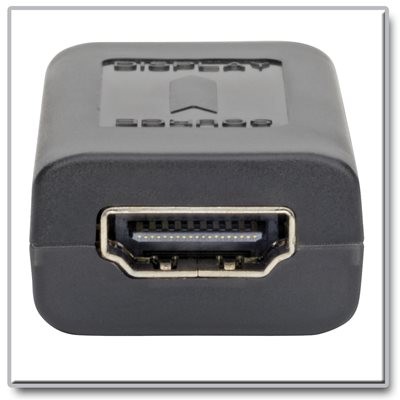

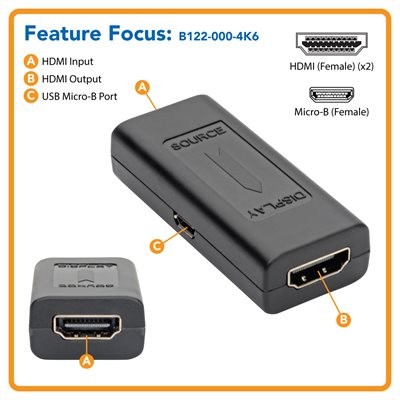

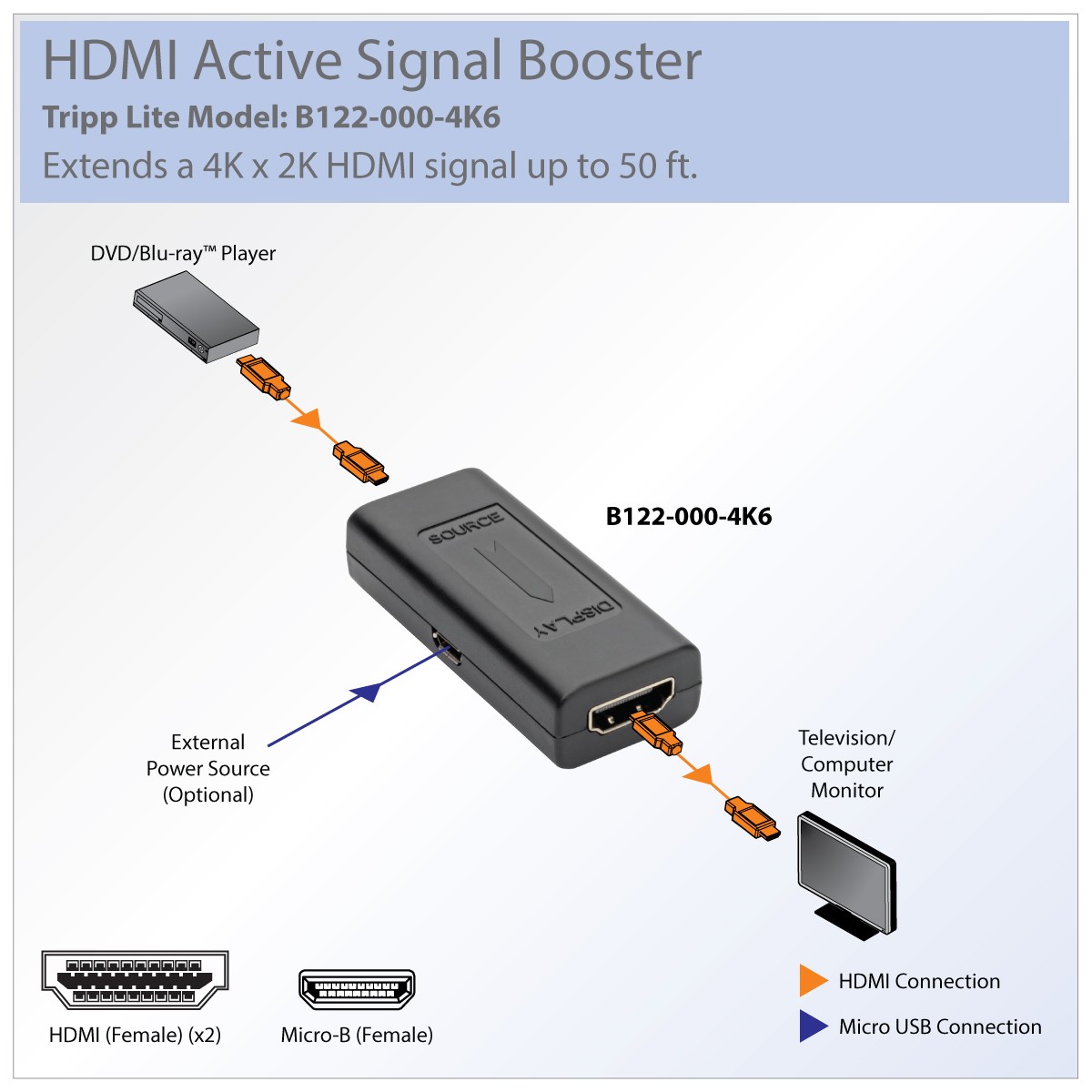

This low-profile HDMI booster is designed for use with Tripp Lite P568-Series HDMI cables (sold separately). Connect one cable (up to 25 feet) to your source device, such as a Blu-ray player or computer, to transmit a 4K (60 Hz) signal. The second cable connects the B122-000-4K6 and the HDMI display device, and must be no longer than 25 feet. This unit can also extend a 3D signal up to 50 feet. For best results, 24 AWG HDMI cable, such as Tripp Lite P568-100-HD (sold separately), is required.

Plug and Play with No Drivers or Other Additional Software Needed

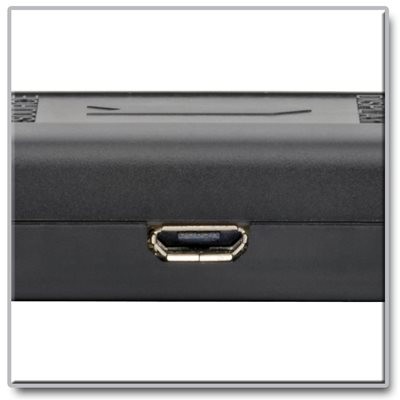

The plug-and-play signal booster requires no software, drivers or (usually) external power. In the extreme case that external power is needed, connect a USB Micro-B cable, such as Tripp Lite’s UR050-Series (sold separately), between the unit’s USB Micro-B port and a USB wall charger or USB port on your monitor or computer. With its low-profile design, the B122-000-4K6 is easy to stow in your laptop bag and carry to school, the office or the latest trade show.


TAA-Compliant for GSA Schedule Purchases

The B122-000-4K6 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.


3-Year Warranty and Environmentally Responsible Design

The B122-000-4K6 comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
