OVERVIEW

TRENDnet’s 9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port, model TI-G5091, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial 2.5G switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This industrial multi-gig switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.

FEATURES

Multi-Gigabit Ports


This industrial 2.5G switch features 2.5G RJ-45 ports for high-speed device connections, and a 10G SFP+ port that support high-speed and long-distance fiber networking applications.

Redundant Power


Multiple power inputs provide redundant power with overload current protection on this industrial multi-gig switch, minimizing overall network downtime (power supply sold separately).

Industrial Hardened Design


Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

Multi-Gigabit Ports

The industrial 2.5Gb Ethernet
switch features 2.5G RJ-45 ports
for high-speed device connections,
and a 10G SFP+ port that
supports long-distance fiber
networking applications

DIN-Rail / Wall Mounts

IP50 rated metal enclosure with
included DIN-Rail mount and
wall mount hardware

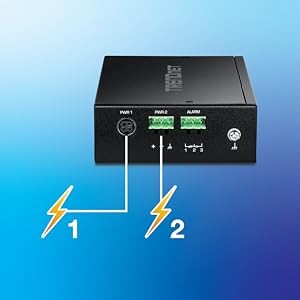

Redundant Power

Multiple power inputs on the
industrial 2.5G switch provide
redundant power with overload
current protection (power supply
sold separately, models: TI-M6024,
48VDC3000)

Alarm Relay

Alarm relay on the industrial 2.5G
switch is triggered by power
failure of primary and/or
redundant power

Jumbo Frame

Supports larger packets, or Jumbo
Frames (up to 12KB), for
increased performance

Extreme Temperature Range

Operating temperature range of -
40° – 75° C (-40° – 167° F) allows
for the installation of the industrial
2.5G switch in environments with
extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-32), and
vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS
certifications (IEC 61000-4-2)
ESD:
Contact: 6kV | Air: 8kV, (IEC
61000-4-4) EFT: Power: 2kV |
Signal: 1kV, (61000-4-5) Surge:
Power: L-G 2kV/L-L 1KV | Signal:
2kV

Grounding Point
Grounding point for high
voltage protection

Switching Capacity
60Gbps switching capacity

LED Indicator
LED Indicators on the
industrial 2.5G switch convey
port status

Aenean sit amet

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3bz

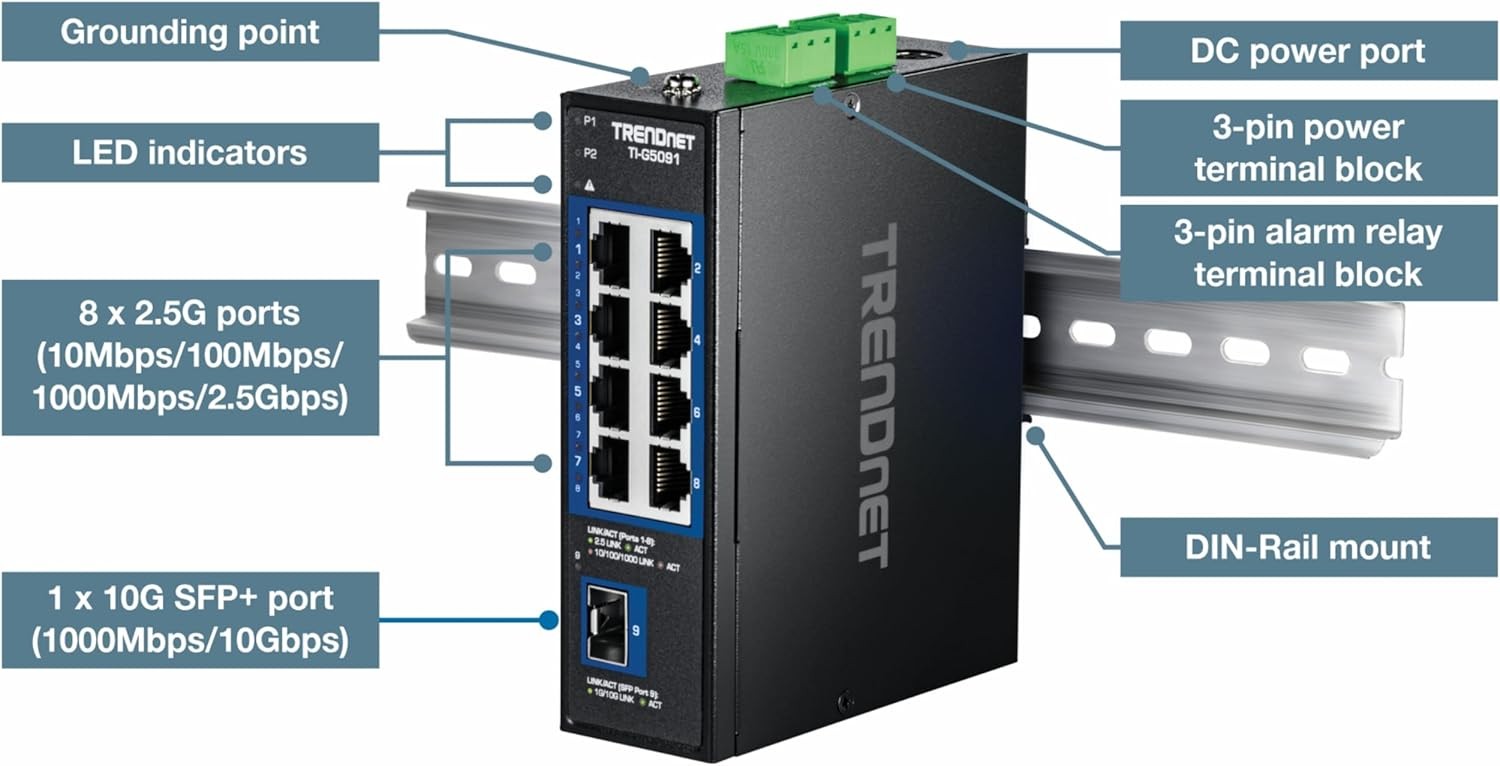

Device Interface
  • 8 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps)
  • 1 x 10G SFP+ port (1000Mbps/10Gbps)
  • 3-pin power terminal block
  • 3-pin alarm relay terminal block
  • Power port
  • LED indicators
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 2.5G Ethernet: 5Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Data RAM Buffer: 1MB
  • Switching Fabric: 60Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 12KB
  • Forwarding Rate: 44.64Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual power inputs
  • Auto negotiation
  • Support VLAN pass through
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 6kV protection
Power
  • Input: 9 - 60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Max. consumption: 14W
Terminal Block
  • 3-pin terminal block
  • Wire range: 2.5mm^2
  • Solid wire (AWG): 16-28
  • Stranded wire (AWG): 16-28
  • Torque: 3 lb. – In / 0.3Nm / 0.33Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Short circuit mode when two power sources are connected
  • Open circuit mode when only one power source is connected
MTBF
  • 615,965 hours
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 120 x 100 x 40mm (4.7 x 3.9 x 1.5 in.)
Weight
  • 574g (20.2 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS
  • TI-G5091
  • Quick Installation Guide
  • Removable terminal blocks
  • DIN-Rail / wall mount kit

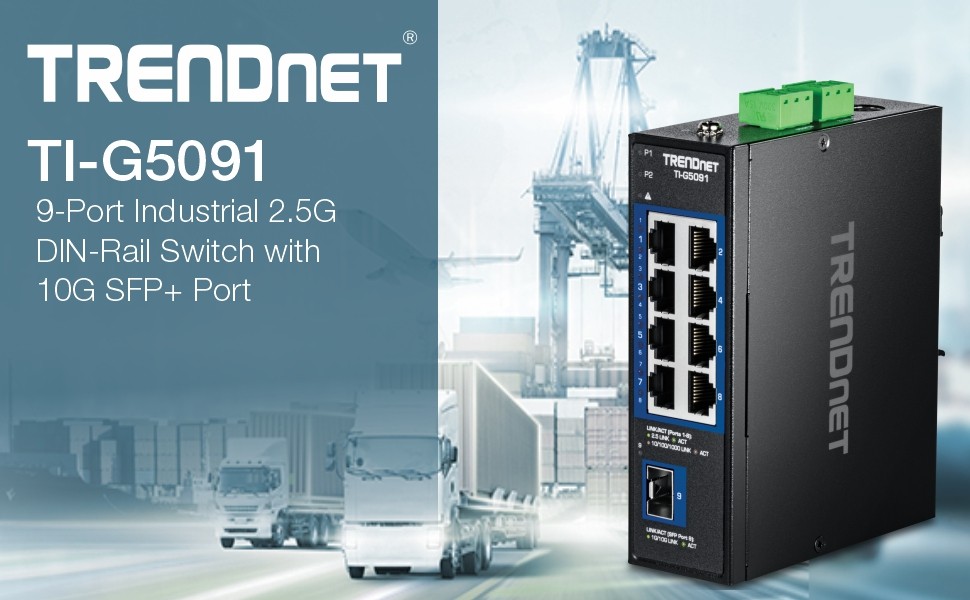

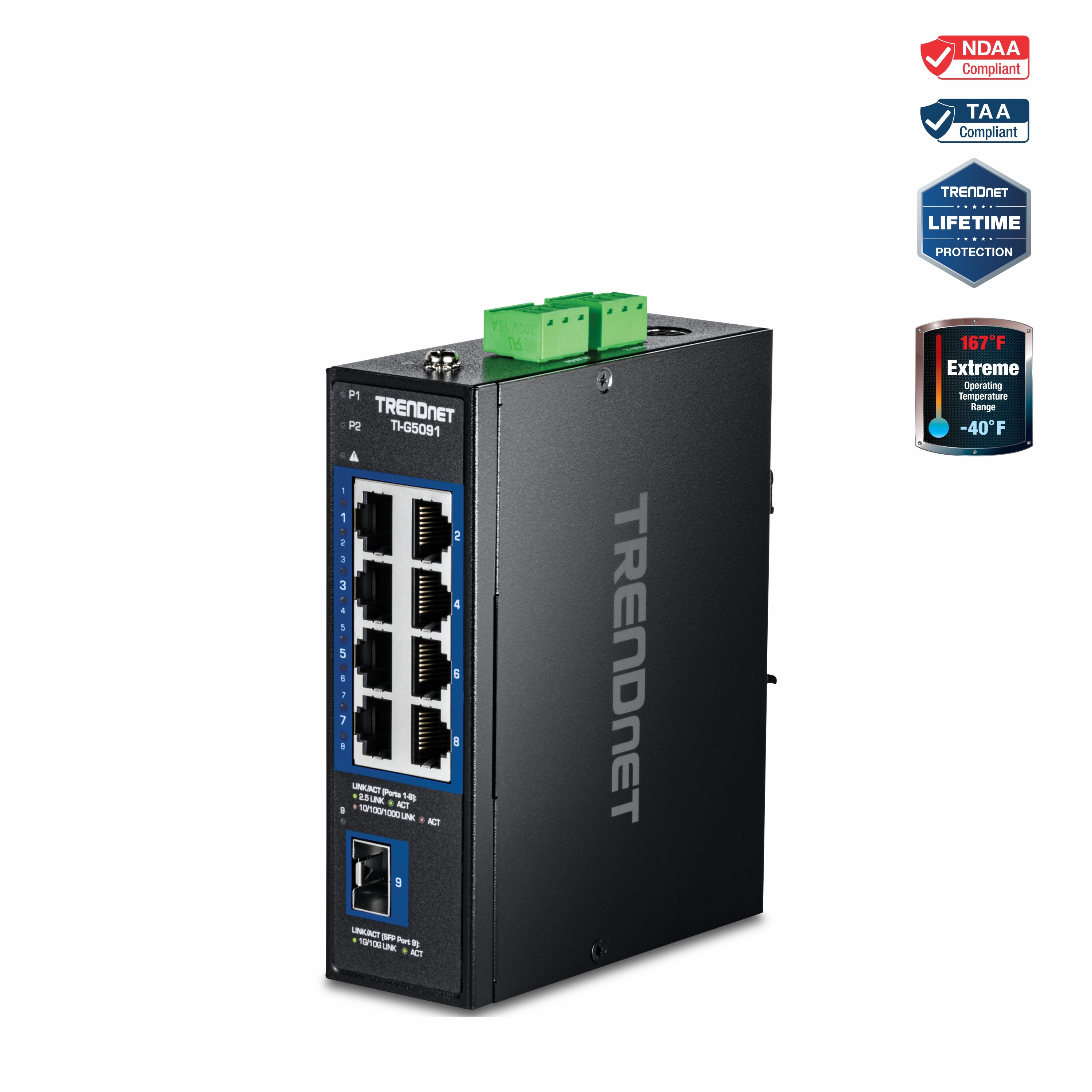

9-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Port

  • 8 x 2.5G ports
  • 1 x 10G SFP+ port
  • Hardened IP50 rated metal switch
  • Extreme -40° – 75° C (-40° – 167° F) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • 60Gbps switching capacity
  • Includes DIN-Rail and wall mounts
  • Power supply sold separately (models: TI-M6024, 48VDC3000)
  • NDAA / TAA compliant
  • Lifetime Warranty
