Uninterruptible Power Supply System

Why Do You Need a UPS System?

Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.

Extendable LCD Control Panel

Allows easy access to view status or change settings on the UPS when it’s installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.

GreenPower UPS Design

Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and
office use.

Communications Ports

HID Compliant USB port allows you to connect to a computer to access additional power management features using PowerPanel Business
management software.

Critical Load Outlets

The PR1000LCD comes equipped with four critical-load outlets. These outlets help increase battery backup runtimes for the most critical equipment during extended power outages.

Battery & Surge Protected Outlets

This unit is equipped with eight surge and battery protected outlets to keep your equipment protected from power surges and spikes.

Typical Applications for the PR1000LCD

Workstations

Ensure seamless power to workstations and make certain you
have time to safely shut down systems during a longer outage.

Telecom/VoIP

Keep your communication lines open and running during power outages.

High-end A/V Equipment

Protect sensitive televisions, projectors, audio equipment,
satellites, and cable boxes from power surges and spikes.

Corporate & Department Servers

Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.

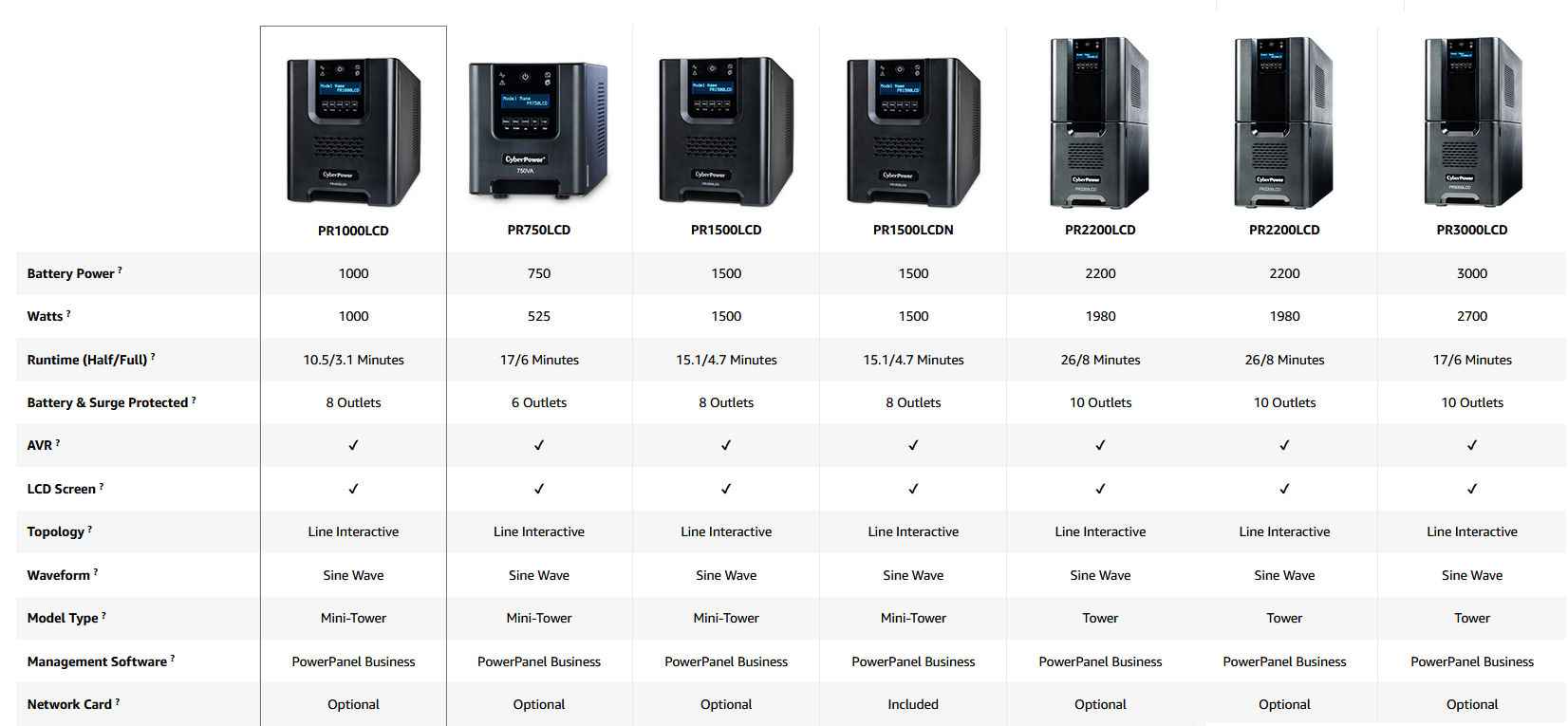

CyberPower PR Smart App Sinewave UPS Series

Product Q&A

How long will the UPS power my systems after the power goes out?

This system is estimated to run for 10.5 minutes at half load, 3.1 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.

Can the batteries be replaced?

Yes, this unit can have the batteries replaced. The replacement battery cartridge is the CyberPower RB12120X2B.

Can the PR1000LCD be monitored?

Yes, the PR1000LCD comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

Can this unit run a sump pump, laser printer, or other larger office equipment?

We do not recommend using the PR1000LCD to power sump pumps, laser printers, paper shredders, copiers, space heaters or other large electrical devices. The power demands of these devices may overload the unit and cause damage.

How do I mute the alarms?

The audible alarm can be set to Mute on Battery. This is accomplished by going to the basic set up via the LCD Screen, navigate to audible alarm and then set to Mute on Battery.
