OVERVIEW

TRENDnet’s 6-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Ports, model TI-G5062, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial multi-gig switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This multi-gigabit DIN-Rail network switch features copper 2.5G ports for high-speed device connections, and 10G SFP+ ports for backbone fiber networking applications.

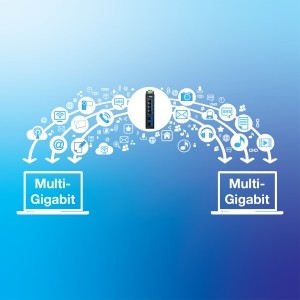

Multi-Gigabit Ports

This industrial multi-gig switch features 2.5G RJ-45 ports for high-speed device connections, and 10G SFP+ ports that support high-speed and long-distance fiber networking applications.

Redundant Power

Multiple power inputs provide redundant power with overload current protection on this industrial multi-gig switch, minimizing overall network downtime (power supply sold separately).

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (- 40° – 167° F).

Multi-Gigabit Ports

The industrial 2.5G Ethernet switch features 2.5G RJ-45 ports for high-speed device connections, and 10G SFP+ ports that support long-distance fiber networking applications

DIN-Rail / Wall Mounts

IP50 rated metal enclosure with included DIN-Rail mount and wall mount hardware

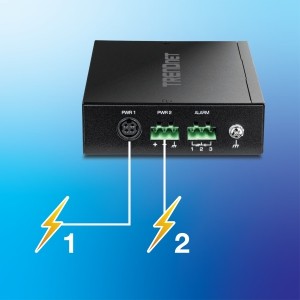

Redundant Power

Multiple power inputs on the industrial multi-gig switch provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 12KB), for increased performance

Extreme Temperature Range

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 1kV, (61000-4-5) Surge: Power: L-G 2kV/L-L 1KV | Signal: 2kV

Grounding Point

Grounding point for high voltage protection

Switching Capacity

60Gbps switching capacity

LED Indicator

LED Indicators on the industrial multi-gig switch convey port status

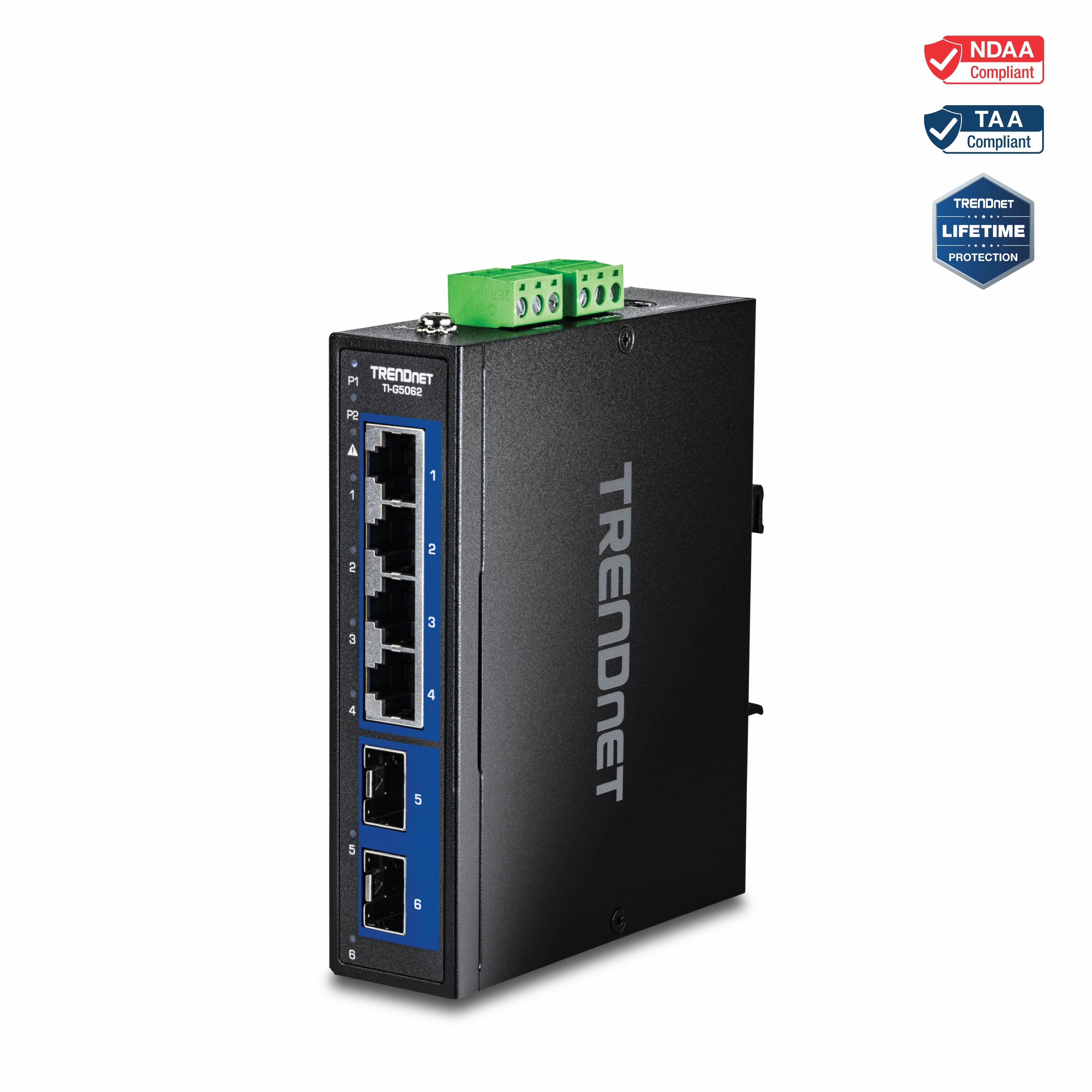

6-Port Industrial 2.5G DIN-Rail Switch with 10G SFP+ Ports

4 x 2.5G ports
2 x 10G SFP+ ports
60Gbps switching capacity
Hardened IP50 rated metal switch
Extreme -40° – 75° C (-40° – 167° F) operating temperature range
Redundant power inputs with overload current protection
Alarm output triggered by power failure
Includes DIN-Rail and wall mounts
Power supply sold separately (models: TI-M6024, 48VDC3000)
NDAA / TAA compliant
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3ae IEEE 802.3bz IEEE 802.3x IEEE 802.3z

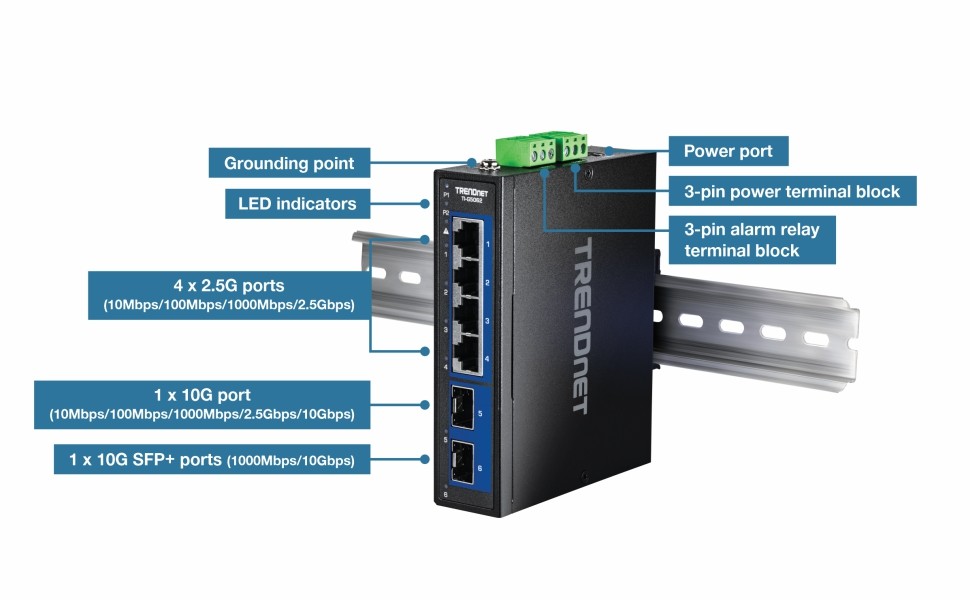

Device Interface	4 x 2.5G ports (10Mbps/100Mbps/1000Mbps/2.5Gbps) 2 x 10G SFP+ ports (1000Mbps/10Gbps) 3-pin power terminal block 3-pin alarm relay terminal block Power port LED indicators Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) 2.5G Ethernet: 5Gbps (full duplex) 10G SFP+: 20Gbps (full duplex)
Performance	Data RAM Buffer: 1MB Switching Fabric: 60Gbps MAC Address Table: 4K entries Jumbo Frame: 12KB Forwarding Rate: 44.64Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual power inputs Auto negotiation Support VLAN pass through Auto store and forward architecture Automatic address learning and address aging ESD 6kV protection
Power	Input: 9 - 60V DC Compatible power supply: TI-M6024 (sold separately) Compatible power adapter: 48VDC3000 (sold separately) Max. consumption: 8W
Terminal Block	3-pin terminal block Wire range: 2.5mm^2 Solid wire (AWG): 16-28 Stranded wire (AWG): 16-28 Torque: 3 lb. – In / 0.3Nm / 0.33Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	747,614 hours
Housing	IP50 rated metal case DIN-Rail mount Wall mount
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	120 x 98 x 30mm (4.7 x 3.9 x 1.2 in.)
Weight	410g (14.5 oz.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-G5062
Quick Installation Guide
Removable terminal blocks
DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
