OVERVIEW

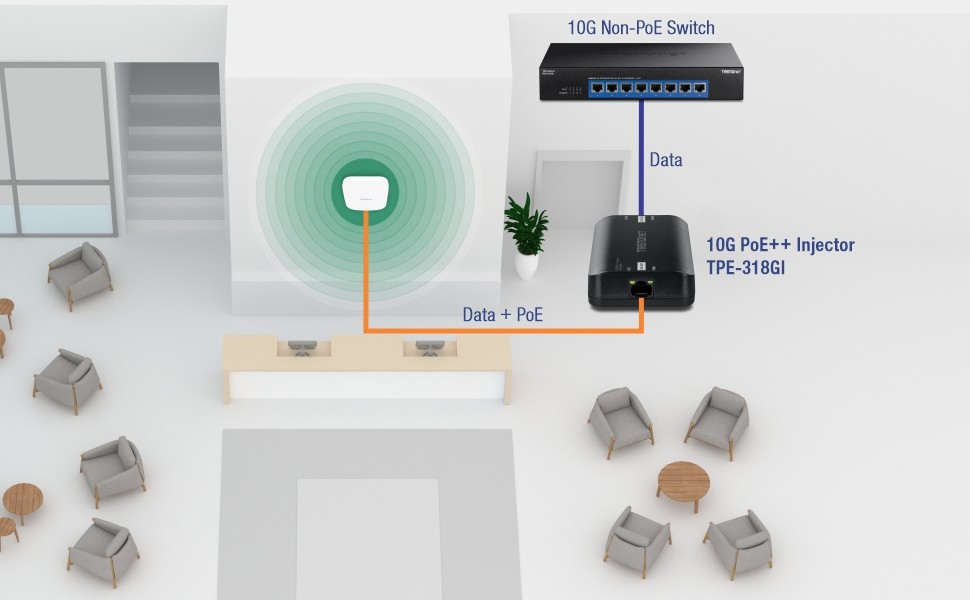

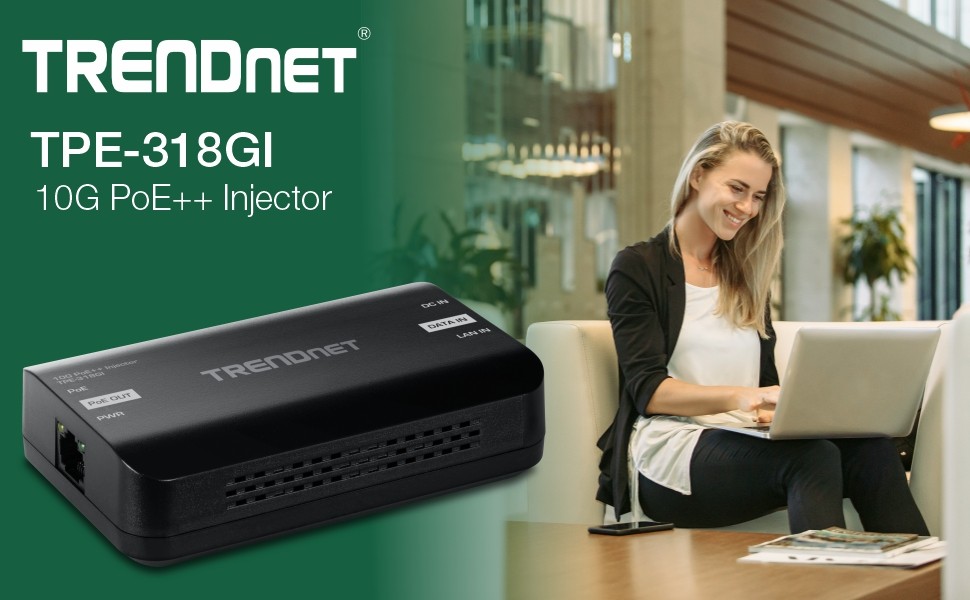

TRENDnet’s 10G PoE++ Injector, model TPE-318GI, combines electrical power with a 10GBASE-Tnetwork connection to produce a 10G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+ and PoE++ devices. Connect the 10G PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) over Cat6A or better cabling. Network PoE devices such as wireless access points, IPcameras, VoIPphone systems, IPTV decoders, access controls, and more.

PoE++

The 10G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

Installation Flexibility

Magnetic wall-mount design enclosure accommodates most installations scenarios.

10G Speeds

Equipped with a 10GBASE-T RJ-45 port providing network speeds of up to 10Gbps over existing Cat6A or better cabling.

FEATURES

PoE++

10G PoE++ injector supplies a
PoE device with PoE (15.4W),
PoE+ (30W), or PoE++ (90W)
power

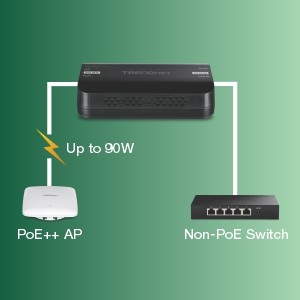

Easy Installation

Simply connect the 10G PoE++
injector to your switch and PoE
device – no configuration
needed

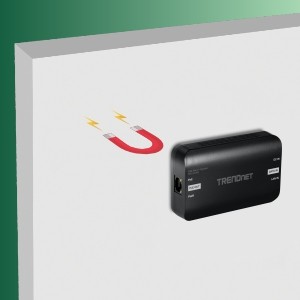

Installation Flexibility

Magnetic wall-mount design
accommodates most
installations scenarios

10G Ports

1 x 10G port (data) and 1 x
10G PoE++ port (data + power)

PoE Distance

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

LED Indicators

LED indicators on the 10G
PoE++ injector confirm PoE and
network connectivity

Auto-Sensing Technology

Featuring auto-sensing technology,
the 10G PoE++ injector
conveniently delivers the correct
wattage needed to power your
PoE, PoE+, or PoE++ devices

Vivamus elit magna

Ut vitae mi luctus dui tincidunt eleifend. Vivamus efficitur, justo ac faucibus porttitor, ex odio pulvinar felis.

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3an IEEE 802.3at IEEE 802.3bt IEEE 802.3bz

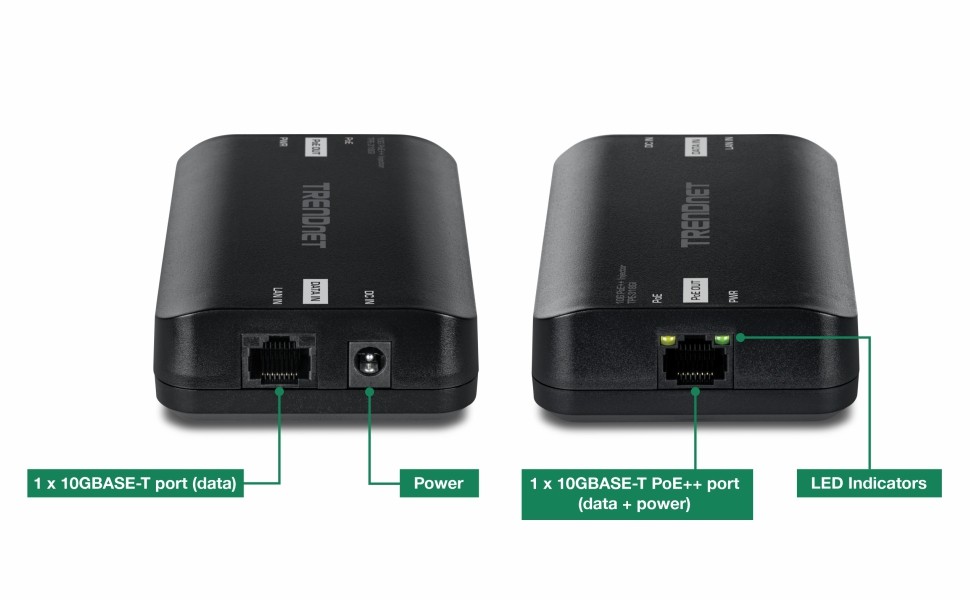

Device Interface	1 x 10GBASE-T port (data) 1 x 10GBASE-T PoE++ port (data + power)
Throughput & Distance	Cat5e Cabling: 2.5Gbps @ 100m (328 ft.) Cat6 Cabling: 10Gbps @ 50m (164 ft.)* Cat6a Cabling: 10Gbps @ 100m (328 ft.)*
PoE Budget	Max. 90W
Power Consumption	Max. 0.7W (without PD)
Temperature	0° – 50° C (32° – 122° F)
Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	109.7 x 70 x 28.6mm (4.3 x 2.8 x 1.1 in.)
Weight	672g (1.48 lbs.)
Warranty	3 year

PACKAGE CONTENTS

TPE-318GI
Quick Installation Guide
Power adapter (54V DC, 1.67A)

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
