OVERVIEW

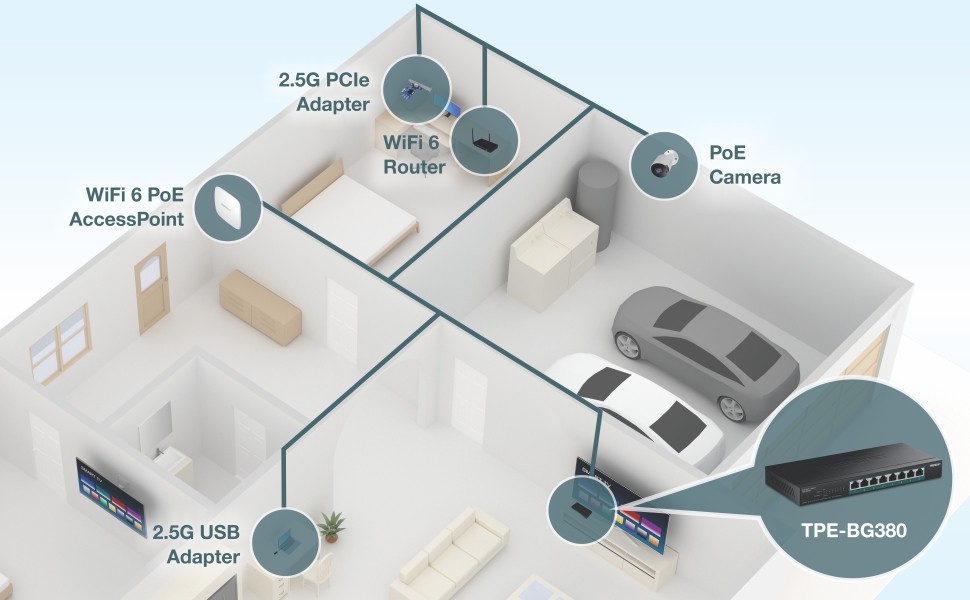

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

PoE++

A 230W total PoE power budget on this 2.5G PoE++ switch supplies up to eight PoE++ devices with up to 95W per port.

Wall Mountable

The 2.5G PoE++ switch features a metal housing, and a convenient wall mountable design for greater installation flexibility.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G multi-gig PoE++ switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports, this multi-gigabit PoE++ switch provides higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

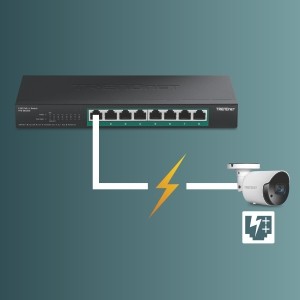

PoE++

A 230W total PoE power budget on this 2.5G PoE++ switch supplies up to eight PoE/PoE+/PoE++ devices with up to 95W per port

Backward Compatibility

Backwards compatible with 10/100/1000Mbps legacy devices

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

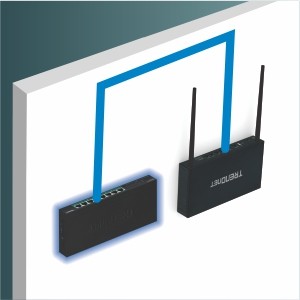

Wall Mountable

Features a convenient wall mountable design for better installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

Switching Capacity

40Gbps switching capacity

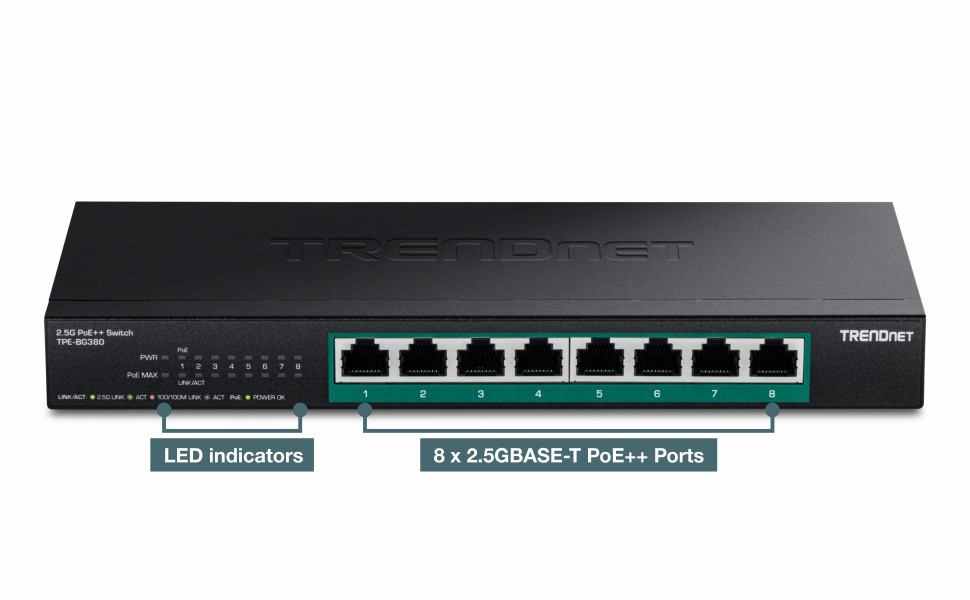

LED Indicators

LED indicators on the 2.5G PoE++ switch convey port status

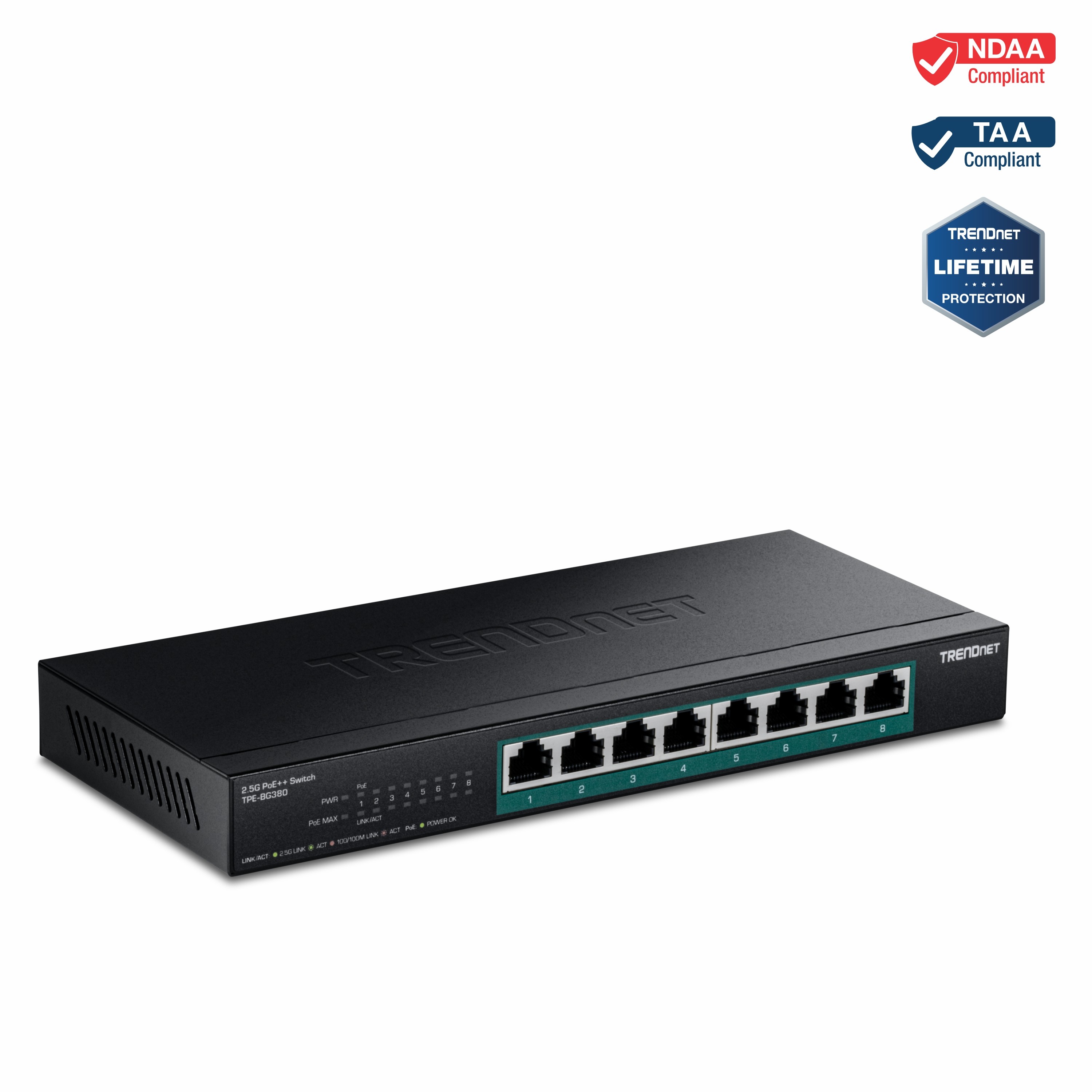

8-Port 2.5G PoE++ Switch

8 x 2.5G PoE++ ports
230W PoE power budget
Backwards compatible with 10/100/1000Mbps devices
Compatible with existing Cat5e or better cabling
Fanless design eliminates noise
Wall mountable for installation flexibility
40Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
Supports IEEE 802.3af/at/bt
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz
Device Interface	8 x 2.5GBASE-T PoE++ ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex)
Performance	Data RAM Buffer: 1 MB Switch Capacity: 40Gbps MAC Address Table: 4K entries Forwarding rate: 29.76Mpps (64-byte packet size) Jumbo Frame: 12KB
Special Features	Wall Mountable Fanless
Power	Input: 100 – 240V AC, 50/60Hz 3.9A Output: 54V/4.7A Max. consumption: 9.5W (no PD)
PoE	PoE budget: 230W PoE++: Up to 95W per port Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power + Over current protection Short circuit protection
MTBF	288,800 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	240 x 105 x 27mm (9.45 x 4.13 x 1.06 in.)
Weight	716g (1.57 lbs.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-BG380
Quick Installation Guide
Power brick (54V, 4.7A)
Power cord (1.5m / 4.9 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
