OVERVIEW

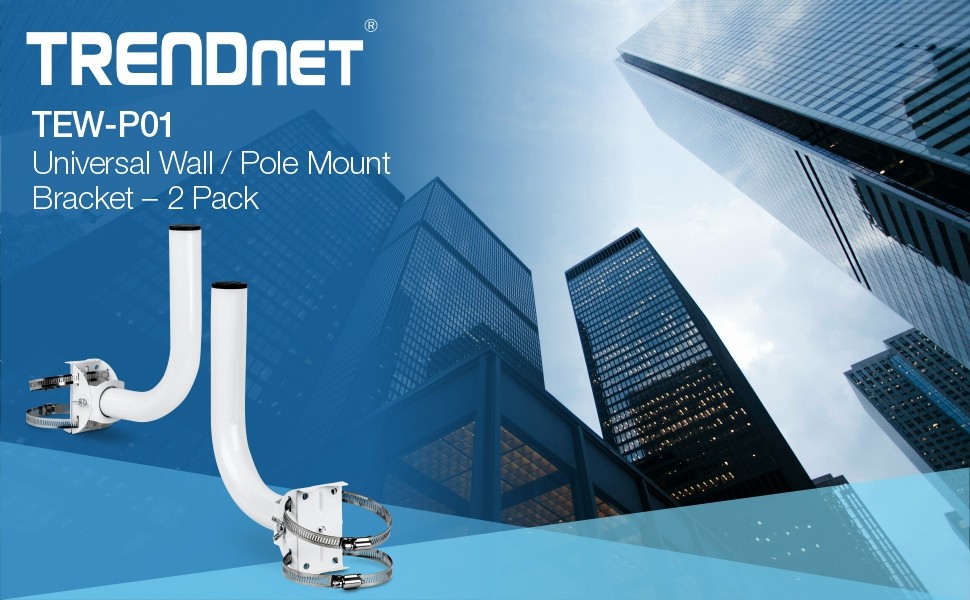

The 2 Pack Universal Wall / Pole Mount Bracket, model TEW-P012K, includes a pole mounting bracket and mounting hardware. The pole mount bracket can be installed on a wall or a pole for flexible installation. The bracket is compatible with TRENDnet’s wireless access points and other devices. This kit includes two TEW-P01 pole mount brackets.

  • INSTALLATION: Install on an outdoor pole or wall
  • COMPATABILITY: Compatible with TRENDnet outdoor wireless access points
  • CONTSTRUCTION: Rugged waterproof outdoor rated powder coated iron construction that holds up to 1.81kg (4 lbs.)
  • MOUNTING HARDWARE: Includes a pole mounting bracket and mounting hardware.

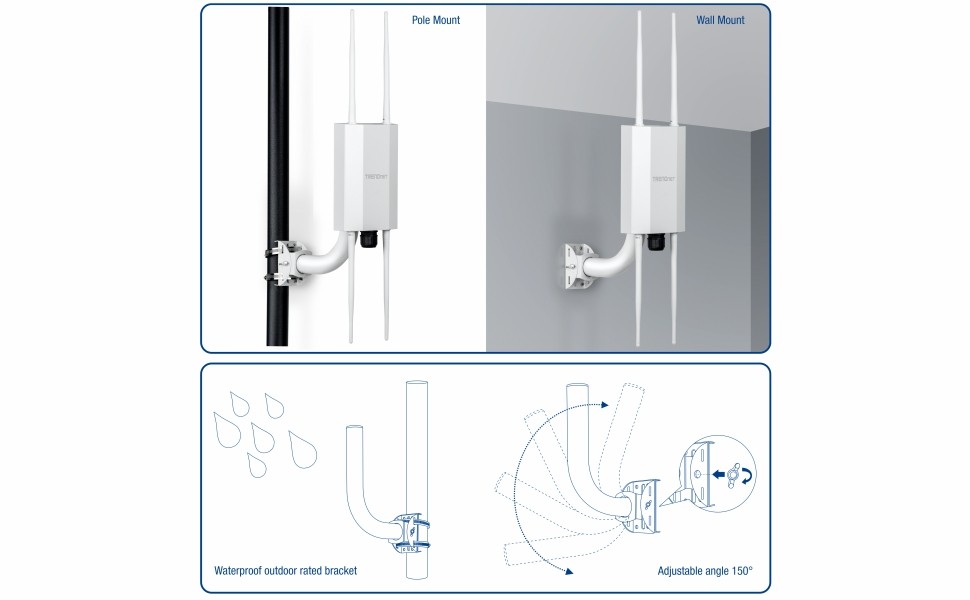

  • ADJUSTABLE: This wall/pole bracket has adjustable angle 150°

Installation

Install on an outdoor pole or wall

Compatible

Compatible with TRENDnet outdoor wireless access points

Construction

Rugged powder-coated iron construction

Mounting Hardware

Mounting hardware included

SPECIFICATIONS

Features
  • Mount outdoor wireless access points or other compatible devices
  • Flexible installations for pole or wall installations
  • Outdoor rated
  • Angle adjustment 150°
  • Holds up to 1.81kg (4 lbs.) per pole
Materials
  • Powder coated iron construction
Dimensions
  • 248.9 x 200.7 x 35.6mm (9.8 x 7.9 x 1.4 in.) per pole
  • Pole diameter: 31.7mm (1.25 in.)
  • Hose clamp: 30mm (min.) – 100mm (max.) / 1.18 in. (min.) – 3.93 in. (max.)
Weight
  • 362g (0.80 lb.)
Warranty
  • 1 year
PACKAGE CONTENTS
  • 2 x TEW-P01
  • Mounting hardware
  • 4 x Metal clamps
