The Universal Wall / Pole Mount Bracket, model TEW-P01, includes a pole mounting bracket and mounting hardware. The pole mount bracket can be installed on a wall or a pole for flexible installation. The bracket is compatible with most wireless access points and surveillance cameras.

Universal Wall / Pole Mount Bracket

  • Mount outdoor wireless access points and other compatible devices
  • Waterproof outdoor rated bracket
  • Compatible with TRENDnet outdoor access points
  • Adjustable angle 150°
  • Includes mounting screws and metal clamps
  • Holds up to 1.81kg (4 lbs.)

Installation

Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

Compatible

Compatible with TRENDnet outdoor wireless access points

Construction

Rugged powder-coated iron construction

Mounting Hardware

Mounting hardware included

Specification

Features
  • Mount outdoor wireless access points or other compatible devices

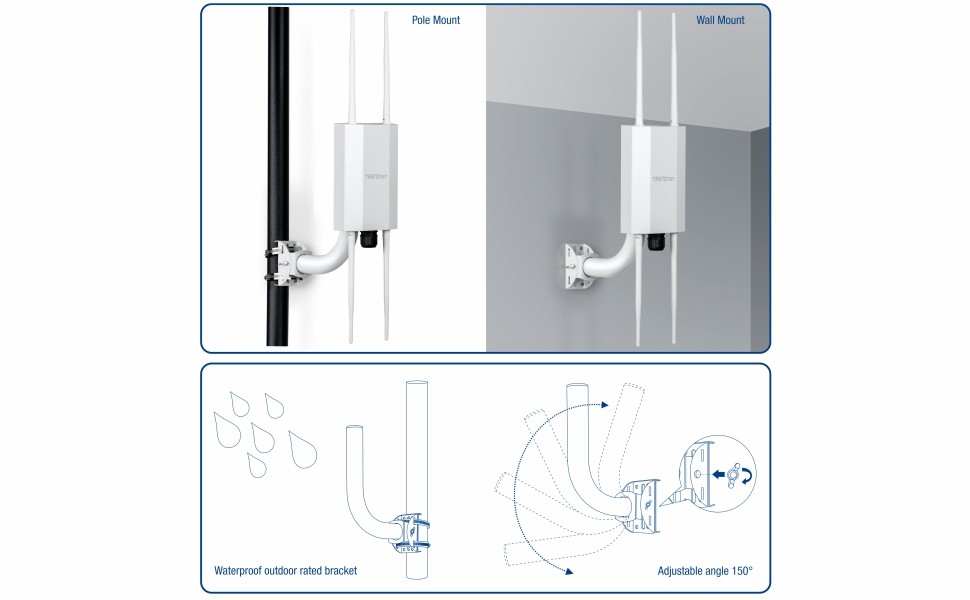

  • Flexible installations for pole or wall installations
  • Outdoor rated
  • Angle adjustment 150°
  • Holds up to 1.81kg (4 lbs.)
Materials
  • Powder coated iron construction
Dimensions
  • 248.9 x 200.7 x 35.6mm (9.8 x 7.9 x 1.4 in.)
  • Pole diameter: 31.7mm (1.25 in.)
  • Hose clamp: 30mm (min.) – 100mm (max.) / 1.18 in. (min.) – 3.93 in. (max.)
Weight
  • 362g (0.80 lb.)
Warranty
  • 1 year
PACKAGE CONTENTS
  • TEW-P01
  • Mounting hardware
  • 2 x Metal clamps
  • Quick Installation Guide
