OVERVIEW

TRENDnet’s SFP+ Single Mode LC Modules are compatible with standard SFP+ slots found on network switches and fiber converters. Each single mode 10G SFP+ transceiver is equipped with a duplex LC fiber connection interface and supports highspeed data rates up to 10.31Gbps. All TRENDnet 10G SFP+ fiber modules support connections for reliable, long- distance network applications.

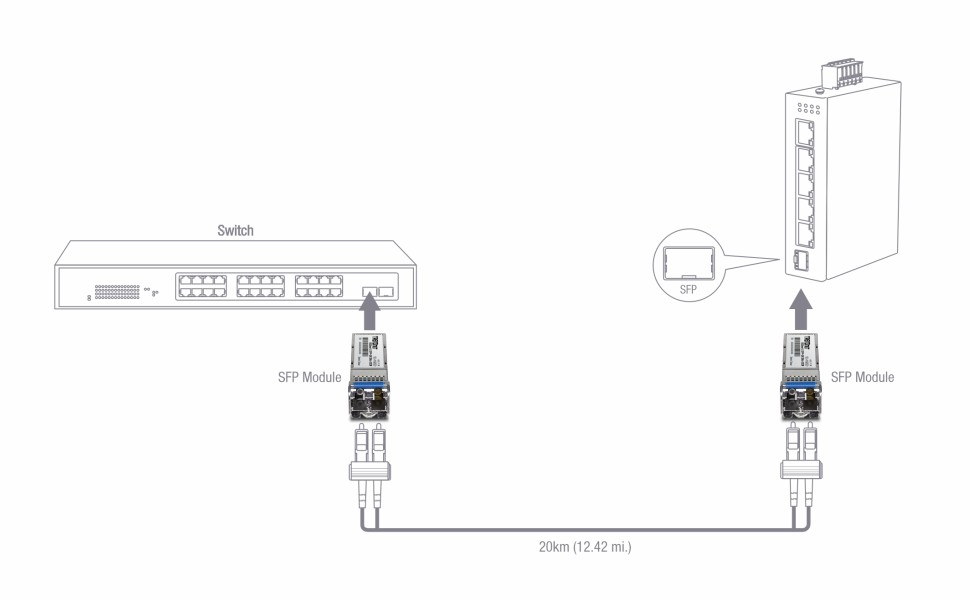

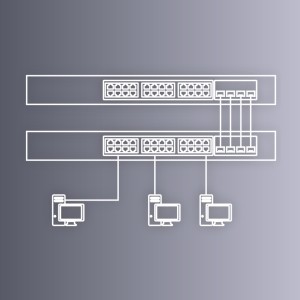

Fiber Applications

Long- distance fiber networking for manufacturing, business parks, and school campus applications.

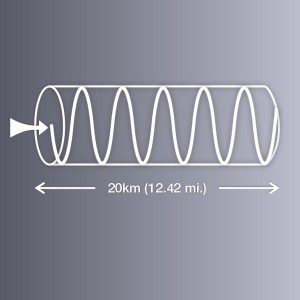

Fiber Distance

Single mode 10G SFP+ transceiver spans distances up to 20km (12.42 mi.) at 10G speeds.

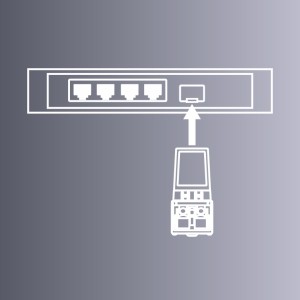

Compatibility

Hot-pluggable SFP+ transceiver works with an MSA compliant 10G SFP+ slot.

Lorem ipsum dolor sit amet

Fiber Distance

Ideal for long-range networking distances up to 20km (12.42 mi.)

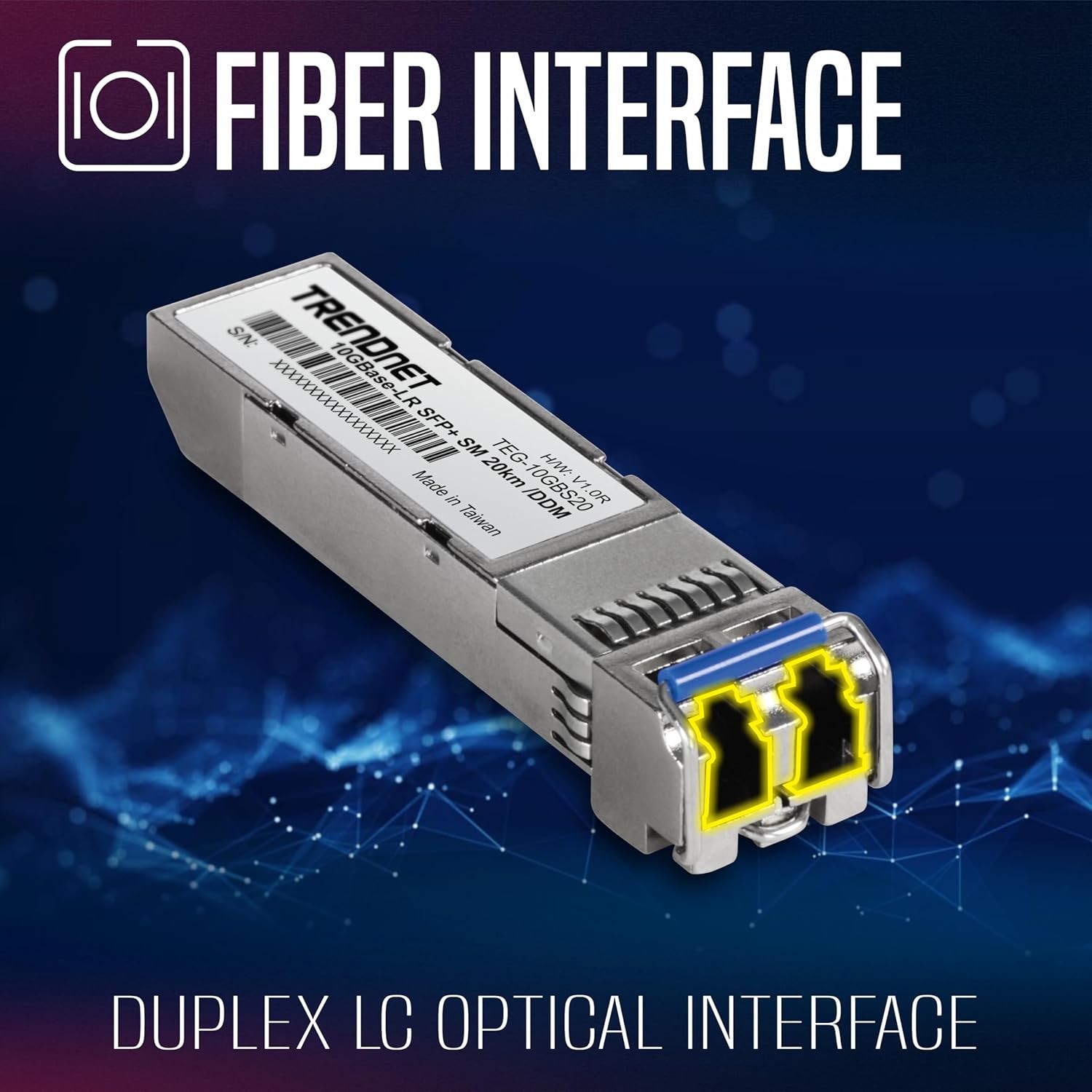

Fiber Interface

This single mode fiber SFP+ transceiver supports LC-type duplex connector

Fiber Wavelength

Single mode fiber SFP+ module compatible with 1310nm wavelength

Data Rate

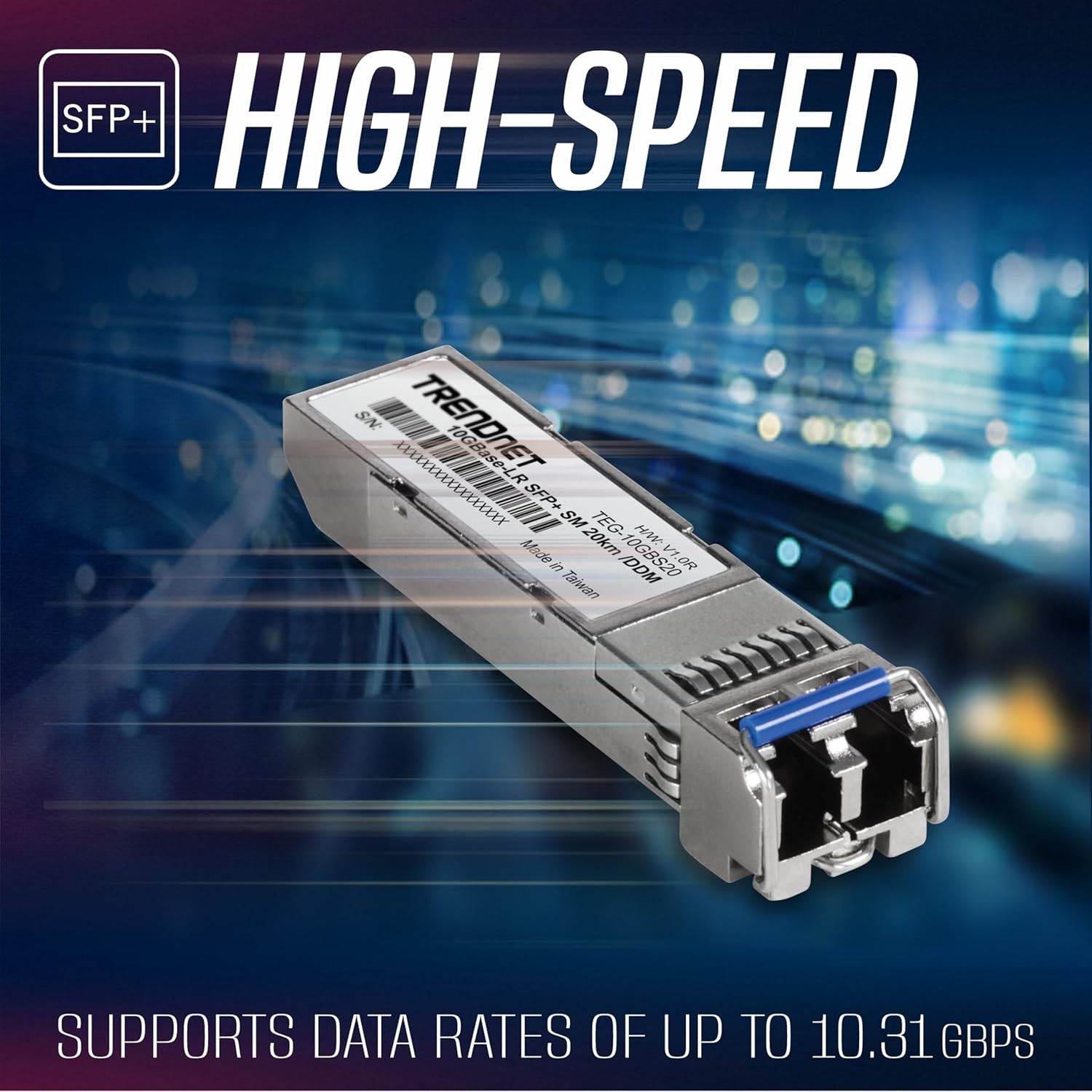

10G SFP+ supports data rates up to 10.31Gbps

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ae 10GBASE-LR

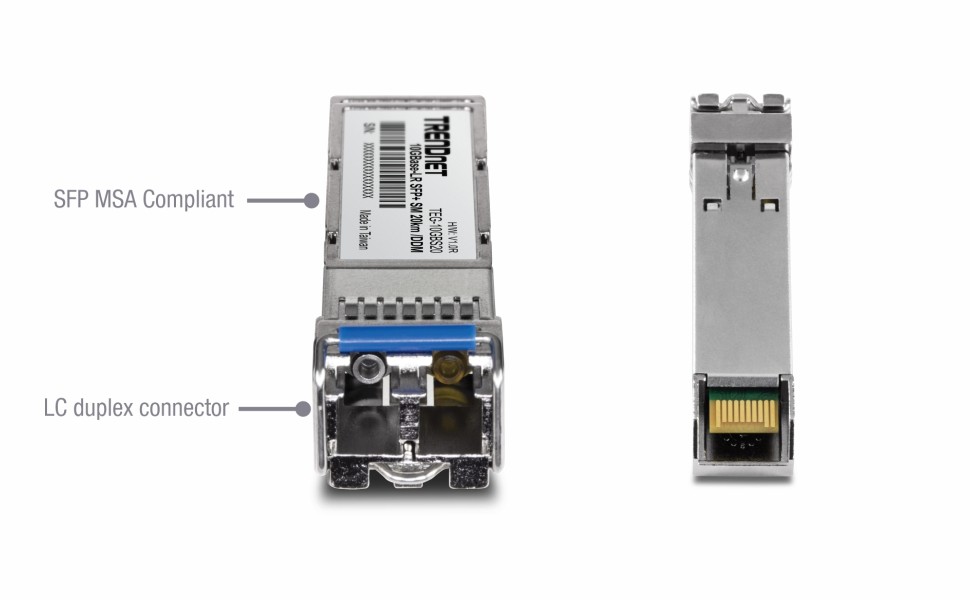

Device Interface	SFP+ MSA Compliant LC duplex connector
Data Transfer Rate	10.31Gbps
Wavelength	1310nm
Optical Output Power	-5 ~ 1 dBm
Distance	20km (12.4 mi)
Special Features	Hot pluggable Metal enclosure DDM support
Sensitivity	-15 dBm
Power	Max. Consumption: 0.8W
Operating Temperature	0° – 70° C (32° – 158° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight	18g (0.6 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-10GBS20

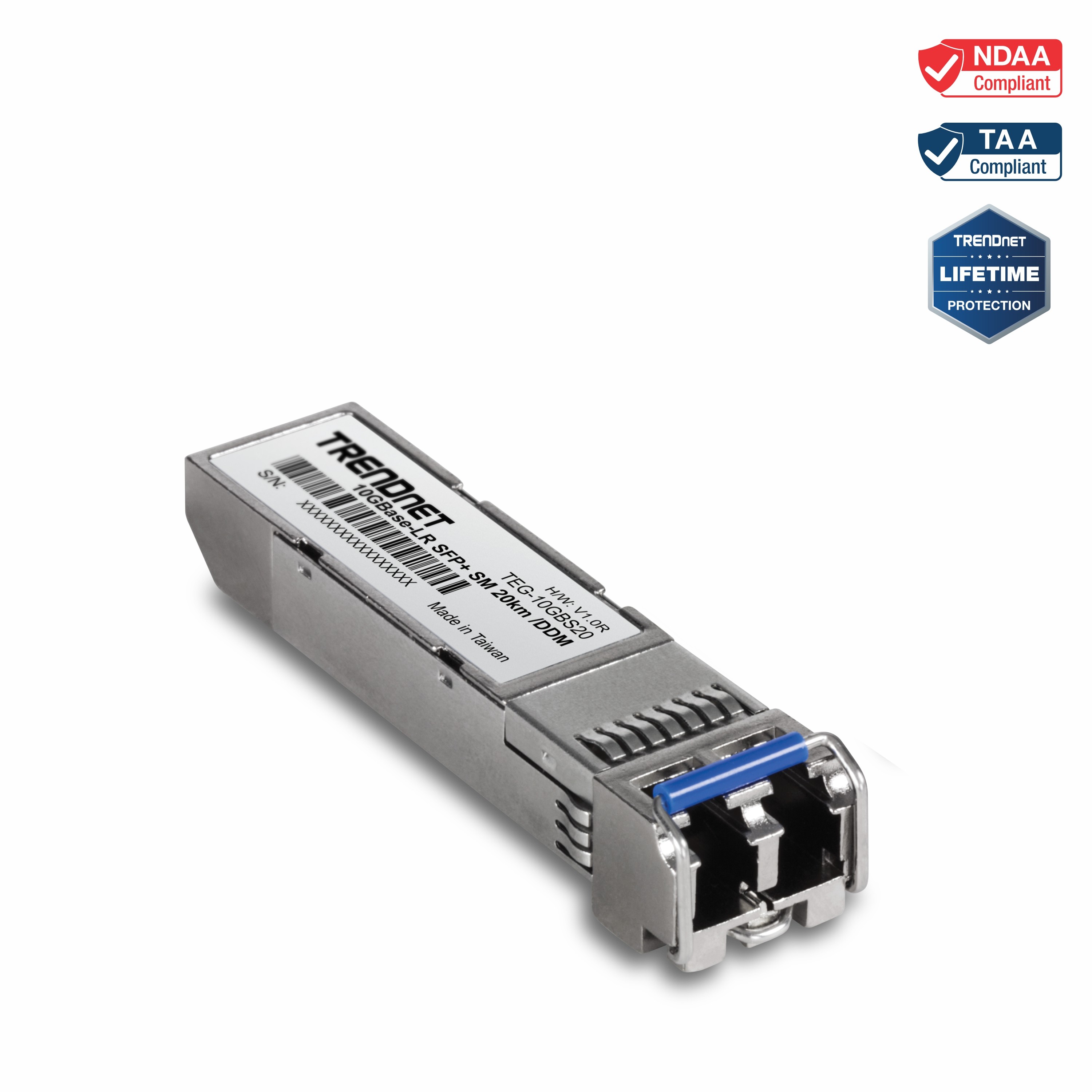

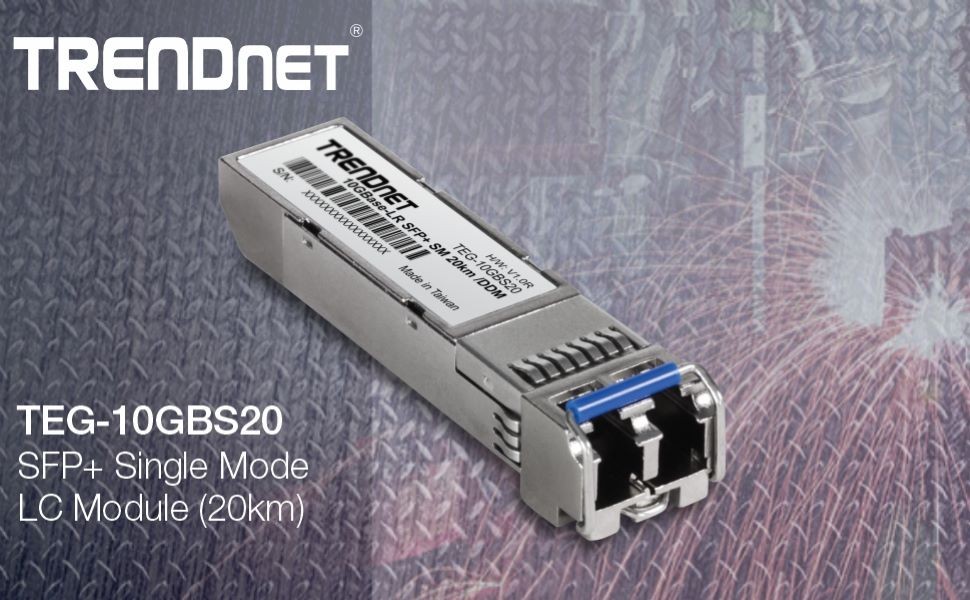

TRENDnet TEG-10GBS20, SFP+ Single Mode LC Module (20km), Lifetime Protection

Transmission distance of up to 20km (12.42 mi.); Duplex LC optical interface
LIFETIME PROTECTION -We stand by the quality of our products. The TEG-10GBS20 SFP+ Single Mode LC Module (20km) is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
NDAA + TAA COMPLIANT: With our NDAA and TAA compliant SFP+ Single Mode LC Module (20km), you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
Supports data rates of up to 10.31Gbps; Supports 1310nm single mode network transmissions
Low Electromagnetic Interference (EMI) design; Compliant with IEEE 802.3ae 10 Gigabit Ethernet
Digital Diagnostics Monitoring (DDM) support

Small Form-Factor Pluggable (SFP+) and Multi-Source Agreement (MSA) compliant
Low power consumption
