TRENDnet’s Gigabit Web Smart PoE++ Switch series offers advanced L2+
features with enhanced traffic management controls to meet the evolving
demands of SMB networks. This rack-mountable IPv6-ready managed PoE++
switch comes with an intuitive web-based interface. Advanced managed
switch features include LACP to increase bandwidth between switches by
grouping ports together, VLANs for segmenting and isolating virtual LAN
groups, QoS for traffic prioritization, port bandwidth controls, and
SNMP monitoring, making this managed PoE++ switch a powerful solution
for any SMB network. Improve voice performance by isolating and
prioritizing VoIP traffic from normal data traffic with an easy-to-use
voice VLAN feature. Installers and integrators can save on equipment
costs and reduce installation time with TRENDnet’s Gigabit Web Smart
Managed PoE++ Switch by delivering up to 95W of PoE power and data over
existing Ethernet cables. With PoE technology, users only need one cable

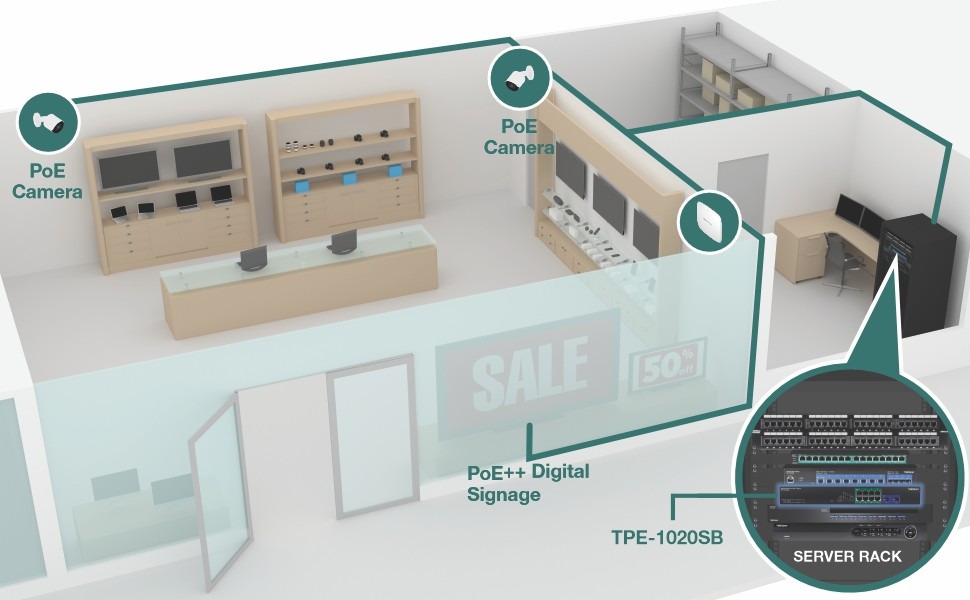

to deliver both data and power. This PoE++ switch is ideal for
networking PoE devices, such as high-power wireless access points, PoE
lighting, digital signage, PTZ and other advanced IP cameras, VoIP phone
systems, IPTV decoders, access controls, and more.

10-Port Gigabit Web Smart PoE++ Switch

  • 8 x Gigabit 95W PoE++ ports
  • 2 x Gigabit SFP slots
  • 180W PoE power budget
  • Easy-to-use web-based management interface
  • PoE alive check automatically attempts to recover an unresponsive PoE device
  • Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • 1U 19” rack mountable
  • 20Gbps switching capacity
  • IEEE 802.3bt PoE++ compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

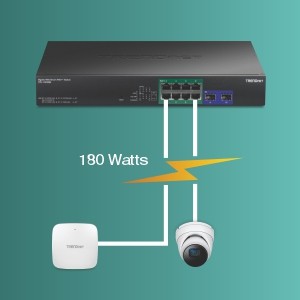

    PoE Power

    This managed PoE++ switch comes with eight PoE++ ports that can supply up to 180W of PoE power.

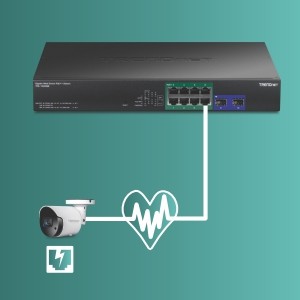

    PoE Device Alive Check

    PD alive check is an automated PoE selfhealing switch feature. If a PoE
    device becomes unresponsive, the switch will auto-reboot the affected
    PoE port in an attempt to recover the device.

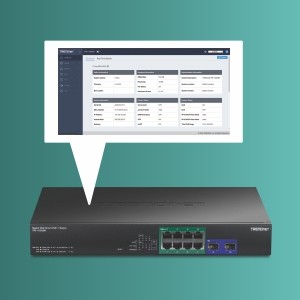

    Web Smart Management


    Provides an easy-to-use web-based GUI management for reduced switch
    configuration complexity, and offers a combination of SMB management
    features for easy deployment.

    PoE++ Power

    Vivamus egestas pretium convallis. Proin aliquet fermentum dui sed ultricies. Etiam tempor nec est nec viverra.

    Fiber SFP

    Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas molestie velit congue.

    IPv6 Ready

    Maecenas sit amet facilisis leo. Vivamus vel metus vitae mi congue mollis et ac quam. Phasellus faucibus libero.

    Traffic Management

    A broad range of network
    configurations are supported by:
    802.3ad link aggregation,
    Asymmetric VLAN, 802.1Q VLAN,
    Voice VLAN, RSTP, MSTP,
    Loopback Detection, GVRP, 802.1p
    Class of Service (CoS), port
    bandwidth management, and QoS
    queue scheduling

    Troubleshooting

    The managed PoE++ switch’s
    convenient cable diagnostic test
    and traffic statistics aid in
    network troubleshooting

    Access Control

    Features such as ACL, SSL, MAC/
    port filtering, 802.1X, TACACS+,
    and RADIUS are compatible with
    layered access controls

    Monitoring

    RMON, SNMP, SNMP Trap, and
    Port Mirroring support
    administrator monitoring solutions

    Web Smart Management

    Provides an easy-to-use web-
    based GUI management for
    reduced switch configuration
    complexity,
    and offers a combination of SMB
    management features for easy
    deployment

    Housing Design

    Sturdy metal housing

    19” Rackmount Design

    Rack mountable housing
    with mounting kit included

    Jumbo Frame

    Sends larger packets, or Jumbo
    Frames (up to 9KB), for
    increased performance

    LED Indicators

    LED indicators on this
    PoE++ switch convey port
    status

    Network Monitoring

    Managed features on the
    managed PoE++ switch include
    RMON, SNMP trap, and syslog for
    monitoring and flexible network
    integration

    SPECIFICATIONS

    Standards
    • IEEE 802.1d
    • IEEE 802.1p
    • IEEE 802.1Q
    • IEEE 802.1s
    • IEEE 802.1w
    • IEEE 802.1X
    • IEEE 802.1ab
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3z
    • IEEE 802.3ab
    • IEEE 802.3ad
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3az
    • IEEE 802.3bt

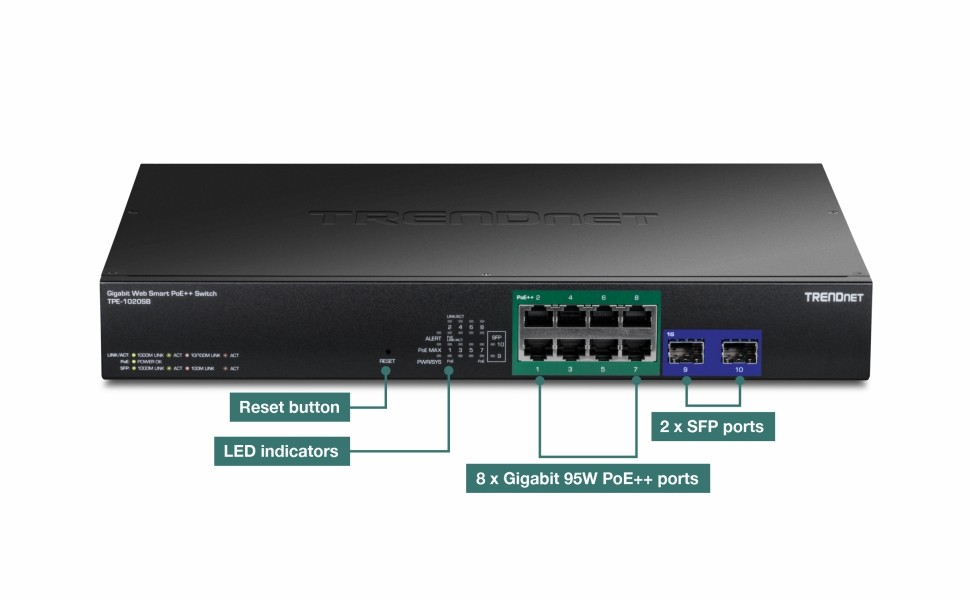

    Device Interface
    • 8 x Gigabit 95W PoE++ ports
    • 2 x SFP ports
    • LED indicators
    • Reset button
    Data Transfer Rate
    • Gigabit Ethernet: 2000Mbps (full duplex)
    • SFP: 2000Mbps (full duplex)
    Performance
    • Switch fabric: 20Gbps
    • RAM buffer: 512KB
    • MAC Address Table: 8K entries
    • Jumbo Frames: 9KB
    • HOL Blocking Prevention
    • Forwarding rate: 14.88Mpps (64-byte packet size)
    Management
    • CLI (Telnet / SSHv2) for basic administration
    • HTTP/HTTPS (SSL v2/3 TLS version 1.2) Web based GUI
    • SNMP v1, v2c, v3
    • RMON v1
    • Static Unicast MAC Address
    • Enable/disable 802.3az Power Saving
    • LLDP and LLDP-MED
    • Virtual Cable Diagnostics Test
    • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
    • Dual image and configuration
    MIB
    • RMON MIB RFC 1271
    • LLDP MIB IEEE 802.1ab
    • RFC 1213 MIB II
    • RFC 1493 bridge MIB
    Spanning Tree
    • IEEE 802.1d STP (Spanning Tree protocol)
    • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
    Link Aggregation
    • Static Link Aggregation
    • 802.3ad Dynamic LACP
    Quality of Service (QoS)
    • 802.1p Class of Service (CoS)
    • DSCP (Differentiated Services Code Point)
    • Bandwidth Control per port
    • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
    VLAN
    • 802.1Q Tagged VLAN
    • Dynamic GVRP
    • Up to 256 VLAN groups, ID Range 1-4094
    • Private VLAN (Protected Ports)
    • Voice VLAN (10 user defined OUIs)
    Multicast
    • IGMP Snooping v1, v2, v3
    • MLD Snooping v1, v2
    • IGMP fast leave
    • Up to 256 multicast entries
    Port Mirror
    • RX, TX, or Both
    • Many to one
    Access Control
    • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
    • Local Dial-In User Authentication
    • DHCP Snooping
    • Loopback Detection
    • Trusted Host
    • Denial of Service (DoS)
    • IP MAC port binding
    • Block unknown multicast
    ACL IPv4 L2-L4 & IPv6
    • MAC Address
    • VLAN ID
    • Ether Type (IPv4 only)
    • TCP/UDP Port 1-65535
    • 802.1p
    • DSCP (IPv4 only)
    • TOS (IPv4 only)
    • IPv4 Address and Mask (IPv4 only)
    • IPv6 Address and Prefix Length (IPv6 only)
    Layer 3 Features
    • IPv4 / IPv6 static routing
    • IP interfaces: Up to 15
    • Routing table entries: Up to 32 (IPv4 / IPv6)
    • ARP table (up to 128 entries)
    • Inter-VLAN routing
    Power
    • Input: 100 – 240V AC, 50/60Hz, internal power supply
    • Max. consumption: 5.8W (without PD) / 185.8W (with PD)
    PoE
    • Power Budget: 180W
    • 802.3bt: up to 95W
    • PoE++: pin 1, 2, 4, 5 + and pin 3, 6, 7, 8 -
    • PoE manual classification
    Fan/Acoustics
    • Quantity: 1
    • Smart Fan
    • Noise Level: 55dB(A) (max.)
    MTBF
    • 243,000 @ 25° C
    Operating Temperature
    • 0° – 40° C (32° – 104° F)
    Operating Humidity
    • Max. 90% non-condensing
    Dimensions
    • 330 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)
    • Rack mountable 1U height
    Weight
    • 2.38kg (5.25 lbs.)
    Certifications
    • CE
    • FCC
    • LVD
    • ETL
    Warranty
    • Lifetime Warranty*
    PACKAGE CONTENTS
    • TPE-1020SB
    • Quick Installation Guide
    • Power cord (1.5m/4.9 ft.)
    • Rackmount kit

    All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
