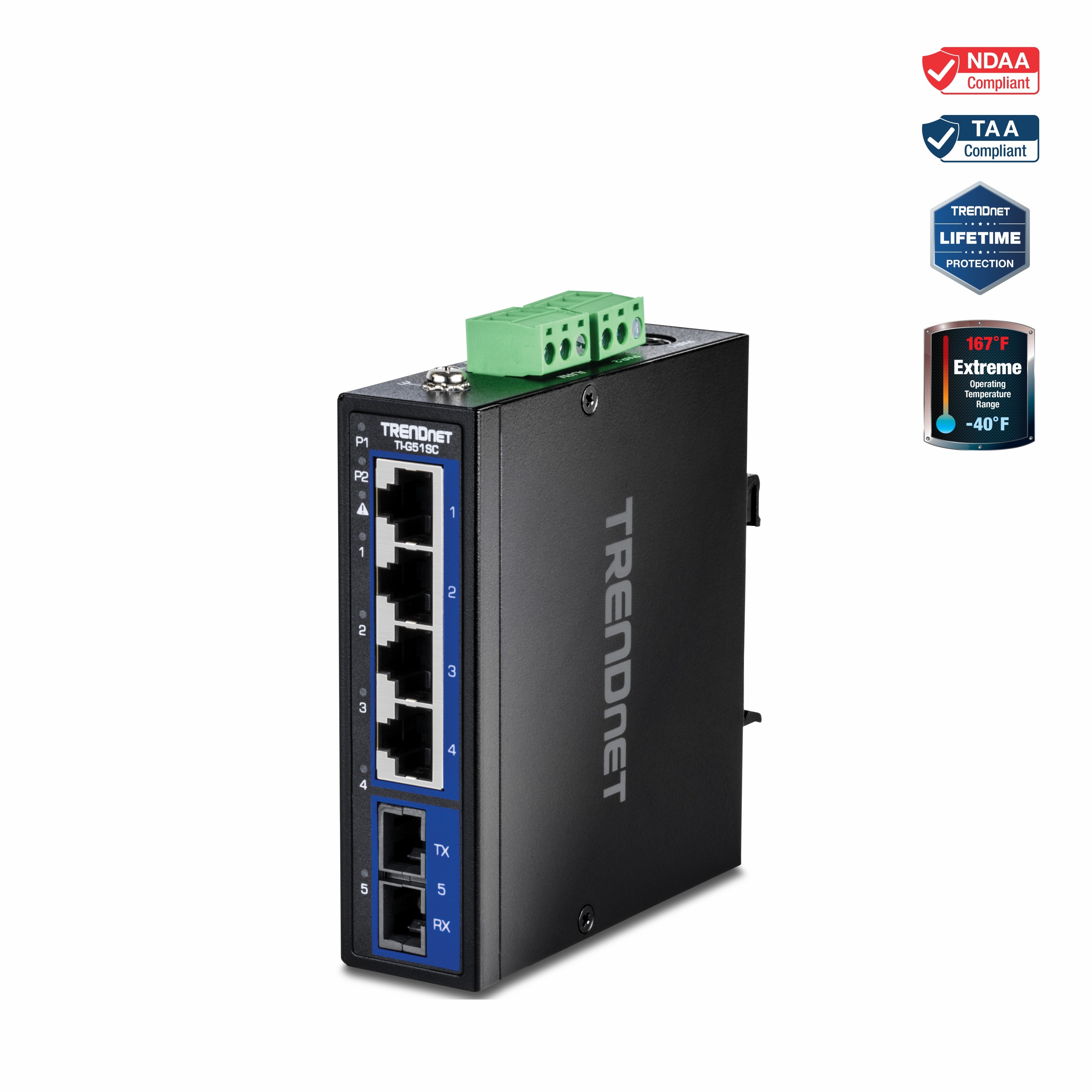

OVERVIEW

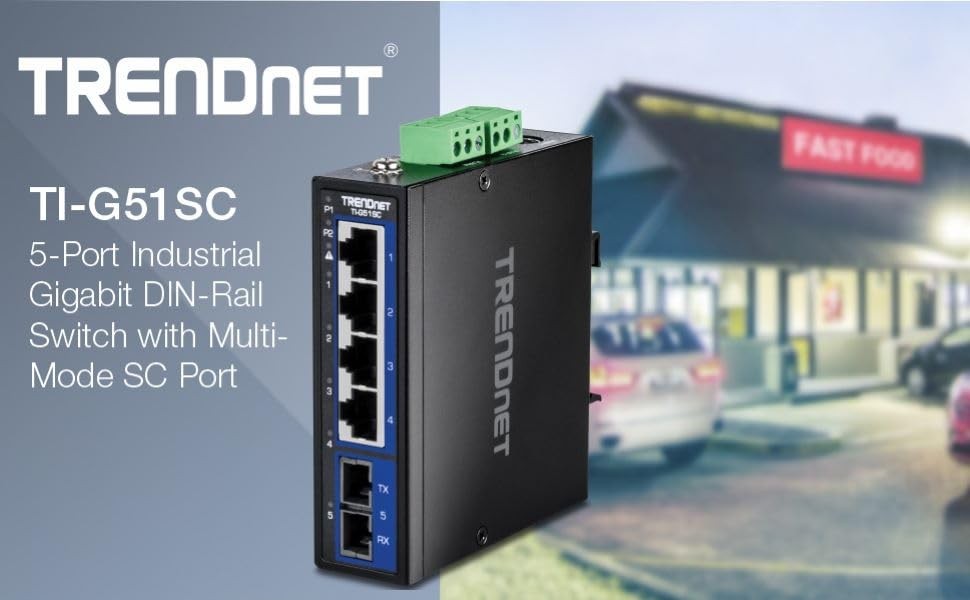

TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.

Gigabit Ports

This reliable industrial switch features high-performance gigabit RJ-45 ports for high-speed device connections

SC Multi-Mode Fiber Port

The SC multi-mode fiber port supports long-distance fiber networking applications up to 550 meters.

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (- 40° – 167° F).

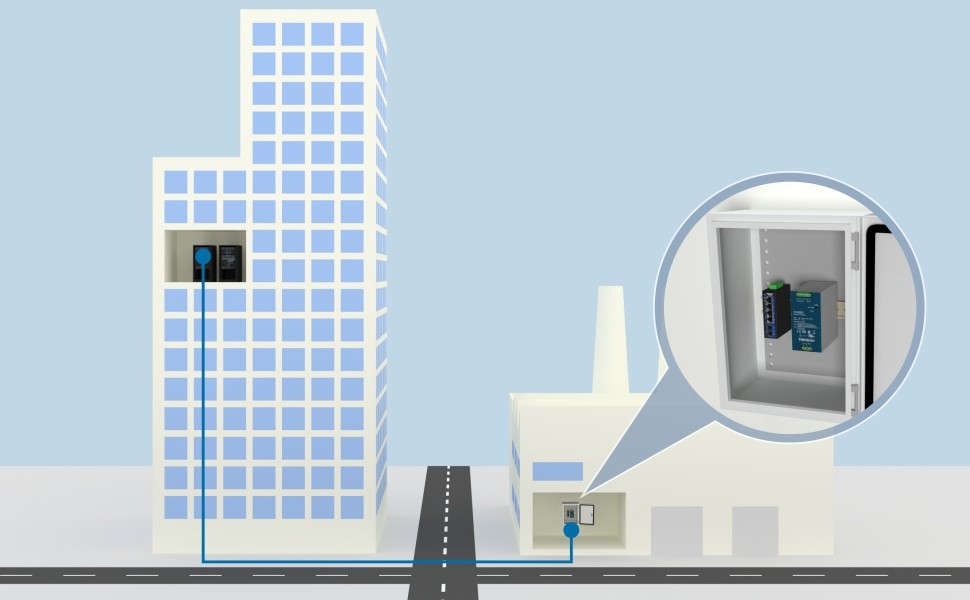

Gigabit Ports

Industrial switch with fiber port features gigabit RJ-45 ports for high-speed device connections, and a gigabit SC multi-mode fiber port that supports long-distance fiber networking applications up to 550 meters

DIN-Rail / Wall Mounts

The industrial switch with a fiber SC port features an IP30 rated metal enclosure, with included DIN-Rail mount and wall mount hardware

Redundant Power

Multiple power inputs provide redundant power with overload current protection (power supply sold separately, models: TI-M6024, TI-S15052

Alarm Relay

Alarm relay on the industrial network switch with a fiber optic port is triggered by power failure of primary and/or redundant power

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperature Range

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point for high-voltage protection

Switching Capacity

10Gbps switching capacity

LED Indicator

LED Indicators on the industrial switch with a fiber port convey port status

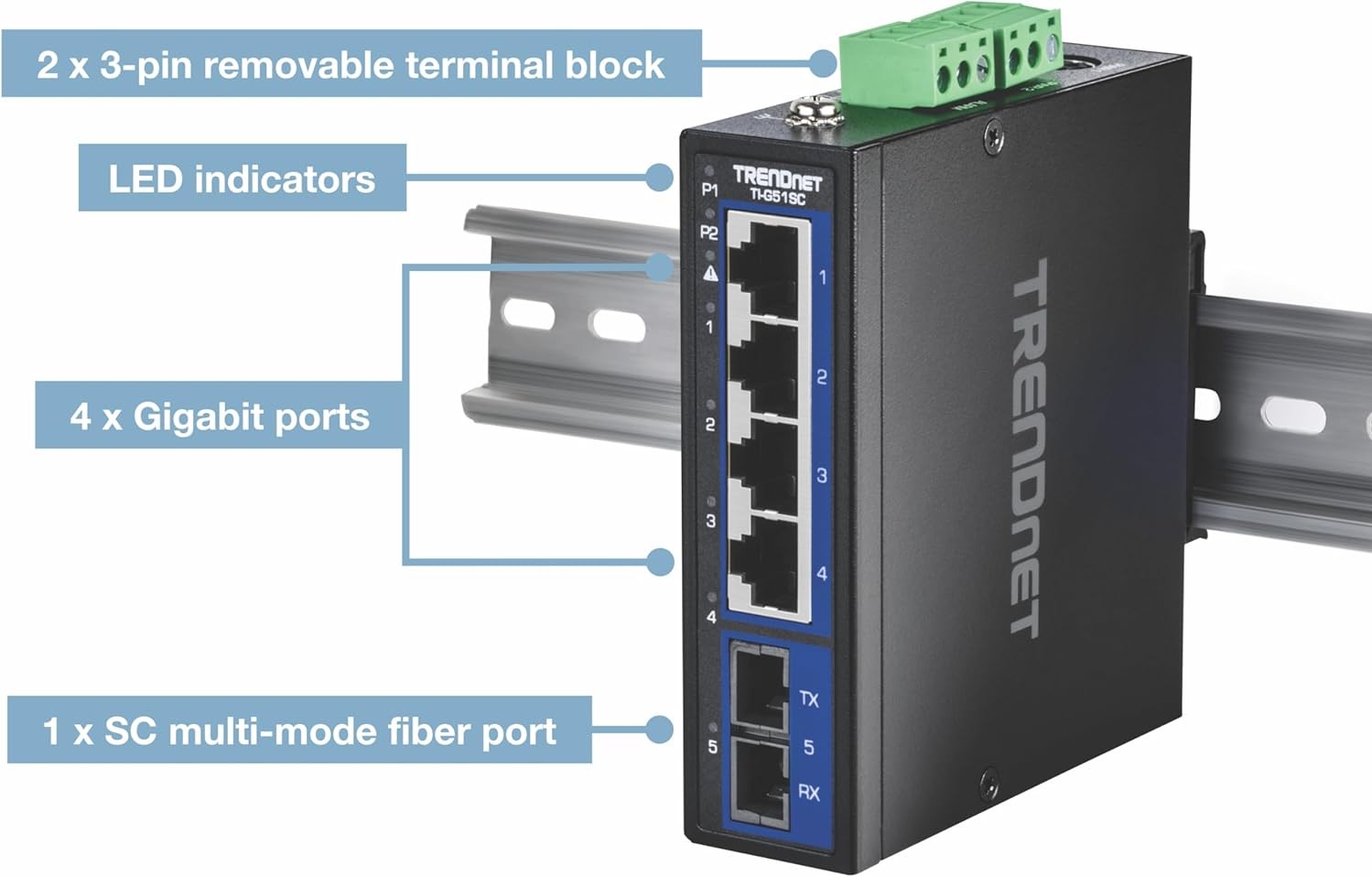

DEVICE INTERFACE: 4 x Gigabit Ports; 1 x Gigabit Multi-Mode Fiber SC Port; 2 x 3-pin Removable Terminal Block; Optional power adapter input (power adapter sold separately)
LIFETIME PROTECTION -We stand by the quality of our products. The TI-G51SC 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
GIGABIT PORTS: This 5 port industrial switch features gigabit RJ-45 ports for high-speed device connections.
SC MULTI-MODE FIBER PORT: The SC multi-mode fiber port supports long distance fiber networking applications up to 550 meters.
INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).
DIN RAIL & WALL MOUNTS: IP30 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware

REDUNDANT POWER: Multiple power inputs provide redundant power with overload current protection- POWER SUPPLY SOLD SEPARATELY: Models: TI-M6024, TI-S15052, 48VDC3000)
ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (IEC 61000-4-5) Surge: Power: 2kV | Signal: 6kV
SHOCK AND VIBRATION RESISTENT: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6); ALARM RELAY: Alarm output trigged by power failure of primary and/or redundant power

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z (1000Base-SX) IEEE 802.3ab
Device Interface	4 x Gigabit ports 1 x SC multi-mode fiber port 2 x 3-pin removable terminal block LED indicators Optional power adapter input 48VDC3000 (sold separately)
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Fiber: 2Gbps (full duplex)
Performance	Data RAM Buffer: 48KB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding Rate: 7.44Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Dual power inputs Auto negotiation Auto store and forward architecture Automatic address learning and address aging ESD 6KV and Surge 2KV protection
Power	Input: 9 - 60V DC Compatible power supply: TI-M6024, TI-S15052 (sold separately) Max. consumption: 3.6W Power adapter 48VDC3000 (sold separately)
Terminal Block	Redundant power inputs, alarm relay contact, 2 x 3 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Short circuit mode when two power sources are connected Open circuit mode when only one power source is connected
MTBF	71,955 hours
Housing	IP30 metal case DIN-Rail mount Wall mount Grounding point 8KV ESD protection 2KV surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	99 x 90 x 28mm (3.89 x 3.54 x 1.10 in.)
Weight	292g (0.64 lbs.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-G51SC
Quick Installation Guide
Removable terminal block
DIN-Rail / wall mount kit
