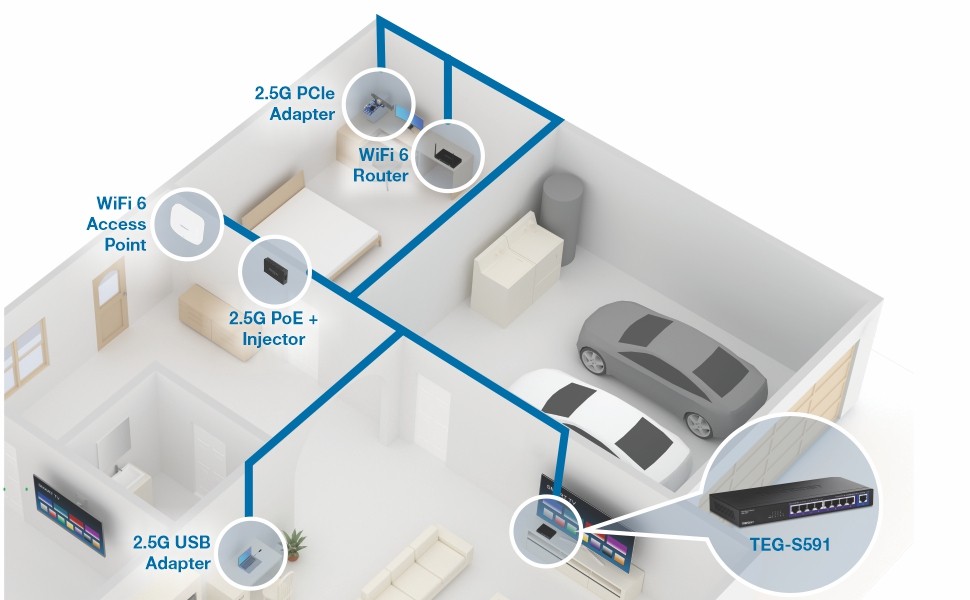

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.

2.5G Ports


Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

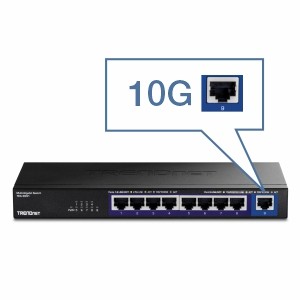

10G Port


Offers one 10G port for high-speed network connection providing a cost-effective solution in adding 10G link capability.

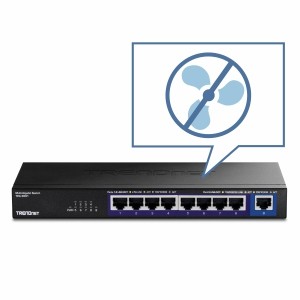

Fanless


The compact fanless design lowers power consumption, energy costs, and eliminates distracting operating noise.

Easy Installation

No configuration needed, simply connect network devices to this multi-gigabit 2.5G / 10G switch

Fanless

Compact fanless design on the 2.5G / 10G switch lowers energy consumption and eliminates operating noise

Jumbo Frame

The 2.5Gb switch sends larger packets, or Jumbo Frames (up to 12KB), for increased performance

2.5G Ports

Equipped with 2.5G RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Housing Design

The multi-gigabit 2.5G / 10G switch features a sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

10G Port

Equipped with one 10G port for an ultra-fast network connection providing a cost-effective solution in adding 10G link capability

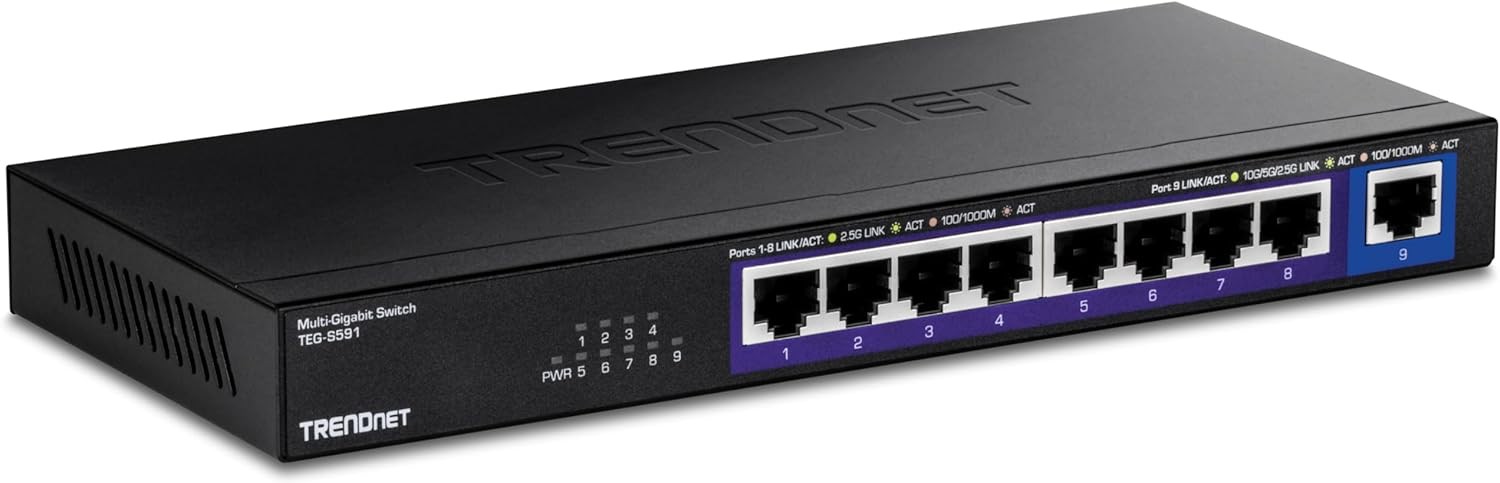

  • DEVICE INTERFACE: 8 x 2.5G Ports (1Gbps/2.5Gbps); 1 x 10G Port (1Gbps/2.5Gbps/10Gbps); LED indicators
  • 2.5G PORTS: The network multi gig switch is equipped with eight 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
  • STANDARDS: IEEE 802.3bz (2.5G); IEEE 802.3an (10G); IEEE 802.3ab; IEEE 802.3x compliant
  • WALL MOUNTABLE DESIGN: The sturdy Ethernet Switch has a wall mountable design for greater installation flexibility.
  • TRENDnet LIFETIME PROTECTION: The TEG-S591 9-Port multi gig switch is backed by TRENDnet’s Lifetime Manufacturer Protection.
  • NDAA / TAA compliant (U.S. and Canada only) NDAA/TAA Compliant

Specifications

Standards
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3u
  • IEEE 802.3x

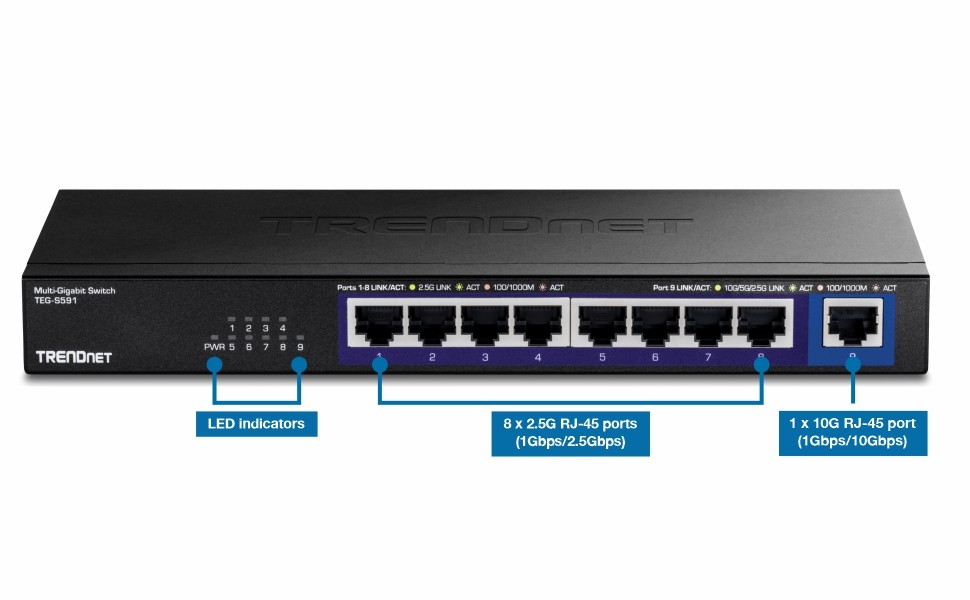

Device Interface
  • 8 x 2.5G RJ-45 ports (1Gbps/2.5Gbps)
  • 1 x 10G RJ-45 port (1Gbps/10Gbps)
  • LED indicators
  • Wall mountable
Data Transfer Rate
  • Gigabit Ethernet: 2Gbps (full duplex)
  • 2.5G Ethernet: 5Gbps (full duplex)
  • 10G Ethernet: 20Gbps (full duplex)
Performance
  • Switch fabric: 60Gbps
  • RAM buffer: 1MB
  • MAC address table: 4K entries
  • Jumbo frames: 12KB
  • Forwarding mode: Store and forward
  • Forwarding rate: 44.64Mpps (64-byte packet size)
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V, 1.5A
  • Max. consumption: 11.9W
MTBF
  • 518,151 hours
Fan / Acoustics
  • Fanless
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 240 x 105 x 27mm (9.45 x 4.1 x 1 in.)
Weight
  • 0.72 kg (1.6 lbs.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • Lifetime Warranty*
PACKAGE CONTENTS
  • TEG-S591
  • Quick Installation Guide
  • Power adapter (12V, 1A)
