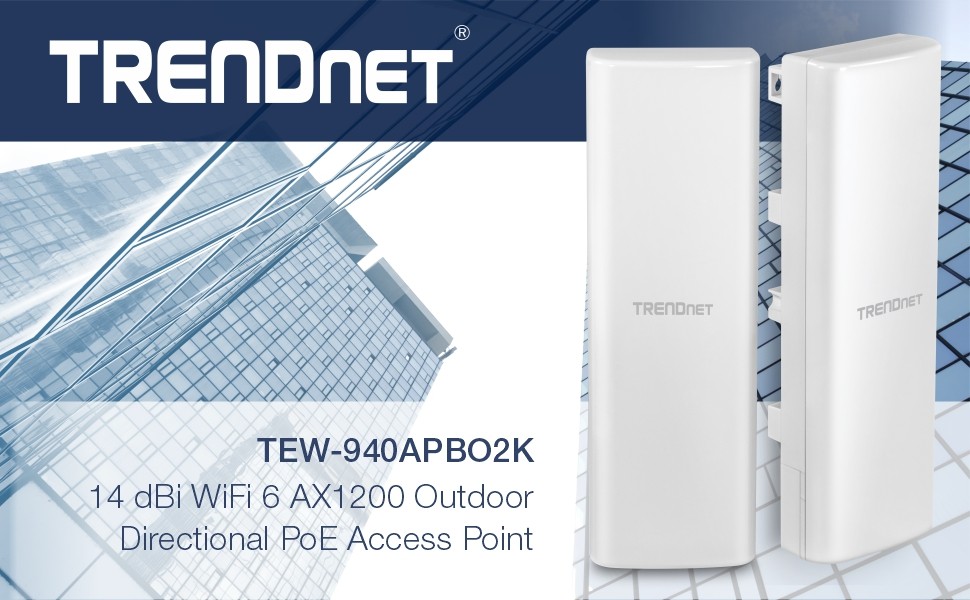

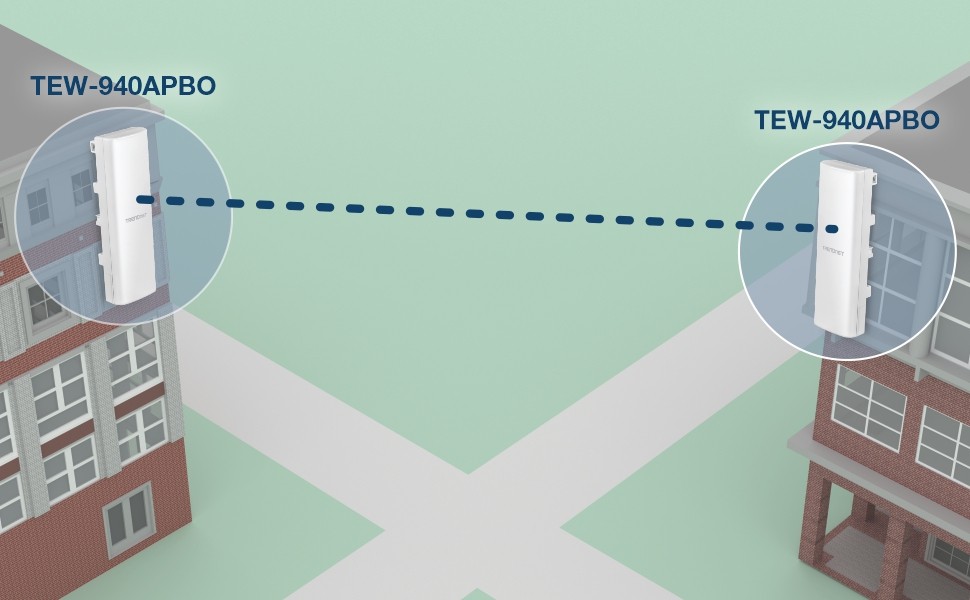

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point

Bridge Kit, model TEW-940APBO2K, provides reliable, long-range wireless

AX1200 point-to-point connectivity. This preconfigured 5GHz outdoor

WiFi 6 bridge kit provides installers the simplest way to create a

long-distance wireless point-to-point bridge. The outdoor WiFi 6 bridge

kit conveniently links two locations together with WiFi 6 AX1200 speed

and performance. Faster speeds are possible with this outdoor

point-to-point WiFi 6 bridge kit with OFDMA and MU-MIMO technologies.

MU-MIMO technology processes multiple data streams simultaneously,

increasing real-time WiFi performance on the outdoor wireless access

point when multiple devices access the network. The IP55 rated housing

is designed for outdoor environments and includes wall and pole mounting

hardware.

14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit

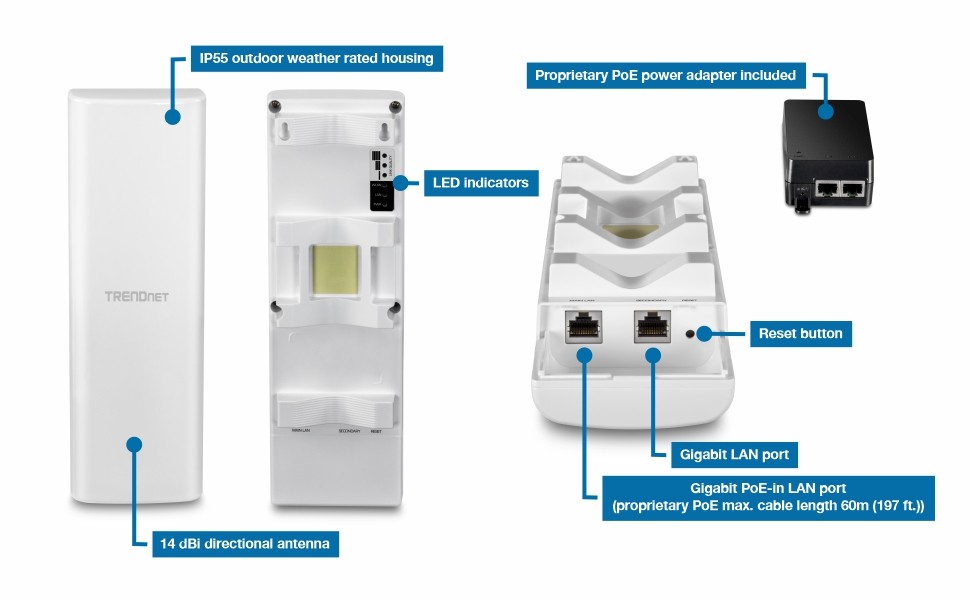

    • DEVICE INTERFACE: 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)); 1 x Gigabit LAN port; LED indicators; Reset button
    • 2 ACCESS POINT KIT: Includes two TEW-940APBO Access Points
    • POINT TO POINT BRIDGE: The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) with access point, client bridge, and repeater modes.
    • WIFI 6 AX1200: Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenient wireless connection quality LEDs for ease of installation
    • DIRECTIONAL ANTENNA: 14 dBi Directional patch antenna
    • OUTDOOR READY: Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).
    • POWER ADAPTER INCLUDED: A proprietary PoE power adapter included

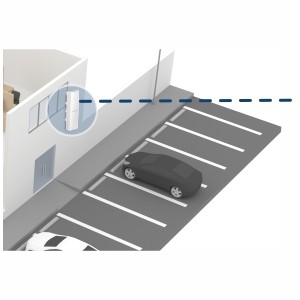

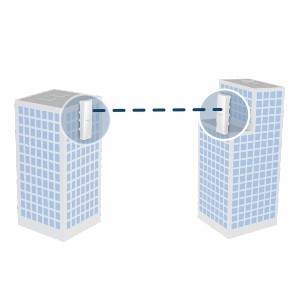

Point-to-Point Bridge


Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

WiFi 6 AX1200


Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking
speeds and includes convenient wireless connection quality LEDs for ease
of installation.

WiFi 6 AX1200


Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).

PoE Power Adapters

Proprietary PoE power adapters included

WiFi 6 AX1200 (5GHz)

Compliant with 802.11ax/n/ac 5GHz technology with data rates up to 1.2Gbps*

Outdoor Rated

Outdoor WiFi 6 bridge kit features durable enclosure with an IP55 outdoor weather rating

Directional Antennas


Built-in 14 dBi directional antennas

Mounting Hardware


Pole and wall mount hardware included

LED Indicators


LEDs on the outdoor WiFi 6 bridge kit convey connection quality for ease of installation

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1d
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11a
  • IEEE 802.11k
  • IEEE 802.11n (5GHz: up to 300Mbps)*
  • IEEE 802.11ac (5GHz: up to 867Mbps)*
  • IEEE 802.11ax (5GHz: up to 1201Mbps)*
Hardware Interface
  • 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.))
  • 1 x Gigabit LAN port
  • LED indicators
  • Reset button
Features
  • 802.11ax WiFi 6 support
  • IP55 rated housing
  • MU-MIMO
  • Band steering
  • Airtime fairness
  • 802.1Q VLAN assignment per SSID
  • IPv6 support
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • LLDP
  • Bonjour/UPnP
Operation Modes
  • Access Point
  • Client Bridge
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Performance throughput test
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan/AP detection
Access Control
  • Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
  • MAC filter (max entries: 32)
  • Maximum client limit
  • Client isolation/separate stations
QoS
  • WMM
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs
Frequency
  • 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz
Wireless Channels
  • 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
Antenna Gain
  • 14 dBi internal directional patch antenna
Antenna Pattern

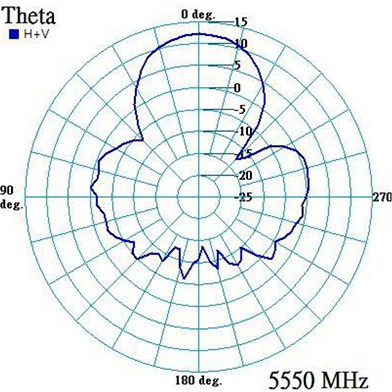

  • 5G Antenna 1

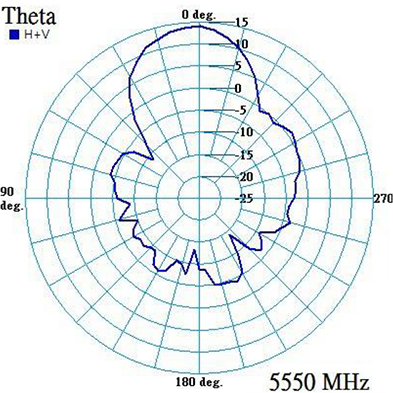

  • 5G Antenna 2
Distance
  • Up to 1km**
Wireless Output Power
  • 802.11a: 23 dBm (max.)
  • 802.11n: 22 dBm (max.)
  • 802.11ac: 22 dBm (max.)
  • 802.11ax: 22 dBm (max.)
Receiving Sensitivity (per chain)
  • 802.11a: -71 dBm (typical) @ 54Mbps
  • 802.11n: -66 dBm (typical) @ 300Mbps
  • 802.11ac: -55 dBm (typical) @ 867Mbps
  • 802.11ax: -54 dBm (typical) @ 1201Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 54V DC, 0.6A proprietary/passive PoE injector
  • Max. Consumption: 10.1W
Operating Temperature
  • -20° – 60° C (-4° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.) per access point
Weight
  • 598g (21.09 oz.) per access point
Warranty
  • 3 year
PACKAGE CONTENTS
  • 2 x TEW-940APBO
  • Quick Installation Guide
  • 2 x Proprietary/Passive PoE injectors (54V DC, 0.6A)
  • Mounting hardware

Disclaimer:

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

** Distance Disclaimer

** The distance listed in the specification is based on internal wireless connectivity between two TEW-940APBO units with consideration to acceptable data transmission rates performance throughput. Actual achievable connectivity and performance throughput may vary based on environmental factors in the installed locations.


All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
