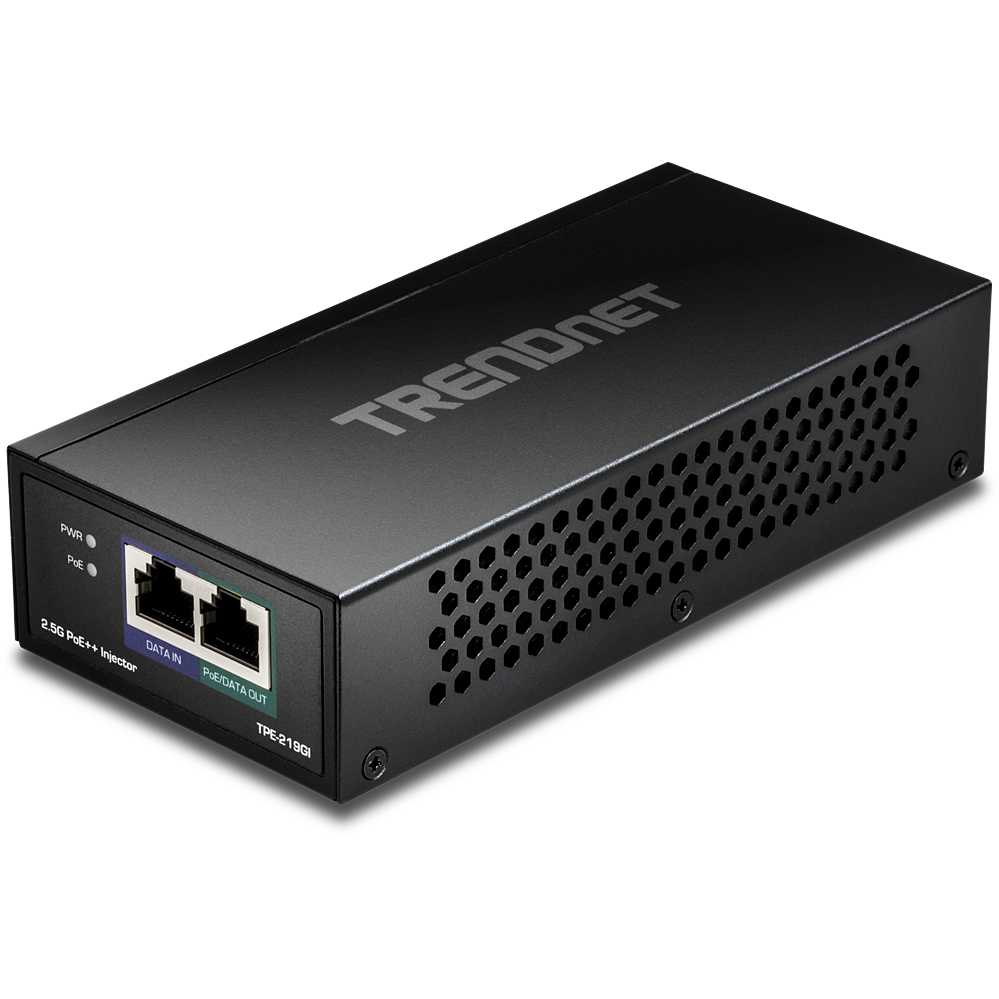

TRENDnet’s 2.5G PoE++ Injector, model TPE-219GI, combines electrical power with a 2.5GBASE-T network connection to produce an ultra-fast 2.5G PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE++ devices. Connect the TPE-219GI 2.5G PoE++ injector to a non-PoE switch, and run an Ethernet cable with data + power to network a PoE++ device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

PoE++

The 2.5G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power.

2.5G Speeds


Equipped with a 2.5GBASE-T RJ-45 port providing network speeds of up to 2.5Gbps over existing Cat5e or better cabling.

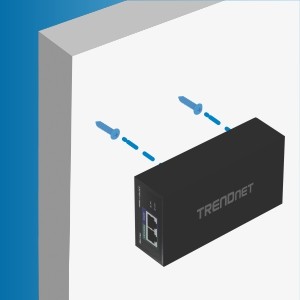

Installation Flexibility


Wall-mount design and a sturdy metal enclosure accommodates most installations scenarios.

PoE++

Acting as a PoE++ adapter, the 2.5G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power

Easy Installation

Simply connect the 2.5G PoE++ injector to your switch and PoE device – no configuration needed

Installation Flexibility

Wall-mount design and a sturdy metal housing accommodates most installations scenarios

Installation Flexibility

Wall-mount design and a sturdy metal housing accommodates most installations scenarios

PoE Distance

Provides a PoE++ network connection up to 100m (328 ft.)

LED Indicators

LED indicators convey 2.5G PoE++ injector network connectivity.

Auto-Sensing Technology

Featuring auto-sensing technology, the 2.5G PoE++ injector conveniently delivers the correct wattage needed to power your PoE, PoE+, or PoE++ devices

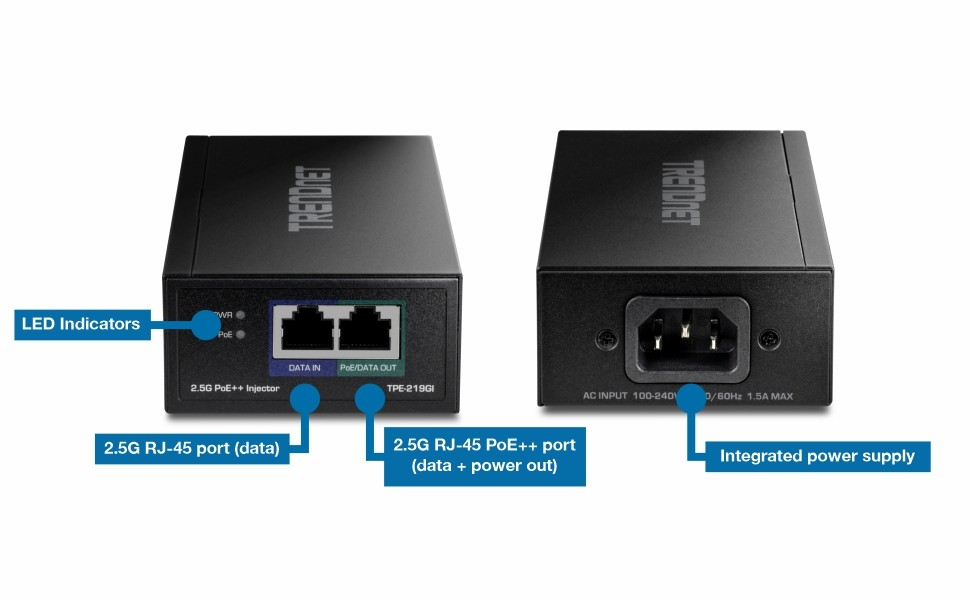

• DEVICE INTERFACE: 1 x 2.5G RJ-45 port (data); 1 x 2.5G RJ-45 PoE++ port (data + power out); Metal Housing; Integrated
Power Supply
• POE++ POWER: The 2.5G PoE++ injector supplies a PoE device with PoE (15.4W), PoE+ (30W), or PoE++ (90W) power
• 2.5 GIGABIT SPEEDS: Equipped with a 2.5GBASE-T RJ-45 port that converts a non-PoE port to a PoE++ Port providing
network speeds of up to 2.5Gbps over existing Cat5e or better cabling.
• AUTO SENSING TECHNOLOGY: Featuring auto-sensing technology that conveniently delivers the correct wattage needed to
power your PoE, PoE+, and PoE++ devices.

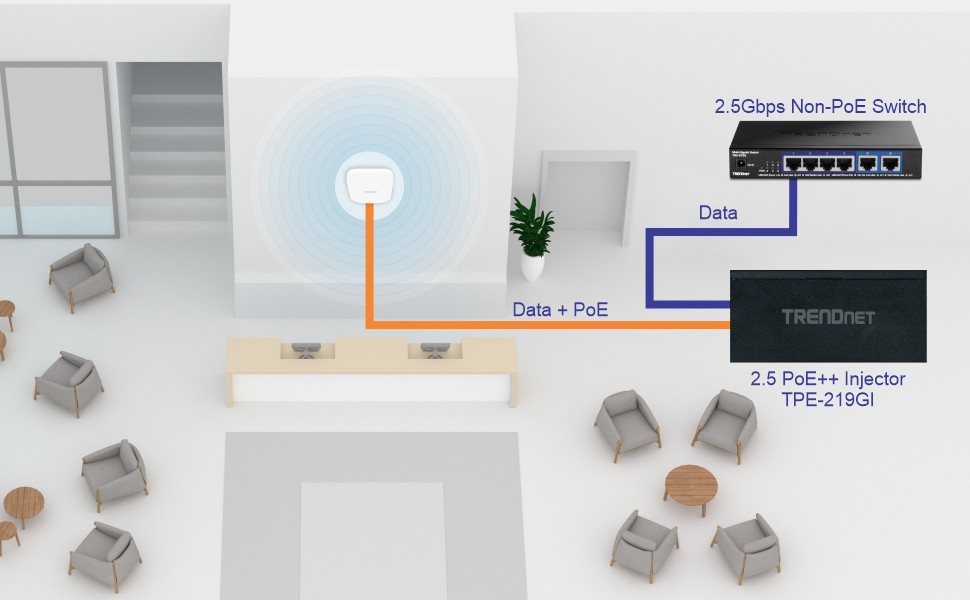

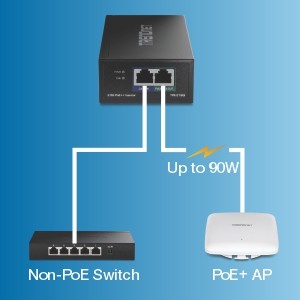

• POE DISTANCE: Connect the 2.5G PoE++ injector to a non-PoE switch, and run an Ethernet cable with data + power to
network a PoE, PoE+ or PoE++ device up to 100 meters (328 ft.) away
• EASY INSTALLATION: Simply connect the 2.5G PoE++ injector to your switch and PoE device – no configuration needed
• INSTALLATION FLEXIBILITY: The wall-mount designed PoE++ injector has a sturdy metal enclosure that accommodates most
installations scenarios.
• IEEE 802.3af, 802.3at, and 802.3bt compliant

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3bz
Device Interface
  • 1 x 2.5G RJ-45 port (data)
  • 1 x 2.5G RJ-45 PoE++ port (data + power out)
PoE Budget
  • Max. 90W
Power Consumption
  • Max. 1.32W (without PD)
  • Max. 95W (with PD)
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • ETL
Dimensions
  • 154 x 73 x 36mm (6 x 2.9 x 1.4 in.)
Weight
  • 386g (0.85 lbs.)
Warranty
  • 3 year


PACKAGE CONTENTS
  • TPE-219GI
  • Quick Installation Guide
  • Power cord
