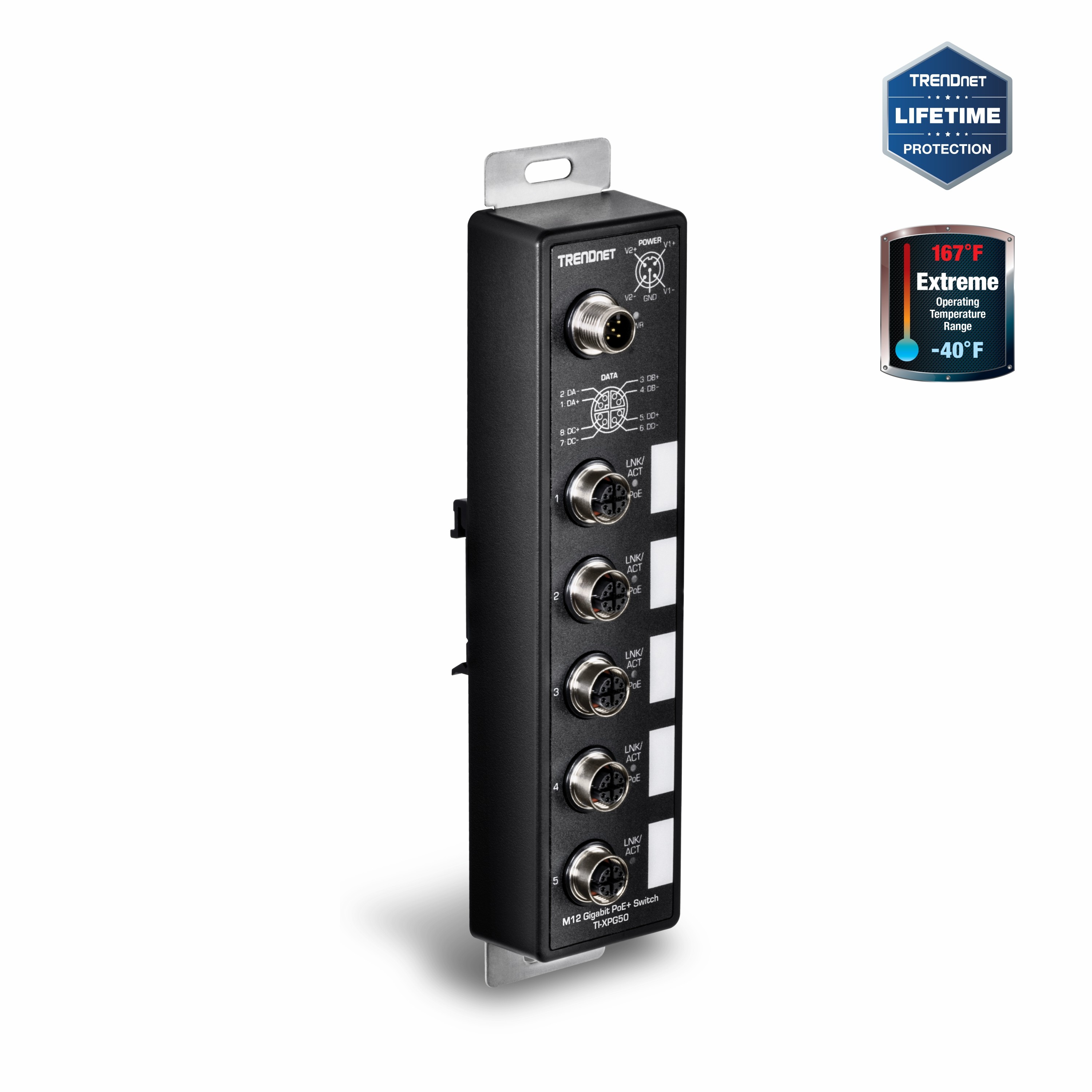

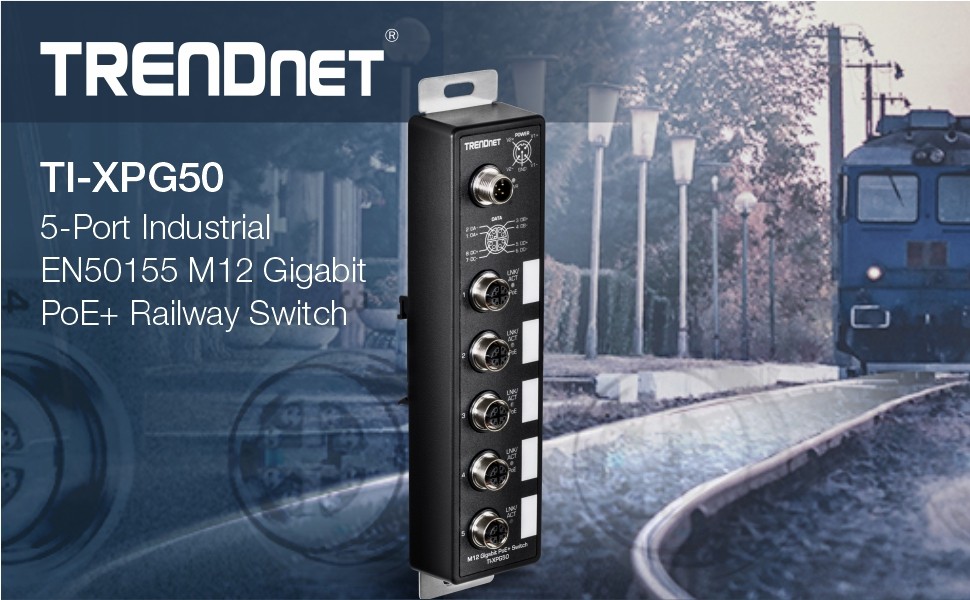

TRENDnet’s 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.
EN50155 Compliant
This M12 Ethernet switch supports an input voltage range from 48 – 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° – 75° C (-40° – 167° F).

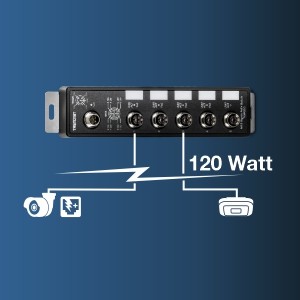

Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.
Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports on this M12 PoE switch deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC
Switching Capacity
10Gbps switching capacity
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
EN50155 Compliance
This industrial EN50155 Ethernet switch is certified for rail (EN 50155 / EN 50121-3) and (EN 50155 / EN 50121-4
Shock and Vibration Resistant
Rated for a high-degree of shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Wall Mount
Wall mounting brackets included for the industrial M12 Ethernet switch
IP67 Rated
Metal enclosure with an IP67 outdoor weather rating
Wide Temperature Range
A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in extreme hot or cold environments
Power
Supports an input voltage range from 48 – 56V DC with M12 interfaces for moving bus, train, and other rolling stock applications
Grounding Point
Grounding point protects the M12 Ethernet switch from external electrical surges

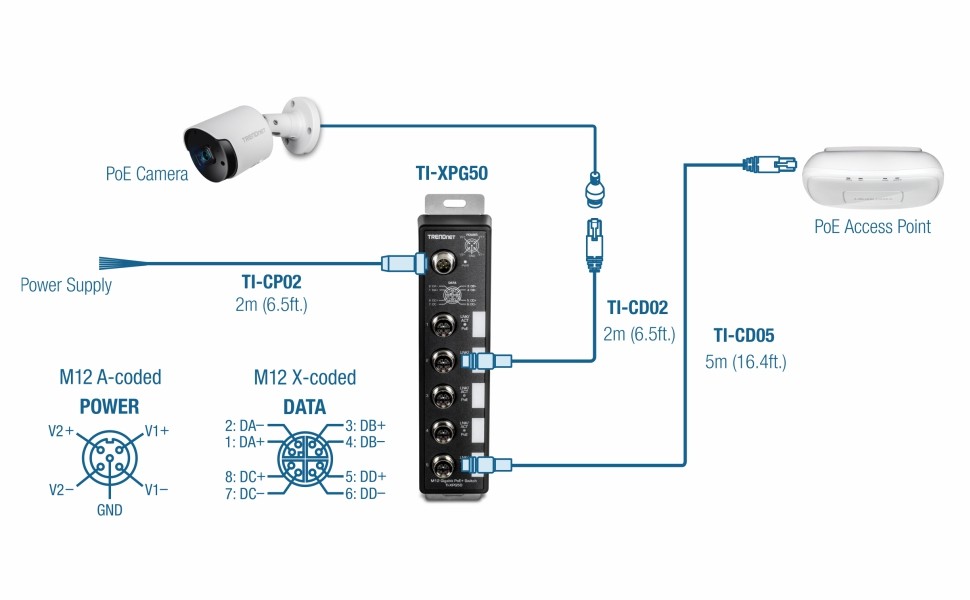

- DEVICE INTERFACE: 4 x M12 (X-code) Gigabit PoE+ ports; 1 x M12 (X-code) Gigabit port; 1 x M12 (A-code) power port; LED indicators; Wall Mount; Din Rail Mount; Grounding Point
- POWER SUPPLY & CABLES SOLD SEPARATELY: M12 cables sold separately (models: TI-CD02 / TI-CD05 / TI-CP02); Power supply sold separately (models: TI-S15052)
- POE POWER BUDGET: Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with total power budget of 120W@56V DC
- SWITCHING CAPACITY: The 5 port TI-XPG50 has a 10Gbps switching capacity
- EN50155 COMPLIANT: This M12 switch supports an input voltage range from 48 – 56V DC with M12 interfaces for moving bus, train, and other rolling stock applications
- INDUSTRIAL DESIGN: Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
- DIN-RAIL & WALL MOUNT KIT: This gigabit PoE+ switch comes with an integrated DIN-Rail mount and wall mounting hardware.
- SHOCK AND VIBRATION RESISTANT: Designed to withstand a high degree of vibration and shock. Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- TRENDnet LIFETIME PROTECTION: The TI-XPG50 M12 Switch comes with Lifetime TRENDnet Manufacturer Protection.
SPECIFICATIONS
|
Standards
|
|
|
Device Interface
|
|
|
Data Transfer Rate
|
|
|
Performance
|
|
|
Special Features
|
|
|
DC Power
|
|
|
PoE Budget
|
|
|
MTBF
|
|
|
Housing
|
|
|
Operating Temperature
|
|
|
Operating Humidity
|
|
|
Dimensions
|
|
|
Weight
|
|
|
Certifications
|
|
|
|
|
PACKAGE CONTENTS
|
|
