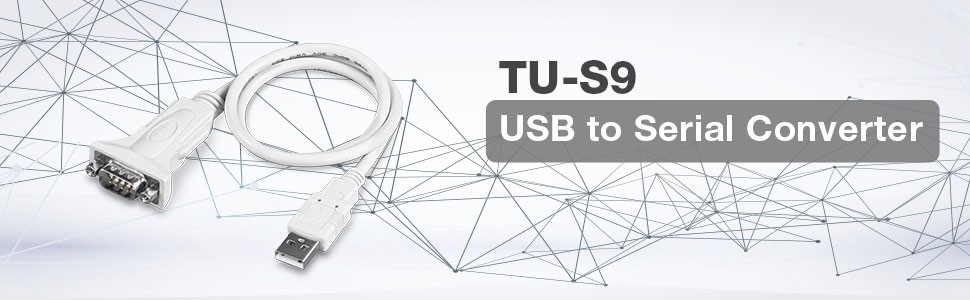

TRENDnet's USB to Serial Converter, model TU-S9, allows users to conveniently connect an RS-232 serial device, such as a modem or printer, to a USB port on your desktop PC or laptop. The USB to serial adapter supports both Windows ® and Mac ® operating systems. Integrated cables provide setup flexibility and accommodates most installation scenarios.

USB to Serial Converter

  • Connect a RS-232 serial device such as a modem to a USB port on your computer
  • Easy installation
  • Supports USB 1.1 and compatible with USB 2.0 and USB 3.0 ports
  • Supports Windows ® and Mac ® operating systems
  • NDAA compliant


Overview

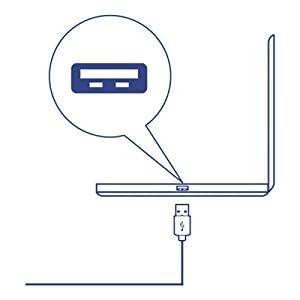

USB

Supports USB 1.1 and backward compatible with USB 2.0 and USB 3.0 ports.

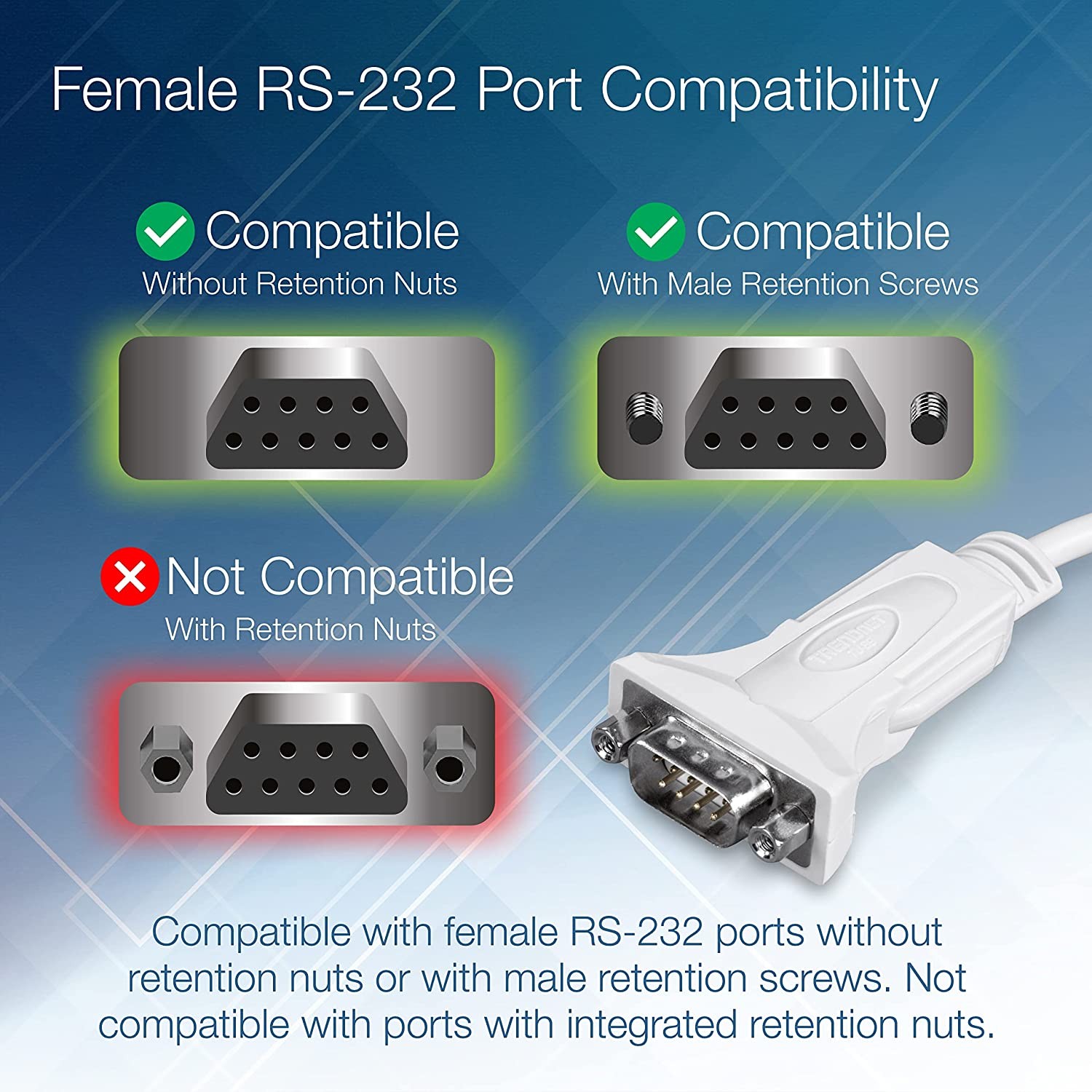

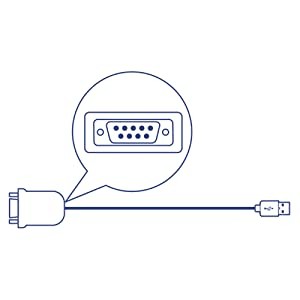

RS-232 serial connector

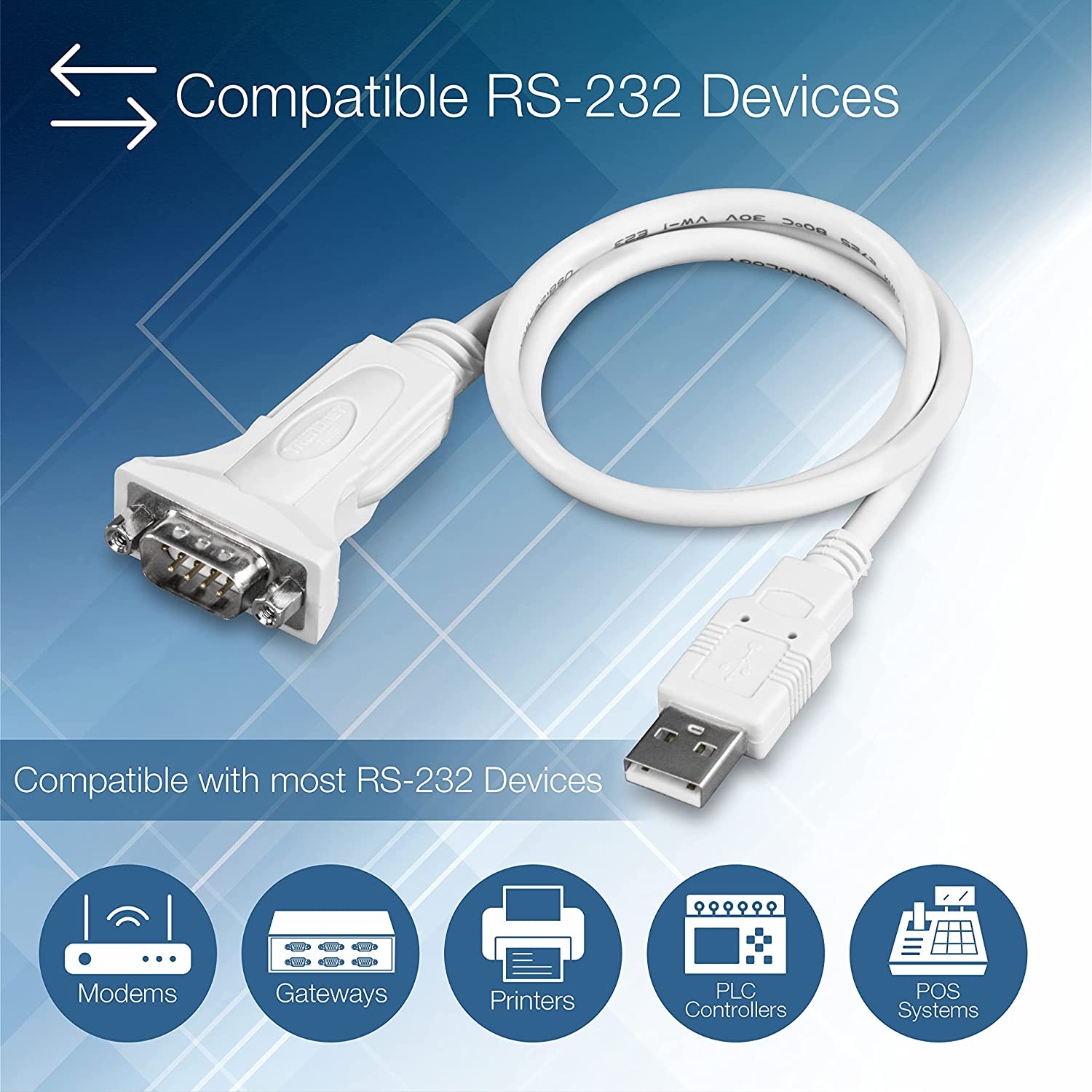

Connect RS-232 serial devices such as modems and network switches using the widely supported USB standard found in most laptops and desktops today.

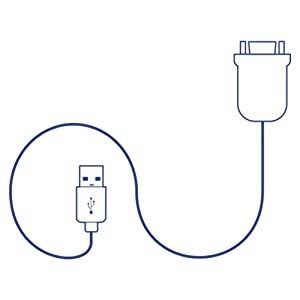

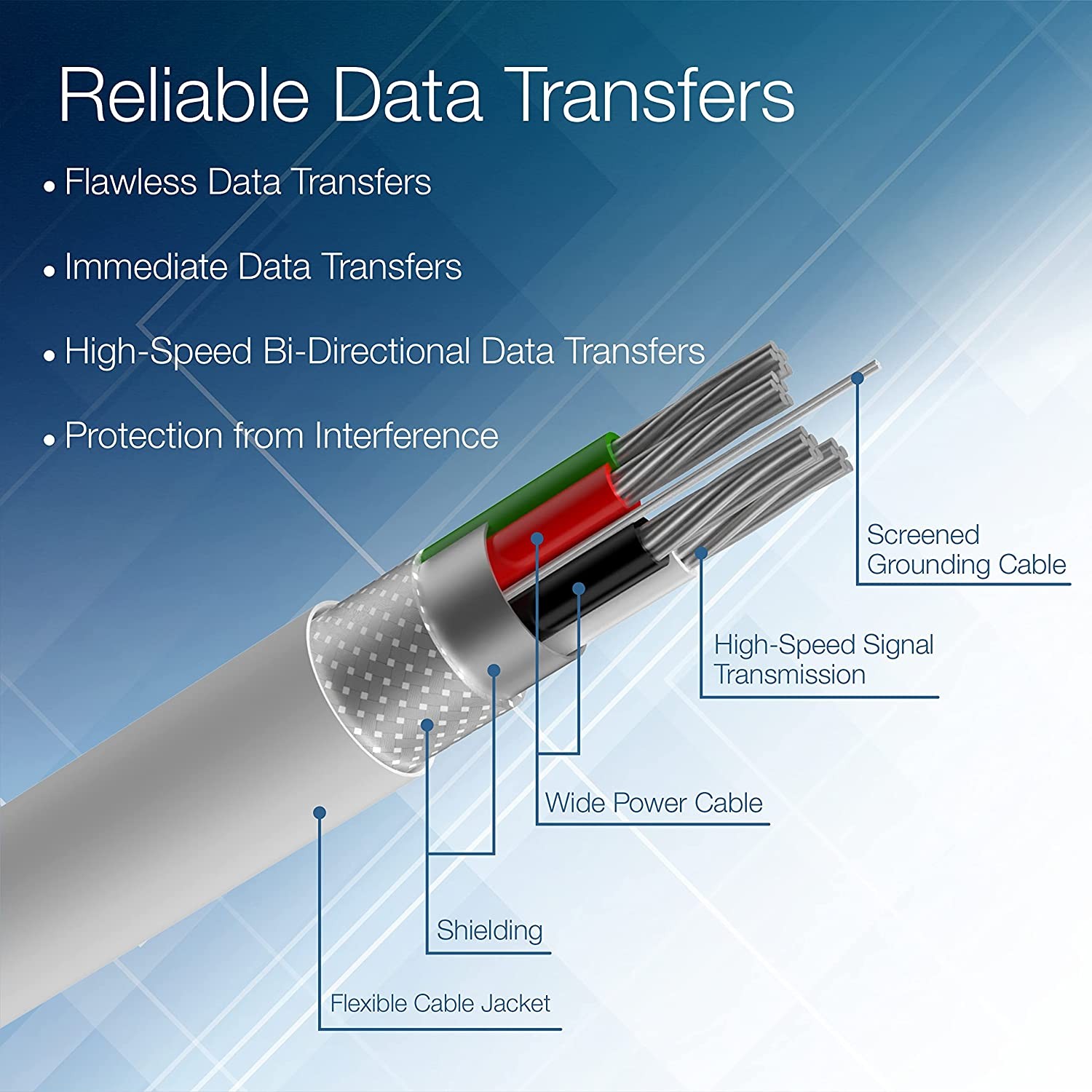

Flexible cable

Integrado flexible 21.260 in (21 pulg.) El cable USB se adapta a la mayoría de los escenarios de instalación.

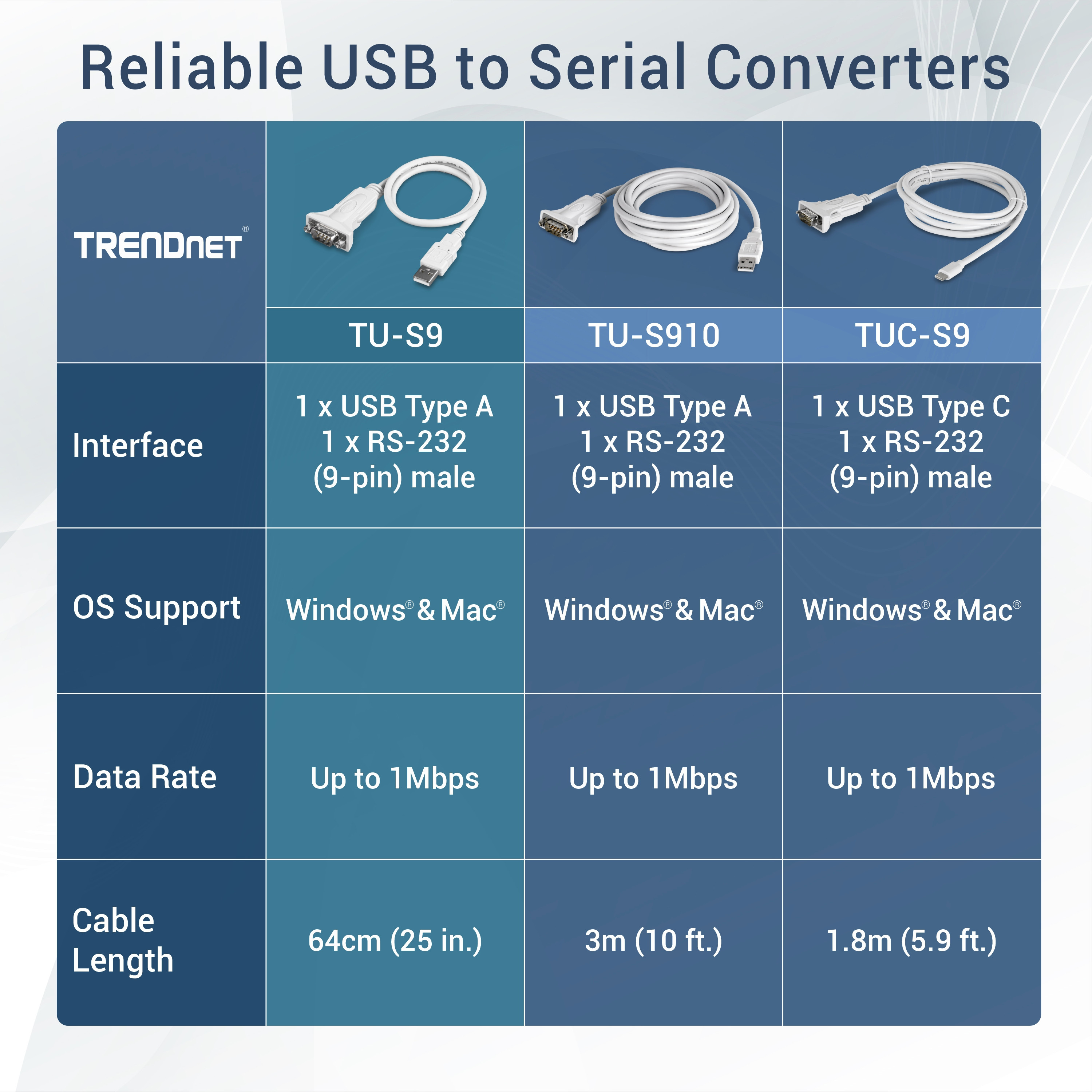

SPECIFICATIONS

Standards
  • USB 1.1
Interface
  • 1 x USB Type A
  • 1 x RS-232 (9-pin) male
  • Cable length: 64cm (25 in.)
Data Rate
  • Up to 6Mbps

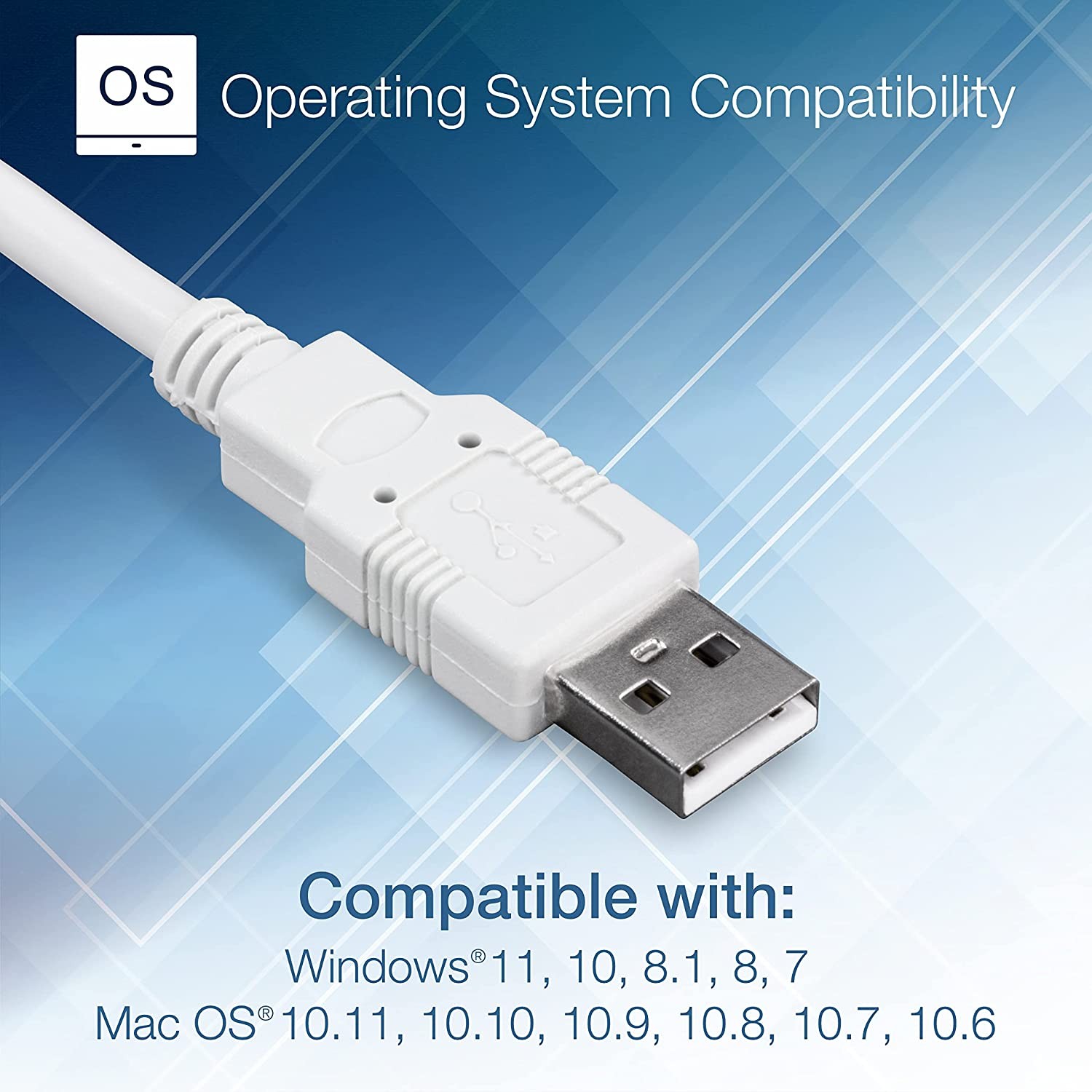

Supported OS
  • Windows ® 11, 10, 8.1, 8, 7
  • Mac OS ® 10.11, 10.10, 10.9, 10.8, 10.7, 10.6
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 85% non-condensing
Power
  • USB powered
Power Consumption
  • 500mA (max.)
Dimensions
  • RS-232 connector: 65 x 35 x 10 mm (2.55 x 1.4 x 0.4 in.)
  • Total cable length: 64cm (25 in.)
Weight
  • 50g (1.7 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS
  • TU-S9
  • Quick Installation Guide
  • CD-ROM (Drivers)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
