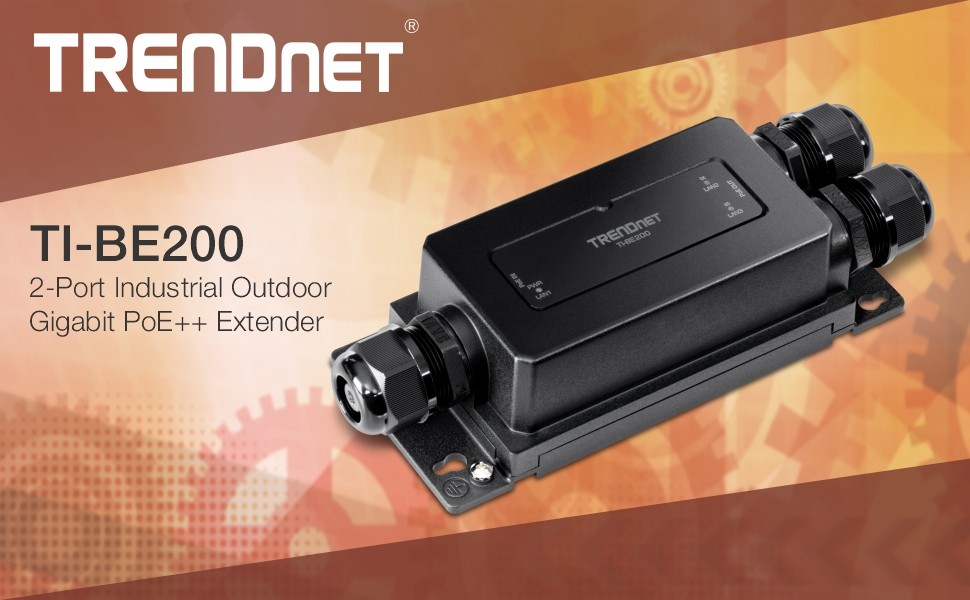

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.

2-Port Industrial Outdoor Gigabit PoE++ Extender

  • Easy installation
  • Extends PoE++ 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
  • Use a single PoE++ connection to extend PoE for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), PoE++ (60W) devices
  • Wide operating temperature range of -40°– 75° C (-40° – 167° F)
  • IP67 outdoor weather rated housing
  • No external power adapter required
  • Built-in True Surge 4kV Protection
  • Wall mountable

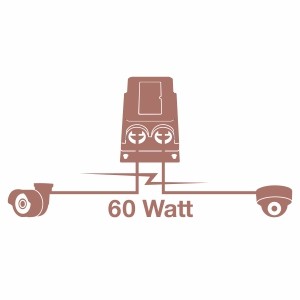

PoE++ Power


Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices. **

Gigabit Ports

Features one gigabit PoE++ input port and two gigabit PoE+ output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated


Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

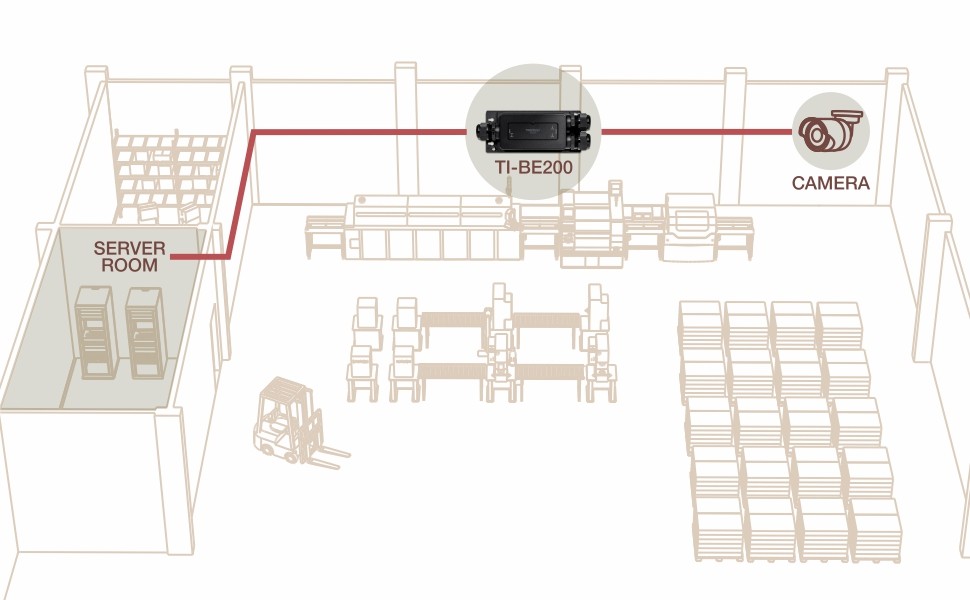

Extension Distance


Extends a PoE, PoE+, or PoE++ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE Powered


No external power required—saves installation time and cost

Daisy Chain


Connect up to 4 outdoor PoE++ repeaters for a total PoE network extension of up to 500m (1,640 ft.)*

* Each additional extender added to the daisy chain will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 60W, the outdoor PoE++ extender must be powered by a 90W PoE++ device.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

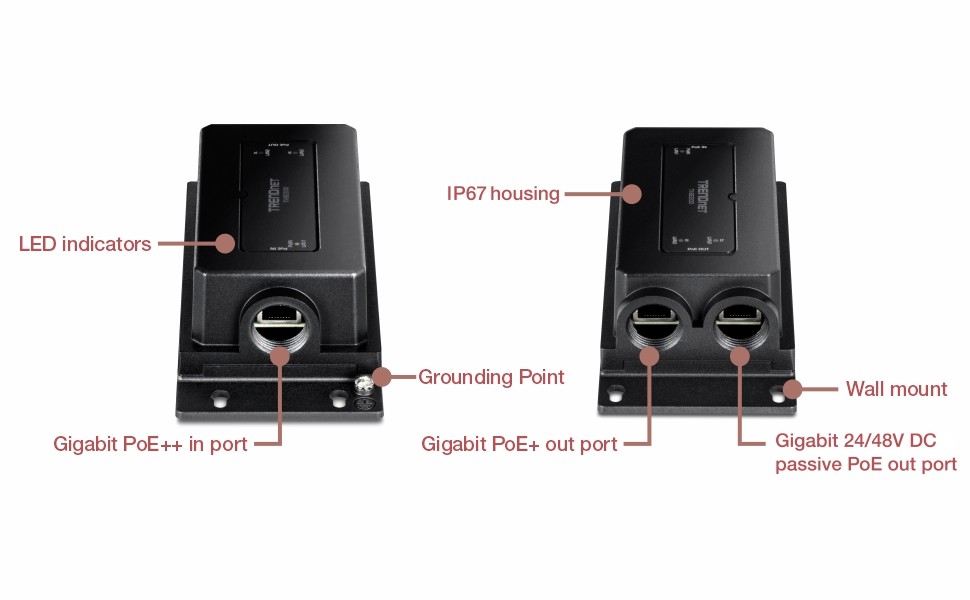

Device Interface
  • 1 x Gigabit PoE++ in port
  • 1 x Gigabit PoE++ out port
  • 1 x Gigabit PoE+ out port
  • LED indicators
  • Wall mount
  • IP67 housing
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • RAM buffer: 1Mb
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1,640 ft.)
  • Cascade up to 4 repeaters
Power
  • Powered by PoE++ (60W – 90W) Device
  • Max. consumption: 2.8W (without device connected)
PoE
  • PoE budget: 60W
  • PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)
PoE Power Output
PoE Input Max PoE Output
90W 60W
60W 51W
30W 25W
Single Port Daisy Chain
Daisy Chains From PSE  Max. PoE Output
1 (up to 100m) 90W Input: 60W
60W Input: 51W
30W Input: 25W
2 (up to 200m) 90W Input: 34W
60W Input: 33W
30W Input: 22W
3 (up to 300m) 90W Input: 17W
60W Input: 16W
30W Input: 14W
4 (up to 400m) 90W Input: 9W
60W Input: 8W
30W Input: 6W
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
Weight
  • 364g (12.8 oz.)
Certifications
  • CE
  • FCC
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 60068-2-27 (Shock)
  • IEC 60068-2-32 (Free Fall)
  • IEC 60068-2-6 (Vibration)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-BE200
  • Quick Installation Guide
  • 3 x IP67 weather rated cable glands
  • Wrench
  • Wall mount screws
