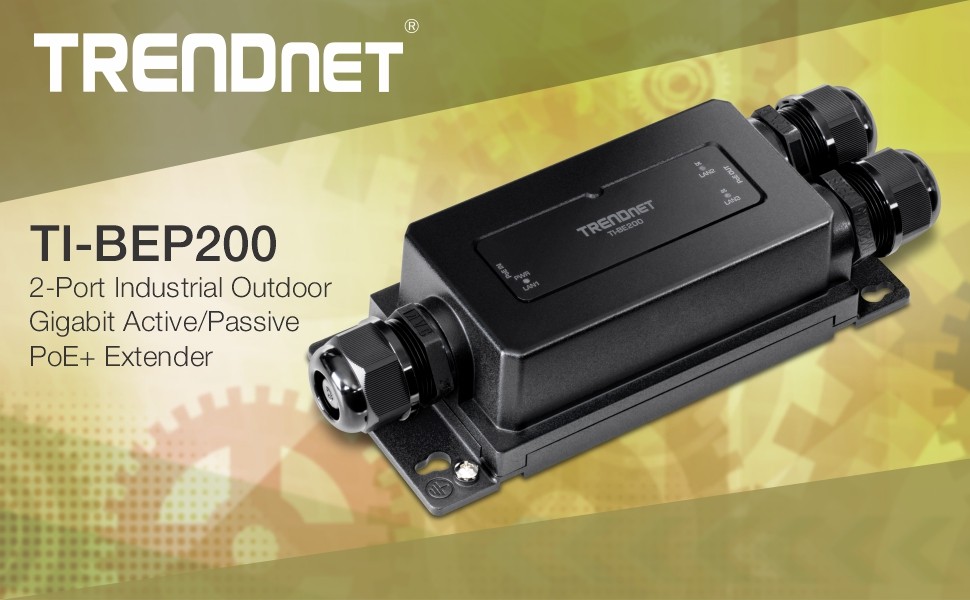

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.

  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*
  • Use a single PoE++ connection to extend PoE for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices
  • Supports single output Passive PoE (24-48V)
  • Wide operating temperature range of -40°– 75° C (-40° – 167° F)
  • IP67 outdoor weather rated housing
  • No external power adapter required
  • Built-in True Surge 4kV Protection
  • Wall mountable
  • NDAA / TAA compliant (U.S. and Canada only)

PoE Power


Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices. **

Gigabit Ports

Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.

Outdoor Rated


Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance


Extends a PoE, PoE+, or Passive PoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

Daisy Chain


Connect up to 4 units for a PoE network extension of up to 500m (1,640 ft.)*

PoE Powered


No external power required—saves installation time and cost

* Each additional extender added to the daisy chain will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 60W, the PoE extender must be powered by a 90W PoE++ device.

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

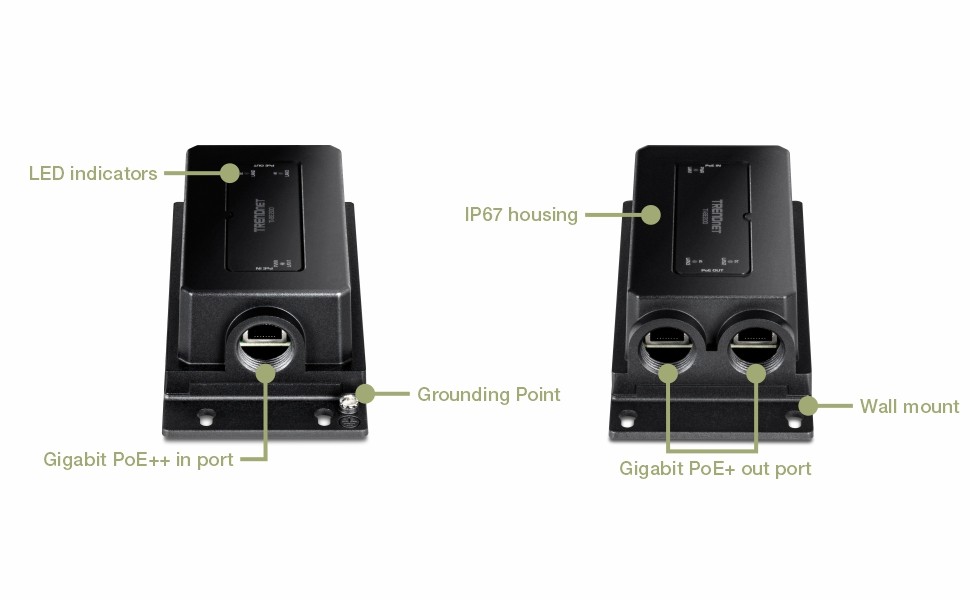

Device Interface
  • 1 x Gigabit PoE++ in port
  • 1 x Gigabit PoE+ out port
  • 1 x Gigabit 24/48V DC passive PoE out port
  • LED indicators
  • Wall mount
  • IP67 housing
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • RAM buffer: 1Mb
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)
  • Cascade up to 4 repeaters
Power
  • Powered by PoE++ (60W – 90W) Device
  • Max. consumption: 3.9W (without device connected)
PoE
  • PoE budget: 60W
  • PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)

DIP Switch
  • Adjust 24/48V DC passive voltage (default 48V DC)
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)
Weight
  • 266g (12.9 oz.)
Certifications
  • CE
  • FCC
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 60068-2-27 (Shock)
  • IEC 60068-2-32 (Free Fall)
  • IEC 60068-2-6 (Vibration)
Warranty
  • 3 year


PACKAGE CONTENTS
  • TI-BEP200
  • Quick Installation Guide
  • 3 x IP67 weather rated cable glands
  • Wrench
  • Wall mount screws
