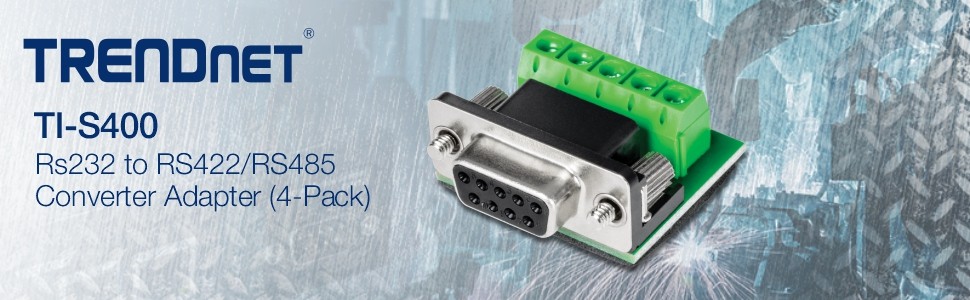

TRENDnet’s RS232 to RS422/RS485 Converter Adapter (4-Pack), model TI-S400, is designed for use with our TI-M12 and TI-M42 industrial modbus gateways.

RS232 to RS422/RS485 Converter Adapter

Quickly and easily convert an RS232 port into an RS422/RS485 terminal block.

Compatibility

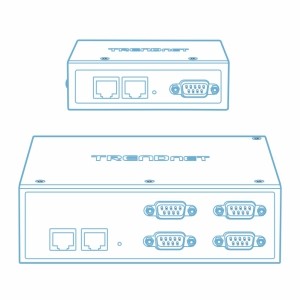

Designed for use with the TI-M12 and TI-M42 industrial modbus gateways.

SPECIFICATIONS

Interface (Single unit)
  • 1 x DB9 Female RS-232 to RS-422/RS485
  • 1 x Terminal block
Terminal Block
  • Redundant power inputs, 5-pin
  • Wire range: 26-14AWG
  • Solid wire (AWG): 26-14AWG
  • Stranded wire (AWG): 26-14AWG
  • Torque: 0.4Nm (3.6 Lb.-In)
  • Wire strip length: 6-7mm
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Dimensions (Single unit)
  • 30 x 33 x 15mm (1.2 x 1.3 x 0.6 in.)
Weight (Single unit)
  • 16g (0.5 oz.)
Warranty
  • 1 year

PACKAGE CONTENTS
  • 4 x TI-S100
