OVERVIEW

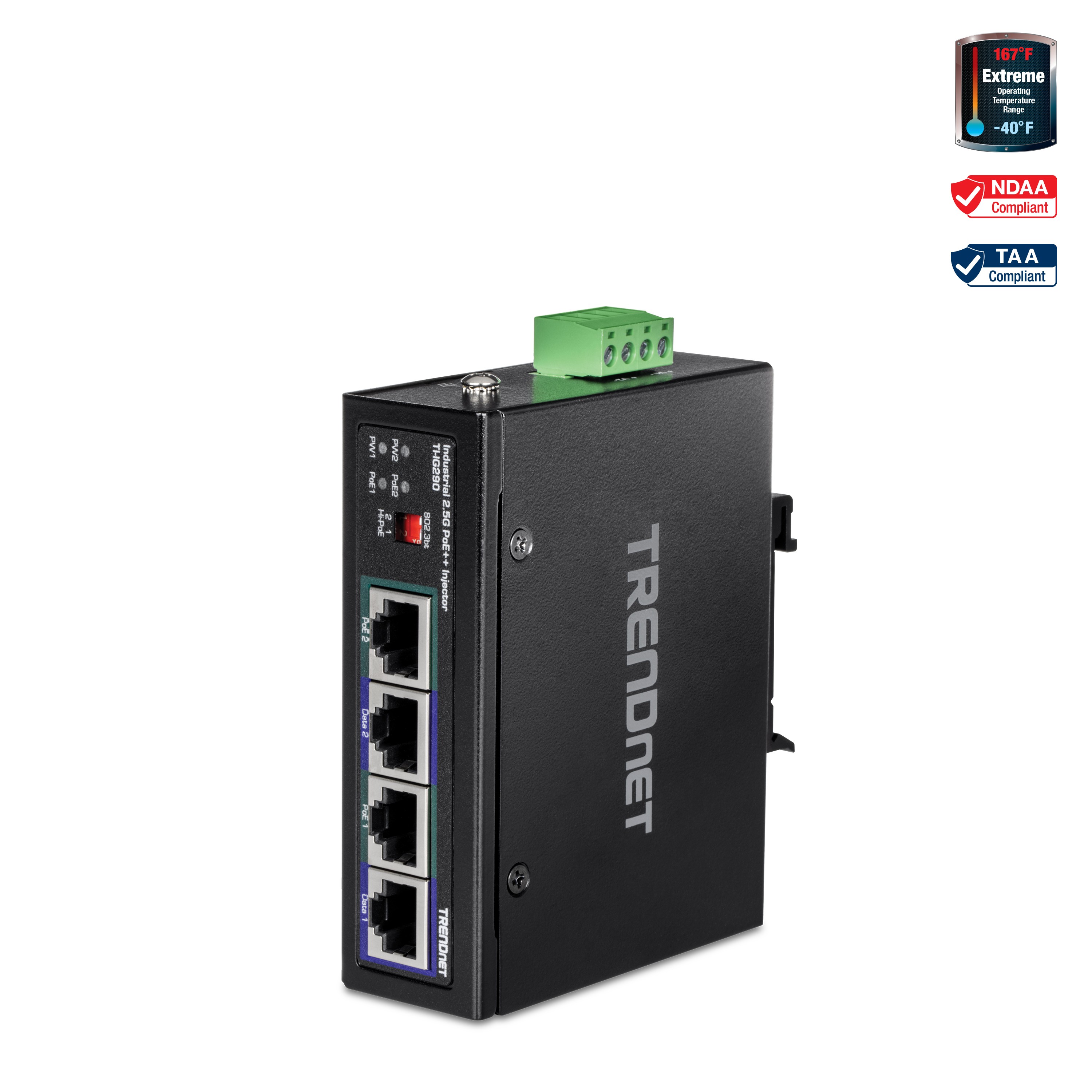

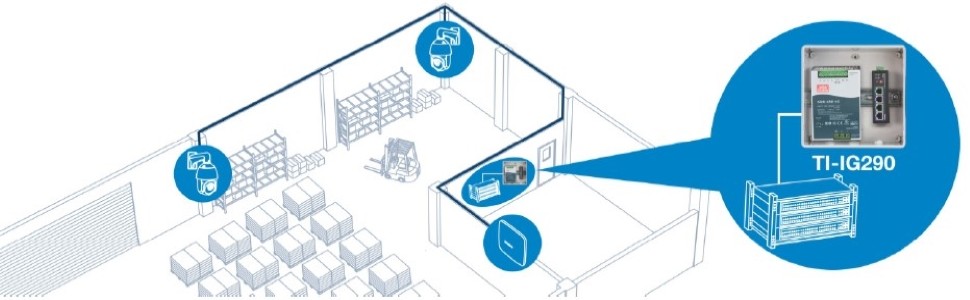

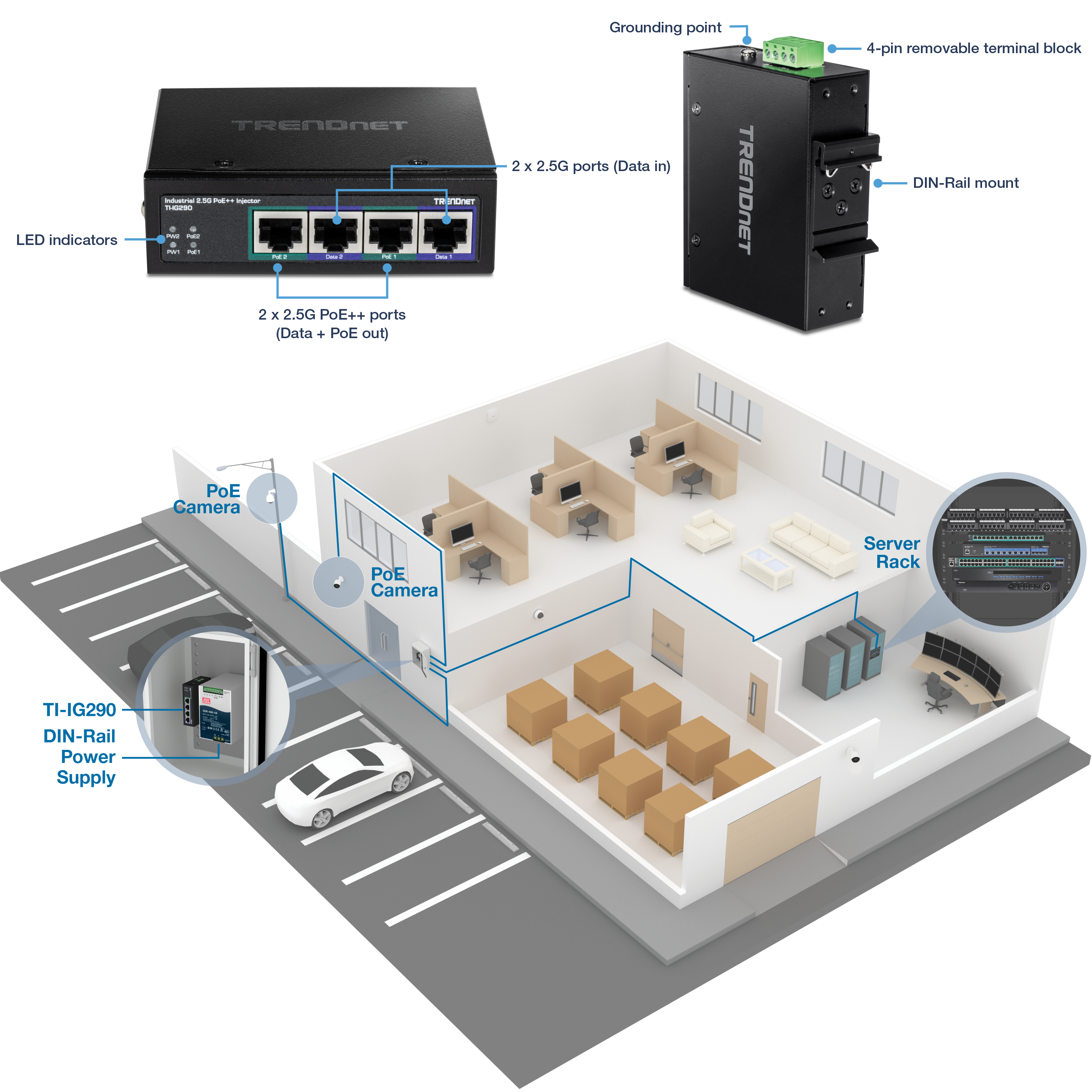

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

2-Port PoE

This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

2.5G Ports

Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).

Industrial Design

IP30 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 70° C (-40° – 158° F).

• DEVICE INTERFACE: 2 x 2.5G ports (Data in); 2 x 2.5G PoE++ ports (Data + PoE out)
• 2-PORT POE++: The Industrial 2-port PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE
802.3at), and PoE++ (IEEE 802.3bt) with a total PoE budget of 180W.
• 2.5G PORTS: The poe injector comes with two 2.5G ports (data in) and two 2.5G PoE++ ports (data + PoE out)
• INDUSTRIAL DESIGN: The 2-Port 2.5G PoE++ Injector is equipped with an IP30 rated metal enclosure, designed to withstand
a high degree of vibration and shock, while operating within a wide temperature range of -40 to 75 °C (-40 to 167 °F) for
industrial environments.
• POE DISTANCE: The PoE++ injector provides two PoE network connections up to 100m (328 ft.) away from the 2-port
industrial PoE injector
• SHOCK & VIBRATION RESISTANT DESIGN: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN
60068-2-6)
• DIN-RAIL & WALL MOUNT KIT: This 2.5G injector includes a DIN-Rail mount and wall mount hardware
• FANLESS DESIGN: The fanless design on the 2-port PoE++ injector conveniently eliminates operating noise and lowers
energy consumption.
• GROUNDING POINT: Grounding point on the industrial PoE++ injector protects equipment from external electrical surges
• Power supply sold separately (model TI-S24052, TI-S24048)
• NDAA / TAA compliant

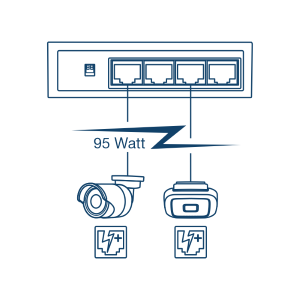

2-Port PoE++

The 2-port industrial 802.3 bt PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

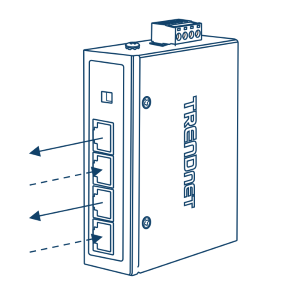

2.5G Ports

2 x 2.5G ports (data in) and 2 x 2.5G PoE++ ports (data + PoE out)

PoE Distance

Provides two PoE network connections up to 100m (328 ft.) away from the 2-port industrial 802.3bt PoE++ adapter

LED Indicators

LEDs indicate PoE connectivity and power status

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3bz

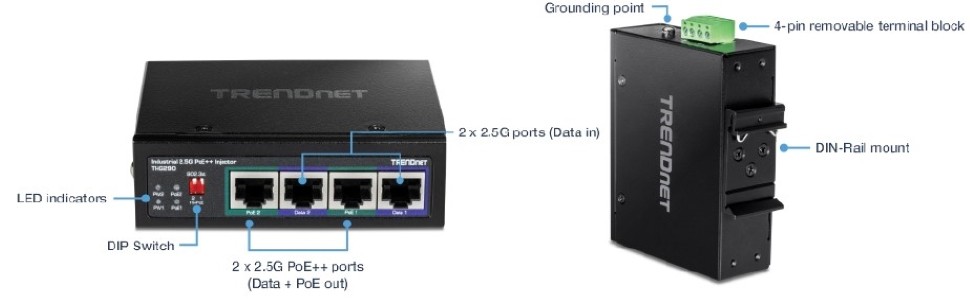

Device Interface	2 x 2.5GBASE-T ports 2 x 2.5GBASE-T PoE++ ports 4-pin removable terminal block LED indicators Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) 2.5 Gigabit: 5000Mbps (full duplex)
Special Features	90W 4-Pair PoE ports 2.5Gbps speed Hardened components rated for extreme temperatures Dual redundant power inputs Auto-Negotiation
Power	Input: 52 – 56 V DC Compatible power supply: TI-S24052, TI-S24048 (sold separately) Max. consumption 186W (full PoE load) Max. consumption 1W (no PoE load)
PoE	PoE budget: 180W Pin 3,6 for power+ and pin 1,2 for power- Pin 4,5 for power+ and pin 7,8 for power-
Terminal Block	Redundant power inputs, 4 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
MTBF	716,685 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point Contact 6KV/Air 8 KV ESD protection 2 KV surge protection
Operating Temperature	- 40° — 75° C (-40° — 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions (L x W x H)	103 x 81 x 30mm (4 x 3.2 x 1.2 in.)
Weight	170g (6 oz.)
Certifications	CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	3 year

PACKAGE CONTENTS

TI-IG290
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
