OVERVIEW

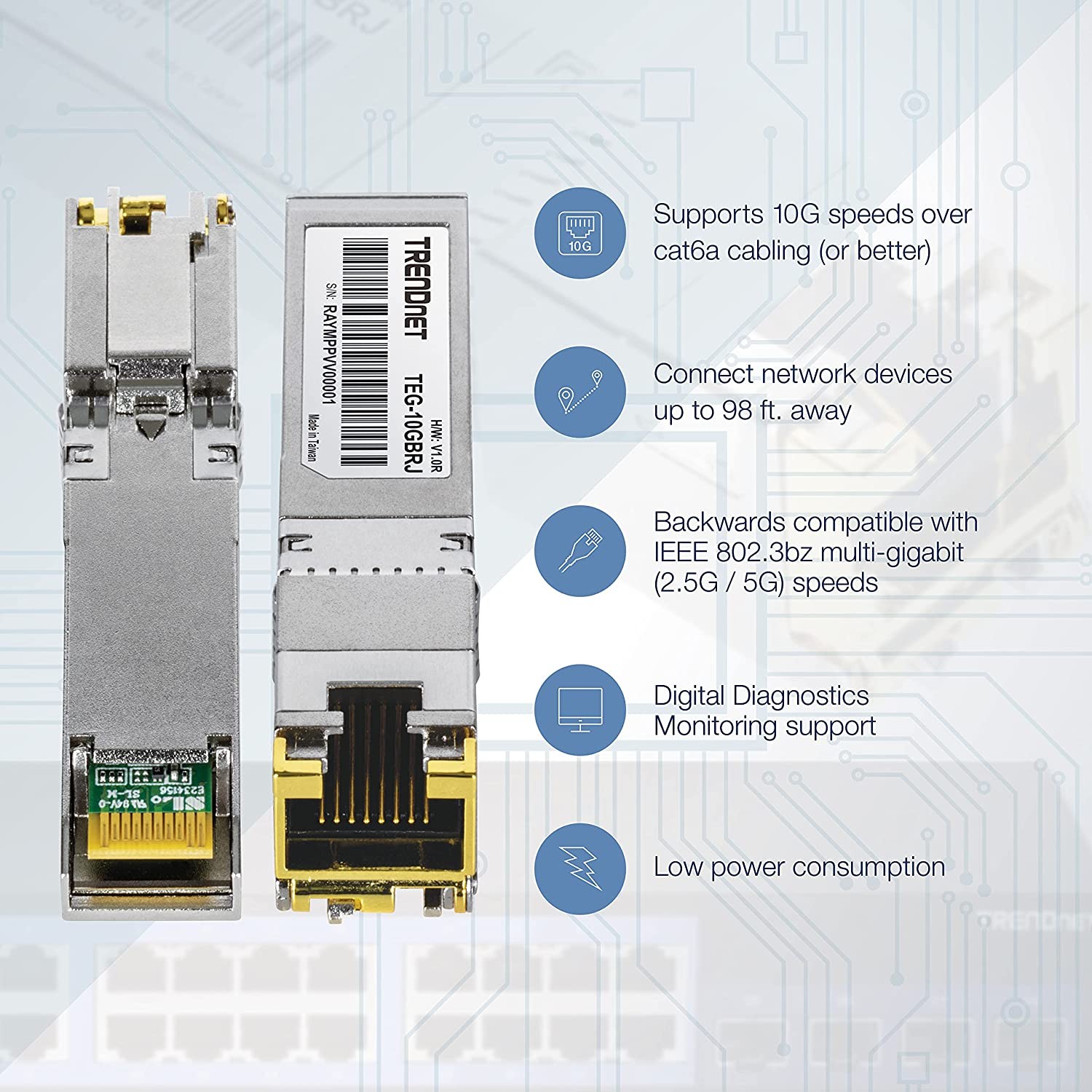

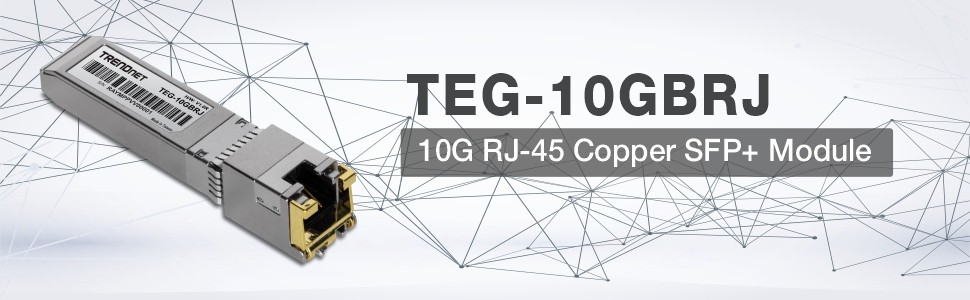

TRENDnet’s 10G RJ-45 Copper SFP+ Module, model TEG-10GBRJ, converts a standard SFP+ slot into an RJ-45 multi-gigabit port for additional high-speed copper connectivity. This 10G copper SFP+ module works with standard SFP+ slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch’s unused SFP+ slots for reliable copper connectivity with TRENDnet’s 10G copper SFP+ module

RJ-45 Copper SFP+

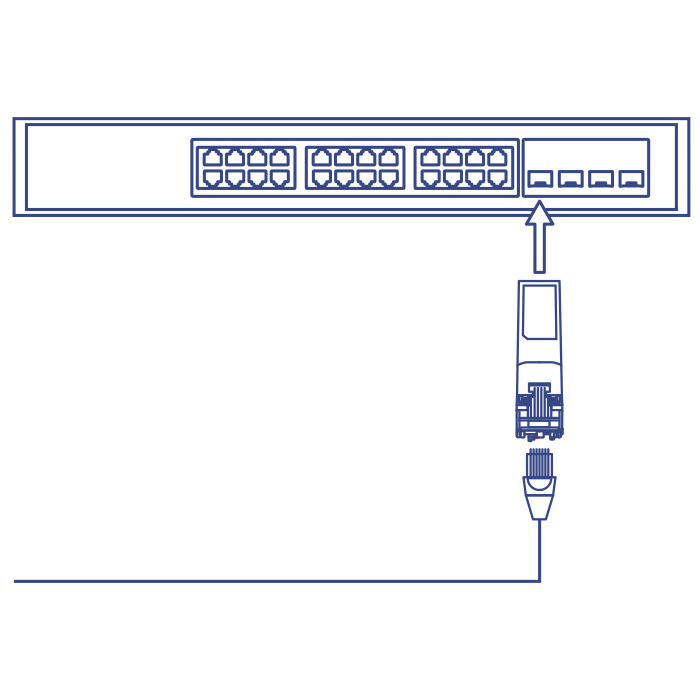

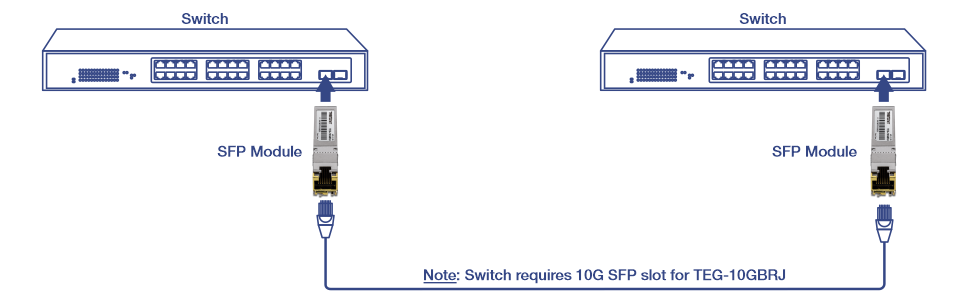

Take advantage of unused SFP+ slots and repurpose them for RJ-45 copper multi-gigabit connectivity.

Gigabit Speeds

The 10G RJ-45 copper SFP+ spans distances up to 30m (98 ft.) and supports up to 10Gbps speeds.

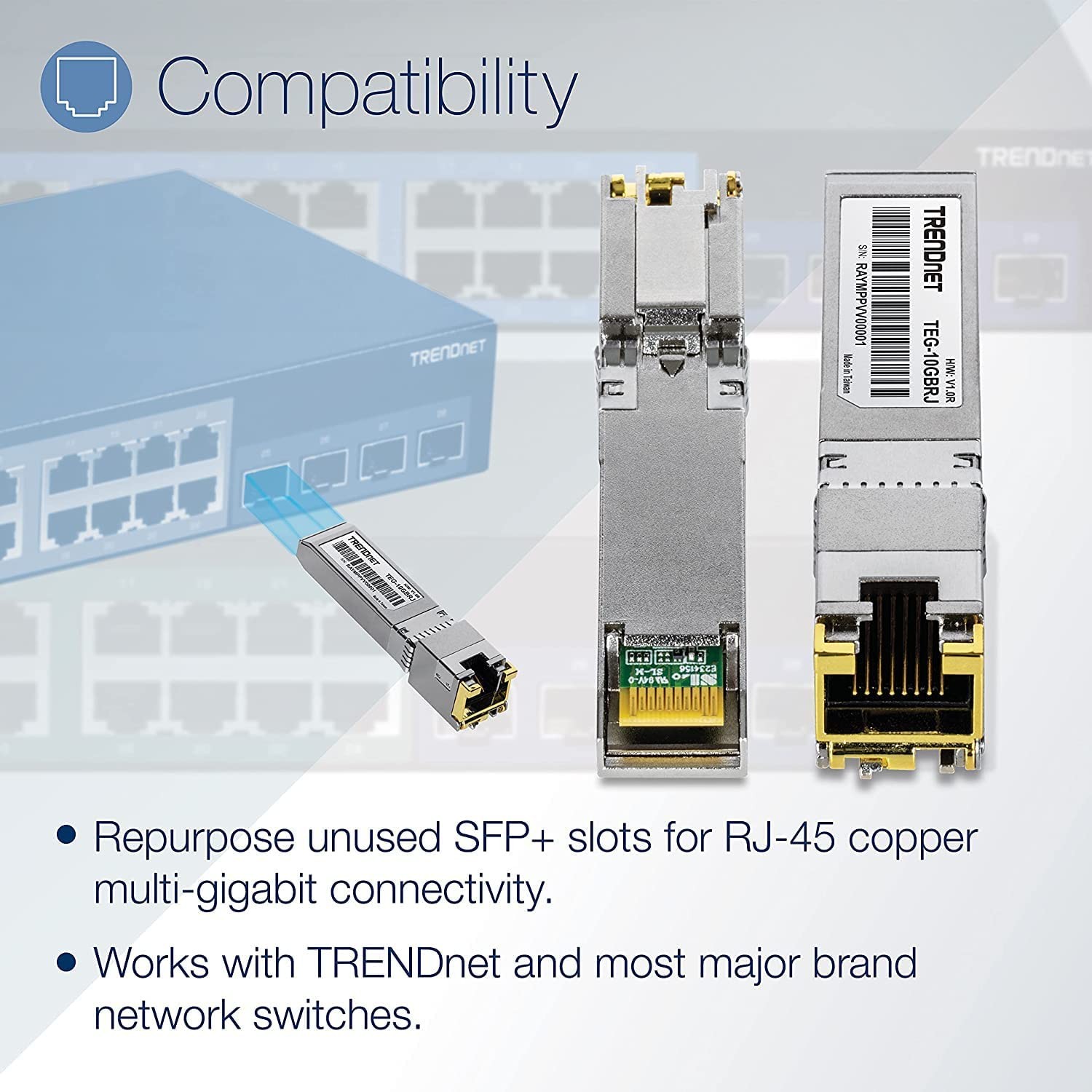

Compatibility

Compatible with an MSA compliant SFP+ slot and multi-gigabit RJ-45 copper connections.


Ethernet Distance

Supports networking distances up to 30m (98 ft.)

Connection Interface

RJ-45 10 gigabit port to convert SFP+ to RJ-45

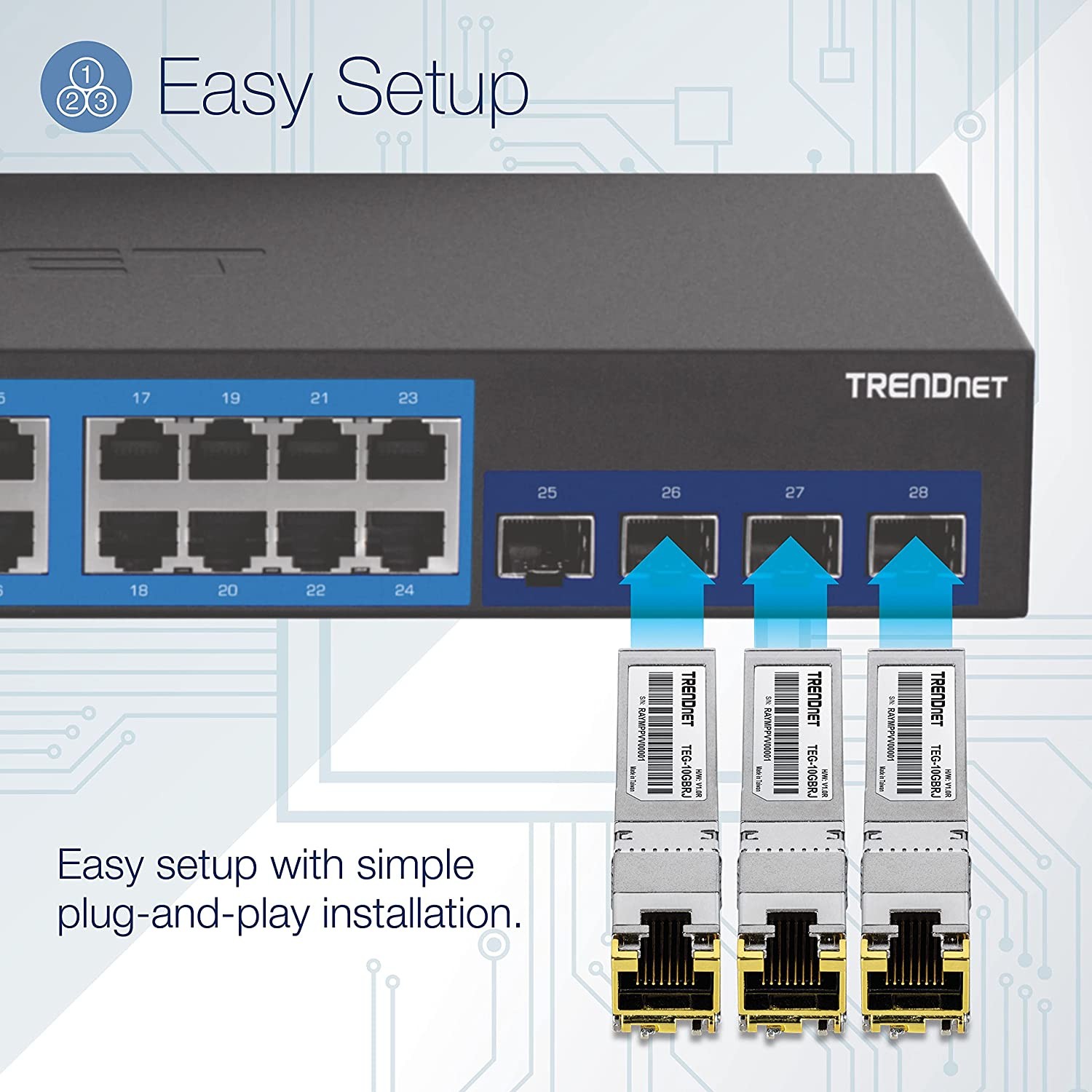

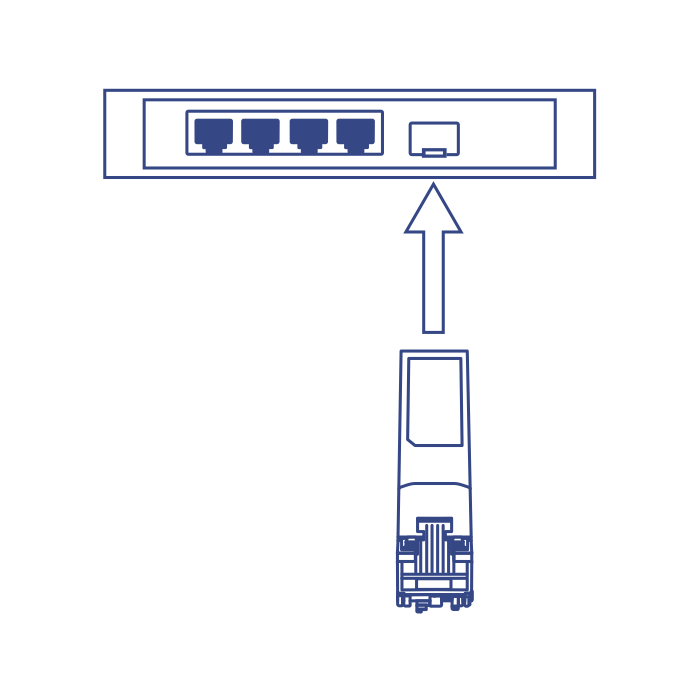

Hot-Pluggable SFP+

Hot-pluggable 10G copper SFP+ compatible with an MSA compliant SFP+ slot

Operating Temperature

This 10G copper SFP+ module features an operating temperature range of 0°– 65° C (0° – 149° F)

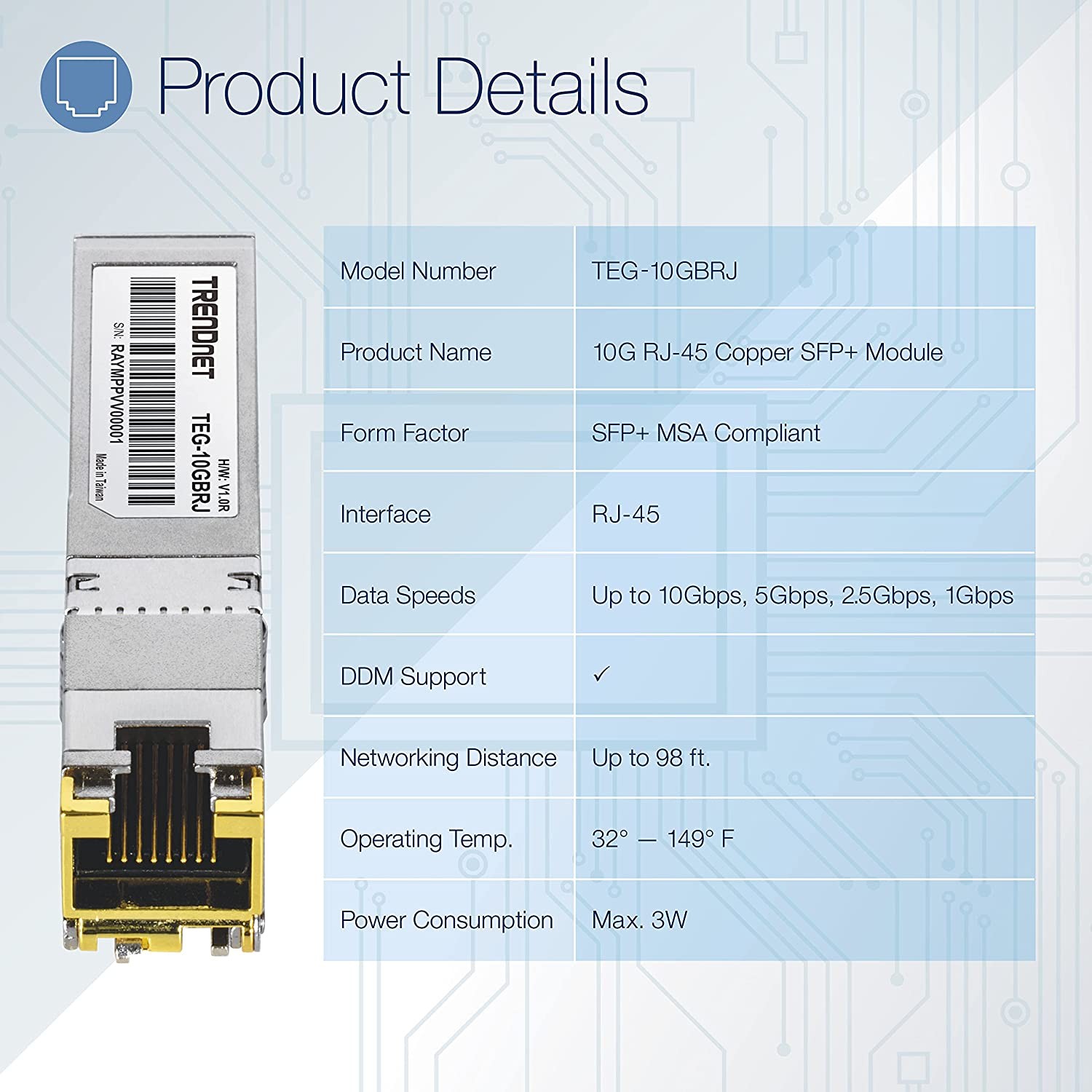

SPECIFICATIONS

Standards
  • IEEE 802.3
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3an
  • IEEE 802.3ab

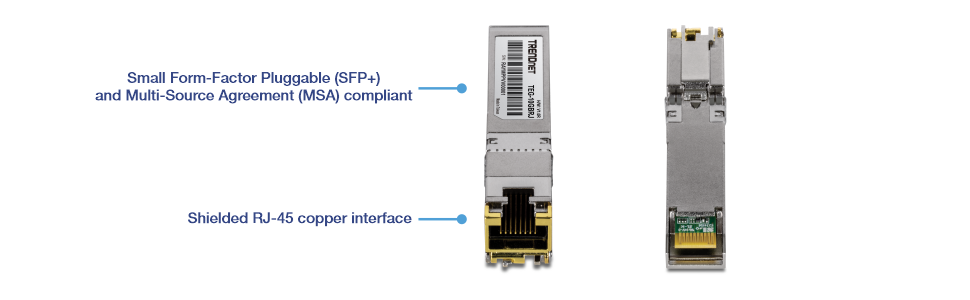

Device Interface
  • SFP+ MSA Compliant
  • RJ-45 connector
Data Transfer Rate
  • Up to 10Gbps
Distance
  • 10Gbps up to 30m (100ft.) with Cat. 6a/7
  • 2.5G/5Gbps up to 50m (164ft.) with Cat. 5E
  • 1Gbps up to 100m (328ft.) with Cat. 5E

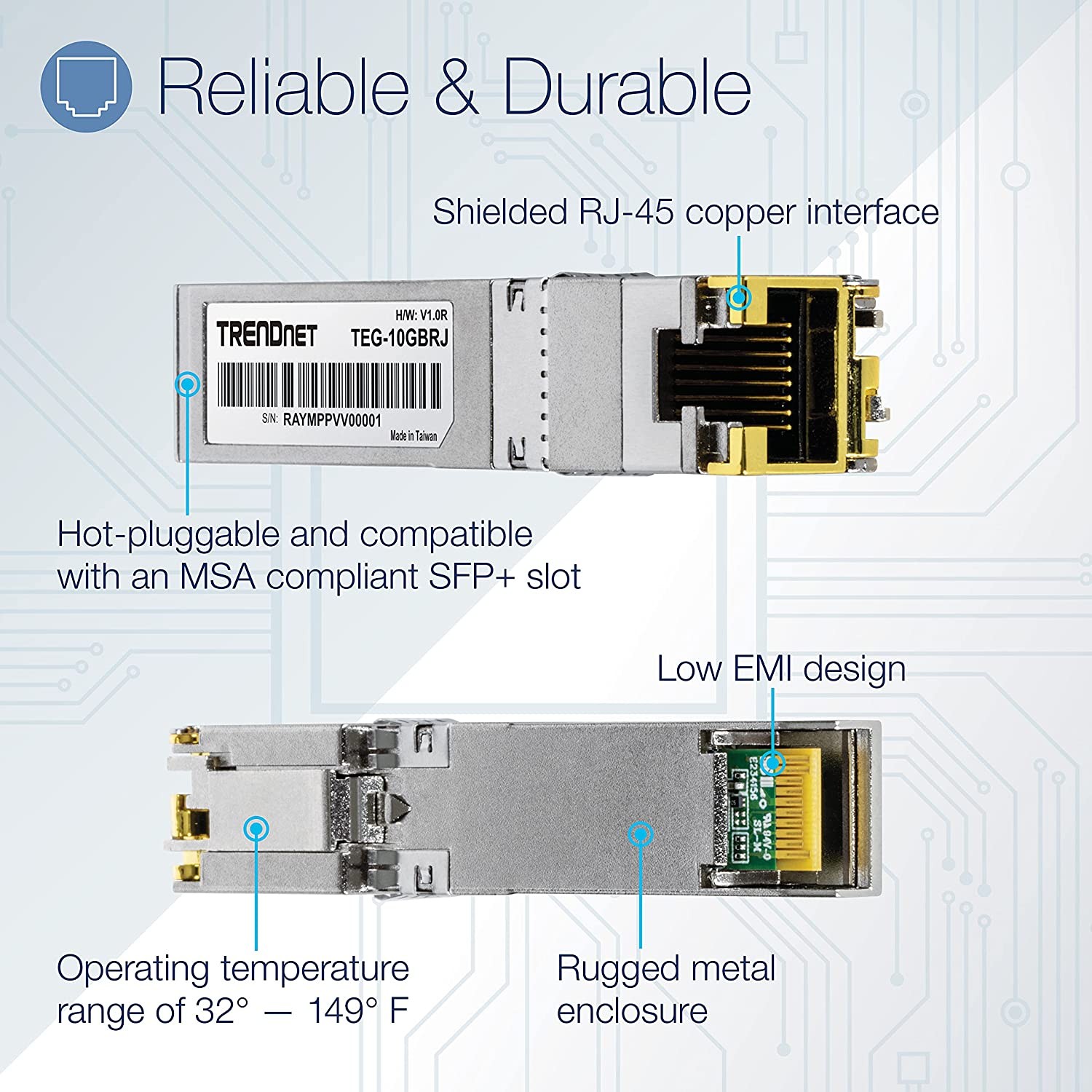

Special Features
  • Hot pluggable
  • Metal enclosure
  • DDM support
Power
  • Max. Consumption: 3W
Operating Temperature
  • 0° – 65° C (32° – 149° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 68 x 13.4 x 13.8mm (2.6 x 0.52 x 0.53 in.)
Weight
  • 24g (0.8 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty

PACKAGE CONTENTS
  • TEG-10GBRJ
