OVERVIEW

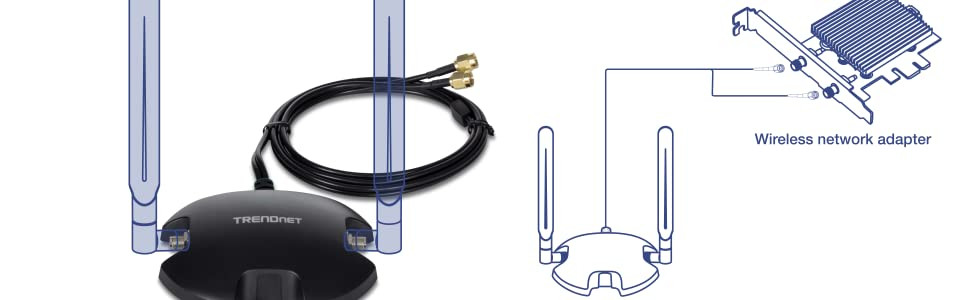

TRENDnet’s Dual Antenna Magnetic Mounting Base RP-SMA Female with RP-SMA Male Extension Cable, model TEW-LB101, extends two wireless antennas up to 1m (3.3 ft.) and can be used with wireless routers, access points, and wireless network adapters that use detachable RP-SMA antennas. The magnetic mounting base provides convenient placement and positioning of antennas to attain optimal signal range.

Interface

Dual RP-SMA plug (female) mounting base to RP-SMA (male) cable

Installation Flexibility

Magnetic base along with 1m (3.3 ft.) cable allows for easy mounting, positioning, and placement of antennas for optimal signal range

Compatibility

Compatible with 2.4GHz or 5GHz directional and omni-directional RP-SMA detachable antennas

Easy Mounting

Magnetic base allows for easy mounting, positioning, and optimal placement of antennas

SPECIFICATIONS

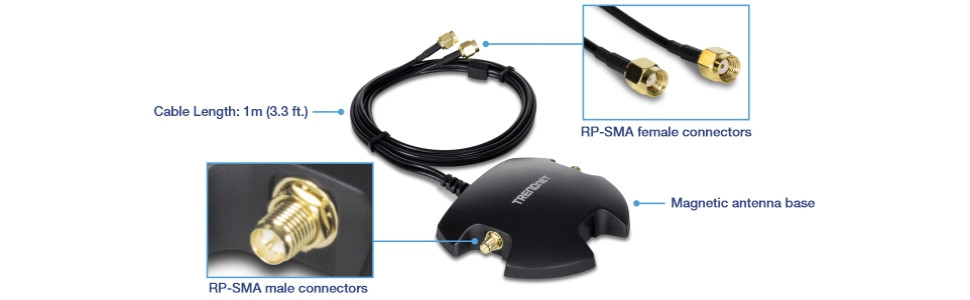

Connector	2 x RP-SMA male connectors (magnetic base) to RP-SMA female connectors (cable)
Cable Length	1m (3.3 ft)
Cable Loss	Max 3dB
Dimension	Base: 91 x 19 x 78mm (3.58 x 0.74 x 3.07 in.) Cable: 1m (3.3ft.)
Weight	Base + Cable: 114g (4 oz.) Base only: 71.1g (2.5 oz.)
Operating Temperature	0° – 55° C (32° – 131° F)
Operating Humidity	Max. 95% non-condensing
Antenna Base	Magnetic antenna base
Warranty	2 years

PACKAGE CONTENTS

TEW-LB101
