Overview

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide ultra-fast speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

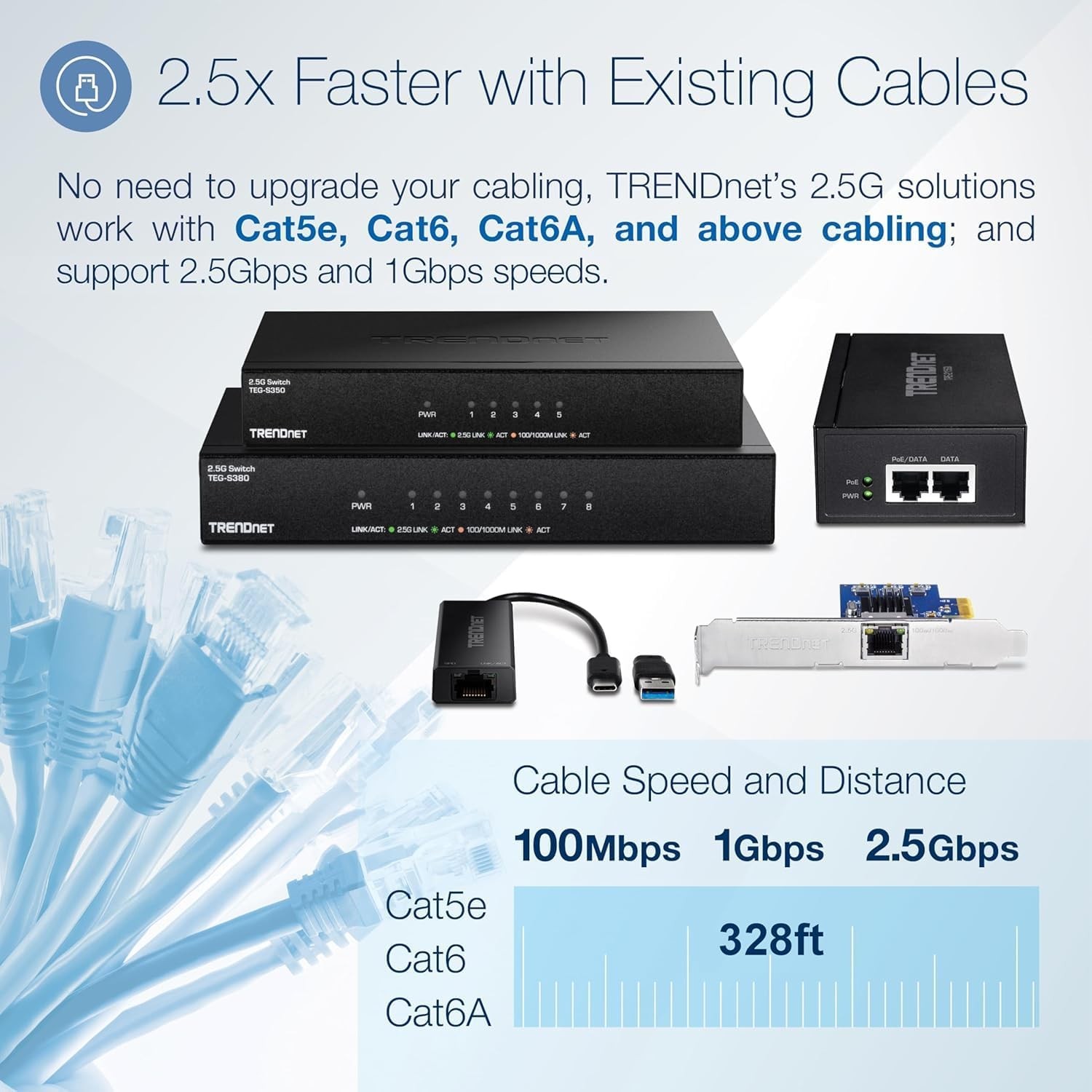

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

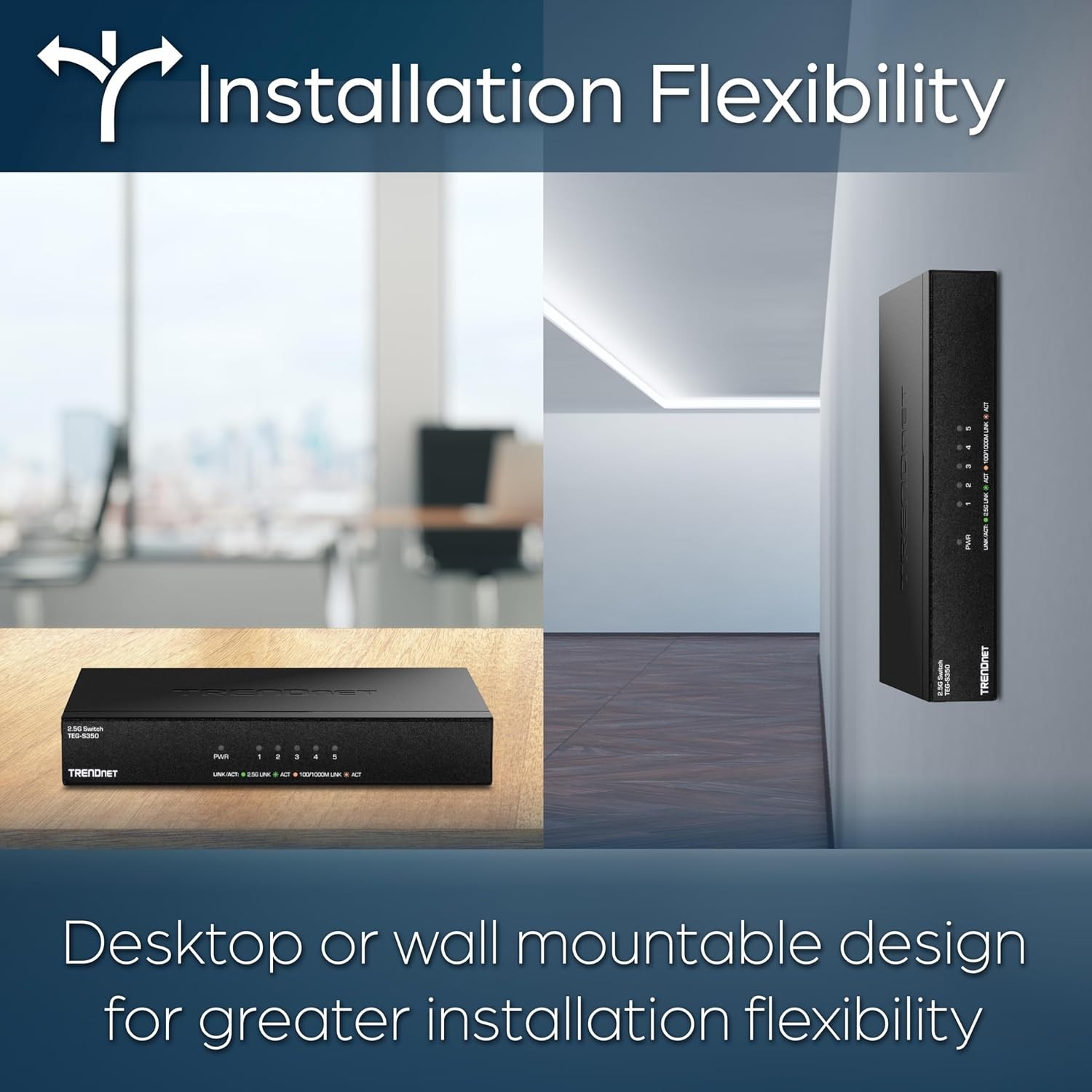

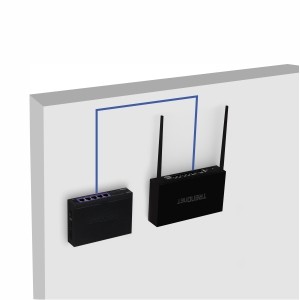

Wall Mountable

The 2.5G switch features a durable metal housing with a convenient wall mountable design for greater installation flexibility.

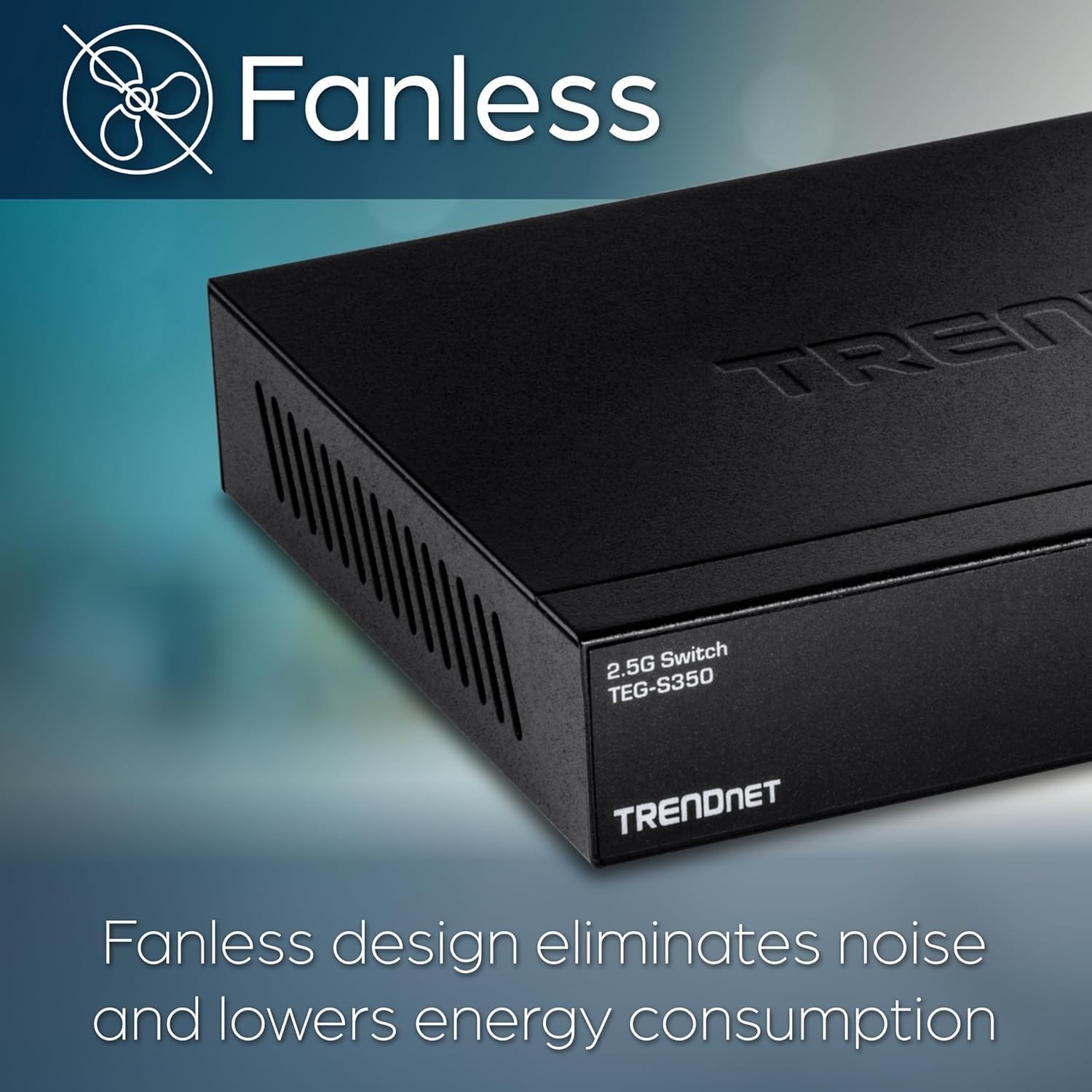

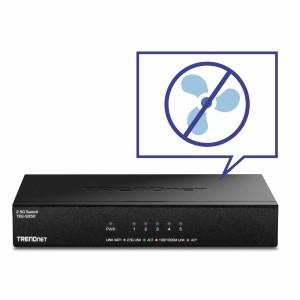

Fanless

The fanless design of the 2.5G switches lowers energy consumption costs and eliminates operating noise

FEATURES

Easy Installation

No configuration needed, simply
connect network devices to the
2.5G Ethernet switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45
ports that provide ultra-fast speeds
capable of up to 2.5Gbps over
existing Cat5e or better cabling

Switching Capacity

25Gbps switching capacity

Fanless

Fanless design lowers energy
consumption and eliminates
operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall
mountable design for greater
installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo
Frames (up to 12KB), for increased
performance

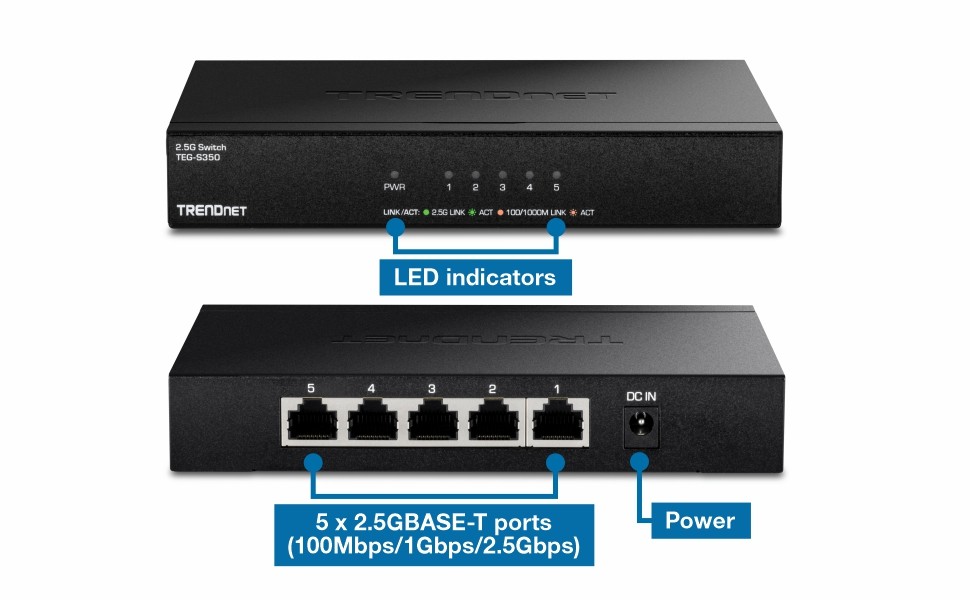

LED Indicators

LED indicators on this 2.5G switch
conveys port status

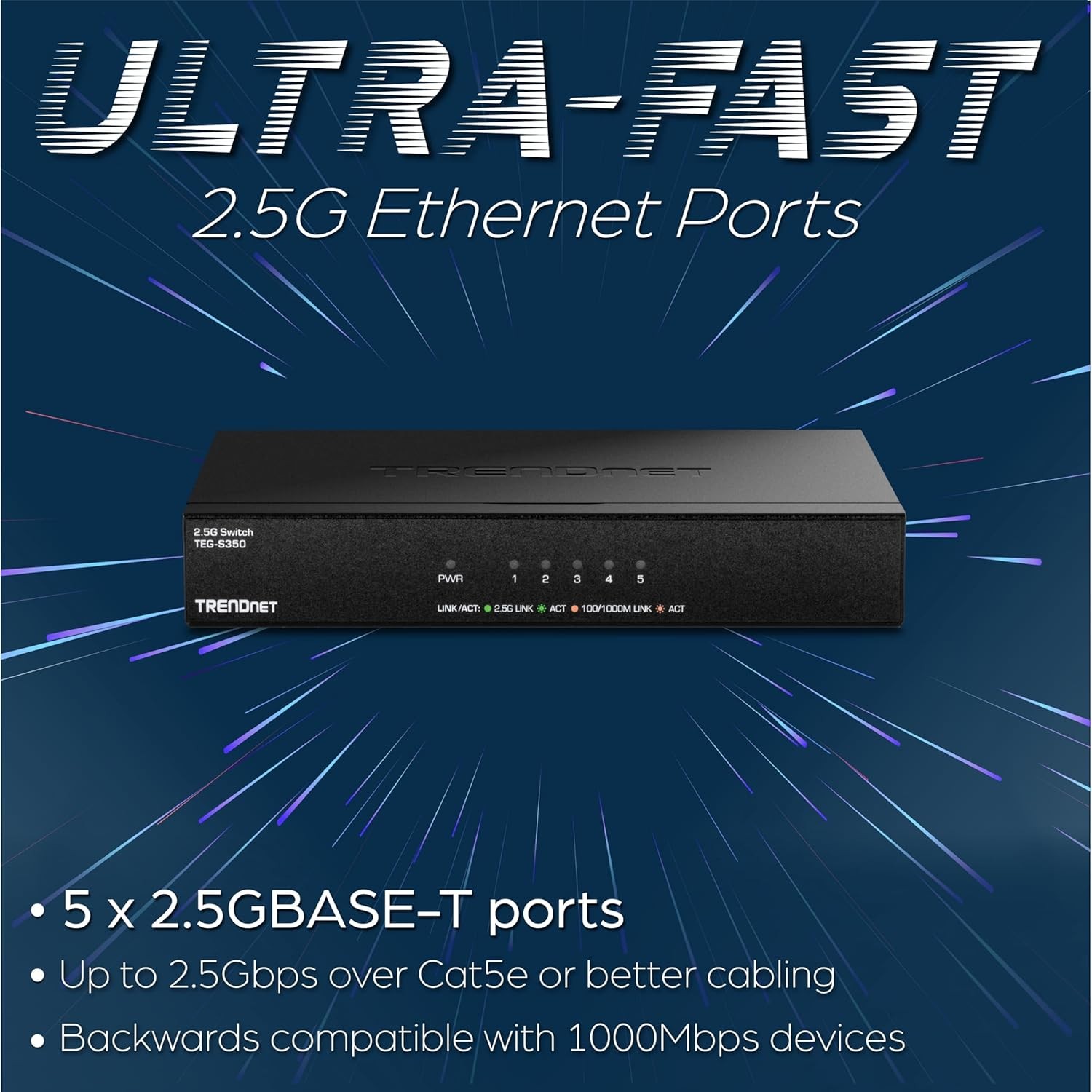

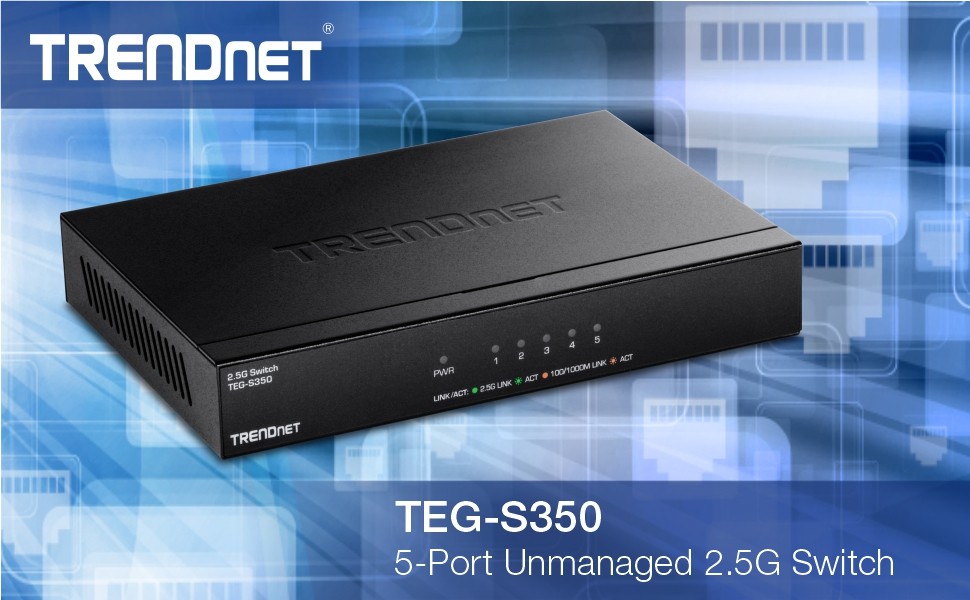

TRENDnet 5-Port Unmanaged 2.5G Switch - TEG-S350

SPECIFICATIONS

Standards	IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3az IEEE 802.3bz
Device Interface	5 x 2.5G RJ-45 ports (1Gbps/2.5Gbps) LED indicators
Data Transfer Rate	Gigabit: 2000Mbps (full duplex) 2.5 Gigabit: 5Gbps (full duplex)
Performance	Switching Capacity: 25Gbps RAM Buffer: 1MB MAC Address Table: 4K entries Forwarding Rate: 18.6Mpps (64-byte packet size) Jumbo Frames: 12KB
Special Features	Wall-Mountable
Power	Input: 100 – 240V AC, 50/60 Hz, 0.5A Output: 12V DC, 1A external power adapter Max. Consumption: 9.5W
Fan/Acoustics	Fanless design
MTBF	674,176 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	159 x 110 x 25mm (6.26 x 4.33 x 0.98 in.)
Weight	362.8g (12.8 oz.)
Certifications	FCC CE

PACKAGE CONTENTS

TEG-S350
Quick Installation Guide
Power adapter (12V DC, 1A)

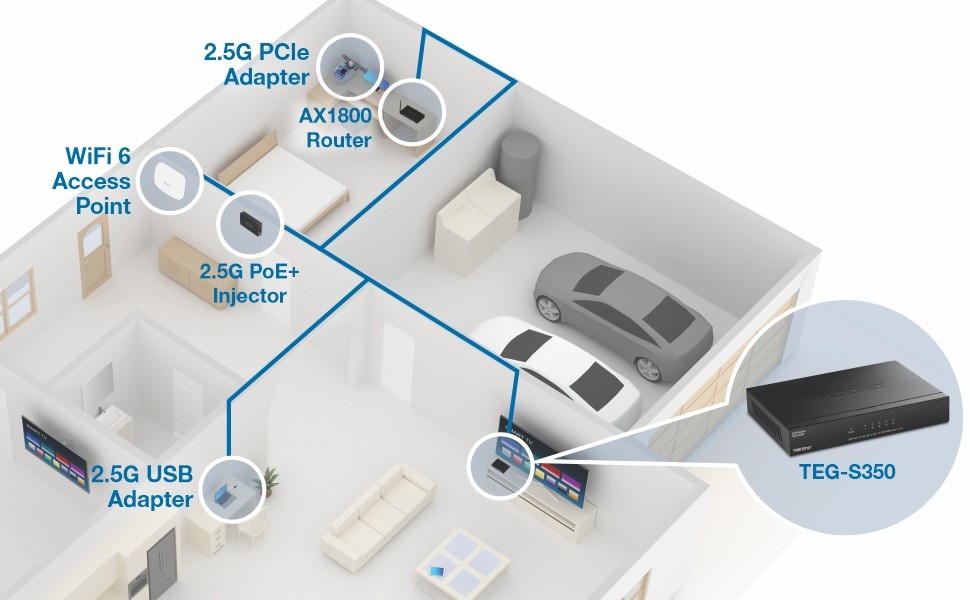

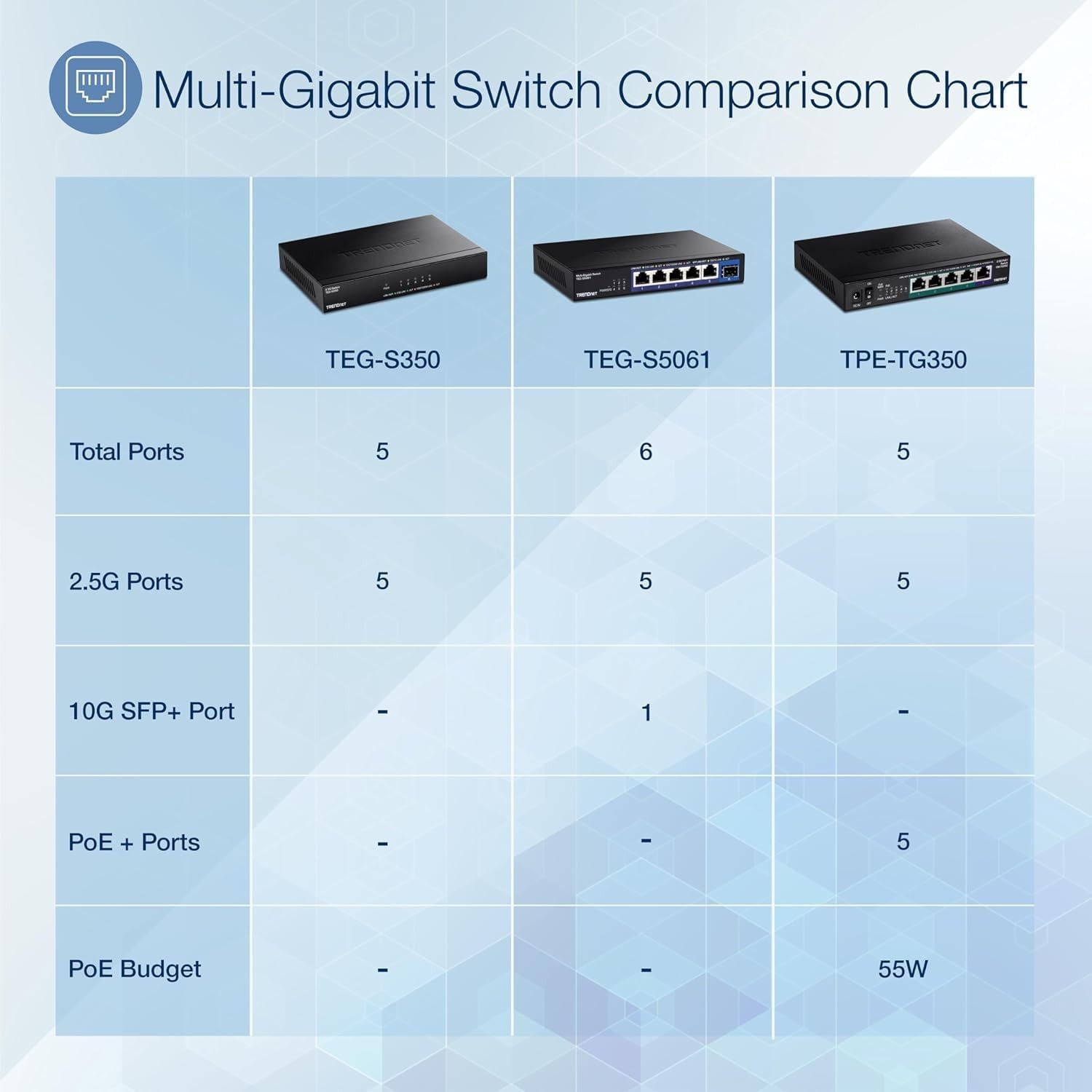

TRENDnet End-to-End Multi-Gigabit Networking Solutions
