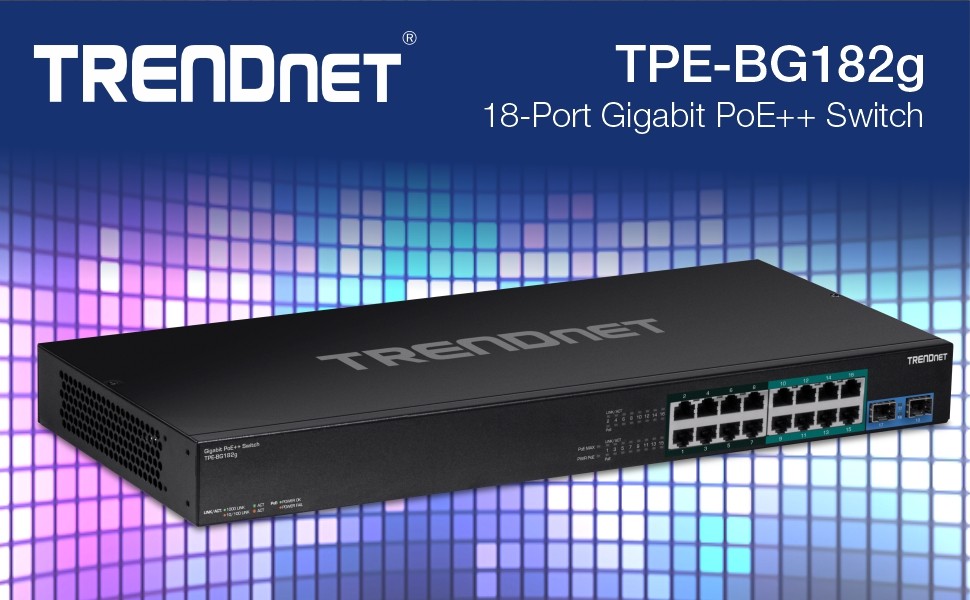

TRENDnet’s 18-Port Gigabit PoE++ Switch, model TPE-BG182g, provides high-bandwidth performance, ease-of-use, and reliability. This IEEE 802.3bt compliant switch features a sturdy 1U 19” rack mountable metal housing with mounting brackets included, and also offers gigabit SFP ports for long-distance fiber networking applications.

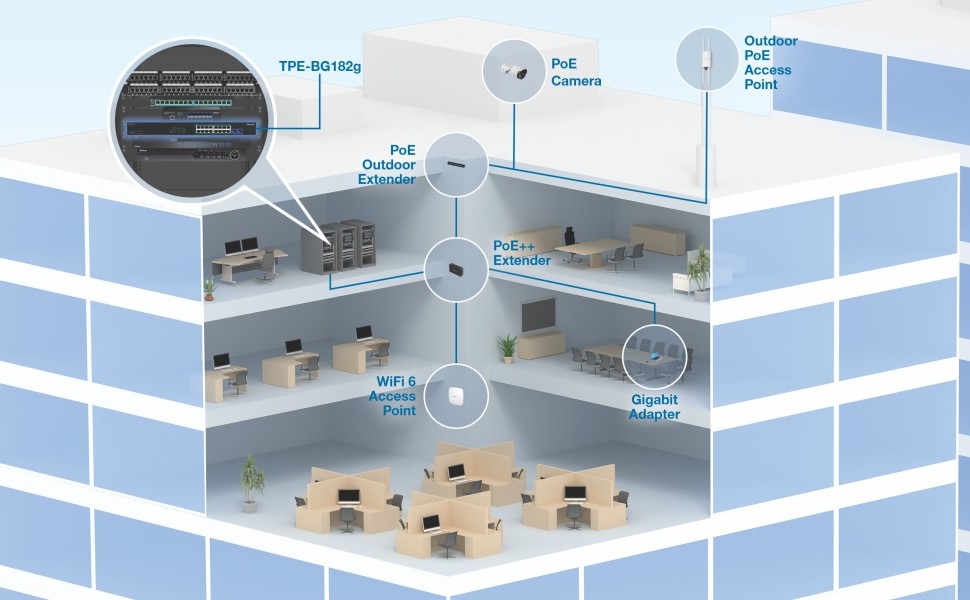

Installers and integrators can save on equipment costs and reduce installation time with this high-power PoE++ switch by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. Easily network PoE devices, such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power PoE++ switch.

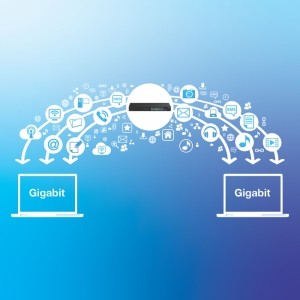

Gigabit Ports

Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP slots for long distance fiber applications.

PoE Power

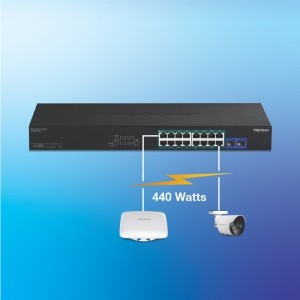

A 440W total PoE power budget on this 802.3bt switch supplies 16 PoE++ devices with up to 95W per port.

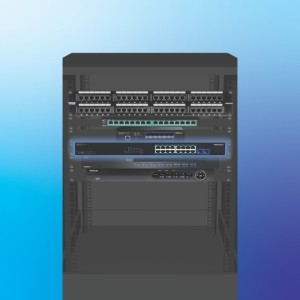

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high-power PoE++ switch is well-suited for 1U 19” rack installations.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high power PoE++ switch is well-suited for 19” 1U rack installations.

PoE Power

A 440W total PoE power budget on this high-power PoE switch supplies 16 PoE++ devices with up to 95W per port

Fast PoE

With Fast PoE, the PoE++ switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up.

Gigabit Ports

Gigabit ports provide a full switching capacity to this high-power PoE++ switch

SFP Ports

SFP ports support long-distance fiber applications

Jumbo Frame

Sends larger packets, or Jumbo Frames (9KB), for increased performance.

Smart Fans

Smart fans save energy by auto-adjusting the fan speed and use based on cooling needs

Internal Power Supply

100-240V AC, 50/60Hz internal universal switching power supply

SPECIFICATIONS

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt

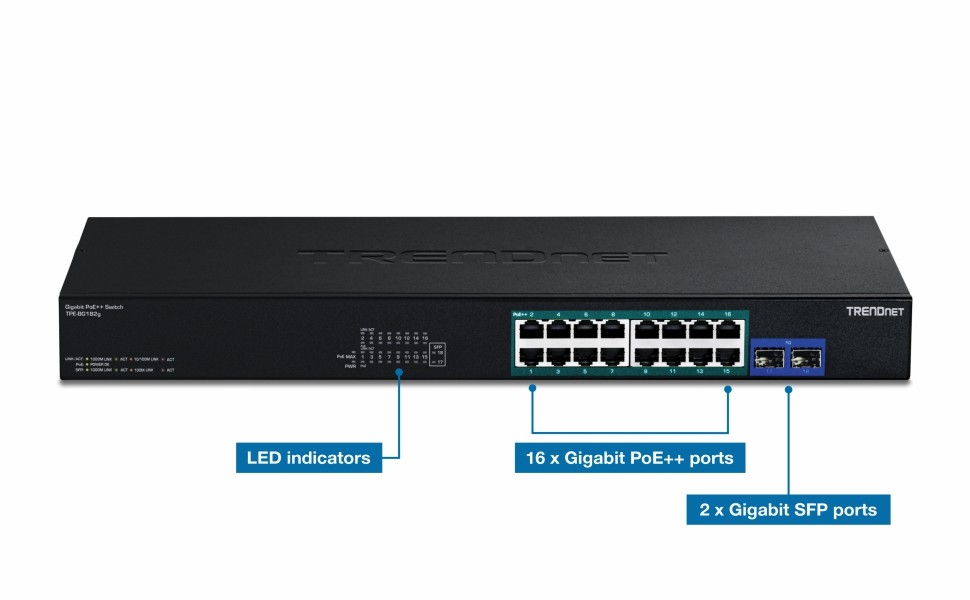

Device Interface	16 x Gigabit PoE++ ports 2 x Gigabit SFP ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2Gbps (full duplex) Fiber: 2Gbps (full duplex)
Performance	Switch Fabric: 36Gbps RAM Buffer: 512KB MAC Address Table: 8K entries Jumbo Frames: 9KB Forwarding Rate: 26.7Mpps (64-byte packet size)
Power	Input: 100-240V AC, 50/60Hz, 6.5A internal power supply Max. consumption: 458W Max. consumption: 10W (no PD)
PoE	PoE++ up to 95W PoE budget: 440W Pins 3, 4, 5, 6 + ; 1, 2, 7, 8 -
Fan/Acoustics	Quantity: 2 Smart Fans Noise Level: 58.7 dB (max.)
MTBF	615,428 hours @ 25°C
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 196 x 44mm (17.3 x 7.7 x 1.7 in.)
Weight	3kg (6.7 lbs.)
Certifications	CE FCC LVD ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-BG182g
Quick Installation Guide
Rackmount kit
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
