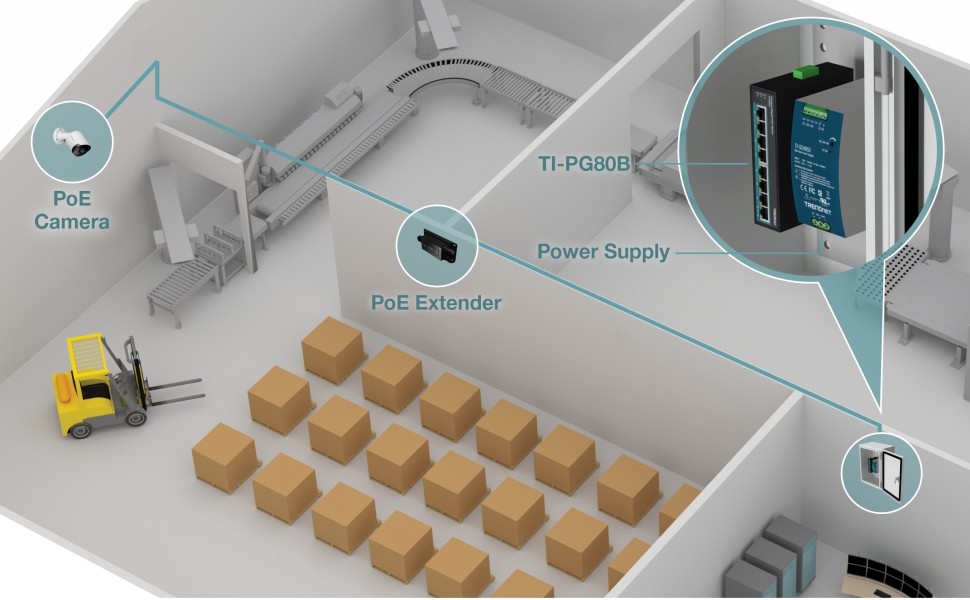

TRENDnet’s 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.

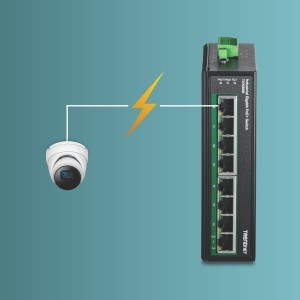

PoE Power

The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.

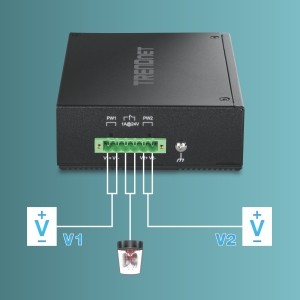

Fault Tolerance

The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.

Industrial Design

Equipped with a rugged IP50 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

PoE+ Power

Supplies up to 30W of PoE+ power per port on the industrial variable voltage switch with a 200W PoE power budget

Network Ports

8 x Gigabit PoE+ ports

DIN-Rail/Wall Mounts

DIN-Rail and wall mount hardware included

IP50 Rated Housing

IP50 dust-protected metal enclosure

Switching Capacity

16Gbps switching capacity

Redundant Power

Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies sold separately, models: TI-S24052, TI-S15052)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

Extreme Operating Temperature

Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at

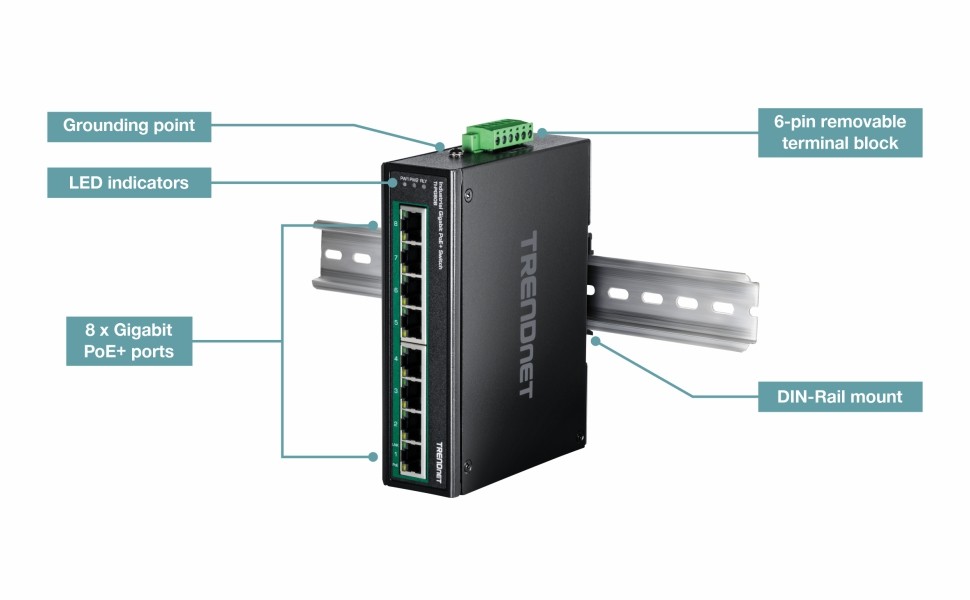

Device Interface	8 x Gigabit PoE+ ports 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 128KB Switching Fabric: 16Gbps MAC Address Table: 4K entries Jumbo Frame: 9KB Forwarding rate: 11.9Mpps (64-byte packet size)
DC Power	Input: 24 – 56V DC Compatible power supply: TI-S24052 or TI-S15052 (sold separately) Max. consumption: 5W (no PoE) Max. consumption: 135.6W (with PoE)
PoE	Max. power budget: 200W @56V DC Max. power budget: 120W @24V DC
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm2 to 2.5mm2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	513,100 hours
Housing	IP50 metal case DIN-Rail mount Wall mount Grounding point
Operating Temperature	-40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	142 x 105 x 39.5mm (5.6 x 4.1 x 1.56 in.)
Weight	610g (1.34 lb.)
Certifications	CE FCC LVD Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG80B
Removable terminal block
DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

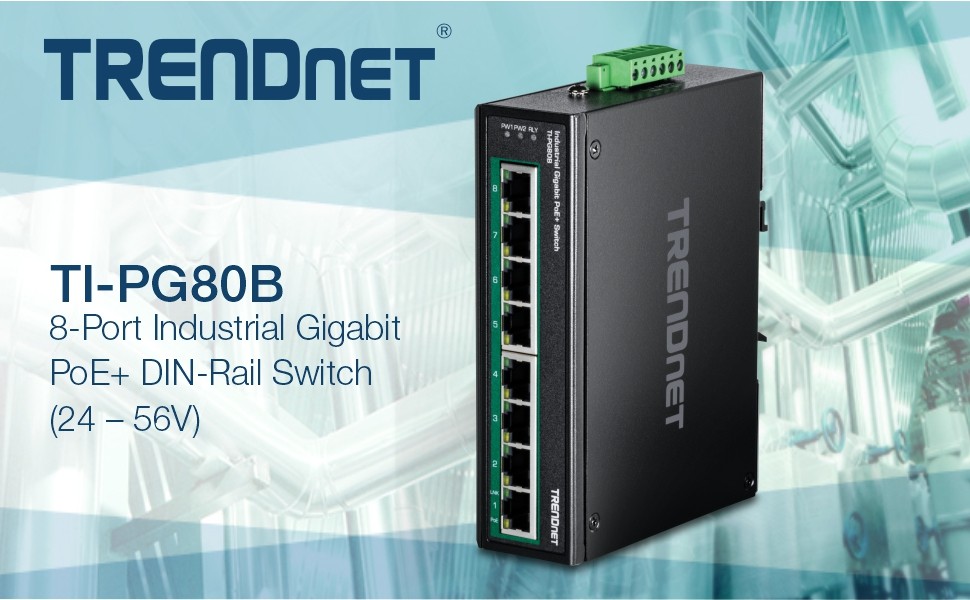

8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 – 56V)

8 x Gigabit PoE+ ports
PoE power budget 120W@24V – 200W@56V
Dual 24 – 56V DC power inputs for redundancy
Hardened IP50 rated metal switch
Operating temperature range of -40° – 75° C (-40° – 167° F)
16Gbps switching capacity
Includes DIN-Rail and wall mounts
Power supply sold separately (models: TI-S24052, TI-S15052)
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

TRENDnet hardened industrial switches

Hardened industrial switches are designed for use in the harshest networking environments. TRENDnet's rugged industrial switches offer a wide operating temperature range, and protection against both vibration and shock, and ESD, EMI, and surge. Industrial switches also conveniently feature alarm output triggered by power failure, and dual redundant power inputs with overload current protection. Industrial switches require an industrial power supply, and are often installed inside an outdoor-rated enclosure.

TRENDnet's industrial switch family includes unmanaged, web smart, and layer 2 managed/L2+ switch classes. Industrial switches are available with SFP slots, standard or PoE models, and DIN-Rail and/or wall mount options. TRENDnet's variable voltage switches allow users to adjust voltage to meet different PoE power requirements.
